The result of years of research and experience in the field of pad printing, this machine is able to print from 1 to 5 colours. Computerised electronic control with 4 axes, movements by means of motors and ball screws. Independent horizontal strokes of pads and sealed ink cups (or open plate-holding inktray) and vertical strokes of pads and piece-holder axes. The machine is designed for a wide variety of accessories giving very great control and for maximum printing precision, also over time. High productivity.
Features
- The machine structure is in electric-welded steel, enamelled and normalised to avoid deformation and vibration. Oven-enamelled with dual component paints.
- Machine movements and regulation are numerically controlled, using a touch keypad, easy to learn and simple to use. The operations are displayed on a backlighted LCD.
- The keypad in solvent-resistant material is mounted on a mobile arm for easy use.
- Capacity to store up to 30 work programs.
- Ability to program vertical axis height above the plate.
- Checks of machine controls via modem from our factory.
- The machine complies with Machinery Directives EEC/89/392 & EEC/89/336.
|
|
|
|
|
|
4-color pad printing machine with Conveyer
Specifications©U
SPM4-150/16G Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100¡Á150mm£»
2.Max Printing area: 85¡Á130mm;
3.Max. worktable area: 90¡Á125mm£»
4.Max. printing speed: 1200pcs/h£»
5.Printable colours:4£»
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.
SPM4-200/16G Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100¡Á200mm£»
2.Max Printing area: 85¡Á170mm;
3.Max. worktable area: 90¡Á125mm£»
4.Max. printing speed: 1200pcs/h£»
5.Printable colours:4£»
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.
SPM4-250/16G Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100¡Á250mm£»
2.Max Printing area: 85¡Á220mm;
3.Max. worktable area: 90¡Á125mm£»
4.Max. printing speed: 1200pcs/h£»
5.Printable colours:4£»
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.
Advantages©U
1.Total microcomputer controlled operation;
2.Auto four digit counter built-in;
3.Ink covering by ink roller ;
4.Fully coin aluminum structure which is sturdy and long life
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get thicker ink covering;
Machine Fittings©U
1. Four Pad plates,
2. Four pads
3. Two blades
4. A tool box.
|
|
Serie LOGICA is a range of machinery studied and realized to simplify the pad printing process.
Their technological contents, as the CN electric operation, make these machines versatile and useful for any needs.
Serie LOGICA is splitted in 2 lines dedicated to different exigencies:
HIGHSPEED LINE main characteristics are high working cycles on small/medium size objects and an easy setting to be transformed in a real pad printing plant.
With HIGHSPEED LINE, TOSH improves the pad printing application opportunity even on applications where pad printing was excluded by machines technical limits.
FLEXIBLE LINE, developed for multicolour print on medium/big size objects (till 10 in a single cycle), distinguish itself with a great operative flexibility that mix very fast production changes with high production cadences.
|
|
|
|
|
|
Price Terms©U FOB GuangZhou
Payment Terms©U T/T.LC
Packing©U Wooden case
Lead Time©U Within 7 days
Standards Certificate©U ISO9001-2000
Power Supply©U 110/220v 60/50Hz 1£Phase
Colour Painted ©U Green
Specifications©U 1.Max. plate size: 200x450mm;
2.Max. worktable area: 520x220mm;
3.Max. Stroke of working table:200mm;
4.Max. printing speed: 800pcs/hr;
5.Air consumption: 225L/min(6bar);
6.Dimensions: 1231x850x1359mm;
7.Weight: 250Kg; .
Advantages©U 1. Microprocessor control for each function makes operation easy;
2.4-Digit auto counter built-in;
3. Coin aluminium structure ensures sturdiness;
4.Ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry;
Machine Fittings©U 1. large steel plate one pcs;
2. Fxiture for computer keyboard;
3. Combination pad for computer keyboard.
This Model is designed especailly for printing keyboard of computer£» we will make expert computer keyboard fixture, combination pad, Pad plate according to different size of keyboard as per customers requirements.
|
|
Junior 90
This machine has been designed for print sizes from 80 mm, with 90 mm Øeter sealed ink cup, one colour, for bench use or with base. Up to 7 electronically controlled speeds; with microprocessor-controlled pneumatic movement, manually adjustable vertical stroke. High productivity.
|
|
The market demands more and more compact and flexible designs for automations and system solutions. For machines with high hourly outputs the camera inspection of good and bad parts has become a standard feature in the meantime; additional processes such as assembly or checking have to be integrated. It is, however, necessary that semi-automatic machines for smaller but often changing series can be retrofit within a very short period of time.
High-speed pad printing machine as a symbiosis of machine construction and application engineering by TAMPOPRINT® AG. As a leading turn-key supplier TAMPOPRINT is able to implement customer URS (User Requirement Specifications) into special machinery.
|
|
|
|
|
|
6-color pad printer with conveyer
Specifications©U
SPM6-150/18T
1.Max. plate size: 100¡Á300mm
2.Max. worktable area: 70x100mm
3.Sealed cup diameter: ¦µ90mm
4.Max. printing speed: 600pcs/h
5.Printable colours:6
6.Max print area: 80mm¡Á130mm;
7.Station number: 18pcs
8. Max Products Dimension: 120¡Á230mm.
9. Table stroke: 125mm
SPM6-150/22LT
1.Max. plate size: 150¡Á350mm
2.Max. worktable area: 70x100mm
3.Sealed cup diameter: ¦µ140mm
4.Max. printing speed: 600pcs/h
5.Printable colours:6
6.Max print area: 130mm¡Á130mm;
7.Station number: 22pcs;
8.Max Products Dimension: 190¡Á230mm;
9.Table Stroke: 200mm.
Advantages©U
1. Six color printing with conveyer;
2. Microprocessor control with numerical display leads to easy operation;
3. Automatic 5-digit counter installed;
4. With aluminum alloy frame, the machine is light and sturdy ;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating environment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9. Sweeps forward and backward without pad falling down, to prevent ink drying;
10.6-color, 3-color, 2-color, 1-color printing available,
11.The ink cup can be independently adjusted for overprint;
11.With air jet for fast drying;
Machine Fittings©U
1. Six plates,
2. Six pads
3. Six sealed cups
4. One tool box.
|
|
There is a clear trend towards automations, and additionally beside of the successful standards even to customized system solutions for the special demands of our customers from all over the world. The export share is over 60%. High-precision marking, often combined with the European hygiene standards as it is often the case in the pharmaceutical supply industry, are the key tasks for the tampon printing at TAMPOPRINT AG.
The ALFALAS laser systems are a complement to the tampon printing and one cannot imagine the modern marking processes without them. Whether day and night design in the automotive or telecommunication industries, wood grain design or marking of spare parts. There are often machine lines which represent a symbiosis of both marking technologies.
The perishability of the modern industrial design and individually adapted workpieces require a just-in-time production with a low number of pieces and this will well accommodate the laser marking.
|
|
Sealed Ink Cup 60
- High-quality tampon printing machine at a favourable price
- Suitable for automations thanks to PLC
- Different sequence cycles adjustable
- Ink residue pick up system available
With the new "Sealed Ink Cup 60 E" we have succeeded in creating a modern and a technically high-quality electropneumatic tampon printing machine. Based on the previous version "Sealed Ink Cup 60" an electrically driven tampon printing machine with many advantages such as double and triple print or piece counter was developed. Whether as a hand-work place or as a component of an automation, the "Sealed Ink Cup 60 E" can be used almost everywhere.
|
|
|
|
|
|

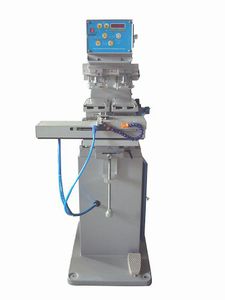

Two colours pad printer with conveyer
Specifications©U
PM2-100TG Pad printer
1.Max. plate size: 100¡Á200 mm;
2.Max. worktable area: 100x120mm;
3.Ink Cup diameter: ¦µ90mm;
4.Max. printing speed: 1000pcs/hr;
5.Printable colour :2;
6.Max printing area: 80¡Á80mm.
PM2-150TG Pad prionter
1.Max. plate size: 100¡Á250mm;
2.Max. worktable area: 130x140mm;
3.Cup diameter: ¦µ90mm;
4.Max. printing speed: 900pcs/hr;
5.Printable colors:2;
6.Max printing area: 85¡Á130mm.
PM2-200TG Pad printer
1.Max. plate size: 100¡Á300mm
2.Max. worktable area: 140¡Á180mm;
3.Cup diameter: 90mm;
4.Max. printing speed: 800pcs/hr;
5.Printable colors:2;
6.Max printing area: 85¡Á170mm.
PM2-250TG Pad printer
1.Max. plate size: 150¡Á350mm
2.Max. worktable area: 140¡Á180mm;
3.Cup diameter: 140mm;
4.Max. printing speed: 800pcs/hr;
5.Printable colors:2;
6.Max printing area: 130¡Á220mm.
Advantages©U
1. Double color printing, shuttle driven;
2. Microprocessor control;
3. Automatic 5-digit counter installed.
4. With coin aluminium structure frame, the machine is light and sturdy. .
5. The speed and the vertical stroke of the pad can be adjusted independently.
6. The extra function "twice inking, once printing" is designed for thicker ink film.
7. For different requirements, the working speed can be adjusted.
8. Sweeps forward and backward without pad falling down to prevent ink drying.
9. 2-color, 1-color printing available,
10.With air jet for fast drying.
11. Sealed cup to store and coating ink.
Machine Fittings©U
1. Two pcs plates,
2. Two pads
3. Two blades
4. One set tool box.
|
|
|
|
|
|
The remit for the construction of the ‘Rotoprint’ model was a compact design while still achieving a high output.
The concept allows an output of up to 100,000 or 150,000 units/hour for closures with a 28 mm diameter, depending on the settings.
For closures with a 38 mm diameter, the machine achieves an output of approximately 75,000 or 110,000 units/hour.
The ‘Rotoprint’ can be set up for print images with 1–3 colours.
With all variants, parts are fed using the well proven sorting elevator, eliminating the need for unnecessary machine stops due to closures being the wrong way round. The storage reservoir of the sorting elevator can be filled on request using the Octabin tilting stations.
The system is fitted with exchangeable mandrels. This guarantees a quick and economical process changeover on the system when printing several cap types.
The ‘RTI 2000’ printing unit is operated without the use of any tools and requires no external ink supply systems. This dramatically reduces set-up times and ensures trouble-free operation. Gas is used in the process of end drying. This guarantees that the ink dries quickly and assists ink adhesion.
The products are discharged in correct position on a cold-air drying conveyor.
|
|
MORLOCK has implemented the customer requirements with the help
of an extrusion type round table unit (carousel) and 14 exchangeable work piece holders. 2 very fast and easily adjustable MSC 100 printing modules, each with its own hot air dryers, have been integrated in this carousel. The
blister wrap is pasted over with a label by a 5-axial articulated arm robot, which picks up a label from a magazine, moves to a hot pasting station and then positions the label.
|
|
The ball printing machine ATLAS is designed for the decoration of PVC toy-balls over 360° with different sizes ranging from Ø ±110 mm (Ø ±4,3") up to Ø ±250 mm (Ø ±10").
The output is about 500 balls per hour. Both hemispheres of the balls are printed sequentially by different print heads.
Note that the mentioned printing speed depends on a lot of parameters and are to be considered as an indication. This output refers to the largest ball format.
In principle the number of printing stations is unlimited but experience tells us that the maximum possible is 12, equal to 6 (= 4 + 2) colours at each hemisphere. The installation is designed to achieve an unequalled print quality.
|
|
The ORION is designed to decorate Ø 28 mm bottle caps. Nevertheless, the concept is also suitable for other bottle cap sizes and/or cap shapes.
The standard caps of Ø 28 mm will have a max. output of ± 70 000 caps per hour in full colour. Each colour has its separate printing station and is designed to achieve an unequalled print quality. A varnish layer printing station can also be built in.
The main features of the ORION are fully automatic loading and ejection, surface pre-treatment, drying stations between the UV-printing stations.
|
|
This is one of the latest developments in the field of decoration on glass, china and ceramics (glazed and/or non-glazed) built for printing large series with a diameter up to 320 mm.
The GALAXY is a fully automatic printing machine, with conveyor & loading, optical recognition and positioning of the objects, backstamp unit, heated and closed ink cup(s), automatic ejection, automatic colour registration, up to 12-colour printing and automatic take-up of the decoration. Changing over between series happens very quick and easy.
Thanks to the concept delivering a perfect registration and to use of thermoplastic ink, this printing machine reaches a resolution of 200 lpi.
|
|
|
|
|
|
Unique direct printing technology with solvent, UV or water-based inks designed for small, medium and large series. This modular machine is extensible from 1 up to any number of colours with varnish.
Applications:
- Printing on soft or hard PVC or ABS profiles or sheets with minimal thickness of 1 mm and standard maximum printing width of 540 mm
- Image repetition of 746 mm (decor cylinder with diameter of 237,5 mm)
- Machine can be placed in-line into the production process directly after extrusion or be operated as stand-alone to print onto profiles, sheets or edges of any length
Quality:
- Complex designs possible like marble or wood structure imitation
- Output speed ranges from 5 to 30 m/minute
- Highly scratch, UV and weather resistance of the prints (inside and outside use)
- User-friendly and flexible operation resulting in quick design changeover (patented)
Features:
- Engraved design cylinder based on sleeve technology (patented)
- Closed inking chamber (patented)
- Rubber transfer cylinder based on sleeve technology (patented)
- Integrated cleaning of the transfer cylinder (patented)
- Accurate design regeneration using synchronised print heads
- Optional external speed control (following the production line)
|
|
|
|
|
|
PAD PRINTING MACHINE GTO EVOLUTION 5 COLOURS MAXI WITH DISERFIED DESCENT
- Supporting frame completely in aluminium casting
- Electro-pneumatic operation
- Equipped with 5 closed ink cups, Ø 110 mm. with internal and external teflon coating to reduce the cleaning operations and times
- Type block size 300x125 mm.
- Max printing area 100x90 mm.
- Bed in painted sheet, included
- Programs with 1-2-3-4-5 colours
- Equipped by, individual pad Dow stroke every cylinder
- Double colour intake program included
- Speed/pause adjustment through keyboard
- Electronic piece shifting unit, programmable through the external keyboard
- Type block holding bed adjustable on two axis
- Pad down stroke adjustment through keyboard with on-screen display
- Piece counter with displaying of hour average production rates
- Sliding side guards
- Decibel noise level reduction filters
- Piece holder, adjustable on the three axis, complete with oscillating adjustment to facilitate the printing on objects
- With diagonal level
- 220 Volt
- 6 Bar
|
|
|
|
|
|
ROTOTAK 5
The rotary 1-colour pad printing system used to print shaped heels or monoblock soles in one colour to obtain a leather effect, floral decorations or other effects. System description:
Pad printing machine GTO EVO
Type block dimensions: max 600x200 mm.
Adjustable stroke on two sides.
Electro-pneumatic operation.
Max. printing dimensions: 150x300 mm.
Hermetically sealed inking system with ceramic ring Ø 180 mm.
1 standard cup.
Structure: cast in aluminium alloy
Standard columns on enclosed bearing structure.
Heel handling system:
Handling system of the heel made up of 5 NC interpolated axis system. The 1st axis makes the linear movement of the piece, a 2nd axis turns the piece under the pad simultaneously and in a synchronised manner, the 3rd axis raises and lowers the piece to adapt to the shape of the heel in order to avoid straining the pad excessively. The 4th axis tilts the piece to adapt to the last print, given by the second pad unit. Finally the 5th axis turns around the vertical axis.
The heels are manually positioned by the operator in a blocking device made up of nr. 2 relief and shaped jaws that perfectly grasp the items.
Automatic piece discharger.
Software:
Customised with settings made using a keyboard and through self-learning function.
Possibility to save the operational data on disk for one colour for each model.
Safety systems:
Installed on the actual machine in compliance with current norms, plus EC declaration of conformity.
Page 2
Hourly production: Roughly 400 pcs/hour with women and men heels, 200 pcs/hour with monoblock soles.
|
|
|
|
|
|
Aero 60 Single-Color Pad Printer
The Aero 60 from Trans Tech is an electro-pneumatically driven, table-top pad printer that hits the target for operations seeking a machine with high value performance on lower-volume, single-color applications. The design and operating features make this an ideal choice for manual jobs where quick changeovers of artwork and fixture are required. It comes equipped with our patented SpaceFrame and ExpressLiner system.
Main Features & Benefits:
Compact, efficient profile: Its minimal footprint and lightweight profile make the Aero 60 an easy unit to install, move, and ship. It can be easily mounted to any stable base or workbench or relocated for an alternate application.
Modular control and machine design: With the simplicity of its modular design, plug-and-play accessories make the Aero 60 both functional and flexible. Plus, with its standard interface control, it can easily be configured into multi-printer systems.
SpaceFrame and ExpressLiner advantages: Designed to use the popular SpaceFrame & ExpressLiner ink cup system, operating the Aero 60 improves production efficiency by enabling faster set-ups and changeovers on multiple short-run pad printing jobs.
|
|
There are six models in our line of Printex G2 pad printing machines. Although each model is separated by size and multifunctional capabilities, they are united by a common design criterion that bring advanced and practical advantages to the end user.
Our modular concept incorporates built in mechanical; electrical; and control interface features which enables every model G2 printer ready to mate with automation (yours our ours).
By using an array of optional “plug and play” devices such as our pneumatic or servo actuated slides, motor driven turn tables, carousel or over/under indexers, as well as transverse ink cup drive devices, the user can easily transform a G2 printer to meet different printing situations and requirements.
Six years since its introduction, the G2 “modular concept” has been a proven success, from concept to application, this is what separates G2 from the competition.
|
|
Suitable for non-deforming materials especially for uneven printing surface, such as computer keys, stationery, golf ball, etc.
Specification
1. Micro-computer control, with single/automatic operation, printing quantity / printing & flooding
times setting, light/beeper indication.
2. X / Y table left-right & up-down adjustment
3. Tampon pad / Doctor blade pressure adjustment.
|
|
|
On the basis of the proverbial MORLOCK reliability, the objective was to design a flexible and high-performance pad printing machine that is extremely easy and uncomplicated to operate. This resulted in MDX 100, a machine type that soon became a "favourite" amongst its users.
|
|
Pad printing is an indirect gravure printing process. The copy or image is etched into a steel plate called a cliche. The cliche is inked and then cleaned with a doctor blade. This leaves the ink in the etched areas only. A flexible silicone pad picks up the image from the cliche and then transfers the image to the product.THIS SYSTEM is adaptable to a variety of shapes and contours on parts with a variation in the surface, yet fine detail and precise copy can be achieved. Two color process is obtained with exact registration. Pad Printing is ideal for decorating toys, plastic housewares, and injected mold components.
This technology also lends itself to marking electronic components such as resistors, canisters, and connectors. Any part, plastic, ceramic, or metal can be production marked by this process. The equipment can be semi or fully automated, yet remains a low capital expenditure.
|
|
|
|
|
|

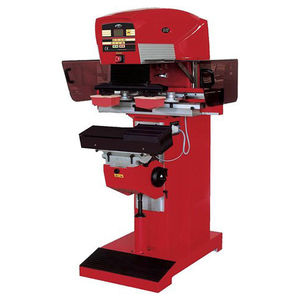

No. 1 ROTOTAK 1 EVO MODEL
Pad-printing machine used to decorate women%u2019s heels with angle open on two sides, front and back, with two strokes for leather, cork and other desired effects.
System description:
- Machine structure cast in aluminium alloy, base included;
- Equipped with No. 2 closed ink cups with 110mm-diameter ceramic ring; the cups are internally and externally coated with Teflon to facilitate the cleaning operations;
- Printing plate dimension for colour 120x450mm.;
- Max. printing dimension 200x90 mm.;
- Control keyboard;
- Electronic and differentiated adjustment for the two pads in printing phase carried out directly through the keyboard with values displayed;
- Printing pause and pick-up pause differentiated adjustment;
- Speed adjustment of each movement by means of flow regulators;
- Printing plates micrometric adjustment on the two axis and diagonal adjustment to obtain a quick centring;
- Heel-holder unit adjustment on the 4 axis, including the oscillating one;
- Possibility to use the machine in single or automatic cycle.
Hourly production: is estimated at 400/500 pieces/hour.
|
|

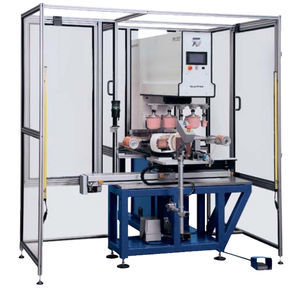

Automated Equipment
Various types and sizes of syringe barrels are decorated at high speed and with precision using fully automated rotary pad printing systems.
|
|
Reisch & Associates is the place to look for pad printing equipment and technology.
Pad printers from full-size to tabletop machines, supplies and technical support, Reisch leads the way. We also offer a full line of inks, accessories, machines, equipment and printing pads of almost every imaginable shape and size.
Fully automatic pad printing system for printing on semiconductor strips
pad printing system on IC-strips
|
|

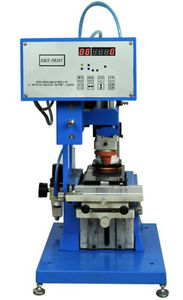

PAD PRINTING MACHINE GTO COLIBRI’ EVO
A structure entirely in aluminum alloy. Electro-pneumatic operation. Control panel with pieces-counter, automatic cycle program with introducible pauses, displays with self-diagnosis. Double-ink-loading program (this function enable a greater cover on the printing area), speed control of single movement through flow controls. This machine is the best choice to print small objects in 1 color. Technical Sheet:
Printing color 1
Steel plate size 100 x 165 mm
Max printing area 60 x 60 mm
Closed ink tray Ø 70mm
Print speed 3000 cycles./hr
Maximum print thrust 400 N
Power 220 volt
Air pressure supply
6 bar
Dimension 54 x 46 x 24 cm.
|
|
APL MPP-1 (Manual Pad Printing Machine)
- All operations are by one Handle.
- High quality Printing.
- Easy setting and operations.
- Any type of object can be print.
- High output
- No Power and Air Compressor required
- Very low investment
- Suitable for in house and Job work printing
- Max. print area 75mm x 75mm
- Special size can be made on order
APL MPP 1 is a Manual Pad Printing Machine. This machine is operated with one handle, so many type of Jobs can print on this machine like Electronic, Auto, Electrical, Glass, Ceramics, Wood, Metal , Gift, Novelties, Pens, Rubber etc. The main advantage of this machine is it can print up to 800 impression per hour (Depend the size of jobs), And it is manually operate, No electric and air consumption required and easily carry to another place.
|
|
Pad Printers designed for production, business, or home are easy to learn, operate, and achieve perfectly registered repeat prints on almost any surface, article, or product, using fast drying inks - 10 to 20 seconds drying time. Printers are supplied with Magnetic Printing Plate Holder, Blades, Pads, Inks, basic accessories and full Instruction Material.
Plastic, Metal, Glass, Ceramic, Wood, Paper, Card, Fabric, Cotton.
Articles of all kinds and shapes can be printed or decorated using a RElSCH Automatic, Semi-automatic or Manual Pad Printer - Novelties, Souvenirs, Promotional Products, Leather and Wood Products, Advertising articles - Cigarette Lighters, Pencils, Pens, Give-aways, Metal & Plastic items, unusual and odd shapes such as Golf balls, Wine glasses, an EGG, a WALNUT or even a polished round stone paperweight!
|
|
|
|
