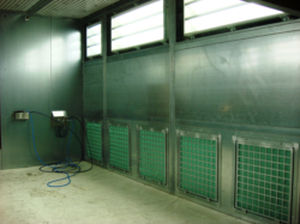

STIVENT Industry offers presents its new automated spray booth
Standard and made-to-measure
1 - Comprising 4 fluorescent neons
2 - This automated spray booth has a safety solenoid valve authorising compressed air only if the fan is in operation
3 - Folded card with filtration media
4 - With its 3kW fan, this booth has a speed of 11,000m3/h.
5 - The upper section is adjustable
The automated spray booth is available as 3 types : 3000 x 2000 x 2200.
|
|
Insulated Booths

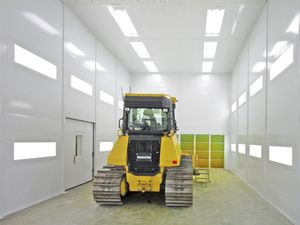

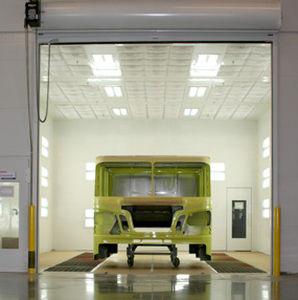

Downdrarft Spray Booths for Truck and Large Equipment Finishing
Truck and Large Equipment spray booths are designed, engineered and manufactured to meet the needs of the transit, recreation, agriculture, construction, large equipment, and trucking industry. They are also ideal for commercial vehicles like large vans, similar to the Dodge Sprinter line of vehicles.
Global Finishing Solutions paintbooths provide a safe and efficient working environment for your finishing operation along with the latest technology.
Standard Features:
- Downdraft airflow
- Precise temperature most fuel efficient
- Air flow management
- Contamination control
- Multi-filtered air
- High production environment
- Recirculating cure or forced air cure available
- Pre-coated booth finish
- 30% more illumination
- High quality finishes
- T-8 color corrected tubes
|
|
Features
3.000 m3/h per cell (standard 1 X 1).
10 models by assembly of cells: 3.000 to 30.000 m3/h.
Printing works, local painting (painting with solvents).
Filtration of gases, vapor, c.o.v.
|
|
Ultra
Dual-Skin Downdraft Paint Booth
The Ultra downdraft spray booth has become the standard by which all other dual-skin booths are judged, and with good reason. With literally thousands of Ultra booths in daily operation all over the world, the GFS Ultra downdraft is our most popular paint booth. Featuring our exclusive CAF Controlled Air Flow ceiling design, high-efficiency Ultra heat system, and optional equipment such as VFD's and AdvanceCure, the Ultra is the paint booth that can help your shop hit new levels of productivity, and achieve the best quality finishes.
- 12 high-efficiency 6-tube light fixtures
- 8 lights integrated into CAF Ceiling, 4 sidewall lights
- Dual-skin white pre-coated insulated panel construction
- 4-wing dual-skin insulated entry doors with drive-thru options
- Single-row exhaust pit standard, with three-row or raised basement options
|
|
Industrial Paint Booth
Paint Mixing Laboratories
Model HELIA Industrie
Vertical ventilation system specific to the type of parts being treated and part-handling method used (overhead or ground-level)
* Installation on civil engineering structure or metal base
* Heated by diesel fuel or gas, according to the process
* Multiple combination implementations
* Wide variety of sizes
|
|
|

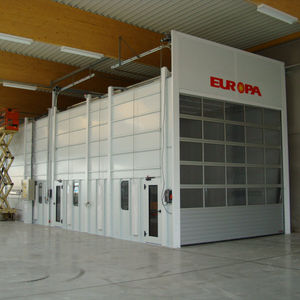

Of a length from 7 to 30 meters, the Europa tunnels for industry are among most economic and quietest of the world.
|
|
Maximum Lazur
6 widths: 1500,2000,2500,3000,4000 and 5000.
2 heights: 2180 and 3120.
Protection of the operators against the effluents of painting, varnished.
|
|
Amiral Speed dry eco plus
Curing time is halved and energy consumption cut to 50% in cold water conditions.
|
|
|
Of a length from 7 to 30 meters, the Europa tunnels for industry are among most economic and quietest of the world.
|
|
The Nordson ColorMax³ (pronounced cubed) powder spray and recovery system is designed for quick colour changes with high system efficiency, optimum airflow and maximum powder usage to meet today's flexible manufacturing system environments.
Several system features minimize powder-in-process, promote easy booth cleaning, and provide fast powder-supply-system changes.
The fully integrated approach of the ColorMax³ system substantially reduces labour cost, downtime and material waste in multi-colour powder coating applications.
With this enhanced operating flexibility, powder coaters are able to manage smaller batches and a wide range of colours to fit just-in-time production schedules.
|
|
When inventory-management issues are pressuring you to finish your parts in shorter and shorter productions runs, then you need a powder coating system that maximizes production uptime by changing colors in a quick and efficient method; You need the Magic Cylinder® powder coating system.
The Magic Cylinder is designed for automatic coating environments with XTreme Color Change requirements. By specializing in automatic coating, fewer manual coating stations are required - which keeps the booth's footprint small. Should limited manual reinforcement be required, coating stations can be added to the booth cabin allowing operators to effectively apply the powder to your products.
Magic Cylinder is field-proven technology that is capable of meeting the needs of your rapidly changing manufacturing environment. The Magic Cylinder is designed to be a fully integrated system that delivers the speed and flexibility needed to handle the frequent color changes of your operation.
|
|
|
|
|
|
Lean manufacturing is a trend in many industries. Whether you are a lean operation or not, ITW Gema has equipment solutions that can provide higher productivity at a lower cost. One such example is ITW Gema's Magic Compact Series Powder Coating Booth!
The Magic Compact is designed for automatic powder coating with XTreme Color Change requirements. When required, manual stations can be added to the booth cabin, allowing operators to effectively apply powder to your products. Whether automatic, manual or both, the overall booth footprint of the Magic Compact is small and easy to use.
The Magic Compact booth incorporates all of ITW Gema's industry leading, field-proven technology, like the OptiGuns, OptiStar Advanced Control Units and Chameleon Color Management System, and is more than capable of meeting the needs of your rapidly changing manufacturing environment. The Magic Compact is designed to be a fully integrated system that delivers the speed and flexibility needed to handle your frequent color changes.
|
|

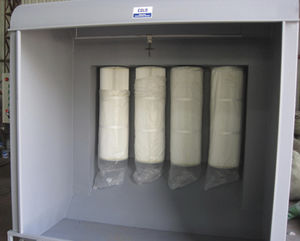

Cartridge Filter Powder Booth System
Nordsons range of cartridge filter spray booths are designed for automatic or manual powder coating applications with approximately three colours or less.
For single colour or 'spray to waste' applications a fixed recovery module (type NCB) system is used. The module is directly connected to the spray booth canopy, and has an integral direct drive fan to provide powder extraction in the booth.
For applications with more than one colour, a system with a mobile removable cartridge filter module is used (type NQCB), to allow modules dedicated to different colours to be simply attached to the system.
Innovative, integrated fan and final filter design dramatically reduces the overall booth footprint and height for greater flexibility in booth location and roll-on/ roll-off applications.
|
|
SAMES powder booths are the result of many year's research, and the synthesis of technical and manual powder coating.
SAMES offers both standard and modular booth solutions, the choice being based on production rate requirements, type of parts to be painted, colour change frequency and number of colors.
|
|
|
|
|
|
Powder Booths High-Production
GFS' High Production Powder Booths are designed to increase your productivity, product quality, and profitability. Modular designs engineered for optimum airflow and maximum transfer efficiency enable GFS to efficiently produce powder systems ideal for any powder coating operation.
High Production Systems:
-Constructed of 18 gauge stainless steel panels for exceptionally long life
- Self-cleaning cartridge filter collectors provide easy access to the filters for fast maintenance
- Operator shields and touch-up windows create a safe and efficient working environment
- Overhead filtration requires less floor space and features lightweight removable filter modules
- Optimum air control maximizes transfer efficiency and booth cleanliness and improves overall performance
- Unique hood design with angled corners inside booth for easy cleaning
- Independent cartridge module complete with motor, fan and air solenoids with venturies designed to provide efficient air pulsation through cartridge filters
|
|
|
|
|
|
Paint Mix Rooms
Dual-skin insulated and single-skin Paint Mix Rooms provide contaminant-free environments for coating preparation and mixing. White pre-coated steel and color-corrected lights allow for precise colour matching.
Multiple configurations and styles are available including models attached to dual-skin spray booths and paint booths for direct entry to spraying environment.
Pressurized downdraft airflow for ideal ventilation
- Removal of harmful fumes and vapors
- Effective removal of contaminants and dust in the mix room air
Ultra Mix Rooms feature dual-skin insulated panel construction
- Smooth fit and finish minimizes areas where dust could collect
- Insulated design reduces noise inside the booth
Concept Mix Rooms feature single-skin rolled-edge panel construction
- Smooth fit and finish minimizes areas where dust could collect
- Rolled-edge design increases panel rigidity and overall booth strength
White pre-coated galvanized steel
- White coating diffuses light better than uncoated steel, reducing reflections and glare
- Weld-free construction prevents rusting and improves booth strength
|
|
Powder Paint Booth with Vertical Ventilation
* Sizes adapted to parts to be powdered
* Operator inside or outside the cabin
* Air filtration by high efficiency cartridge filters
Powder Paint Booth with Horizontal Ventilation
* Air filtration by high efficiency cartridge filters, integrated or separate unit
* With or without air compensation
* Operator inside or outside the cabin according to parts to be treated
|
|
