Superior Construction
¼" thick side rails
All rollers driven
Maintenance free cast iron housing sealed bearings
Adjustable structural steel leg assemblies
Interchangeable feet to allow pass height changes
Fully enclosed, guarded chains, top and bottom
Adjustable drive system
Easy to adjust without guard removal
Access from top of conveyor
Synthetic gearbox lubrication
All quick connect wiring for easy maintenance
Robust roller features
3/16" wall tubing
1 piece stub shafts machined from solid steel bar
Hardened sprocket teeth
1" diameter bearing shaft
Full weld around circumference of tube
Tubing machined at both ends to ensure concentricity
Chain Guarding
Full guarding top and underneath the conveyor
No chain pinch points |
|
Pallet Handling
Pallet handling, pallet conveying, quick exchange of pallets and pallet stacking are only some of the processes that SOCO SYSTEM's pallet modules make very efficient.
The system is supplied in a variety of lengths, widths and heights.
Examples of modules are: non-driven and driven pallet roller conveyors, chain conveyors, pallet magazines, transfer trucks and rotary tables.
There is also a wide range of auxiliary equipment.
Pallet roller conveyors height 90
Pallet roller conveyors height 190
Accessories for pallet roller conveyors
Chain conveyors
Accessories for chain conveyors
Pallet rotary tables
Pallet transfer units
Pallet transfer trolleys
Pallet exchangers
Pallet magazines |
|
Pallet handling forms a vital part of all kinds of production and distribution processes. It extends right through the business process, from receiving of goods and materials up to shipping of finished products or sorted deliveries. That means fast, smooth and efficient handling of pallets is essential for the performance and reliability of those processes with pallet conveyors.
|
|
The pallet i-Veyor® is a product range of modular pallet conveyors. As a result of the mechatronic design and the integrated modular software it is easy to configure into any pallet transport system. The standard electrical control system shortens delivery and commissioning times and increases the system reliability and availability.
By making use of high quality materials and frequency controlled drives, smooth operations will be guaranteed and operational costs are kept to minimum. Also with the standardisation the components are easy and quick to replace and maintain when necessary.
The pallet i-Veyor® concept is a cost effective execution of modules that guarantee maximum system availability while maintaining the highest safety standards. |
|
Pallet Transport Devices :
REO PACK offers a complete range of equipment for pallet transportation, all produced in the REO PACK factory and tailor made for a specific application.
The control system can be within a stretchwrapper control system or separate.
The range includes: roller, chain, slat and belt conveyors, turn and lift tables, pallet lifts and chain crosses and transfer shuttle cars. |
|
General
A proven and tested modular system for individual pallet changer designs, manufacturing cells and F.M.S. Systems. Equally suitable for new machines as well as the upgrading of existing installations.
Application
Suitable for all machines on the market including vertical turning machines, measuring machines, as well as individual solutions for pallet changers and manufacturing cells.
Construction
All units in this modular system are produced from high quality materials and workmanship. The drive, switch and control elements are quality-approved articles for performance confidence. Installations incorporate a self-contained hydraulic system where required.
Pallets
Can be furnished according to DIN, ISO or Factory Standard. Other manufacturers pallets can also be transported.
Control
Systems are provided with basic controls to facilitate pallet changes. Cell scheduler and cell controllers are also available. Systems are supplied to customer requirements or with suitable interface to suit existing system and OEM requirements.
Installation/Commissioning
Systems are supplied with necessary foundation hardware. Our skilled personnel will commission the installation or provide turnkey solutions if required. |
|
In partnership with Accalon of Sweden, we offer a full range of pallet conveyor systems. Conveyor systems are the highways of warehouses and distribution centers, allowing continuous material flow and a universal interface to all kinds of material handling equipment and manual operations. If designed to peak requirements, variations in the flow can be handled easily and efficienty.
Our range of pallet conveyor products is based on a modular design, securing the benefits of economy in manufacturing and simplicity in installation. We can fulfill all the conveying and handling requirements of your system - a full range of powered roller and chain conveyors is available, along with other conveyor products such as shuttle cars, pallet dispensers, turntables, profile guages and vertical conveyors.
Complete range of pallet conveyor:
Chain conveyors, straight linked duplex chains for minimal wear of load carrier
Chain conveyors with 2 strands or multiple strands to suit the load
Roller conveyors, pitch, width and rollers to suit load requirement and throughput
Gravity conveyors, including stop and separation units

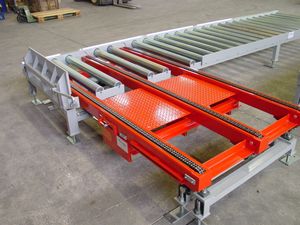

Transfer units, chain/roller, roller/chain, or chain/chain
Turntables with roller or chain conveyor
Pallet/salve board dispenser

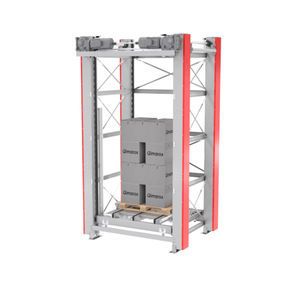

Vertical conveyors, single or multiple loads
Shuttle cars, single or multiple loads - high speed version
Roller conveyor, chain converyor or fork shuttle
Profile gauges - high throughput version
Intelligent pallet control - checks the pallet and, if unsatisfactory, automatically dispenses and places a slave pallet/board under the bad pallet |
|
Type W-PH1- 500 | 0.5 t
Type W-PH1- 1000 | 1.0 t
Type W-PH1- 1500 | 1.5 t
Type W-PH1- 2000 | 2.0 t |
|
Pallet powered conveying for loads up to 1 500 kg.
Usable if the side leadings of the pallet are parallel to the handling direction.

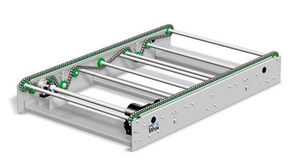

Driven roller conveyor ø 89mm, thickness of 3 mm, axle 20mm, tangential driving chain pitch 15,8 mm, galvanized steel rollers.
Top on rollers : 590mm.
2 available device widths: 948 and 1 148mm.
|
|
Simple and essential.

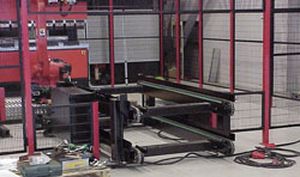

Steel roller rails conveyor for loads up to 1000 kg/m.
Allows any roll-way for pallets, containers, steel totes.
|
|
| ... products without technical information |
| |

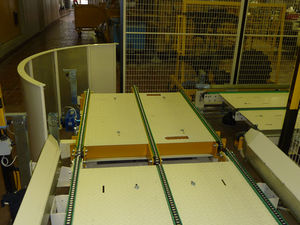

FlexLink’s long experience and wide range of pallet systems are unique in the market. Our systems are based on multi flexible plastic chain conveyors with pallets. Standard solutions like locating stations, diverters and elevators together with our range of linear units, frameworks and enclosures, ensures efficient, high quality installations and systems. FlexLink offers both cost efficient perma-lines as well as flexible module based solutions for easy changes in the production.
FlexLink enables you to:
- Produce different products in the same line at the same time by using the pallet as an independent interface
- Minimize the risk for damage of sensitive and fragile products and thereby increase production yield
- Have shorter lead-times with less products through total control of the production flow
The product range covers all industry segments, from hostile environment in the automotive industry to solutions with demands for ESD safety and cleanliness. |
|

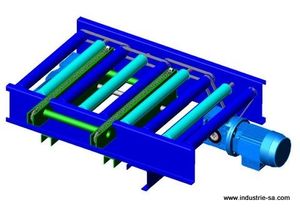

It is designed to transport empty or full pallets. We offer it in 2-chain or 3-chain types.
Application: For all usual types of pallets.
Speed: Up to 500 mm/s. |
|
TRANSLIGNE is the distributer on France of the chain conveyer with accumulation SPANGLED.
This conveyer is used in all the industrial sectors including that very demanding of the car.
There exists in 4 widths standards: 250mm, 350mm, 450mm and 600mm being able to transport loads up to 200 kg per pallet.
The objective of SPANGLED is always to find a solution with the customer requirement, even if should be carried out special components.
Its potential of manufacture enables him to hold of the very short delivery periods at very competitive prices.
You can consult the heading description to obtain detailed informations on our conveyer, its implementation or the various possibilities of configuration. |
|
Line of assembly or packaging following your schedule of conditions on the basis of:
- roller conveyers, with band, chain
- transfer to plates
- Manual, motorized or automated System
- Workstations to measure in aluminum profile
- Flow storage |
|
| ... products without technical information |
| |
We provide everything - from each component up to complete conveyor system solutions - for moving heavy cartons and pallets.
Our robust, long-lasting equipment can be supplied in various lengths and widths with a standard overall height of 500 mm. This includes roller conveyors for wire-mesh boxes and pallets or overhead chain conveyors - available in various designs.
The conveyors can achieve speeds of up to 0.4 m/s. We have accessories, such as our turntable for changing direction 90°, 180° or 270°.
Our range naturally also includes modules such as the pallet dispenser that centers and feeds pallets onto the conveyor track, and measuring and monitoring devices for detecting the state of the pallets inside the conveyor system. |
|
|
|
