The GP8 robotic pallet truck is a vision-guided industrial mobile robot designed to free up skilled employees by taking care of non value added work.
The vast majority of goods are moved on pallets within distribution centers and manufacturing operations. The GP8 from Seegrid automates the long-haul transport of pallets. An operator simply positions the GP8's forks under the pallets. The GP8 does the rest. The robot transports the pallets to the assigned location, then automatically positions the pallets and returns to the original starting point (or another pre-assigned location) for more work.
The GP8 delivers an affordable, reliable transport and delivery automation solution. The vehicle offers a clear ROI by boosting productivity and allowing workers to focus on higher value tasks in your facility.
Capacity
- Max. capacity 8000 lbs.
- Learns and stores 15 miles of routes
- Unlimited individual routes
Speed Travel
- 3.5 mph at full load
- 0-full speed in 3 seconds at full load
Electrical
- System power: 24V DC
- Red SB-175 power coupling, 18" lead length
- Battery compartment: 31 x 13.25 in.
- Battery weight max: 1500 lbs.
- Battery weight min: 800 lbs.
- Battery change roll deck standard
Dimensions and Capabilities
- Double-length (96") forks standard (single fork available)
- Chassis (11.5 x 3 x 4 ft) not including camera head
- Total height including camera head: 2.01 meters (6' 7").
- Minimum turning radius is 2.3 meters (7' 6")
- Up to 5% ramp angles
- Truck weight: 1462 lbs.
|
|
All brands of electric pallet trucks and order picking trucks can be equipped with the RPW EL scale. The fork construction of the truck is mechanically modified, in order to mount the scale components with only 5 mm of added fork height.
A scale indicator of your choice shows the weight on the forks and communicates with a truck terminal or warehouse management system if desired. Every load lifted is instantly weighed.
For checking incoming goods while offloading lorries, for preventing errors in order picking, for determining shipping weights, and for preventing the overloading of lorries.
Optional ATEX
|
|
TRACKED FORKLIFT TP2000 GREEN MAMMOTH
On sand, gravel, snowgrass, mud.
On slopes and downhill you can carry cases and pallet up to 2 tonsweight
845 kg 2 translation speedsand reverse gear .
|
|

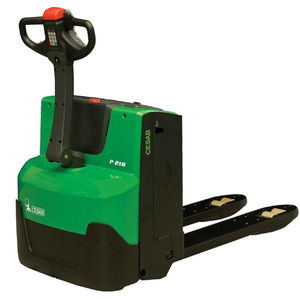

P1.3 Series, pedestrian pallet trucks
P1.6 Series, pedestrian pallet trucks
P1.8-2.2 Series, pedestrian AC pallet trucks
P2.0-3.0 Series, pedestrian pallet trucks
One of the most manoeuvrable pedestrian pallet truck series on the market, designed to increase your turnaround whilst saving you money. You get a performing, energy efficient, indoor pallet transportation solution, over long and short distances, or for vehicle loading/unloading.
NEW AC Motors on P1.8-2.2 models, provide powerful, energy efficient performance and low maintenance with 1000 hour service intervals.
Latest P1.3 model is the ergonomic solution for less intensive applications.
|
|
RPW-EL
All brands of walkie pallet trucks, rider pallet trucks and order picking trucks can be equipped with a RAVAS RPW EL scale. The fork construction of the truck is mechanically modified in order to mount the scale components, with only 0.25 inch of added fork height. The 110 or 310 indicator shows the weight on the forks and can communicate this weight with a truck terminal or warehouse management system. For checking incoming goods, avoiding picking errors, or avoiding overloads on freight trucks.
|
|
The RAVAS-2100 EXi is an explosion proof hand pallet truck scale fully equipped for use in hazardous environments. This pallet trucks scale is ATEX certified and standard equipped with stainless steel fork shoes.
The RAVAS-2100 EXi is suitable for applications like filling, mixing and dosing in EX environments. The scale is ATEX certified and standard equipped with:
- stainless steel fork shoes;
- a rotating indicator (readable from all angles during dosing processes) and
- large push buttons (for use when wearing gloves).
|
|
Functional, robust and dependable
Reliability, strong construction, smooth handling and exceptional manoeuvrability are hallmarks of the PTH 50 Series. The Crown hand pallet truck series offers lifting capacities of up to 2300kg, a high level of serviceability and many standard features.

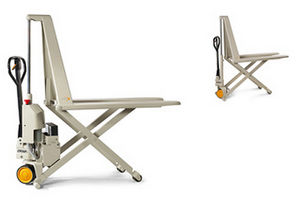

The PTH family also includes models with scissor lift and weighing scale.
Our hand pallet trucks are Crown designed, engineered and manufactured to withstand the stresses of the most demanding applications and offer years of productive use with a lower cost of ownership.
|
|
The RAVAS-1 is the ideal entry model for anyone who wants to experience the advantages of mobile weighing. At 575 EUR (advisory list price) the RAVAS-1 offers a weight indication in 5 kg steps, with a tolerance of + 20 kg.
The RAVAS-1 is based on a completely new, patented technical concept. There are no changes at all to the pallet truck forks, which retain their original dimensions. This guarantees easy entrance into low or closed pallets.
The RAVAS-1 is meant for general check weighing, at goods reception, when determining shipping weights, for preventing overloads and for safety checks. Since there are no components installed in the forks, the pallet truck scale is virtually indestructible. This also makes it suitable for very rough applications, e.g. in production areas or on board lorries.
|
|

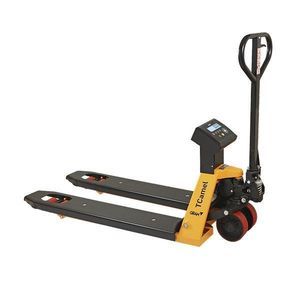

RAVAS-1100: weighing pallet truck for a reasonable accuracy
The RAVAS-1100 is the cost-conscious solution for checking weights a few times a day, e.g. at goods reception or when filling out transport documents. Weights are shown in 1kg steps.
Thanks to the robust chassis and the power supply by four standard AA-batteries, this pallet truck scale combines an attractive price level with a reasonable accuracy. The display is able to show both gross and net weights. For checking incoming goods, avoiding overloads and determining shipping weights.
|
|
Multi-range graduations

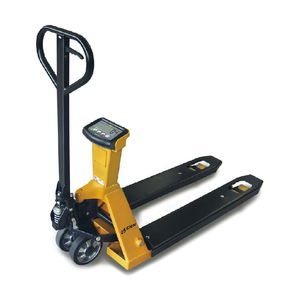

The RAVAS-2100 is a hand pallet truck with all basic scale functions. Suitable for all accurate check weighing.
Gross/net weighing, zero correction and an adding memory for calculating the total weight per shipment or order. If a printer is installed, both separate weights and total weight are printed on the ticket.
|
|
The proven performers

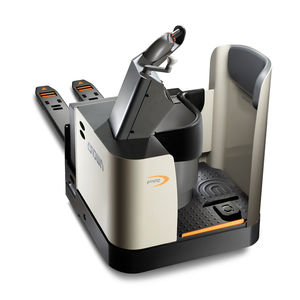

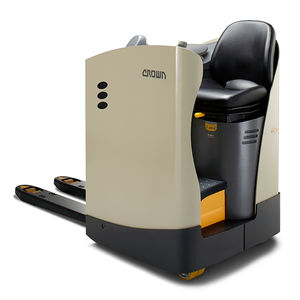

Crown electric pallet truck are among the most robust trucks in this class. The WP 2300 Series is designed for the fast-paced demands of shipping / receiving docks, trailers or any area where the ultimate in manoeuvrability and durability is required. It features the innovative X10® handle which simplifies control, thereby boosting operator safety and productivity.
Load capacities of up to 2000 kg are moved by a 24-volt electrical system with Separately Excited Motor (SEM) technology. With a slender 712 mm width, optimally positioned tiller and low power unit height, the WP 2300 Series combines exceptional manoeuvrability and fork-tip visibility.
The folding platform model (WP 2330S) is ideally suited for mixed use applications where a pedestrian and a rider truck is required.
For long-distance transporting the two models with fixed platform (WP 2335S and WP 2340S) offer maximum performance, stability and operator comfort.
|
|
Whatever the goods, whatever the warehouse, you'll find Cat Lift Trucks Power Pallets at the very heart of day-to-day operations.
Compact, powerful, versatile and extremely hard working, our extensive range is sure to meet your needs, whether you require a simple pallet truck for light usage, a versatile and efficient power pallet for medium level shift work or the comfort and power of a stand-on or sit-on truck for more intensive applications, Cat Lift Trucks has the solution for your business.
|
|
|

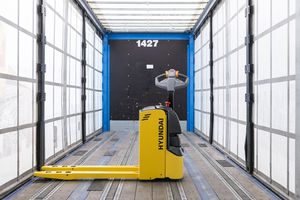

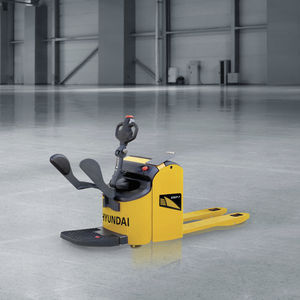

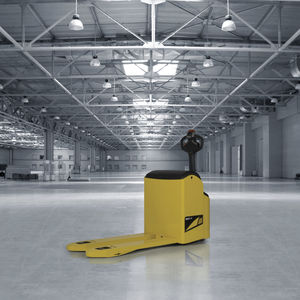

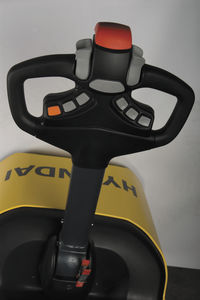

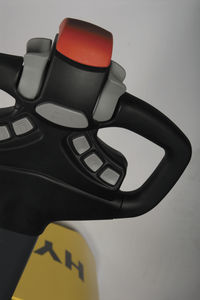

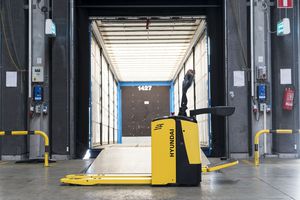

To complete our Material Handling range, Hyundai now launches new warehouse equipment. Now you can rely on Hyundai quality for all your warehouse needs.
|
|
MODEL: ESPT20-R (Ride-on model)
Self-Propelled / Battery Lift Operation
Capacity: 2000 kg
Center of Gravity: 600mm
Total Lift Height: 205mm
Lowered Fork Height: 85mm
Fork Length: 1220mm
Width Over the Forks: 685mm
Turning Radius: 2036mm
Travel Speed (with Load): 5.8 km/h
Travel Speed (without Load): 6.2 km/h
Battery Voltage: 24 Volts (4 Batteries)
Charger: 12V / 10A
Dead Man Brake
Weight: 500 kg.
|
|
MP - 1800, 2000, 2200 kg
Pedestrian pallet truck
• Ergonomic tiller head
• Low mounted tiller arm
• AC drive motor
• AC MOSFET traction control
• Adjustable performance settings
• On-board charger option
• Antirollback
• Regenerative braking
• Skid plates
|
|
|
|
|
|
Walkie & Walkie/Rider Pallet Trucks
6,000 & 8,000 lb. Capacities
24 Volt System
On the dock or in the freezer, Nissan's new Platinum Pallet Trucks in walkie and walkie/rider designs deliver exceptional performance under even the harshest working conditions hour after hour. Loaded with features guaranteed to satisfy your operator's need for comfort and control, these trucks are ready to boost your operation's productivity while keeping maintenance costs unbelievably low.
Center Control Pallet Trucks
6,000 & 8,000 lb. Capacities
24 Volt System
This pallet truck's rugged design includes a unique articulated chassis providing direct trailer entry without underclearance hang-up. Its pivot point allows the front chassis and rear load frame to travel independently, for exceptional load stability, especially at higher speeds. A proven balanced drive system provides lasting, reliable operation and facilitates scheduled maintenance. Its stable full-load single or double pallet handling and efficient order picking capabilities make this the ideal workhorse.
|
|
EXU – FLEXIBLE AND ENERGY SAVING.
The EXU is ideally suited for horizontal transportation and can be easily operated without any special knowledge. It saves energy due to its optimised shunt wound drive unit and also due to the end of stroke shut off which automatically stops the pump.
What else makes the EXU stand out? Its particularly light steering due to the ergonomic tiller length and hand grip height. Its compact, short construction also makes the EXU a particularly manoeuvrable truck.
|
|

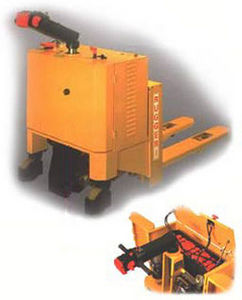

Pedestrian-controlled electric fork-lift truck
Pedestrian-controlled electric fork-lift truck, with choice of lifting capacity of 1200 or 2500 kg.
Continuously variable transistor speed regulation.
Electro-hydraulic lifting, with operating and locking brakes.
Rust-free stainless steel design.
Material: stainless steel 1.4301.
Surface: glass bead-blasted.
Not suitable for Ex-zones.
Dimensions: 2400 x 790 mm
Lift: 115 mm
Fork length: 1165 mm
Fork width: 170 mm
Run-in width: 535 mm
Speed: approx. 6 km/h
Battery: 24 V / 344 A
Load-bearing capacity: 1200 / 2500 kg
Weight: 862 kg (with battery)
|
|
MP20X, MP20XV
Capacity: 2000kg
- Electric pallet truck with folding operator platform
- Side or rear protection models with fixed operator platform (MP20X)
- Combi MOSFET electronic control technology
- Yale AC Technology
- Ride-on or pedestrian operation
- Brushless power steering motor (MP20X)
- Rear fixed protection with fixed platform (MP20XV)
|
|
Walkie & Walkie/Rider Pallet Trucks
6,000 & 8,000 lb. Capacities
24 Volt System
On the dock or in the freezer, Nissan's new AC Platinum Pallet Walkie/Rider Trucks deliver exceptional performance under even the harshest working conditions hour after hour. The AC design means exceptional performance with less maintenance over the life of the truck. What's more, these walkie/rider pallet trucks are loaded with features guaranteed to satisfy your operator's need for comfort and control, and are ready to boost your operation's productivity while keeping operating costs unbelievably low.
|
|
Electrical pallet trucks with integrated weighing system
The EGW – B weighing system can be installed on any brand of electrical pallet truck. The weighing system has a high accuracy and is available in legal for trade version. The construction consists of two parts. The forks of the electrical pallet truck are modified and fitted out with four or six load cells of 1000 kg. A pair of fork shoes are fixed rigidly onto the load cells. This construction without moving parts guarantees a very robust build of the weighing system. The weight indicator and any peripheral equipment are mounted in such a way as to achieve optimal visibility without obstructing a proper operation of the truck.
|
|
MODEL: ECO HLS SERIES (HIGH-LIFT) SELF-PROPELLED STACKER
(Also available with adjustable straddle Legs)
Key Feature: Triple Mast
TWO MODELS: HLS15-45 AND HLS15-53
Capacity: 1500 kg.
Fork Length: 1150mm
Overall Length: 1955mm
Raised Fork Height: 4500mm / 5300mm
Mast Height (Collapsed): 2100mm / 2350mm
Mast Height (Raised): 5070mm / 5820mm
Turning Radius: 1629mm
Drive Wheel: 250mm dia
Travel Speed (With load): 4.5 km/h
Travel Speed (without load): 5.6 km/h
Battery: 24 V / 210 Ah
Lift Motor Power: 2.2 kw
Charger: 12V / 10A
Dead Man Brake
Weight: 915 kg / 955 kg
|
|
Explosion proof weighing hand pallet truck model HGW-BX
The HGW-BX combines the controlling function of a very accurate weighing system with the mobility and the flexible availability of a hand pallet truck. With the Bruss HGW-BX you weigh pallets and containers during transport, at the place of handling. You save time when checking incoming and outgoing goods and during the dosing and filling process. The HGW-BX is developed for use in EX-zones. The system is equipped as standard with rotating indicator, large pushbuttons and stainless steel forks. The exchangeable battery module provides a use of 100 hours, and can be exchanged within the EX-zone.
|
|
|
|
|
|
Fork-lift with integrated weighing system for use in Ex-zones
For flexible use in Ex-zones, such as dosing or filling, this concept offers numerous individual possibilities.
Flexible work though swivelling backlit terminal.
Manual tare input via alphanumerical keyboard.
With serial weighing-cell impact protection.
Easily exchanged rechargeable battery in Ex-zones via housing door.
For use in Ex-zones:
Zones 1, 2, 21 and 22
Ex-classes:
II 2G IIC T4
II 2D T50°C
-10°C Ta + 40°C
VL 3000 EX: entirely in stainless steel 1.4301
with rapid-lift hydraulics and soft lowering.
SL 3000 EX: in powder-coated steel
with electropolished electronic housing
with steel lift-hydraulics and soft lowering
Dimensions: 1190 x 540 x 1200 mm
Underclearance: 90 mm
Lift height: 110 mm
Weighing range: 10-2000 kg
Resolution: 0.5 kg
Duration of charge, rechargeable battery: approx. 140 h continuous operation
Charging device: multi-level with charge conservation (only to be charged in non-EX-zones)
Castor wheels: in polyamide or polyurethane, as required
Load rollers: optional polyamide or polyurethane tandem rollers
Weight: approx. 195 kg
|
|

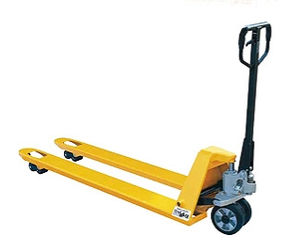

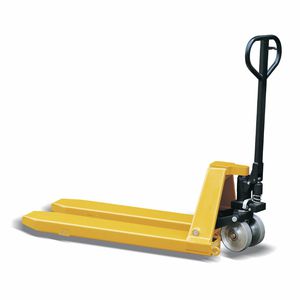

MODEL: ECO I-25
Load Capacity: Kg 2500
Overall Length: mm 1508 / 1538 / 1608
Fork Length : mm 1120 / 1150 / 1220
Width over Fork: mm 520 / 685
Lowered Height: mm 85
Raised Height: mm 200
Wheel Type(s): Poly (std) / Nylon / Steel / Rubber
Weight: Kg 82
OPTIONS: Tandem Rollers
Automotive brake attachment
Low Profile Trucks
4-Way,
Corrosion Resistent trucks
Spark Resistent trucks
Weigh-Scale trucks ,
Straddle & Roll trucks,
Stainless Steel trucks
Galvanised trucks
Quick-Lift Version
KEY FEATURES:
Heavy duty reinforced frame
3-position control handle
Hand & foot lowering controls
Adjustable push rods
Exit / Entry helper rollers
Articulating Axle
|
|
MODEL: ESET10 (Self-Propelled / Manual Pump Operation)
Capacity: 1000 kg
Max. Fork Height: 205mm
Fork Length: 1100 / 1150 / 1220
Fork Width: 520 / 550 / 685
Battery: 24 Volt (4 Batteries)
Charger: 12V / 10A
Turning Radius: 1574 / 1624 / 1694mm
Travel Speed (with Load): 2.6 - 3.8 km/h
Net Weight: 143 - 156 kg
|
|
SV – HIGH, HIGHER, HIGHEST!
Unique features of the new SV12:
The STILL SV12 stand-on high lift pallet truck is designed for a high turn round of goods up to 1,200 kg
Individual possibilities for use, due to its multi-functionality: Serving racking, horizontal transport, loading and unloading lorries, block stacking (truck < 800 mm wide), order picking of goods, working / lifting table
The operating philosophy, which conforms to that of a forklift truck, means greater safety: right hand driving, lifting / lowering and holding; left hand steering
In day to day use the comprehensive ergonomic studies pay off: with the SV12, even after many hours, the operator can still concentrate on work.
|
|
Bruss weighing hand pallet truck model Xtra-B
The Xtra-B combines the controlling function of a very accurate weighing system with the mobility and the flexible availability of a hand pallet truck. With the Bruss Xtra-B you weigh pallets and containers during transport, at the place of handling. You save time when checking incoming and outgoing goods and during dosing and filling processes. The Xtra-B is developed for industrial applications and is protected against water, dust and shocks. The exchangeable battery module provides for 35 hours of use.
|
|
Bruss weighing hand pallet truck model HGW-M
The HGW-M combines the controlling function of a very accurate weighing system with the mobility and the flexible availability of a hand pallet truck. With the Bruss HGW-M you weigh pallets and containers during transport, at the place of handling. You save time while checking incoming and outgoing goods, and during dosing and filling processes, and when doing piece counts. The HGW-M is developed for industrial applications and is protected against water, dust and shocks. The exchangeable battery module provides use for 8 hours.
|
|
The RAVAS-110 is the cost-conscious solution for checking weights a few times a day, e.g. at goods reception or when filling out transport documents. Weights are shown in 2 lbs steps.
Thanks to the robust chassis and the power supply by four standard AA-batteries, this pallet truck scale combines an attractive price level with a good accuracy. The display is able to show both gross and net weights and calculate total weight per shipment. For checking incoming goods, avoiding overloads and determining shipping weights
|
|
|
|
