PALLETIZING ROBOTS:
Designed specifically for palletizing, reliable Motoman EPL-series Expert Palletizing robots are available in 80-, 160-, 300- and 500-kg payload models. Heavier-payload four-axis EPL-series robots can service multiple infeed conveyors and pallet build locations. Internally routed air and I/O signal lines through all four robot axes virtually eliminate cable and hose wear. A unique Utilities Management Package provides an optimized method for connecting to the end-of-arm tooling. The economical five-axis EPL80 palletizing robot uses traditional external cabling and is designed to service multiple infeed conveyors and a single pallet build location. Featuring a slim wrist and compact body, the EPL80 is ideal for end-of-line palletizing solutions that require minimal footprint.
EasyPallet Pendant and PC-based off-line programming software are available as options to simplify programming of palletizing applications.
PalletWorld is a modular solution designed to provide high-throughput robotic palletizing for a majority of palletizing applications. Pre-engineered modules are integrated with an EPL palletizing robot to achieve the functionality and throughput. Modules include standard vacuum, mechanical and clam-shell type grippers than can accommodate a complete range of bags, cases or irregular shapes, as well as infeed conveyors, pallet locators, pallet racks, pallet outfeed conveyors, etc. These flexible add-on modules allow for customizing or upgrading system capabilities.
|
|
A 4-axis, multi-articulated robotic palletizer requiring minimal space to completely automate product loading and unloading. With a 310 lb. (140 kg) lifting capacity, its an ideal tool to relieve the burden from your employees, eliminating repetitive motion and back injuries associated with manual palletizing.
Columbia/Okura robots are easy to operate and backed by 24 hour, U.S.-based parts and service support.
|
|
Handles all types of bags: Kraft paper, polycarbonate, PVC coated, woven mesh, cotton and strata-pack.
- One to three bag infeed conveyor(s).
- Load building station(s).
- Full load discharge conveyor(s).
- Perimeter safety guarding.
- Automatic pallet dispenser.
- Control panel.
|
|
|
A 4-axis, multi-articulated robotic palletizer capable of handling 25 cycles/min.for bags (24 bpm) and 20 cycles/min. for cases (up to 120 cpm). They're easy to operate and designed to fit into tight spaces while maximizing the working envelope. With 150+ U.S. installations, and 24 hour U.S. based parts and service support, Columbia/Okura robots provide the best robotic palletizing solution available.
|
|
Material handling involving palletizing or de-palletizing needs to have powerful tools to minimize and maintain programming. Different patterns and sub-patterns can be easily maintained with Nachi's AX palletizing feature. Nachi's controller includes palletizing and de-palletizing functions to package your product for maximum efficiency and stability while minimizing your programming effort. Nachi has what it takes to keep things moving.
Nachi robot series applicable to palletizing:
- SC Series
- VS Series
- MR Series
- MC Series
- ST Series
|
|
|
|
|
|
Together with integration partners, FANUC Robotics offers a range of advanced solutions to speed up end of line operations.
With a payload range from 2 to 1350kg, you are sure to find the robot model that best suits your needs:
very high speed M-430iA/2F dedicated to food industry (food grease, up to 120 picks per minute, washable)
High speed M-6iB series (2-10kg payload) for very fast pick&place applications. Higher payloads are managed at high speed with M-420iA-M-421iA robots (40-50kg)

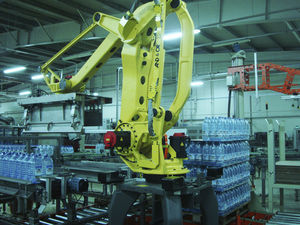

M-410iB series (160-700kg): the most successful palletizing robots in Europe!
M-900iA series (260-700kg) and M-2000iA (900-1350kg) for very heavy payload with highest wrist inertia. Smaller payload can be handled with the top selling M-710iC (20-70kg) or R-2000iB series (100-250kg)
Our intelligent software and systems ensure reliable and safe handling operations:
Integrated vision: our latest R-J30iA controller comes as standard with all the necessary hardware for 2D vision: just plug a camera and a cable! This is most cost-effective solution on the market!
Line tracking software
Collision Guard to protect robot, tooling and products
Advanced vision for 2D visual line tracking or 3D bin picking
Multi robot control for increased cycle time
|
|
|
|
|
|
Together with integration partners, FANUC Robotics offers a range of advanced solutions to speed up end of line operations.
With a payload range from 2 to 1200kg, you are sure to find the robot model that best suits your needs:
very high speed M-430iA/2F dedicated to food industry (food grease, up to 120 picks per minute, washable)
High speed M-6iB series (2-10kg payload) for very fast pick&place applications. Higher payloads are managed at high speed with M-420iA-M-421iA robots (40-50kg)
M-410iB series (160-450kg): the most successful palletizing robots in Europe!
M-900iA series (260-700kg) for very heavy payload with highest wrist inertia. Smaller payload can be handled with the top selling M-710iC (20-70kg) or R-2000iB series (100-250kg)
M-2000iA series (900kg - 1200kg) for ultra heavy payloads
Our intelligent software and systems ensure reliable and safe handling operations:
Integrated vision: our latest R-30iA controller comes as standard with all the necessary hardware for 2D vision: just plug a camera and a cable! This is most cost-effective solution on the market!
Line tracking software
Collision Guard to protect robot, tooling and products
Advanced vision for 2D visual line tracking or 3D bin picking
Multi robot control for increased cycle time
|
|
|
|
|
|
The palletising robot picks up items from a feed-in conveyor and places them on the pallet with great precision.
Plug and play
The robot is quick and easy to install in an existing production environment.
It is tested before delivery using your products and pallet patterns.
New pallet pattern in 30 seconds
If the pallet pattern isalready in the IPC, it takes no more than 30 seconds to switch to another programme.
New palletpatterns generated using optimisation software, such as CAPEPACK, can be transferred online or via diskette.
Safe to operate, simple and versatile
The machine requires minimal maintenance and is easy to access.
It is equipped with safety fencing that meets CE requirements.
Greater pallet capacity - Impoved freight economy
All types of cases, even heavy and bulky ones, can be stacked at heights up to 2700 mm in order to fully utilise the capacity of lorries and containers.
Stainless steel for wet environments
The robot can be supplied entirely or partially in stainless steel.
The robot has powder coated finish in RAL 2002 and RAL 9005 colours as standard. Special colours are available for at a surcharge
|
|
|
|
|
|
KR 40 PA
It really stacks up: the new KUKA palletizing robot is capable of stacking europallets up to 1,6 m net height. State-of-the-art materials (carbon fiber composite CRP) make the robot extremely light, without sacrificing high stiffness.
KR 100-2 PA
It really stacks up: the new KUKA palletizing robot is capable of stacking europallets up to 3 m net height. State-of-the-art materials (carbon fiber composite CRP) make the robot extremely light, without sacrificing high stiffness.
KR 180-2 PA
It really stacks up: the new KUKA palletizing robot is capable of stacking europallets up to 3 m net height. State-of-the-art materials (carbon fiber composite CRP) make the robot extremely light, without sacrificing high stiffness.
KR 180-2 PA Arctic
The frost-proof palletizing robot. Ice-cream, pizza, fast-food, fish filets - the "Arctic" can handle any pallet, however frosty the load. At temperatures down to -30 C, it still shoulders its full payload of 180 kg: without a protective shroud and without any heating - just as you%u2019d expect from a technological pioneer like KUKA.
|
|
palletising robot for all branches of trade
Through innovative robot solutions palletising-robot system PARO , our customers are furnished with modular systems especially qualified for operational tasks in the domain of packaging. The short amortisation periods of under a year are especially convincing in this context.
Automation is the key to higher productivity!
In this sense, the technique has to be simple, the components have to be durable and the operation has to be functional.
Just that is our principle.
Under these preconditions, the PARO palletising robot was developed from the first screw to the last software bit on the premises of roTeg.
The gripping system is included!
The gripping tool is the "heart" of every robot. We palletise and depalletise almost every kind of package with a multitude of default grippers from vacuum grippers, clamp grippers and under-gripping systems to special grippers.
|
|
ROBOT P4
ROBOTIC PALLETIZING CELLS WITH APPLICATION ENGINEERING.
Characteristics:
- Palletizing systems by means of industrial robots, versatile for either bags, boxes, drums, sheets and pallets handling.
- Possibility to attend several picking lines simultaneously.
- Grip device for bags handling.Central-type or side-type grips according to the bags and patters to be confectioned.
- Wide range of packages handling.
- Capability to attend several packages lines, forming several pallets simultaneously (multi-palletization).
- Wide range of industrial applications apart from palletizing itself: bag-in-box systems, picking, etc ...
- Integration of other machinery and processes inside the palletizing island such as box forming and closing or wrapping.
|
|
|
|
|
|
Together with integration partners, FANUC Robotics offers a range of advanced solutions to speed up end of line operations.
With a payload range from 2 to 1350kg, you are sure to find the robot model that best suits your needs:
very high speed M-430iA/2F dedicated to food industry (food grease, up to 120 picks per minute, washable)
High speed M-6iB series (2-10kg payload) for very fast pick&place applications. Higher payloads are managed at high speed with M-420iA-M-421iA robots (40-50kg)
M-410iB series (160-700kg): the most successful palletizing robots in Europe!
M-900iA series (260-700kg) and M-2000iA (900-1350kg) for very heavy payload with highest wrist inertia. Smaller payload can be handled with the top selling M-710iC (20-70kg) or R-2000iB series (100-250kg)
Our intelligent software and systems ensure reliable and safe handling operations:
Integrated vision: our latest R-J30iA controller comes as standard with all the necessary hardware for 2D vision: just plug a camera and a cable! This is most cost-effective solution on the market!
Line tracking software
Collision Guard to protect robot, tooling and products
Advanced vision for 2D visual line tracking or 3D bin picking
Multi robot control for increased cycle time
|
|
This area is all about packing a variety of items into boxes.
It includes robot-based case packing - smaller boxes packed into larger ones, and racetrack packing - many items picked simultaneously with the aid of grippers.
In this respect ABB's new 4-axis IRB 260 is ideal for most applications not demanding full 6-axis versitality. It also features an impressive 30 kg payload capacity.
You have a choice of standard 6-axis robots depending on the conditions of each application. Furthermore, ABB's unique vision-aided conveyor tracking facilitates continuous production flows and packing on the fly.
|
|
The MPK50 is a high-speed 4-axis robot that provides superior performance
and reliability for packaging, palletizing and other material handling applications. The MPK50 robot offers a large work envelope with full 360-degree rotation.
Its hollow-arm provides internal path ready for fi eldbus cable, and its slim
design allows the robot to reach into confined spaces, improving system
productivity. The MPK50 offers best-in-class motion, axis speed, acceleration
and wrist ratings.
|
|
|
|
|
|
Together with integration partners, FANUC Robotics offers a range of advanced solutions to speed up end of line operations.
With a payload range from 2 to 1200kg, you are sure to find the robot model that best suits your needs:
very high speed M-430iA/2F dedicated to food industry (food grease, up to 120 picks per minute, washable)
High speed M-6iB series (2-10kg payload) for very fast pick&place applications. Higher payloads are managed at high speed with M-420iA-M-421iA robots (40-50kg)
M-410iB series (160-450kg): the most successful palletizing robots in Europe!
M-900iA series (260-700kg) for very heavy payload with highest wrist inertia. Smaller payload can be handled with the top selling M-710iC (20-70kg) or R-2000iB series (100-250kg)
M-2000iA series (900kg - 1200kg) for ultra heavy payloads
Our intelligent software and systems ensure reliable and safe handling operations:
Integrated vision: our latest R-30iA controller comes as standard with all the necessary hardware for 2D vision: just plug a camera and a cable! This is most cost-effective solution on the market!
Line tracking software
Collision Guard to protect robot, tooling and products
Advanced vision for 2D visual line tracking or 3D bin picking
Multi robot control for increased cycle time
|
|
|
KUKAs many years of experience in palletizing offer you new possibilities in the field of palletizing and depalletizing. The tried-and-tested modular system gives you the choice of a wide range of perfectly-coordinated components.
|
|
MOTOMAN offers the widest range of robotic products with the number of controlled axes ranging from 4 to 13, including application dedicated robots for welding, palletising, handling, painting and clean room applications, with payloads ranging from 3 to 600 kg.
MOTOMAN installs turnkey systems and customised manufacturing solutions with the highest level of quality.
All manipulators/robots are fully electrical controlled by servo power.
The latest control system is capable of synchronised motion & control of up to four robots or 36 axes in total.
MOTOMAN also offers service, maintenance and training.
MOTOMAN, the robotic division of Yaskawa Electric Corporation, has its European headquarters in Kalmar, Sweden and Allershausen, Germany.
Interested in knowing more? Please contact us!
|
|
|
The MD400N has been specially designed for palletising work. The big coverage and high speed provide a much better efficiency for the palletising of heavy packages and cases. The 5 axis construction gives a huge multi-functionality for complex work processes.
|
|
|
Kawasaki's line of palletizing robots provide industry leading long reach and high payload capabilities. Kawasaki palletizing robots can handle loads up to 880 lbs. and speeds of more than 2,400 cycles per hour.
|
|
Designed specifically for palletizing applications, the four-axis EPL500 Expert Palletizing robot is a high-performace manipulator that features internally routed air lines and wiring between the base of the robot and the end-of-arm tool. This virtually eliminates cable and hose wear.
The EPL500 features a 500-kg (1,102.5 lb) payload capacity with a 3,159-mm (124.4") horizontal reach. EPL-series robots are available with 80-, 160-, 300-, and 500-kg payloads to meet a wide range of palletizing requirements.
The EPL500 can service multiple infeed conveyors and/or pallet build locations. Its fast axial speeds (up to 445 per second) reduce cycle times and increase production output.
MotoSim EG off-line programming software is available as an option to simplify programming of palletizing applications.
|
|
Since YASKAWA Electric released the first all-electric industrial robot in Japan in 1977, the MOTOMAN, we have continued to lead the international industrial robot industry.
A wide range of industrial robots has been released since, especially in our core field of welding robots, but also for handling, assembly, painting and cleanroom applications. Today, they are hard at work around the world.
We were one of the first robotics companies to work on semiconductor manufacturing technology, and the development of mechatronic equipment led to the clean/vacuum robot and wafer handling devices. We will continue to develop technology to answer the requirements of shrinking IC geometry and growing wafer size
|
|
|
|
|
|
VARLIK MAKINA is entegrator of Fuji Yusoki Robots in Turkey and near region. uji Robots are provided into your projects together with process and packing solutions by VARLIK MAKiNA.
Fuji Ace
Fuji Ace is a palletizing robot developed in 1982. Since then, continual development of the range has brought many changes to provide a highly efficient robot, leader now on the Japanese market with a share of 60%.
High Ability Function
Fuji Ace is divided in two series (EC & AC) and five models to meet all stomers requirements: from a light and compact robot to a high handling apacity of 1.600 cycles/hour one.
Various Hands
Fuji Ace have a great variety of robot hand grippers for all kind of products such as boxes.bags,books and bottle to suit any requirements and make Fuji Ace a multi-purpose robot.
Wide Application Range
By its flexibility and multi-purpose capacity, Fuji Ace provides the right solution to various industries such as food and beverages, chemicals, printing industries,electric power company and others.
Environmental Friendly
Fuji Ace have succed reducing 60% of electricity used from the conventional type by using high output motor, light weight conversion and using original design system control.
|
|
The Robot -ROMEO - HSG1 is a four-axis industrial robot robustly built for continuous operation which was conceived for the main activities of palletizing, depalletizing and sorting. The four movement axis are described as "Column turn", "Gripper arm up/down", "Bend gripper arm", "Turn gripper". The drive operates in all axis through transistor controlled, low-inertia AC servo-motors with integrated brakes and resolvers.
Main advantages:
- Room-saving slim construction
- High operating speed
- Simple programming on and off-line
|
|
Mechanical controls found in the machines that transport the finished product to the predetermined destination equipped with identification, checking, and sorting.
These machines are availabile according to the needs of the product.
|
|
|
A palletising system for productions of up to 600 bags/hour, with special emphasis on their small size and high level of versatility with regards to bags that are difficult to palletise.
|
|
|
For special tasks which demand a large operation room Mllers uses bent-arm robots of a proven design, which distinguish themselves by high operating speed and corresponding palletizing capacities.
|
|
Trade name: PPR50
The monotonous tasks of handling are past
Family of products: Robot of palletization.
Technical description: Axes of handling with high lifespan and reliability Telescopic axes for vertical races with small overall dimensions Center C optional for rotation
Handling of loads up to 50 kg.
Advantages:
Automation of monotonous activities and physically testing
The Council, study, construction, manufacture, brought into service, the whole ensured by only one partner
Total solution with degree of standardization raised, this fact delivery period and startup courts
Can also be envisaged for the applications in clean room, as well as the applications in the food fields, pharmaceutical, medical
The model of palletization can be freely modified by the user.
Applications:
Agribusiness industry, pharmaceutical and medical
Also possible in the field of automobile subcontracting.
|
|
Hirata can deliver complete integrated assembly lines in a short time and at lower cost by drawing upon a wide range of standard Hirata products. These standard products ensure reliability, standard interfaces, lower integration risks, and in-house control of schedules. Some of the standard products Hirata manufactures and integrates include:
* Assembly robots in a variety of geometries
* Many conveyor technologies
* Transfer machines
* Standard parts feeders
* Material handling systems including AGVs
|
|
Ehcolo supplies robotic systems, based on MOTOMAN robots. And based on our yearlong experience with our own manufactured gantry robots, we manufacure and supply pick-up units and the pheriferical equipment like conveyors etc.
Our goal at start of using robots in palletising was, that we should reach a performance quality as close as possible to our own palletisers, a level of quality, we have not been able to see elsewhere. So we designed and manufacured a pick-up unit, which compensated for the shortages, which the robot by nature has, e.g. automatic layer height measuring and top-pressing. So it is not posible to palletise any better with robot, than we do now, regardless if it is overlapping or side-by-side palletising.
|
|
|
|
