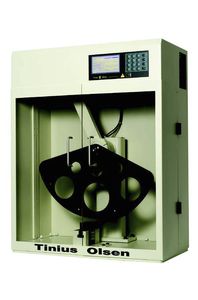

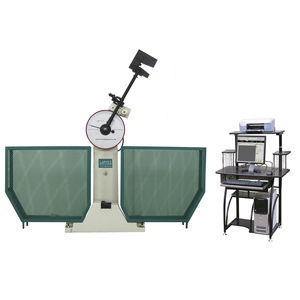

| Pendulum impact testers that can be easily changed from a Charpy configuration to an Izod configuration. A third configuration for tensile impact is also available. These testers are available in capacities of 406 J (300 in.lbf) or 542 J (400 in.lbf) of available energy and are designed primarily for metals impact testing. |
|

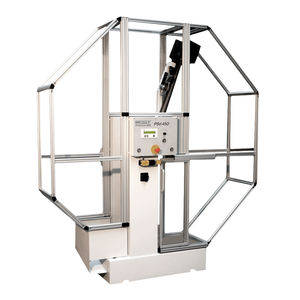

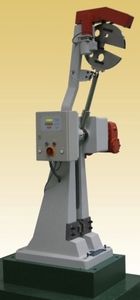

RKP 450
This pendulum impact tester for an impact energy up to 450 Joule is designed for determination of the impact energy according to Charpy or IZOD, for impact tensile tests and for tests according to Brugger.
Features:
Avoidance of interfering vibrations by stiff construction and one-piece fin welding construction
Easy exchange of fin, supports and abutments thanks to tight fitting
Ergonomic single-column construction for easy access to the specimen
Low-friction pendulum bearings
Use of standard pendulum fin for Charpy, IZOD, Brugger and impact tensile tests
Component testing possible due to the U profile of the fin and the single-column floor-type construction
Suited for tests to ASTM E 23 for temperature-treated specimens and for cold specimens (-40 °C), in particular, owing to fast (<5 sec) test runs
Extendible with unproblematic retrofitting of all add-ons
|
|
Zwick offers a wide range of pendulum impact testers for tests according to Charpy, IZOD, Brugger and Dynstat as well as for impact tensile tests. And, of course, we ensure that our machines fulfill the requirements of the relevant test standards such as ASTM E 23, EN 10045, DIN EN ISO 180, ISO 179 or ISO 8256 were fulfilled.
The pendulum impact testers cover a range from 0.5 Joules to 750 Joules. They are available in a variety of models, e.g. for instrumented or non-instrumented tests, with analogue or digital displays and with a range of different options especially geared for your tests. |
|
Features
- Meets ASTM D256 and ISO 179/180 standards
- Digital Read Out Based on Joules
- Interchangeable Pendulum for use Different Capacities
- Izod & Charpy Methods
- Easy Operation & Maintenance
- Pendulum Designed Based on Center of Percussion
- Very Low Cost
Applications

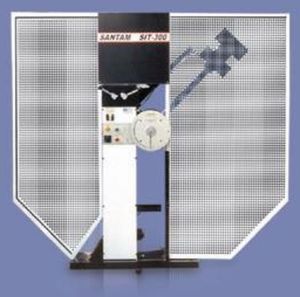

For Plastics Industries SANTAM SIT-20 Pendulum Impact Test Series are used for brittle plastics to determine impact resistance of Standard Specimens.
Materials under Instant Load (Impact Test) may behave very different in comparison of Quasi - Static Load ( Tensile Test ). Also, temperature affect in Brittle Failure so much.
Impact Test is a good criterion to determine and classify brittle plastics failure behavior
|
|

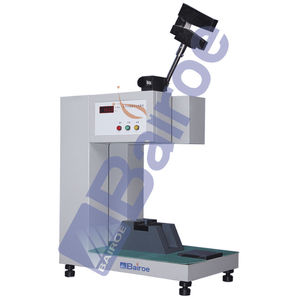

Model: ZBC1400, ZBC1251
Capacity: 4J, 25J
Features:
The model ZBC1000 Pendulum Impact Testing Machine is mainly designed to perform special tests for plastic material to determine impact resistance performance under dynamic loading.
It allows continuous impact test for large quantities specimens. Special control panel and display can real-time display impact energy, impact ductility, pendulum raising angels.
Two display methods are available, dial type and digital type (LCD monitor).
It complies with ISO179, ISO180, ASTM D256, ASTM D4812, ASTM D4508, ASTM D950 and other similar standards.
Two models are available
ZBC1400, max Charpy impact energy 4J, max Izod impact energy 2.75J
ZBC1251, max Charpy impact energy 25J, max Izod impact energy 22J |
|
