Photoelectric sensor Y series with M18 threaded front mounting
The Y series is offered with seven different models. Thru-beam, Diffuse, Retroreflective,
Transparent object detection, Convergent Beam (close and regular) and BGS.
There is a model for use in almost any application.
|
|
|
From infrared to laser technology, from fibre optics to integrated microprocessors a highly developed sensor technology ensures reliable solutions for even the most demanding applications. For short ranges, under extreme environmental conditions, with tiny objects or for long distances the sensors offer high technical efficiency as well as simple handling from installation to commissioning.
|
|
Long sensing distance - 40 meters thru-beam by V3/V4 series.
Long sensing distance - max. 100 meters thru-beam by D series.
|
|

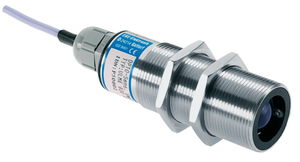

The CEDES ELS family is well-known in the market as a high-quality, inexpensive through-beam sensor.
There are various applications involving the ELS (also known as a photo cell) in which individual or dual light curtain systems are utilized. Dual light curtain systems are often installed to ensure the safety of automatic doors. The evaluation unit of a ELS system can optimally analyze one or two light beams.
|
|
M8 pig-tail connector types are available for all models.
Easily visible indicator LED can be seen even from the back.
Convergent beam models offer a choice of
3 different sensing distances.
(3-8mm / 2-15mm / 5-30mm)
Rugged mechanical structure provides protection against vibration.
|
|
High grade PSD (Position Sensing Device) is implemented in FGS (Foreground Suppression) system.
Ideal for sensing thin objects lying on conveyor, etc.
Numerical display for easier settings.
|
|
Photoelectric sensors

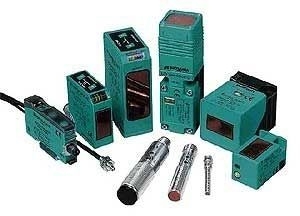

Pepperl+Fuchs offers a wide range of photoelectric sensors, fiber optic cables, & accessories. We have the photoelectric sensors you need to keep your applications running. Pepperl+Fuchs with the brand VISOLUX is an innovator of photoelectric sensing technologies. For precise, optical control of positioning, sorting, and counting processes and for custom non-standard applications, look to Pepperl+Fuchs to have the answers for every industry.
|
|
Photoelectric Proximity Switches SIMATIC PXO
Fast and Accurate Sensing with Light and Laser
Pure optical acumen - this characterizes our extremely precise, fast and pin-point accurate optical proximity switches. Superior configuration convenience via teach-in or potentiometer and the easiest operational handling are added benefits. With the most varied shapes from cubical, cylindrical to miniature designs and models, e.g. reflective light scanners with or without background suppression, reflective light or thru-beam sensors, you can confidently master any task with a transmission range up to 50 m.
|
|
Digital Amplifier with Modular Laser Optics.
Two independent outputs, high speed response up to 60 sec.
Max 70 meter sensing distance (Retro-reflective mode) with co-axial beam light source.
e-con connector for easy disconnection.
|
|
Reference: PS 989 S
Adjustable sensing distance: 1.5 to 8 cm
Supply: 101o 30 VDC
Outpul:PNP or NPN
Set-up by precision screw
Dimensions: 13x32x20 mm
Miniaturised
Integra led amplifier
Detection indication by LED
Indication of shed-circuit on the output by blinking LED
Lateral beam
Backgrcund suppression
Direct / inverse cutput
Red pubed visible light
2 m cable cr MS plug
Applications:
Control of post ion or presence of parts with background suppression
Detection of object hight on a conveyor
Detection of solid granulates level
|
|
|
These new Contrinex sensors are characterized by their remarkably small size, 4 mm smooth or M5, with a housing length of 35 mm. Protruding by 1.8 mm, the spherical sapphire lens projects a cylindrical light beam with a diameter < 4 mm, permitting recessed mounting. Despite their small size, they are fully self-contained, thus making an additional evaluation device superfluous. As a result, the sensors are less costly and easier to install than optical fibers with amplifiers. In addition, they replace larger switches where mounting space is limited. The devices are short-circuit proof and operate in a voltage range of 10 ... 30 VDC, and with an output current of up to 100 mA. They are moreover fully vacuum potted and, as a result, largely insensitive to environmental influences (degree of protection Ip 67).
|
|
Retro-reflex Polarised Axial Sensor
Reference: BA 946 S
Maximum sensing distance: on reflector 46 1 m; on reflector 84 2 m Supply: 10 to 30 VDC
Output: PNP NPN
ON-delay or OFF-delay timer standard
Dimensions: 13x30x60 mm
Insensibifty to refection interferences 1
Simple and quick set-up for self-teach (standard and sensitive mode) Alignment indicator
Dirty optics incf cator
Keyboard bck
Remote input for self-teach (sensitive mode)
Direct or inverse output
Universal state output
Cable or M8 plug
Polycarbonate strong housing
Applications:
Position or preserve control of parts on conditioning machine
Through-beam on a conveyor
Detection of shiny parts
|
|
HPX-AG: Digital Fiber Optic Sensors
Easy operation and high performance for a variety of applications
HPF: Fiber optic units
Wide range of models for various applications and environments
|
|
|
Photoelectric sensing uses a beam of light to detect the presence or absence of an object. This technology is an ideal alternative to inductive proximity sensors when the required sensing distances are longer or when the item to be sensed is non-metal. Autonics 4-kind general purpose photoelectric sensor products lines are designed with its advanced technology combined with the optic & electric technology, are widely selected in the various fields of industry for its optimized functions, quality, application flexibility and reliability while remaining strongly competitive with its price among the whole industry.
|
|
BAT0618S : the best M18 sensor for transparent objects, whatever their shape
BAT0618S is totally adapted for packaging and food and beverage markets :
- Extended sensing distance up to 1.4m
- Plastic and stainless steel housing
- Direct and 90 head
- Popular miniature M18 housing
BAT0618S is the most performing products for transparent materials detection:
- Detection performances are even better than big square sensors, including for transparent films
- Coaxial optics: no parasite refraction: can detect complex plastic or galss bottles
- Sensitivity adjustment by teach button
- Wide range: 24 references: plastic, stainless steel, cable or connector , direct or 90 view...
|
|
|
|
|
|
Photoelectric proximity switch FT 20 RL-PSM4
Scanning range 40 ... 150 mm
Laser red light 650 nm
Laser protection class 2
Miniature line
Teach-in / key lock by push of a button / control line
N.O./N.C. selectable
Also available with 3-pin connector
Switching frequency: 4000 Hz
The photoelectric proximity switches combine transmitter and receiver in one housing.The light emitted by the transmitter is reflected by the target object.The receiver evaluates this reflected light.The advantage of this method is that no reflector is required.
As the proximity switch evaluates the reflected light and its energy, the scanning range of conventional sensors (also called energetic optical sensors) depends to a great extent on the colour of the target object and on its surface.
Because of the bad reflection properties of dark materials, the sensing distances of energetic sensors are reduced on those surfaces. The type of reflection depends on the structure of the surface.
Proximity switches, which are based on energetic evaluation, are ideally suited to the detection of larger objects or of objects whose colour and surface structure are constant.
A further field of application for energetic switches is the evaluation of the different reflectance properties of different colours. For example, energetic switches are capable of detecting a grey mark in front of a white background. The different reflectance behaviour of different colours is purposely exploited during this process. The different sizes of light spots should be observed for the detection of contrast marks. The smallest light spot is achieved with the energetic laser contrast sensor FT 20 RL.
|
|
|
|
|
|
WORLD-BEAM Q12
The ultra-miniature universal sensor
- A new industry standard for miniature photoelectric sensors
- Bipolar NPN/PNP outputs in a housing just 22 x 8 x 12 mm
- Powerful sensing performance for extremely confined areas
- IP67 rating for use in a wide range of applications
- Mounting flexibility on & inside manufacturing equipment
- Overmolded design for enhanced durability & shielding
- Robust metal-lined mounting holes on all models
WORLD-BEAM QS18
The ultimate value, world-standard sensor
- Universal photoelectric family with 18 mm threaded lens
- Replacement for hundreds of other sensor styles
- Rugged IP67 housing for harsh environments
- Available in all sensing modes
- QS18 Expert models with easy push-button setup
- 360-degree visible multi-function LED indicators
- Ranges are up to 20 m
WORLD-BEAM QS30
- High power sensing with ranges up to 200 m
- Diffuse, opposed, retro, fixed- or adjustable-field and laser sensing modes
- Universal voltage models available
- Smallest sensor with integrated e/m relay
- Wide variety of special application sensing modes including; high-gain, laser and ultra-sensitive models
|
|
Photoelectric Sensors detect photo-optical workpieces. OMRON provides many varieties of Sensor, including diffuse-reflective, through-beam, retro-reflective, and distance-settable Sensors, as well as Sensors with either built-in or separate amplifiers and Fiber Units.
Through our core competency in sensing technologies, Omron is a recognized global leader in sensing products. With one of the largest offerings of photoelectric sensors in the marketplace, we offer a solution for every need and application.
|
|
|
|
|
|
The SpaceMaster series consists of a wide selection of self-contained photoelectric sensors all housed in cylindrical (tubular) housings of different dimensions. These include industry standard 10, M12, M18 and snap-in 12.7 mm cylindrical housings which are all available with either a cable or plug connection. The series offers a selection of operation modes, which include thru beam (separate transmitter and receiver), diffuse proximity, retro-reflective, and fibre sensor.
The series offers a choice between AC or DC supply voltage, and the output can be chosen between a transistor or solid state output. All the transmitter models include a test input that may be used for either disabling or enabling the transmitting power temporarily for test purposes or multiplexing applications. The DC models are all protected against reverse polarity of supplies, control input and output signals. The output is protected against short circuit and inductive loads. The complete series includes power-on and output indicators. Sensitivity can either be adjusted via an integral potentiometer or via a control wire input, depending on the selected model.
|
|
|
|
|
|
EQ-500 series DC type:
The EQ-500 series is a reflective photoelectric sensor with a compact design. Background and foreground suppression (DC types) and a long sensing range of up to 2.5m is characteristic of this sensor. Even in harsh environments prone to water or dust stable sensing is possible.
EQ-500 series can be used to confirm the passage of packages on a conveyer belt or detect people in front of automatic doors.
Characteristics:
Long sensing range: 100cm or 250cm
BGS and FGS function
Unaffected by colour, form or material of an object
Response time 2ms
NPN/PNP transistor output
Compact design H68 x W26 x L68mm
Timer function (EQ-5T only)
Short-circuit proof
Protection IP67
Options:
Sensor mounting bracket
Foot angled mounting
EQ-500 series multivoltage type
The sensor functions with power supplies from 24 to 240V AC and 12 to 24V DC. With the multivoltage type, a wide product range is available for customers. The relay output assures a high switching capacity. IP67 protection permits use in dusty or splashy environments.
Characteristics:
Long sensing range: 100cm or 250cm
BGS and FIGS function
Unaffected by colour, form or material of an object
Light ON, dark ON types
NPN/PNP transistor output
Compact design H68 x W26 x L68mm
Timer function (EQ-50T only)
Short-circuit proof
Protection IP67
Options:
Sensor mounting bracket
Foot angled mounting
|
|
EX-10 series: Ultraminiature photoelectric sensors
With dimensions of only 14.5 x 3.5 x 10mm, the EX-10 series sensors are among the smallest and narrowest sensors worldwide. Despite their ultraminiaturised design, the maximum range of the thru-beam version is 1000mm yielding an exceptionally high performance. The EX-10 series is available in two different basic designs, with a front sensing or side sensing light source, which additionally extends the mounting options in narrow spaces.
Characteristics:
Response time only 0.5ms
Front sensing or side sensing versions
Fixed focus reflecting types (diffuse light type) available
2 indicator LEDs
Sealed to IP67
|
|
|
|
|
|
These electronic devices, photoelectric sensors or photocells, use the light emission principle combined with the electronic and are made up
of an emitter or luminous source, the light rays of which are detected by a receiver. The variation in luminous signal, obtained when interrupting this ray, is converted into an electrical signal and is measured and used by
an electrical circuit. The light used is either infrared or red. By making use of this light various type of photoelectric sensors can be made. The AECO photoelectric sensors available in the FOTOSTAR range are the FT18M - FT18 -FTQ series in direct reflection, with reflector with polarized light and emitter-receiver versions. Due to their flexibility regarding the various
standard programmable versions these products offer the possibility of stocking reduction and are easily interchangeable with most of the units available on the market. They are used in the field of automation to check for the presence, counting, position control, etc., and they
are compatible with most logic programmers.
|
|
|
|
|
|
These are infrared electronic transducers which supply an output
signal when an object of any type of material passes into their
range. Types available: Thru Beam (B), reflection with reflector
(R) polarised reflection with reflector (AR) and direct
reflection (P). Available in the cable or in the H plug version
for M12 connector. The short circuit protection is incorporated.
FT18 SERIES: threaded plastic housing 18x1 mm. dia.
-Supply voltage: 10 30 Vdc, 20 250 Vac
-Led incorporated
-Programmable output PNP or NPN antiphase NO+NC
-Max. output current 200 mA
-Output MOSFET, NO/NC programmable, max. output current
300 mA
-Available with axial beam or with 90 beam
FT18M SERIES: threaded metallic housing 18x1 mm dia.
-Supply voltage 10 30 Vdc
-Sensitivity adjustment incorporated
-Two indicator led: green led-stability indicator, yellow
led-operation indicator
-Available with axial beam or 90 beam
FTQ SERIES: rectangular plastic housing 18x50x50mm
-Supply voltage: 10 30/12-240 Vdc/ac
-Sensitivity adjustment incorporated
-Two indicator led: green led-stability indicator, yellow
led-operation indicator
-Programmable functions NPN/PNP, antiphase NO+NC
-Relay output changeover 1A at 220 Vac and Programmable
relay ON/OFF
-In the H plug types the direction of the connector exit
can be selected
|
|
Compact Square
E3Z Family - Compact size square sensors in plastic or stainless steel housing.
M18 Cylindrical
E3F2 Family - Sensors in cylindrical M18 plastic, brass or stainless steel housing with axial or 90 degrees optics.
Miniature & Photomicro
Miniature size photoelectric sensors are ideal solutions for applications requiring high performance in small housings.
Special Models
For reliable detection of special objects such as bottles, PCBs, print marks, different coloured objects or for AC installations, choose the performance you need from our portfolio of special function sensors.
|
|
Features:
- Polarized retro-reflective for detection of transparent material
- Self-contained, 18 mm housing style
- Sensing Range up to 1.4 m (55.11 ft)
- UL, CSA, CE Approved
|
|
|
Warner Electric has many years of experience in applying sensors and switches in motion control applications. Our broad range of innovative and technologically advanced products offers our customers the exact solution to satisfy their sensing applications needs.
|
|
|
The industry standard photoelectric sensors provide the highest reliability for object and passage detection from short to long distance detection, in special environments, for special mounting conditions, special objects or special connectivity requirements.
|
|
Non-contact sensing up to a hundred meters of objects of any shape and any type
Description

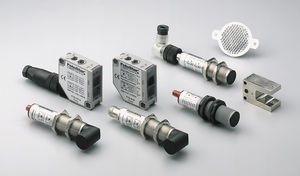

General purpose products
Diameter 18 XUB range (up to 20 meter) , miniature XUM range (up to 15 m), compact 50X50 XUK range (up to 45m) , and compact XUX range (up to 60m) are available in :
all industrial detection system mode as: Thru-beam, Reflex, Reflex polarised, Diffuse and Diffuse with back ground suppression.
in multimode that mean all these five detection systems available in only one reference. This major innovation gives a greater simplicity of choice setup and maintenance management.
Fork format, XUV range : the most cost-effective and easy to install photo-fork for small conveyors, packaging and labelling machines.
Application products
Available in the most typical formats of the market
Mark readers, luminescence sensors, transparencies detection,
color sensors, aqueous liquid detection, labels detection, laser sensors
|
|
|
The Remote Sensor series consists of a wide selection of remote photoelectric sensors, which are made to operate in conjunction with a Telco photoelectric amplifier. The remote photoelectric sensors consist of a separate transmitter and receiver sensor, which are available in a wide range of housings that may be used thru beam or diffuse proximity mode. The series is available with an optional power-on indicator in the receiver sensor and output indicator in the transmitter sensor, for use with any Telco photoelectric amplifier which has the sensor LED drive feature incorporated.
|
|
SP 2000 SPACEPAK SERIES
The SP 2000 series consists of a self-contained transmitter SPT and receiver SPR, which are to be used in thru-beam mode; an SPP for diffuse proximity; SPRR for retro-reflective; SPPR for polarised retroreflective and SPBS for background suppression. All are offered with sensitivity adjustment via integral potentiometer with either cable or 180 rotatable plug connection.
The complete series is available either as a 4 wire, NPN/PNP transistor output with 10-30 V dc supply voltage or as a 5 wire, relay output with a 12-240 V ac/dc supply voltage both offering switch selectable light or dark function and potentiometer adjustable 0 -10 sec on/off time delay. The test input in the 10-30 V dc, SPT is intended to be used for disabling or enabling the transmitter power temporarily for test purposes or for multiplexing applications. The dc series is protected against reverse polarity of power supplies, test input and output signals.
|
|
|
|
