As well as diaphragm and cup seal pumps, we produce unique linear-shuttle pumps.
They have only a single moving part, making them far more efficient and reliable than traditional pumps.
The airflow of this linear piston models lies between 0,8 l/min up to 80l/min, the maximum ratet pressure is 2 bar.
Please get informed about the whole range of our pumps under www.nitto.de or have a look at the category catalogues here at direct industry.
|
|
Autoclave Engineers Offers High Pressure Air Driven Pumps to 60,000 psi
Autoclave Engineers has designed group of Air-Driven, Positive-Displacement, High Pressure Liquid Pumps designed for service with Oil, Water and many Chemicals.
The “ASL Series” is available in a variety of drive ratios and will have both Single and Double Air Drive designs that are capable of up to 60,000 psi (4135 bar). Manual “Hand-operated” options will be made available in our “ACHL Series” pump line. Our AHL Double-Acting, Double Air-Drive Series pumps are designed for those that are looking for the combination of both high flow and high pressure.
Features Include:
• Easy to Install and Operate
• Standard Drive Ratios for Pressures to 60,000 psi (4135 bar)
• Pressure Maintained without Energy Consumption
• Requires No Lubrication
• External Spool Valve for Easy Maintenance
|
|
|
|
|
|
The EcoDry M incorporates a dry sliding mechanism without the need for oil or hydrocarbons.
Through the further developed and optimised compression processes, the EcoDry M 15/30 attains with three compression stages a base pressure (total) in the low 10-2 mbar range.
Since the EcoDry M 15/20/30 may be operated either vertically (as normally delivered) or horizontally, this pump is highly flexible when it has to be integrated into the customer’s system.
Advantages to the User
Low maintenance, free of oil and bearing lubrication, free of hydrocarbons
Extremely low particle emissions on the intake and exhaust sides
Rugged and most reliable
Low power consumption
Service friendly
Air cooling
Plug & play
Good pumping speed at low base pressure
High water vapour tolerance (gas ballast standard)
No grease lubricated bearings in the vacuum section
Leak tight
Compact size
Runs at 1000/1200 rpm (50/60 Hz mains)
Rugged full cross section exhaust valves
For both horizontal and vertical operation
Typical Applications
Applications in physics
Loadlock chambers
Transfer chambers
Mass spectrometers
Electron microscopes
Lighting
Thinfilm coaters
Freeze drying
Forevacuum pump for dry high-vacuum systems
Pumping of oxygen concentrations over 21 percent by volume upon request
|
|
Swing Piston Compressors and Vacuum Pumps for Air
Swing piston compressors produce oil-free compressed air and vacuum. They will evacuate, transfer and compress air without contamination. The KNF swing piston system offers a higher flow rate for a given size than the corresponding diaphragm pumps.
|
|
Dry running piston pump. Well suited for applications requiring high pressures. Mainly used as a compressor.
Free flow: 365 l/min
Pressure: 12 bar max.
|
|
|

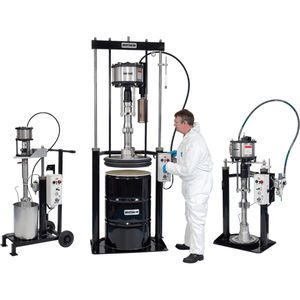

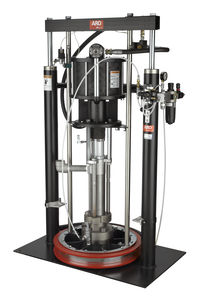

ARO piston pumps provide industry proven dependability, economy, and precision control for the delivery of a wide range of flowable materials. The efficient, simple design and construction of ARO piston pumps are the reason they are recognized as one of the most dependable, versatile and accurate on the market. Whether you’ removing a small amount of low viscosity fluid a few feet or a large amount of high viscosity material a longer distance, ARO has a pump to meet your application needs.
|
|
|
The range of Airless & Air Assisted system ARO has been designed to provide sprayers with a very robust industrial assembly, able to apply a wide range of industrial coatings whilst providing the very best quality of sprayed finish. The packages are available in a variety of mounting options including; Tripod, Cart, Wall and 25 Litre Pail. The Pumps are complete with a 5 Year Warranty
|
|
- Designed for medium- to high-viscosity UV/EB materials
- Engineered to minimize shear and thermal energy to eliminate curing of UV/EB materials
- Reliability - Eliminating downtime, the unbalanced air valve ensure stall-free operation
- Durability - Chrome-plated plunger and cylinder improves abrasion resistance
- Performance - High-flow inlet valve optimizes suction and ensures proper priming at start-up
- Serviceability - Minimal part count and modular design allows quick repair to minimize downtime
- Plunger Shroud - Covered plunger rod to keep UV rays from curing material
|
|
The radial piston pumps consist of radially arranged, valve controlled pump cylinders. Higher delivery flows can be created by stacking of up to 6 radials on a common shaft. The pump is usually driven by an electric motor, which is connected with the pump by means of a bell housing and a coupling.
The closed pump housing permits "in tank" installation (hydraulic power pack) as well as the common external pump/ motor installation (pump with motor). The possibility of a radial piston pump with several pressure outlets (several equal or differing delivery flows) is particularly innovative.
Type RG utilizes slide bearings and is intended for extreme application conditions to increase the service life.
Complete hydraulic control systems can be created by directly mounting
various connection blocks and valve banks to the cover plate of the
hydraulic power pack.
|
|
|
|
|
|
Advantages to the User
Gas ballast facility
Easy maintenance
Good ultimate pressure with and without gas ballast
High pumping speed at low intake pressures
Compact design with flange mounted motor
High water vapor tolerance
Reliable continuous operation
Tolerant and rugged, due to non-contact rotary piston within the pump chamber
Very smooth operation due to dynamically balanced masses
Separate oil filling for the gear protects the gear against contaminated pump oil
Oil is used for sealing, lubrication and cooling
A built-in anti-reverse lock prevents incorrect rotation of the piston and also stops it being pulled back when the pump is switched off while under vacuum
Air cooling makes the pump environmentally- friendly and economic
Clear design and service-friendly due to the modular design
Typical Applications
Chemical, metallurgical and electronic vacuum processes
Impregnating, degassing and drying process-es in experimentation systems, in drying cabinets, extrusion etc.
Pressure range down to 4 x 10 E-2 mbar (2.4 x 10-2 Torr) without gas ballast or to 5 x 10 E-1 mbar (3 x 10 E-1 Torr) with gas ballast
Backing pump for Roots vacuum pumps at intake pressure down to 10 E-3 mbar (0.75 x 10 E-3 Torr)
Supplied Equipment
With DN 65 DIN flanges on the intake and exhaust sides for direct connection of DN 63 ISO-K flange components
Ready for operation, complete with oil filling
Special models for different motor voltages, motor frequencies and other protection class ratings are available - Details on these upon request
|
|
The Jet Edge iP55-75 is a 75-horsepower intensifier pump rated at 60,000 psi (4,100 bar). It is capable of producing output pressures from 1,000 to 55,000 psi (3,800 bar) with flow rates of 0 to 1.5 gallons (5.7 liters) per minute to a variety of cutting, surface-preparation or cleaning tools.
Features
- High efficiency TEFC motor
- 1,500 or 1,800 nominal motor speed (rpm)
- Electronically shifted intensifiers
- Wye-Delta soft start with disconnect
- 0.5 gallon (1.9 liter) high pressure attenuator with 1.45 micron filtration
- Safety shutdown systems
- Automatic safety pressure bleed-down valve
- Thermostatically controlled cooling system
- Programmable Logic Controller (PLC) for operation and safety monitoring
- Axial piston, variable displacement, pressure-compensated hydraulic pump
- Liquid-filled pressure gauges
- UHP safety shielded tubing
|
|
|
|
|
|
AccuStream intensifier waterjet machines give you a choice of 30-, 50-, 75-, 100- or 150-horsepower units with adjustable pressures up to 60,000 psi. All AccuStream waterjet machines feature the AccuStream-built AIT Technology for maximum cut pressures and peak performance under the most demanding applications.
No other waterjet cutting machine incorporates the features of the AIT intensifier to deliver the simplest, easiest-to-operate, most reliable system. AccuStream's intensifier technology combines innovative design features, quality manufacturing, and carefully selected materials to maximize maintenance intervals, simplify component replacement and minimize cost of operation.
Key Features
Whatever your requirements, there's an Accustream intensifier waterjet cutting machine to meet your needs. Accustream's menu of options and accessories allows you to fully tailor your waterjet cutting machine to your specific needs. Before you start looking at options, you'll be impressed with the long list of standard features and capabilities packed into every Accustream AS intensifier waterjet pump. These features and capabilities are normally found only on waterjet pumps costing thousands more - and some are not available anywhere else!
|
|
High Pressure Pump
STREAMLINE Classic SL-V 50
Our STREAMLINE™ SL-V Classic reflects the new market
requirement for a completely self-contained, easy
to hookup unit, guaranteeing you top HSEC intensifier
technology in an affordable package.
Nominal Power Rating: 37 kW (50 PS)
Working Pressure: 500-3.800 bar
Max. Flow Rate: 3.8 l/min
|
|
The Moog RKP pump, is a radial piston pump that has served the industrial market for over two decades. This product is a proven design with high reliability and a large selection of control options. It is well-respected in the industry for its rapid response times, high volumetric efficiencies, low noise levels, compact size and robust design.
Available in 7 pump sizes between 19 cc and 140 cc per revolution, the RKP pump has maximum speed ranges of 1,800 to 2,900 rpm. High pressure versions and multiple pump arrangements are available.
Also available are other hydraulic products such as servovalves, servo-proportional valves, cartridge valves, directional valves,lintegrated hydraulic manifold systems, electronics and accessories.
Our pumps are known for long service life and when you need maintenance or repairs, ask for Moog Authentic Repair Services.
|
|
|
These pumps are positive displacement pumps designed to economically transfer small volumes of fluid at low discharge pressures. The lightweight, compact pumps are self-priming, corrosion resistant and can handle viscous fluids. These features make the pumps ideal for high volume copy machines, scientific and laboratory instruments and other chemical dispensing applications.
|
|
|
|
|
|
The Dual Pump Package operates on the 3rd generation cutting model of OMAX Intelli-MAX® Software, which accommodates cutting at 80 hp utilizing two P4055V pumps.
The P4055V direct drive plunger pump operates at full power with a very low noise level and is driven by a variable speed electric motor for variable output pressure. Based on a single design platform, the pump delivers more than 90% of the electrical input power to the cutting nozzle and provides more cutting power per kilowatt than pumps using intensifier technology. Unlike intensifier pumps, the P4055V uses variable frequency drive (VFD) technology, which prevents the in-rush of currents upon starting the pump.
OMAX designed the Dual Pump Package for shops that specialize in cutting thick, difficult to machine materials and have high capacity production or multiple nozzle requirements. In addition to offering the highest cutting power on the market, the Dual Pump Package is a proven and reliable technology that operates both pumps at optimum efficiency and has an extended seal life in excess of 500 hours. Additionally, the system provides highly efficient, redundant pump operation and permits users to switch between standard and high power operation to ensure the best operation for each application.
|
|
Capability of ultimate pressure, flow or output horsepower
Compatibility with a variety of liquids
|
|
|
DPP offers an assortment of quality reciprocating piston pumps used in a wide range of applications, from critical medical devices to chemical dosing/metering equipment and laboratory analysis equipment; all superbly manufactured to the highest possible standards. Tests show that the consistency of our product performance is second to none, which makes DPP the first choice for very low controlled and repeatable flow application requirements.
|
|
DPP can design, develop and customise using their state-of-the-art technology and unique know-how to make a specific pump tailored to your exact requirements.
If you have a complex or difficult application and you think the pump or valve you require is not readily available we can utilise our existing modular product range and highly developed technology to design and manufacture a tailored solution to meet your exact requirements.
|
|
|
CAT PUMPS triplex, high-pressure, liquid handling, PISTON PUMPS are available in five different frame sizes providing flows from 1 to 60 GPM with pressures up to 1500 PSI. Our triplex PISTON PUMP line includes brass Models 280,290,333, 430, 623,820,1010,1520,2520, 6020, 6040 and stainless manifold options for each. Our PISTON PUMPS provide strong suction capabilities and are ideal for CIP cleaning systems, metering and sanitizing applications. Our triplex high pressure PISTON PUMPS feature the UNIFLOW design using a dynamic seal that moves through a cylinder to deliver a constant flow. Our PISTON PUMPS also feature our patented sleeved-piston rods providing piston rod protection and fast, low cost servicing. Request a quote for a pump or custom pumping system.
|
|

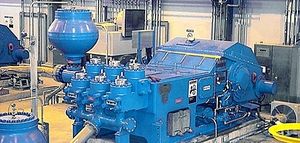

GEHO TZPM
The GEHO TZPM pump is a crankshaft driven three-cylinder single-acting high pressure piston diaphragmp pumps. The unique preformed GEHO diaphragm separates the pumped slurry from all the pump moving parts. This range of pumps is ideal to handle abrasive and corrosive slurries against high pressures at the lowest possible total cost of ownership. High efficiency and reliability strongly contribute to this objective. The TZPM pump range is developed and manufactured by Weir Minerals Netherlands b.v.
Features / Benefits
- capacities up to 900 m3/h
- pressures up to 300 bar
- medium viscosity < 8000 mPas
- extreme abrasiveness
- high corrosiveness
- elevated temperature
- up to 8mm particle size
- up to 75% solids content
|
|
Positive constant displacement, rotary, three screw pump. Flow rate per revolution 9.8 - 307 cm3 in 14 steps.
The three screws, the central driven screw – the power rotor – which meshes with the two sealing screws – the idler rotors –are the only rotating components ot the pump. The axial pressure and friction loads on the pump rotors are hydraulically balanced. The power rotor is positioned axially by the selfcompensated thrust washer arrangement, being part of the hydraulic balancing system of the power rotor. The pump accommodates mechanical shaft seals complying with the DIN 24960 Standard.
|
|
|
Diener Precision Pumps manufacture the highest quality and most accurate precision reciprocating piston pumps in the world. With flow ranges from 0.01ml per stroke up to 5ml per stroke our pumps are designed to give optimum performance over a wide range of applications, including chemical dosing & metering where a controlled volume of fluid needs to be achieved consistently.
|
|
|

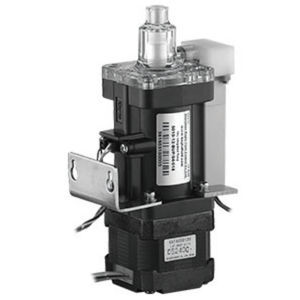

FMI pumps are modular in design.The Pump Head Modules can be easily removed for cleaning or replaced with a spare pump head for use with different fluids. Some customers have separate pump heads for use with each fluid handled or flow rate desired.
|
|

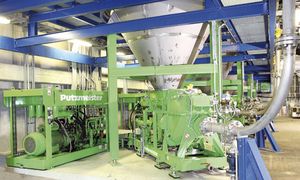

One feature of the KOS series is its S-transfer tube. This connection of the drawing-in and pressure cylinders guarantees an almost continuous operation with free passage of the material to be conveyed without valves. Individual foreign bodies in the material to be conveyed can easily be conveyed with a particle size of up to 50 % of the outlet diameter.
The KOS easily handles highly-viscous sludges such as materials to be conveyed with a high share of coarse grain. The main field of application is thus for materials with most extreme requirements.
These are, for example:
* sewage sludges with percentages of foreign bodies
* oil sludges with percentages of foreign bodies
* bio waste and other waste
* chemical and organic high density solids with highest viscosity
* highly dewatered sewage sludges
|
|
|
The BINKS H.P. Range of Airless & Air Assisted Airless Spray outfits have been designed to provide sprayers with a very competitively priced, robust industrial assembly, able to apply a wide range of industrial coatings whilst providing the very best quality of sprayed finish.
|
|
|
|
|
|
Engineered for compactness, economy and dependability- Ingersoll-Rand's Vacuum pumps are the number one choice for demanding applications, providing top operating efficiency combined with low maintenance. And best of all, these vacuum pumps are backed by Ingersoll-Rand, the world's leader in air compressor and pump manufacturing.
Features:
.Cast Iron Construction:
Cylinders and frame are designed with 100% cast iron for durability and long life.
.Cylinders:
Separately cast cylinders with deep fins allow for 360° cooling, removing the heat of compression. Individual bolting of the cylinders to the frame for easy inspection and maintenance.
.Low Oil Level Protection:
The low oil level switch protects the pump from operating without proper lubrication.
.Piston Rings:
Each piston is equipped with (2) compression rings and (2) oil control rings to maintain maximum operating efficiency and low oil carryover.
.Valves:
Stainless steel valves are readily accessible and inexpensively replaced if necessary.
.Connecting Rods:
One piece design permits precision aligned machining of both crankpin and piston pin bearings resulting in longer bearing life. Also allows for simple maintenance-no bolts to come loose or adjust.
|
|
|
|
|
|
Maximum Productivity, Lower Cost of Operation
Maximum productivity and low operational costs are the keys to keeping your business competitive. Flow's 55,000 psi HUSKY pump sets a new industry standard for both productivity and reliability, giving you a portable ultrahigh-pressure waterjet pump that contributes to your bottom line by allowing you to work more efficiently and take on more jobs. The HUSKY is the world's first 55,000 psi direct drive triplex pump with full pressure compensation giving you the power you need to reduce your operating costs and increase productivity on a square foot basis. Now you get Flow's proven HUSKY UHP pump with a world class Caterpillar C-9 engine that meets Tier II emission requirements, on board diagnostics and lower fuel consumption.
The 55,000 psi HUSKY is compatible with all other Flow machines, meaning no additional investment in technology is necessary to upgrade.
Benefits
Maximum productivity from 55,000 psi - the highest pressure available in the industry
Lower cost of operation gives contractors a competitive advantage when bidding on jobs
Compatible with all existing Flow industrial cleaning products
Latest technology makes 55,000 psi pump the easiest-to-use, most reliable pump in the industry
Standard Features
290 hp Caterpillar C-9 Engine, producing 210 nhp - the highest available nozzle horsepower
Automated settings for multiple tool operation
Diagnostic sensors to assist with troubleshooting and preventative maintenance
Engine meets worldwide Tier 2 emission standards
On-board water booster and filtration system
Full pressure compensation allows for multiple tool use
Triple high-pressure outlet ports
82 gallon fuel tank
Multilingual remote operator box
Small 58.5" x 102" footprint
Specifications
Operating Pressure: 55,000 psi (3,790 bar)
Maximum Flow Rate: 6.5 gpm (24.5 lpm)
Approximate Weight: 5575 lbs (2534 kg) dry
Fuel Capacity: 82 gal (310 l)
Engine: 290 hp (216 kW) Caterpillar C-9
Nozzle Horsepower: 210 nhp (157 kW) continuous duty
Speed: 2,100 rpm continuous duty
Water Filtration: 10 micron absolute
Mounting Type: Skid or optional trailer mount
|
|
Advantages:
- Working pressures up to 5,000 bar.
- Low noice level even at high cycling speed.
- No mechanical pilot valves.
- Proven reliability under severe conditions.
- Modular, robust and modern design.
- Easy to change ratio of the pump.
- Easy to convert a pump from single- to double acting.
- Light weight air cycling spool.
- Easy maintenance.
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
|
The air driven high pressure liquid pumps cover a range from 0 to 37 ltr/min. Pressures range from 0 to 2400 bar. All wetted parts are made of stainless for use of oil and water. Applications are pressure testing of tubes, hoses, valves and systems. Delivery ex stock.
|
|
|
|
