The deltaflow pitot is the portable counterpart of the deltaflow DF 25. It is the ideal sampling instrument for performing integrated measurements according to DIN 2640 standards. It possesses the same highly precise profile as the deltaflow DF25 and is used to verify and calibrate existing measurements. The deltaflow pitot is currently in use, for example, in supplier of power plants, by measurement teams, and-in the heating and air conditioning industry-to test airflow efficiency, air intake and exhaust, or to test the efficiency of ventilators.
Because the deltaflow pitot can be disassembled, it can be comfortably transported in a carrying case. Its straight construction design allows it to be easily inserted into the sampling cross-section through previously-existing apertures. The sampling profile is extremely impervious to pollution or to the accumulation of condensation. The highly durable stainless steel and the non-sealed design resist temperatures of 1040°C in constant application and can withstand temperatures of up to 1200°C for temporary measurements.
Media: Gasses
Conduit / Channel Diameter: 100..8500mm
Process Requirements: -250..1200 °C / 0..6 bar
ultra-pure through highly polluted, aggressive gasses
Tests / Certifications:
Calibrated at the Department of Flow Technology at the University of Erlangen |
|
Pitot tube - Series 160/166/167
Insertion Lengths from 6 to 216 Inches, Designed to Meet AMCA and ASHRAE Code
Ellipsoidal Tip Pitot Tube - Series 160E
Insertion Lengths from 0.2 to 1.52 Meters, Designed to Meet British Standard 1042.
"S" Type Stainless Steel Pitot Tube - Series 160S
Insertion Lengths from 18 to 72 Inches, Designed to Meet EPA Spec. 40 CFR (Ch. 1)
Telescoping Stainless Steel Pitot Tube - Model 166T
Adjustable Insertion Length from 11.5 to 36 Inches
|
|
KIMO offers a wide range of high-quality and accurate Pitot tubes, as per the AFNOR NFX 10-112 and ISO 10780 norms.
Pitot tubes Type L
Accuracy : More than 1 %, for a ± 10 ° alignment to the fluid flow.
Pitot tube with ellipsoidal head. An intake for total pressure and 6 holes for static pressure. Body made of stainless steel.
Pitot tubes Type L with TCK
Accuracy : More than 1 %, for a ± 10 ° alignment to the fluid flow.
Pitot tube with ellipsoidal head. An intake for total pressure and 6 holes for static pressure. Sheated thermocouple manufacturers K probe integrated, with connection cable length 1,5 m. Body made of stainless steel.

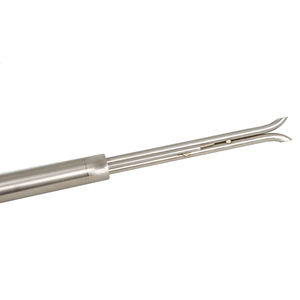

Pitot tubes type S with TCK
Accuracy : More than 4 %, for a ± 15 °alignment to the fluid flow.
Pitot tubes with TIG splicer and protective tube made of stainless steel. Sheated thermocouple K probe integrated, with connection cable length 1,5 m. Body made of stainless steel. |
|
• Pitot tubes Type L : pitot tube with ellipsoidal head. An intake for total pressure and 6 holes for static pressure. Body made of stainless steel.
• Pitot tubes Type L with TCK : pitot tube with ellipsoidal head. An intake for total pressure and 6 holes for static pressure. Sheated thermocouple specifications K probe integrated, with connection cable length 1,5 m. Body made of stainless steel.
• Pitot tubes type S with TCK : pitot tubes with TIG splicer and protective tube made of stainless steel. Sheated thermocouple K probe integrated, with connection cable length 1,5 m. Body made of stainless steel.
• Air Flow Measuring blades DEBIMO : simple and cost effective method of providing permanent air flow measurement in rectangular or circular ducts. When used with a KIMO differential pressure device (pressure, professional transmitter, electronic micromanometer, liquid column manometer, differential pressure switch manufacturers, ...).
DEBIMO air flow measuring blades ensure accurate indication, control or recording of air flow velocity and volume. Permit velocity measurements from 3 to 100 m/s (9 Pa to 10000 Pa). |
|
| ... products without technical information |
| |
| Preso’s patented Ellipse Pitot tube DP flow meter offers the highest accuracy and lowest pressure loss of any pitot tube on the market today. Typical performance specifications include +/- 0.75% accuracy, 0.1% repeatability and 17:1 turndown ratio. Typical pressure loss is 3% in a 12” (300 mm) line, with no noise transmission. NIST-traceable calibration also available. The Preso Ellipse is available for liquids, air, gas or steam, in pipe sizes from 2" (50 mm) to 72" (1830 mm) and larger. |
|
|
|
