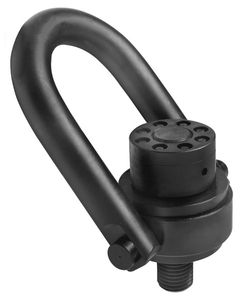

ACTEK® SHR-Series - Hoist ring
Specials
- 5:1 Safety factor
- 200% proof load tested
- Serial numbers for traceability
- rotates 360° and swivels 180°
- Magnetic partical inspected
- Easy mounting, only one thread or hole is required
- also available as WKA-System for assembling the
tower segments of wind generators. With only six
hoisting units, 100% of your tower segments can be lifted.
|
|
|
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction. Safety factor = 5:1. Black oxide finish is standard, with cadmium plating available as a special. Swivel Hoist Rings are also available in 300-series stainless steel, with a load rating equal to 50% of the steel version.
|
|
Center-Pull Style Hoist Rings
Popular sized hoist rings (1/2-13 through 1-8) are offered with two or more length bolts. Use the longer lengths with softer parent materials, the shorter lengths with hard materials such as steel.
Full Swivel and Pivot Action
Rated at 5:1 Strength Factor
Material: Alloy Steel
Finish: Black Oxide
Clevis, Bolt, Pins, Base, Washer and Bushing are magnetic particle inspected
Washer: Zinc plated with gold colored conversion coating
200% Proof Tested
Drawings available in FixtureProTM CD and downloadable from the web.
|
|
- Range of movement Pivot 180º Swivel 360º
- Minimum safety factor = 5:1
- Meets military specification number MIL-STD 1365(11) or MIL-STD 209C
- 100% magnetic particle inspected
- Meets OSHA requirements
|
|
Description Safety-eye bolt
Reference 260-12-13
Please select one table row below:
D1 D3 (mm)
M12 13
M16 13
M20 16
M24 18
M30 20
M30 22
M36 22
|
|
