- 7000 produkts in stock
- Lifetime online predictable
- Maintenance free
Polymer bearings from igus® are a step up from a lastic bush to a tested, predictable and ex-stock mechanical component. This is exactly how we our job; the basis being materials with increased performance, precision, and prediction of behaviour, especially regarding life time.
With igus® maintenance free polymer bearings we can simultaneously help you to improve your products and reduce your costs.
|
|
Sliding Instead of Rolling
DryLin® R linear bearings work through the use of sliding elements, in contrast to the design of recirculating ball bearing systems. In practice, these iglidur® elements made of high performance polymers can be manufactured from all iglidur® materials. Thus, the DryLin® R linear technology has the advantages of all of the different iglidur® bearing materials. iglidur® J is the best material for most linear applications because of its excellent wear and low coefficient of friction. Therefore, DryLin® R linear plain bearings are designed using this material.
The Most Important Properties of DryLin® R Linear Plain Bearings:
- maintenance free
- dirt resistant
- lightweight
- extremely quiet operation
- resistant to corrosion
- high static loading capacity
- resistant to shocks and vibrations
DryLin® R linear plain bearings are designed for dry running. Dirt, dust, and other abrasive media are not drawn into the bearing surface by grease or oils.
In contrast with the recirculating ball bearings, The performance of DryLiny® R bearings is not effected by the length of travel. Therefore, there are no restrictions on minimum stroke length for DryLin® R linear bearings.
|
|
Permaglide® plain bearings are bearings for very small radial or axial design envelopes. These products are available as bushes, flanged bushes, thrust washers and strips and in two groups of materials. The bushes are available not only in metric sizes but also in inch sizes.
Bushes, washers and strips are supplied in the maintenance-free Permaglide® P1 or the low-maintenance P2. Flanged bushes are made from the maintenance-free Permaglide® P1.
|
|

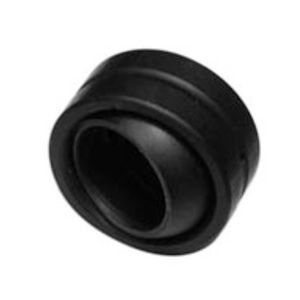

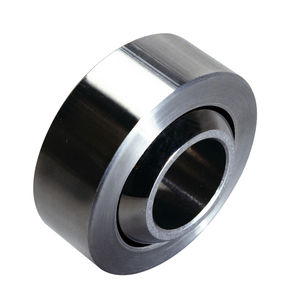

Radial spherical plain bearings
Radial spherical plain bearings comprise inner and outer rings with maintenance-free sliding layers of ELGOGLIDE®, PTFE composite or PTFE-bronze film. They can support slight axial forces as well as radial forces and are suitable for alternating dynamic loads. Sealed spherical plain bearings are protected against contamination and spray water by lip seals. Large spherical plain bearings of d = 320 mm and above belong to the premium grade X-life.
Axial spherical plain bearings
Axial spherical plain bearings comprise shaft and housing locating washers with ELGOGLIDE®. They are preferably used to support axial forces and are suitable as support or base bearings. Large spherical plain bearings of d = 220 mm and above belong to the premium grade X-life.
|
|
Rino Industries Ltd are pleased to announce the launch of an exciting new range of ceramic and self-lubricating linear bearings into their new 848 page mechanical drive components catalogue.
Both closed and open bearings are in ceramic and self-lubricating as standard, with sizes starting from 5mm up to 80mm bores. The ceramic coated aluminium bearings require lubrication and are available with or without seals. Self-lubricating bearings are manufactured from a Teflon® composite liner bonded to an aluminium shell, the company states.
Thin-walled metric bearings are also available, but in a closed version only. Sizes start at 6mm bore going up to 50mm. Again, closed and self-lubricating are both standard.
For both thin-walled and standard versions, the shafts recommended for self-lubricating bearings are RC60, 300 stainless steel types but they run equally well on either hardened or soft shafting. Recommended temperature range is from -240ºC to +190ºC.
Ceramic bearings however, must be used on RC60 hardened lubricated shafting only in order to achieve maximum performance. The proper amount of lubrication required is that amount which maintains a constant thin film during operation, the company states. The method selected will depend on the speed-load coefficient of friction requirements of the application. Approved and tested lubrication methods include lithium stearate grease, MOS2 dry film, most oils, greases and moly pastes. Silicon based spray lubricants are not recommended for use with these shafts.
|
|
Rino Industries have launched 3 new busings, ranging from DU dry bushings, DP4 maintenance free and PM-DX marginally lubricated versions. All are manufactured from a composite bearing material consisting of three bonded layers – a steel or bronze backing strip is bonded with a porous sinter bronze interlayer which is impregnated and overlaid with a PTFE and lead bearing material. The bronze backing strip provides extra high corrosion resistance, anti-magnetic properties and a good thermal conductivity.
The DU (steel) and DUB (bronze) bushes are sold in both standard plain and flanged versions with thrust washers available as accessories. Sizes start at 2mm nominal inside diameter up to 300mm so every size possible is catered for. They are dry bearings requiring no additional lubrication and therefore providing maintenance free operation. They exhibit low wear rate and are seizure resistant with a high static and dynamic load capability – these are just some of their many advantageous features.
DP4 maintenance free bearings start at a nominal inside diameter of just 2mm going up to 115mm in the standard plain version and the flanged version starts at 3mm increasing to 45mm. Thrust washers are also available to suit. They are most suitable for sliding, oscillating, reciprocating and rotating applications.
PM-DX marginally lubricated bearings provide maintenance free operation, have good frictional properties, no water absorption so are therefore dimensionally stable and are compact and light to boot. Sizes start at 8mm inside diameter going up to 300mm on the standard plain cylindrical bush – flanged versions are not available in this range.
|
|

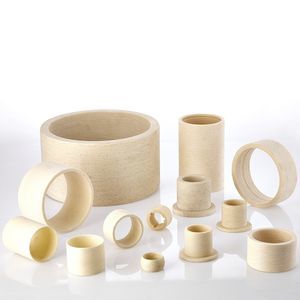

It has two layers - sliding layer and backing layer. Sliding layer consists of filament-wound PTFE and Synthetic fiber that has low frictional and wear-resistant performance. Backing layer consists of filament-wound fiberglass impregnated into epoxy resin. It has good load capacity with low friction and stick-slip-free operation at slow speed.

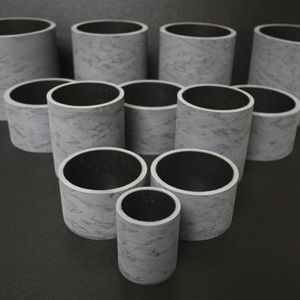

Mostuf composite bearings are filament-wound composite bearings with a self-lubricating inner surface backed with a high-strength, fiber-reinforced thermoset composite. Composite bearings are standard components for manufacturers involved in heavy industrial equipment, farm equipment, pneumatic and hydraulic cylinder manufacturers, as well as valve and actuator manufacturers. Essentially, composite bearings are ideal for high-load, low speed applications or where lubrication is difficult or costly.
|
|
It has two layers – sliding layer and backing layer. Sliding layer consists of filled PTFE Tape. Backing layer has the same structure as T bearing. It has good load capacity with low friction and stick-slip-free operation at moderate speed.
Mostuf composite bearings are filament-wound composite bearings with a self-lubricating inner surface backed with a high-strength, fiber-reinforced thermoset composite. Composite bearings are standard components for manufacturers involved in heavy industrial equipment, farm equipment, pneumatic and hydraulic cylinder manufacturers, as well as valve and actuator manufacturers. Essentially, composite bearings are ideal for high-load, low speed applications or where lubrication is difficult or costly.
|
|
Welcome to RBC's on-line Engineering Data Guide for Fiberglide® Self-Lubricating Bearings. To access critical dimensions and data for your design questions, use the Seach By Criteria section below. If you are uncertain as to which of RBC's Fiberglide® Self-Lubricating Bearings is best suited for your design application, check with our selection guide. To view an entire product series, select a product from the table of contents.
CJS - Journal Bearing Type - Coiled Steel Backing
CJT - Journal Bearing Type - Thin Walled Steel Backing
CJH - Journal Bearing Type - Heavy Walled Steel Backing
CJM - Metric Sized Journal Bearings - Coiled Steel Backing
LJS - Journal Bearing Liner Type - Non-Metallic
FTS - Thrust Washer - Steel Backing
LTD - Thrust Washer - Non-Metallic
FTP & FTT - Thrust Packs
SJR - Sealed Journal Bearings
|
|

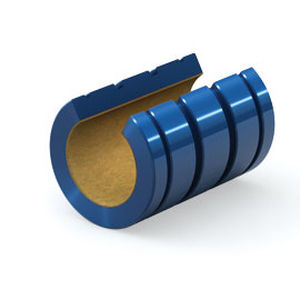

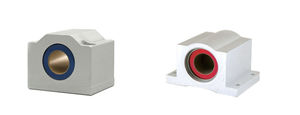

Simplicity Linear Plane Bearing
The time-tested Simplicity® linear plane bearing has been one of Pacific Bearing Company’s staple products for over twenty years. Originally designed as a solution to catastrophic roller bearing failure, the self-lubricating Simplicity linear bearing has not only met great success in the most contaminated environments, but has helped spawn newer products using the same durable technology: Mini-Rail® and the Uni-guide to name a couple.
Simplicity linear plane bearings contain bonded Frelon® liner; which allows for low friction, long-life, high load capacity, shock absorption and the ability to work in dirty environments. They are size interchangeable and are also available in Standard Inch, Metric, and Japanese Metric sizes.
The Simplicity® product line consists of more than linear bearings, also included are: linear slides, pillow blocks, sleeve bearings, flange mounts, and die set bushings. Most products are available in inch or metric sizes.
Available for use not only in the most contaminated environments, but also the most clean, Simplicity linear plane bearings are the ideal product for a wide range of applications.
• Virtually maintenance free
• Industry interchangeable
• Applicable in dirty and clean environments
• Self-aligning capability
• Low friction and Long-life
• Shock absorption
|
|
Slide bearing
Group 008
# Made from nylon-66 (PA-66)
# Colour: natural
# Suitable for DIN h6-H7 fitting
# Bearing clearance about 1 % of the shaft diameter after assembly
# Also available in assortment box 019
|
|

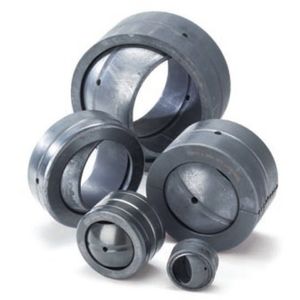

RBC has been a pioneer in spherical plain bearing technology since
inventing the fractured outer race design many years ago. Since that
time, RBC has continued to introduce industry leading innovations such
as high misalignment, angular contact, extended inner ring, tapered
bore, and extended lubrication groove spherical plain bearing designs.
These advanced products are used wherever pivoting, high load bearing
applications are found. Most typically, RBC spherical plain bearings
are employed in hydraulic cylinder rod ends, vehicle suspensions,
heavy equipment articulated joints, and other severe duty uses.
Industries served include off-highway mobile construction equipment,
large agricultural machinery, mining equipment, forestry products, and
other large equipment requiring bearings that provide misalignment
capabilities while carrying high loads.
|
|
|
Steel manufacture with optional PTFE liner available. Improved wear life for use in wide range of temperatures and environments where full rod end is not appropriate - from heavy construction to racing.
|
|
Pivoting bearings DIN ISO 12240-1 (DIN 648)
Rod ends and pivoting bearings are some of the most frequently used linking elements in industry. These parts can be found everywhere where simple movements are required, e.g. linear pulling, pushing or even axle offset compensation. The linking technology specialist, mbo Osswald, provides a particularly wide application range with a whole assortment of different rod ends and pivoting bearings.
|
|
deva.eco sliding bearings are thin-walled, rolled bronze parts with lubrication deposits. They can take high loads and enable compact, economic bearing design solutions.
There are three basic designs:
deva.eco 9 with rombic shaped rolled lubrication pckets. This design is mostly used in applications where nearby design elements, such as gears, are oil-lubricated. Likewise these bearings can be used with standard pumpable greases or lubrication pastes.
deva.eco 8 has lubrication pockets like deva.eco 9 but filled with solid lubricant to allow operation without additional lubrication. If higher lubrication performance is required deva.eco 7 is better suited. This type includes punched holes aslubrication deposits and is used for applications which are frequently relubricated. Due to the shape of the lubrication deposits this type is less suitable for oil lubrication.
|
|
Sintered bronze
Our range of oil-impregnated sintered bronze bearings is intended for use in maintenance-free operations, under moderately high speeds and low loads.
Solid bronze
We also produce a range of solid bronze bushes in a variety of alloy compositions.
Thin-wall solid bronze: MBZ-B09TM, LDTM, LDDTM
Our range of mono-metal bearing products is complemented by a range of thin-wall solid bronze bushes for grease-lubricated applications.
MBZ-B09 materials are provided with a uniform pattern of indents that act as grease reservoirs.
In contrast, LD and LDD materials are provided with perforations that allow larger amounts of lubricant to be incorporated. LDD is also supplied with an integral sealing arrangement.
|
|
The NBA Series
The NBA Series features a single fractured NYLOY® race, assembled with controlled clearance around a sintered bronze ball. This combination provides reliable performance in a wet atmosphere and is completely non-magnetic, and corrosion free.
|
|
Our metal-backed, PTFE-based (polytetrafluoroethylene) polymer bearing materials have a common structure, consisting of a steel backing bonded to a porous bronze sinter layer. This bronze sinter layer is impregnated and overlaid with the filled PTFE bearing lining.
The steel backing provides mechanical strength, while the bronze sinter layer provides a strong mechanical bond between the backing and the bearing lining. This construction promotes dimensional stability and improves thermal conductivity.
These polymer bearing linings, being predominantly PTFE, offer exceptionally low friction.
|
|
|

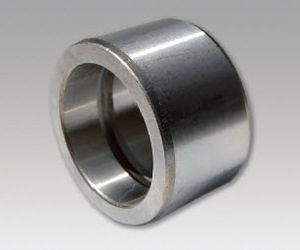

rings, bushings and spacers for agricoltural and automotive application with surface phosphating coating
|
|
Bushing : Plain
Journal bushings manufactured to SAE-AS81934/1 and fully approved for procurement under those specifications. These journal bearings all feature Aurora’s proprietary AT 3200 liner system, fully qualified to AS81820. Total traceability is maintained through manufacturing up to and including shipping. Bore sizes range from ¼” (-04) through 2” (-32), and lengths from .156” through 3.00”. In addition to mil spec approved sleeve bearings , non-standard material substitutions and dimensional modifications are possible to meet specific customer application requirements.
|
|

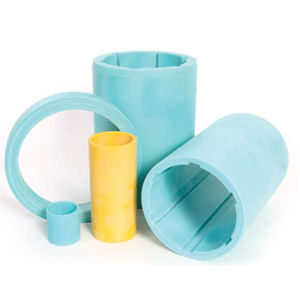

Orkot® Marine Bearings
A non-asbestos synthetic composite material incorporating solid lubricants. Orkot® Marine Bearings have exceptional wear resistance, and virtually no swell in water. Their elasticity, compared to metal bearings, permits edge loading and misalignment, under the heaviest loads. They provide effective and maintenance free solutions where (salt)water is involved. Hydrodynamic running is possible when velocities are at least 1 m/s.
Orkot®, Turcite® and HiMod® Bearings
High load bearings made from Turcite® and HiMod® engineered thermoplastics or Orkot® synthetic composites. The bearings are dimensionally stable, wear resistant and provide excellent performance under dry and boundary lubrication conditions.
|
|
PTFE-based metal-polymer materials: DU®, DU®B, DP4TM, DP4BTM, DP31TM
Our metal-backed, PTFE-based (polytetrafluoroethylene) polymer bearing materials have a common structure, consisting of a steel backing bonded to a porous bronze sinter layer. This bronze sinter layer is impregnated and overlaid with the filled PTFE bearing lining.
The steel backing provides mechanical strength, while the bronze sinter layer provides a strong mechanical bond between the backing and the bearing lining. This construction promotes dimensional stability and improves thermal conductivity.
These polymer bearing linings, being predominantly PTFE, offer exceptionally low friction.
Thermoplastic-based metal-polymer materials: DX®, DSTM, HXTM
DX, DS and Hi-eX have a similar structure to the PTFE-based materials described above; but with these products, the bearing lining consists of a filled thermoplastic extruded tape.
These materials are generally designed to operate with marginal lubrication. DX and HX are most commonly provided with a uniform pattern of indents in the bearing surface that act as grease reservoirs.
The incorporation of PTFE filler in DS enables this material to operate dry when required. Due to the inherent lower friction of this polymer blend, it is usually supplied without indents.
The high-performance engineering polymer found in HX gives this material excellent temperature and chemical resistance combined with good load capacity and is particularly suited for operation under arduous conditions with oil lubrication.
|
|
deva.glide is a self-lubricating bearing material that consists of a hih-quality bearing bronze with solid lubricant pockets distributed individually according to the moving direction of the specific design. deva.glide allows to replace lubricated bronze bearings with a maintenance-free alernative and
- is suitable for large dimensions
- has a low coefficient of friction
- has a high wear resistance
- allows a high durability
|
|
DX, DS and Hi-eX have a similar structure to the PTFE-based materials described above; but with these products, the bearing lining consists of a filled thermoplastic extruded tape.
These materials are generally designed to operate with marginal lubrication. DX and HX are most commonly provided with a uniform pattern of indents in the bearing surface that act as grease reservoirs.
The incorporation of PTFE filler in DS enables this material to operate dry when required. Due to the inherent lower friction of this polymer blend, it is usually supplied without indents.
The high-performance engineering polymer found in HX gives this material excellent temperature and chemical resistance combined with good load capacity and is particularly suited for operation under arduous conditions with oil lubrication.
|
|
Products for (nearly) every purpose
For years, our oilless guide elements have been used in tool and machine construction for linear and rotational motion. The base material is supplemented by solid lubricant depots that take over the lubrication. After the one-time and initial lubrication, these guide elements will be maintenance-free for a long time.
The wide range of this product program offers versatile fields of application. Here as well, special models are according to your own requirements are always possible.
|
|
deva.tex is a high-performance self-lubricating sliding material with a glass-fibre reinforced carrying layer. The machinable sliding layer consists of fibres which are embedded in epoxy resin. The resin carries PTFE as lubricant for excellent tribological performance.
deva.tex bearings are characterized by a very high corrosion and wear resistance. They are insensitive to contamination as well as to vibrations and shock loads.
|
|
deva.metal is a self-lubricating bearing material manufactured by powder metallurgy. It is fully compacted and can be operated with higher loads than oil-impregnated porous bronze. deva.metal is provided with an evenly distributed solid lubricant throughout its metallic matrix.
deva.metal
- is suitable for dry running at slow sliding speeds and high loads,
- is stick-slip free,
- has a high resistance to temperature and corrosion,
- is insensitive to contamination and edge pressures,
- can be easily machined if required.
|
|
The sixteen series of Aurora spherical bearings all incorporate the single-piece race type construction, providing excellent ball-to-race conformity and structural integrity, along with the advantages of metal-to-metal contact between bearing components. Standard race materials are low carbon, heat treated alloy or stainless steel. Balls are precision ground alloy or stainless steel. Metal on metal race units can be re-lubricated through an annular groove in the outer race with two interconnecting holes positioned at 180 degrees, while a self-lubricating PTFE to metal interface may also be optionally specified in many series. Inch or imperial sizes range from 3/16 inch through 6 inch bore, metrics from 3 through 160 mm. In addition to catalog offerings, non-standard materials substitutions and dimensional modifications are possible, to meet specific customer application requirements.
Inch
Aurora Bearing Company produces over a dozen lines of inch dimension spherical bearings. All series, from the economy, light section fractured race GEZ series through the high performance PNB and PWB series feature precision ground heat treated alloy steel balls, and one-piece steel raceway construction. Race materials include low carbon, and heat treated alloy or stainless steels.
Metric
Aurora Bearing Company produces three lines of metric spherical bearings. All feature one-piece steel raceways for maximum structural integrity. Aurora COM-M series bearings are available in sizes from 3mm to 30mm and follow the dimensions of DIN 648 schedule K. Light section fractured race GE series are available in sizes from 12 through 160 mm.
|
|
Spherical Bearings
Alinabal manufactures a complete line of bearings for a variety of needs. Some of our most popular are described below. For more information, a complete catalog, a quote or for custom made parts, please contact us at 1-800-254-6763.
|
|
|
|
