The T45: Quick and quiet for precise planing.
The T45 planer provides ideal conditions for the modern manufacturing environment: It delivers cleanly planed surfaces, is quick and easy to use and operates with very low noise emissions.
MARTIN sets standards.
|
|
SIMPLICITY - Simple to install and mantain. Easy to set up and operate. Require minimum operator training.
EFFICIENT - Very strong machines, require minimum floor area. Extensive planing and moulding capacities. Simplicity to change the knives in the vertical cutterheads.
FLEXIBILITY - Large capacity of work. Extensive selections of options, accessoires and tooling available to handle production of a tremendous range of quality wood products.
ECONOMY - Very low price. Can be operate by one man, which reduct the cost of working.
|
|
The T54: A Jointer that fits your workshop.
Perfect results in no time at all.
Perfect end results can only be obtained with perfectly jointed material. The T54 offers the ideal conditions to create unequalled precision.
MARTIN sets standards.
|
|
| ... products without technical information |
| |
|
Dynapac drew on its experience from the early days of modern cold planer construction to meet the latest requirements for the new Dynapac large planers. These machines are capable of removing asphalt and concrete across a profiling width of 2010/2100 mm at a maximum cutting depth of 320 mm. Hydrostatically driven by four steered track drives, practical standard equipment and a range of options combined to make your planer one of the most capable in the latest generation of cold planers.
|
|
|
The new Dynapac PL500T and PL500TD are powerful, highly manoeuvrable, hydraulically powered compact planer with hydraulically driven cutting drum. The three wheel drive unit (optional 4-wheel drive) has been developed for removing asphalt or concrete pavements, cutting around man hole covers and road maintenance jobs at a cutting depth of up to max 2000 mm and a working width of 500 mm.
|
|
|
|
|
|
POWERFUL WORK
•Powerful Engine
The 400kw (537hP) engine offers powerful cutting force. The working time and cost can be dramatically slashed. The engine complies to the EPA's tough emission regulations.
•Deep cut
The ER551F can cut up to 230mm (9") in one pass. When shaving off bumps, the working speed is max. 60m/min (197ft./min.)
•Transit Speed
The pneumatic tire mounted design and a 0-25km/h (0-15.5mile/h) transit speed eliminate the need of a trailer for transporting the machine from one job site to another, which means slashing local transportation cost.
SLASHING PERFORMANCE
•Flush-cut Along Curbs
The ER551F can flush-cut right up to the curb or other obstacles hanks to the 400mm(15.7") curb clearance and 105mm (4") side clearance on each side.
•Drum Shift System
The cutter drum can shift up to 450mm(17.7") to each side. The feature enables the ER551F to cut through the lane without shifting the entire machine to avoid manholes or other obstacles.
•Operating Control
A set of operating controles is located in 3 places, on the top of the poerator station, and to the right and left of the cutter drum. The operator can choose the most ideal position from which to work.
EASY TO OPERATE ACCS
•ACCS (Automatic Cutter Control System)
The ER551F is equipped with a computenzed ACCS. The operator is free from concentrating on machine operation and he can observe the entire job area and conditions.
•Auto Cutting Mode
The ER551F shall automatically perform its job along the guide line according to pre-set cutting orders. The manual override is allowed during Auto mode operation.
|
|
|
|
|
|
RX-400 Utility/Commercial Cold Planer
The RX-400 is a 4 ft. (1.20m) Cold Planer with a rear mounted drum, allowing you to start the cut directly in front of curbs, fences, walls or other obstructions. It's perfect for commercial work and completion of projects where a compact machine design is an advantage, such as shoulders and other narrow milling projects. The RX-400 features milling widths of 26", 36" and 48" (66, 90, 120cm) and a maximum cut depth of 12.5" (320mm).
RX-500 Half-Lane Cold Planer
The RX-500 is a 600 hp (447 kW) cold planer with sufficient conveyor swing (60° left or right) and turning radius to accomodate today's demanding urban milling conditions. The RX-500 is available in either the three-track or four-track version. The RX-500 can easily change between several narrow cutter widths and pattern choices to make this one of the most versatile machines in its class.
RX-700 Half-Lane Cold Planer
The RX-700 has a 700 hp (522 kW) engine and 14” (356 mm) cutting depth making it able to tackle numerous jobs. As with all current Roadtec cold planers the RX-700 is available with three or four tracks and a secondary conveyer that can be pivoted 60° left or right.
RX-900 Half-Lane and Full-Lane Cold Planer
The RX-900 is a 950 hp cold planer available with three or four track assemblies. This versatile machine allows contractors to cut up to 14" (355mm) deep with widths of 7' 2" (2.18m), 8' 2" (2.5m), 10' (3m), or 12' 6"(3.81m). The RX-900 offers contractors more versatility and productivity. A 42" (1.07 m) wide front load-out conveyor, with 60° swing to either side, provides ample loading capacity.
|
|
| ... products without technical information |
| |
Model: BHO 18 Li
• Additional front handle with soft-grip for convenient two hand working
• Large dust bag for a dust free working area
• Adjustment switch for easy adjustment of cutting depth
• Front and rear shoe have a v-groove for easy chamfer cutting
• Automatic kickstand to protect surfaces from accidental planer contact
• Lock off switch for safety
• Ergonomic handle design with large soft-grip area for maximum comfort
• Die-cast base for high durability
|
|

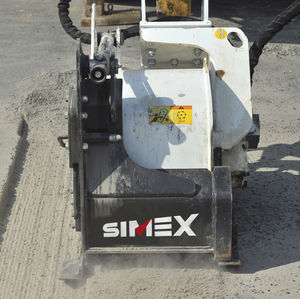

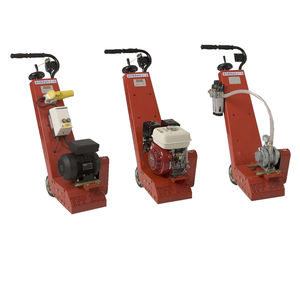

TFP 200
Surface Preparation / Floor Planer / TFP200
Used for planing concrete.
Removal of stone roofing material, white lines, ice, soiling and grease.
Preparing floors for painting.
Keying concrete.
Paint and coatings removal from steel and concrete surfaces.
Tank lining.
Removal of contaminant during decommissioning.
|
|
- QAD-WAY, CENTER-MOUNTED HEADSTOCK CAPTURE SYSTEM UTILIZING BOX WAYS(FRONT) AND LINEAR GUIDEWAYS(REAR) FOR SUPERIOR RIGIDITY.
- WIDE SADDLE BOX WAYS COMBINED WITH ROLLER PACKS PROVIDE SUPERIOR VIBRATION DAMPING, PRECISION AND REPEATABILITY.
- BOX WAYS ON TABLE, SADDLE AND COLUMN UTILIZE ANTI-FRICTION MATERIAL MATCHED TO HARDENED CAST IRON SURFACES.
- ANTI-BACKLASH DOUBLE-PINION GEAR DRIVE ON ROTARY TABLES.
FULL CAST IRON STRUCTURE(TABLE, SADDLE, COLUMN).
- T-BASE INTEGRATED TABLE AND SADDLE CONFIGURATION.
TRAVELS : X=2000-6000 Y=1200-3500 Z=1000-2500 mm
Boring bar diam. 125-130-150-180 mm W=600-800-1000 mm
ROTARY TABLE : 6-12-20-30 TONS 1000x1000-2.500x3.000 mm
APC AUTOMATIC PALLET CHANGER : 2-4 PALLETS
ATC AUTOMATIC TOOL CHANGER : 20-120 TOOLS
AUTOMATIC HEADS :
UNIVERSAL 2,5ºx2,5º/1ºx1º/0,1ºx0,1º 37 kW
CNC FACING HEAD UP TO 1500 mm DIAMETER
AAC PICK-UP MAGAZINE : AUTOMATIC ATTACHMENT CHANGER
|
|
|
Powerful, high precision HFB-Series floor type CNC horizontal boring machine is designed for heavy duty machining of large workpieces. Its stabilized ram extension design provides superior accuracy by preventing thermal elongation and by compensating the Ram bending force.
|
|
|
|
|
|
The model MAF45 is a high-precision milling-boring machine with a fixed column of compact and sturdy monolithic structure.
The machine structures are made of Italian Meehanite cast-iron and have been subject to a stress relieving treatment. The system utilizes modern electronical technologies so to ensure long lifetime, high reliability of the mechanical and electronical system and high accuracy features.
The MAF45 model has to be considered a universal machine due to its controlled axes, four of the linear and one of the rotary type, for the TG version. The capability of machining more or less complex workpieces reduces considerably the number of work setups and therefore the machine standstill.
Furthermore, there is the possibility to equip the machine with an automatic tool-changer and a pallet-changer. The wide range of special accessories increase the flexibility and versatility of the machine for all requirements of the customers. This makes the MAF45 machine ideal for every kind of operation.
|
|
Technical Features HB 2M
Max. Vertical Working Area mm 3.500
with Universal Head mm 4.000
Spindle
Universal Head: - A Axis pos. 360
- C Axis pos. 360
Mounting mm 50 7388 - Big Plus Ready
Max. Spindle Rotation Speed RPM 5.000
at constant torque RPM 5 ÷ 750
at constant power RPM 750 ÷ 4.000
Spindle Motor Max. Torque Nm 1.100
Spindle Motor Max. Power Kw 56
Mobile Head Section mm 350 x 380
Travels
Longitudinal Ram - Z mm 1.200
Vertical Head - Y mm 2.000 ÷ 3.500
Cross Column - X mm 6.000 + N°x1.000
Feeds
Workings mm/1' 5 ÷ 10.000
Rapids mm/1' 30.000
Acceleration mm/s² 800
|
|
Technical Features HB 160MM
Max. Vertical Working Area mm 4.500
with Universal Head mm 5.000
Spindle
Spindle Diameter mm 150 - 160 - 180
Universal Head: - A Axis pos. (360) (360.000)
- C Axis pos. (360) (360.000)
Mounting mm 50 7388 - Big Plus Ready
Max. Spindle Rotation Speed RPM 3.500
at constant torque RPM 5 ÷ 300
at constant power RPM 300 ÷ 3.000
Spindle Motor Max. Torque Nm 3.700
Spindle Motor Max. Power Kw 73
Mobile Head Section mm 430 x 560
Travels
Longitudinal Spindle - V mm 1.100
Longitudinal Head - Z mm 1.300
Total Longitudinal Z + V mm 2.400
Vertical Head - Y mm 3.000 ÷ 4.500
Cross Column - X mm 6.000 + N°x1.000
Feeds
Workings mm/1' 5 ÷ 10.000
Rapids mm/1' 25.000
Acceleration mm/s² 500
|
|
Technical Features HB 200MM
Max. Vertical Working Area mm 7.000
with Universal Head mm 7.500
Spindle
Spindle Diameter mm 180 - 200 - 254
Universal Head: - A Axis pos. (360) (360.000)
- C Axis pos. (360) (360.000)
Mounting mm 50 7388 - Big Plus Ready
Max. Spindle Rotation Speed RPM 2.000
at constant torque RPM 5 ÷ 150
at constant power RPM 150 ÷ 1.500
Spindle Motor Max. Torque Nm 12.000
Spindle Motor Max. Power Kw 100
Mobile Head Section mm 600 x 750
Travels
Longitudinal Spindle - V mm 1.400
Longitudinal Head - Z mm 1.600
Total Longitudinal Z + V mm 3.000
Vertical Head - Y mm 4.000 ÷ 7.000
Cross Column - X mm 6.000 + N°x1.000
Feeds
Workings mm/1' 5 ÷ 10.000
Rapids mm/1' 15.000
Acceleration mm/s² 150
|
|
