cycloidal gear reducer / planetary / coaxial / single-stage
cycloidal gear reducer
ZS series

Torque: 200 Nm - 400000 Nm

... centrifuge reducer provides the relative speed between the drum and the screw conveyor. The precisely balanced housing is firmly bolted to the drum and is driven at the speed of the drum. The drive shaft of the Cyclo ...

planetary gear reducer / coaxial / precision / compact
planetary gear reducer
IB series

Torque: 10.5 Nm - 500 Nm
Rotational speed: 350 rpm - 3645 rpm
Power: 0.05 kW - 5 kW

Precision planetary gear for servo-motor applications 3 sizes 3 output variants: Output shaft without key Output flange Output shaft with key Gear ratio: 1:5, 1:9 (single-stage), 1:15, ...

planetary gear reducer / coaxial / air-cooled / for mining applications
planetary gear reducer
300M Series

The new 300M Series offers to our customers the opportunity to enhance production performances and benefit from a significant cost effective solution. BENEFITS • New self air cooling system (patent pending) • Planet carrier bearings ...

See the other products
Bonfiglioli
planetary gear reducer / bevel / orthogonal / for heavy-duty loads
planetary gear reducer
3/H series

Torque: 1200 Nm
Power: 980 kW

Bonfigliolis 3/H gearboxes combine the high technology, performance and efficiency of planetary gearboxes with the robustness, quality and reliability of bevel helical gearboxes. These ...

See the other products
Bonfiglioli
cycloidal gearbox / right-angle / for industrial applications
cycloidal gearbox
300 series

Torque: 1000 Nm - 1287000 Nm

Bonfiglioli’s 300S planetary gearboxes are specially designed for industrial slewing applications. These innovative gearboxes, based on the acclaimed 300 Series, embody all of Bonfiglioli’s vast experience ...

See the other products
Bonfiglioli
epicyclic gear reducer / coaxial / low-backlash / precision
epicyclic gear reducer
3:1 - 1 000:1 | MP series

Torque: 20 Nm - 1000 Nm

MP - Planetary precision gearbox is designed to render optimized results. They reduce any occurrences of backlash and offer smooth assembly and simple motor assembly. There are a wide ...

See the other products
Bonfiglioli
epicyclic gear reducer / coaxial / low-backlash / precision
epicyclic gear reducer
TR series

Torque: 20 Nm - 1000 Nm

... the TR planetary precision gearboxes offers great precision for highly dynamic applications. The TR planetary precision gearboxes integrates dependability with reduced ...

See the other products
Bonfiglioli
planetary gear reducer / coaxial / high-torque / two-stage
planetary gear reducer
PL 50

Torque: 7 Nm
Rotational speed: 100 rpm

... *2 (max 1000 cycles per hour. Acceleration torque proportion <5% of the total operating time) *3 (max 1000 cycles over the gear service life) *4 related to the input shaft Lubrication: liquid grease (lifetime-lubricated) Mounting ...

See the other products
Framo Morat
planetary gear reducer / coaxial / high-torque
planetary gear reducer
PL 70

Torque: 23, 24 Nm
Rotational speed: 100 rpm

... *2 (max 1000 cycles per hour. Acceleration torque proportion <5% of the total operating time) *3 (max 1000 cycles over the gear service life) *4 related to the input shaft Lubrication: liquid grease (lifetime-lubricated) Mounting ...

See the other products
Framo Morat
planetary gear reducer / coaxial / high-torque
planetary gear reducer
PL 90

Torque: 60, 50, 37 Nm
Rotational speed: 100 rpm

... *2 (max 1000 cycles per hour. Acceleration torque proportion <5% of the total operating time) *3 (max 1000 cycles over the gear service life) *4 related to the input shaft Lubrication: liquid grease (lifetime-lubricated) Mounting ...

See the other products
Framo Morat
planetary gear reducer / coaxial / high-torque
planetary gear reducer
PL 120

Torque: 130 Nm
Rotational speed: 100 rpm

... *2 (max 1000 cycles per hour. Acceleration torque proportion <5% of the total operating time) *3 (max 1000 cycles over the gear service life) *4 related to the input shaft Lubrication: liquid grease (lifetime-lubricated) Mounting ...

See the other products
Framo Morat
planetary gear reducer / coaxial / high-torque
planetary gear reducer
PL 155

Torque: 340, 220, 330, 310, 300 Nm
Rotational speed: 100 rpm

... *2 (max 1000 cycles per hour. Acceleration torque proportion <5% of the total operating time) *3 (max 1000 cycles over the gear service life) *4 related to the input shaft Lubrication: liquid grease (lifetime-lubricated) Mounting ...

See the other products
Framo Morat
planetary gear reducer / coaxial / precision / low-backlash
planetary gear reducer

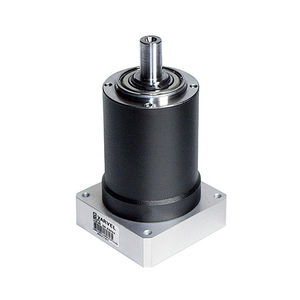

RG series

Torque: 12 Nm - 480 Nm
Rotational speed: 2600 rpm - 6000 rpm

... RG Series manufactured by Varvel is a low-backlash planetary reducer that was specifically developed for two and three stages. They have hardened and tempered steel casing and broached internal gear. ...

planetary gear reducer / coaxial / precision / for shafts
planetary gear reducer
GP 4 series

Torque: 0 Nm - 0.01 Nm

Precision spur- and planetary gearheads matched to maxon motors. Gears are advantageously adapted directly to the desired motors in the delivery plant. The motor pinion is the input gearweel ...

See the other products
maxon motor
planetary gear reducer / coaxial / low-noise / high-power
planetary gear reducer
GPX 8 series

Torque: 0.01 Nm - 0.1 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. High torques and speeds, low noise and backlash… the maxon GPX 08 has virtually every quality that could be required of a gearhead. ...

See the other products
maxon motor
planetary gear reducer / coaxial / high-power / modular
planetary gear reducer
GPX 12 series

Torque: 0.08 Nm - 0.17 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. The use of metal components makes a wide range of applications ...

See the other products
maxon motor
planetary gear reducer / coaxial / high-power / modular
planetary gear reducer
GPX 12 C series

Torque: 0.11 Nm - 0.23 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. The gearhead's ceramic components make it suitable ...

See the other products
maxon motor
planetary gear reducer / coaxial / high-power / modular
planetary gear reducer
GPX 12 LN series

Torque: 0.06 Nm - 0.11 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. Plastic planet gears enable use in ...

See the other products
maxon motor
cycloidal gearbox / parallel-shaft / manual / for valve actuators
cycloidal gearbox
DSIR range

Torque: 720 Nm

The Dual Speed Input Reducer is used to reduce the number of input turns required and therefore the operating time on manual gearbox applications.

planetary gearhead
planetary gearhead

Torque: 0 Nm - 32 Nm

Gearheads FAULHABER developes high performance modular gearheads to complement each of its motor technologies. From high torque planetary technology in a variety materials, to zero ...

planetary gear reducer / coaxial / precision / high-torque
planetary gear reducer
3.33 - 23 014 :1

Torque: 0 Nm - 0.45 Nm

Planetary Gearheads Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications. For ...

planetary gearbox / coaxial
planetary gearbox

Torque: 4 Nm - 120 Nm
Power: 10 W - 300 W

Our DC Brush Motors are available as direct drives or geared

planetary gear reducer / coaxial / for harsh environments
planetary gear reducer
AquaTRUE™

Torque: 876 Nm

... AquaTRUE™ Gearhead. It is designed with a 304 stainless steel housing that reduces opportunities for rusting and corroding, and without outer joints for bacteria to stay. This gearhead is built with IP66/IP67 ...

See the other products
Thomson Industries, Inc.
planetary gear reducer / coaxial / precision
planetary gear reducer
XTRUE™

Torque: 876 Nm

The XTRUE™ Series is a recently released precision gearhead, which is a compliment to the Micron® True PlanetaryGearheads line. Featuring superior load capacity, as well as a flexible mounting system, ...

See the other products
Thomson Industries, Inc.
planetary gear reducer / coaxial / low-noise
planetary gear reducer
ValueTRUE™

Torque: 2800 Nm - 2969 Nm

... storage space, reduced backlash, and has low noise, hassle-free function compared to the non-helical ones. True Planetary® gearhead has a very handy 3 mounting steps which are align, ...

See the other products
Thomson Industries, Inc.
planetary gear reducer / coaxial / precision
planetary gear reducer
UltraTRUE™

Torque: 3111 Nm - 3300 Nm

UltraTRUE™ is a true planetary gearhead that blends the positive elements of Helical Crowned gearing with True Planetary orientation to produce smooth and quiet gearheads ...

See the other products
Thomson Industries, Inc.
planetary gear reducer / coaxial / low-backlash / precision
planetary gear reducer
EverTrue™

Torque: 1017 Nm

The EverTrue True Planetary® from THOMSON is a gear head that is highly durable and highly reliable with optimized performance. Its robust, special design is capable of running more than 30,000 hours ...

See the other products
Thomson Industries, Inc.
planetary gear reducer / coaxial / transmission
planetary gear reducer
FLENDER SIP® series

Torque: 10000 Nm - 80000 Nm

The FLENDER SIP planetary gear unit offers a wide variety of high-endurance and reliable gear unit quick fixes in fine accruals with great variety and numerous options. The line brings ...

See the other products
Siemens AG - PD - Mechanical Drives
planetary gear reducer / coaxial / transmission
planetary gear reducer
FLENDER PLANUREX® 2 series

Torque: 4700000 Nm
Power: 14500 kW

The Siemens FLENDER planetary gear unit series offers a range of standardized gear unit solutions that offer higher power rating ranges. The unit is offered in 27 sizes and seven models. ...

See the other products
Siemens AG - PD - Mechanical Drives
planetary gear reducer / orthogonal / high-torque / high-power
planetary gear reducer
FLENDER PLANUREX® 3 series

Torque: 1700000 Nm - 5450000 Nm

... . With our PLANUREX® 3 series, we have redefined these expectations. PLANUREX 3 represents a new generation of premium planetary gear units that have extremely high power capacity, can be used in a wide ...

See the other products
Siemens AG - PD - Mechanical Drives
planetary gear reducer / coaxial / low-noise / for slewing drive
planetary gear reducer

Torque: 22000 Nm - 354000 Nm

Constructed with a modular design by Siemens, the FLENDER gear units for slewing gear drives can provide excellent positioning for driven machines. The FLENDER gear units for slewing ...

See the other products
Siemens AG - PD - Mechanical Drives
planetary gear reducer / coaxial / for bucket wheel excavators
planetary gear reducer
PBUC, P2LA, P2KA, P3KA

Torque: 100000 Nm - 2600000 Nm

... necessity, however, can be in conjunction by optional load-sharing planetary gear devices.

See the other products
Siemens AG - PD - Mechanical Drives
planetary gear reducer / coaxial / low-backlash / for robotics
planetary gear reducer
alpheno®

Torque: 13 Nm - 500 Nm
Rotational speed: 6000, 8000 rpm

Wittenstein’s Alpheno® is a planetary gearhead unit designed and manufactured to be the "next step in planetary gearhead operating efficiency". This high-quality planetary ...

See the other products
WITTENSTEIN SE
planetary gear reducer / coaxial / high-performance / low-backlash
planetary gear reducer
RP+

Torque: 540 Nm - 10000 Nm
Rotational speed: 5000 rpm

New Rp+ is a high-performance planetary gearhead that sets standards with respect to power thickness, modularity and easy installation. Rp+ series inherits all the profits of its WITTENSTEIN alpha gearhead ...

See the other products
WITTENSTEIN SE
planetary gear reducer / coaxial / low-backlash / for robotics
planetary gear reducer
SP+ series

Torque: 30 Nm - 4500 Nm
Rotational speed: 6000 rpm

The iconic all-rounder planetary gearheads from Wittenstein is perfect for high positioning precision and dynamic cyclic application (DC ≤ 60%). The basic SP+/SP+HIGH SPEED is capable of reverse and continuous ...

See the other products
WITTENSTEIN SE
planetary gear reducer / coaxial / low-backlash / high-torque
planetary gear reducer
TP+ series

Torque: 32 Nm - 40000 Nm
Rotational speed: 6000 rpm

The TP+/TP+ HIGH TORQUE is a sleek gearhead that was manufactured by Wittenstein. The TP+/TP+ HIGH TORQUE boasts the most excellent performance among all other gearheads that have output flange. It offers ...

See the other products
WITTENSTEIN SE
planetary gear reducer / coaxial / low-backlash / for shafts
planetary gear reducer
LP+, LPB+

Torque: 13 Nm - 500 Nm
Rotational speed: 6000 rpm - 8000 rpm

... with the LP+/LPB+ Generation 3 low-backlash planetary gearheads. Dependably robust, the set combines the functions of an output shaft (LP+) and an output flange (LPB+) in a low-cost high-performing gearhead ...

See the other products
WITTENSTEIN SE
planetary gear reducer / coaxial / for vehicles / for conveyors
planetary gear reducer

Torque: 8135 Nm - 162696 Nm
Rotational speed: 2800 rpm - 4000 rpm
Power: 27 kW - 168 kW

... of the center section planetary gears allowing the reducer, swing and track drive applications be accommodated through output arrangements. These planetary gear ...

planetary gear reducer / coaxial / high-torque / high-torque
planetary gear reducer
S series

Torque: 34000 Nm - 2500000 Nm

Brevini "S Series" gear units are the ideal choice for applications, either fixed industrial or self-propelled machines, in need of high torque and minimum dimensions. In comparison to conventional gear ...

See the other products
Brevini Power Transmission
planetary gear reducer / parallel-shaft / high-torque / precision
planetary gear reducer

Torque: 51000 Nm
Rotational speed: 1200 rpm - 2000 rpm

... manufacturing large precision gears for any industrial application. Brevini Gear Systems facility is able to manufacture and heat treat large-diameter, high-precision gearing. We have ...

See the other products
Brevini Power Transmission
planetary gear reducer / orthogonal / high-performance / industrial
planetary gear reducer
i= 3.28:1

Torque: 1000 Nm - 25000 Nm

... of modular design planetary gearboxes for industrial applications. It combines high performance with low cost and compact size, excellent reliability, simple installation and reduced ...

See the other products
Brevini Power Transmission
planetary gear reducer / coaxial / ATEX / transmission
planetary gear reducer

... compliant planetary gearboxes suitable for applications in zones where explosive atmospheres may occur, and also zones characterised by the presence of gas mixtures and/or combustible powders (zones 1,2,21,22). ...

See the other products
Brevini Power Transmission
bevel gearbox / planetary / helical / right-angle
bevel gearbox
i= 2 000:1

Torque: 3900 Nm - 35000 Nm

... mounted POSIPLAN gear reducers feature a combination of planetary and bevel helical gears that takes advantage of the strengths of each technology: compact size, reliability and easy ...

See the other products
Brevini Power Transmission
planetary gear reducer / coaxial / low-backlash / high-performance
planetary gear reducer
AG2210 series

Torque: 5 Nm - 320 Nm

The AG 2210 are BECKHOFF'S planetary gear units for servomotors that equip industrial machinery with minimum backlash, high performance, and cost-effective equipment for industrial applications. With ...

gearbox with motor adapter / planetary
gearbox with motor adapter
C-Adapter

... with: BG Helical gears BF Shaft mount gears BK Bevel gears Main features installation space optimised adaptation of IEC standard motors adaptation of NEMA standard motors free ...

planetary gearbox / right-angle
planetary gearbox
WPLFE

Torque: 14 Nm - 520 Nm

WPLFE The shortest right angle planetary gearbox with flange output shaft and maximum torsional stiffness. Thinking around corners even in tight spaces. The WPLFE is our right angle planetary ...

See the other products
Neugart
planetary gear reducer / coaxial / low-backlash / high-torque
planetary gear reducer
PLE

Torque: 5 Nm - 1600 Nm

The powerful alternative The PLE is the perfect economy alternative to the PLN. We have specifically designedthis planetary gear for all applications in which a particularly low backlash is not necessarily ...

See the other products
Neugart
planetary gear reducer / coaxial / high-torque / low-backlash
planetary gear reducer
PLPE

Torque: 5 Nm - 920 Nm

Achieve greater flexibility. Powerful, absolutely reliable and always highly efficient: With PLPE we have carefully followed the philosophy of our economy range for you. Of course, our new series maintains the accustomed level of NEUGART ...

See the other products
Neugart
planetary gear reducer / coaxial / high-precision / precision
planetary gear reducer
PLHE

Torque: 15 Nm - 520 Nm

On the path to leadership. NEUGART stands for innovative, forward-looking solutions in gear technology. A current example: the new PLHE. With this series, we again fulfil expectations on performance, functionality and ...

See the other products
Neugart
planetary gear reducer / coaxial / high-torque / low-noise
planetary gear reducer
PLFE

Torque: 15 Nm - 520 Nm

... aspects. The Economy Flange gearboxes combine the compactness of our PLFN with the economical aspects of the PLE gearboxes. lowest backlash highest output torques highest tilting stiffness high efficiency (96%) honed ...

See the other products
Neugart
planetary gear reducer / helical / coaxial / high-performance
planetary gear reducer
PLG 75LL series

Torque: 160, 2 Nm

Industry compatible high performance planetary gearbox High efficiency Quiet operation due to helical gears in 1st stage, 2nd and 3rd stage have straight toothing Planetary ...

See the other products
Dunkermotoren GmbH
planetary gear reducer / helical / coaxial / high-performance
planetary gear reducer
PLG 75LN series

Torque: 160, 2 Nm

Industry compatible high performance planetary gearbox High efficiency Quiet operation due to helical gears in 1st stage, 2nd and 3rd stage have straight toothing Planetary ...

See the other products
Dunkermotoren GmbH
planetary gear reducer / coaxial / high-power / compact
planetary gear reducer
PLG 24 series

Torque: 0.3, 0.6, 0.45 Nm

The Planetary Gearbox is ideally designed to provide a good quality performance and functionality. It is built with the highest continuous torque capacity in all gearboxes. It is also constructed with ...

See the other products
Dunkermotoren GmbH
planetary gear reducer / coaxial / high-power / compact
planetary gear reducer
PLG 32 series

Torque: 4, 1.5, 0.4 Nm

The PLG 32 Planetary Gearbox is ideally designed to provide good quality performance and functionality. It is built with the highest continuous torque capacity in all gearboxes. It is also constructed ...

See the other products
Dunkermotoren GmbH
planetary gear reducer / coaxial / high-power / compact
planetary gear reducer
PLG 32H

Torque: 0.4, 1.5, 4 Nm

The Planetary Gearbox is ideally designed to provide a good quality performance and functionality. It is built with the highest continuous torque capacity in all gearboxes. It is also constructed with ...

See the other products
Dunkermotoren GmbH
planetary gearhead / orthogonal / for heavy-duty loads / hollow-shaft
planetary gearhead

Torque: 4.5 Nm - 3500 Nm

overview A range of Shafted Planetary Gearheads, fully adaptable to suit all servomotors. features - Low cost, 10 to 15 arc-min backlash (MRP) - Heavy duty version, 6, 4 or 1 arc-min backlash(MNT) - Right angle version, ...

planetary gear reducer / orthogonal / parallel shaft / industrial
planetary gear reducer
Cat.EP

Torque: 1600 Nm - 710000 Nm
Power: 0.18 kW - 90 kW

... shaft-mounting design and wide range of accessories and non-standard designs. The motor is standardized to IEC and 2,3 or 4 reduction stages for both coaxial and right angle shaft have been provided. The construction ...

planetary gear reducer / bevel / coaxial / high-torque
planetary gear reducer

Torque: 18 Nm - 1800 Nm

The Rossi range of comprehensive planetary and bevel planetary gear units is intended for heavy industrial applications and features a design suitable for both shaft rotation and case ...

planetary gear reducer / parallel-shaft / for wind turbines
planetary gear reducer

Torque: 1000 Nm - 200000 Nm

The Planetary series of gear motors for the wind energy sector is superbly designed by Rossi to provide an exponentially improved version of existing gear motors. The gear motor ...

planetary gear reducer / coaxial
planetary gear reducer
25:1 - 308:1 | PKS30

Torque: 2 Nm

... Antriebstechnik Gmbh, and is a planetary gear reducer that has gear ratios ranging from 125:1 up to 308:1. Its rated torque output is lesser than or equal to 250 Ncm. Kahlig Antriebstechnik ...

See the other products
Kählig Antriebstechnik GmbH
planetary gear reducer / coaxial / industrial
planetary gear reducer
4:1 - 308:1 | P32I

Torque: 4.5 Nm

Kahlig AntriebsTechnik's P32I are planetary gearboxes with brushes. These devices are compatible with different motors, such as M28, M36 and M42. The gears and housing are both made out ...

See the other products
Kählig Antriebstechnik GmbH
planetary gear reducer / coaxial / industrial
planetary gear reducer
4:1 - 308:1 | PK42I

Torque: 4 Nm

The PK42I from Kahlig AntriebsTechnik are planetary gearboxes with brushes. These devices are compatible with different motors, such as M28, M36 and M42. The gears are out of steel and ...

See the other products
Kählig Antriebstechnik GmbH
planetary gear reducer / coaxial / for DC motors
planetary gear reducer
4:1 - 308:1 | P42I

Torque: 15 Nm

The KAG planetary gears/DC motors with brushes have a torque range of 250 Ncm to 12000 Ncm, and a ratio range of 25-308 to 4-308.

See the other products
Kählig Antriebstechnik GmbH
planetary gear reducer / coaxial / industrial
planetary gear reducer
4:1 - 308:1 | PK52I

Torque: 10 Nm

KAG presents P52I planetary gearbox. It provides a torque rating of 2500 and a ratio range (x:1) of 4-308. The KAG website has detailed information on its serial program of planetary gearboxes. The ...

See the other products
Kählig Antriebstechnik GmbH

How to choose this product

planetary-gear-reducer

A planetary (or epicyclical) gearbox uses epicyclical gears for speed reduction. It is composed of one or more toothed wheels turning around a rotating shaft. Each rotates on its own axis as well as revolving around the central shaft. This provides great reduction capability in a small space, making them common in automatic transmissions.

Applications

These mechanisms are used wherever efficiency and high reduction ratios are needed in a small space. Examples are automatic transmissions and many industrial applications using electric gear motors.

How to choose

Choice will depend on the speed and torque of both the input and output shafts. These data will determine the gear ratio.

Advantages

- Reduced space requirement
- High gear ratios possible
