Characteristic and Use:
1.Adopt inverter technology, used IGBT components, exactly feedback control. To cut metal with air, being compute, light weight.
2.Various protection functions, adopting untouched incision to cut metal with rusty spot or paint easily.
3.Suitable for discretionary curve cutting in different metal panel as stainless steel carbon steel,copper and aluminum.
4.Apply to kitchen utensils, fitment, maintaining and hardware craft.
See more,visit our website!
|
|
|
Manual plasma cutting units for applications in trade and industry are suitable for straight, profile, template, contour and bevel cutting in all positions, for hole piercing as well as for plasma gouging, hole and slot cutting.
|
|
RTC 60 to 150
Universal applicability for steel, special steel, aluminium non-ferrous metals and other electrically conducting metals - even with painted surfaces
Optimum cutting quality thanks to
- precisely regulated and continuously adjustable cutting current
- high performance reserves - even at the critical end of the cut
- exact control with voltage compensation
Maximum economic efficiency from high cutting speed at the same time as long service life and optimum cutting quality
Dependable ignition using REHM Zetronik is possible both for contact and distant cutting - for hose bundle lengths up to 20 m
Long service life thanks to shutdown of the controlled pilot current during cutting, soft start function, and micro-controlled cutting current with patented transistor module
Maximum safety for man and equipment thanks to monitoring of torches and wearing parts, with active early warning and automatic safety shutdown.
|
|
Built-in, heavy-duty industrial piston-driven compressor provides long life and superior airflow.
Solid-state, constant-current design offers consistent 12 amp cutting arc for continuous quality cutting up to 3/16 in steel in steel.
Electronic Pilot Arc Controller automatically controls the pilot circuit to provide expanded metal cutting ability without having to re-trigger the torch, increasing productivity and extending tip life.
LVC™ line voltage compensation provides peak performance power under variable conditions (98 to 132 volts) for steady cuts and cleaner ending cuts.
|
|
|
|
|
|

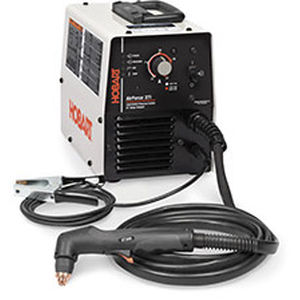

AirForce™ 250ci
Need to cut steel? Thinking about an oxy acetylene cutting torch to do the job? Consider a plasma cutter. This simple technology uses an electrical arc and compressed air to cut steel, aluminum, and other conductive metals.
Designed to cut up to 1/4" mild steel, the AirForce™ 250ci is powered by standard household current (115 VAC). A built-in air compressor and lightweight inverter power supply make this plasma cutter the most convenient, totally portable cutting system available. The AirForce™ 250ci excels at cutting sheet metal and 1/8" mild steel, and can even sever 1/4" steel.
AirForce™ 400
The AirForce™ 400 is an economical plasma cutting system for all conductive metals. Solid-state design and reliable technology pack a lot of performance into a very portable package. This power source adapts to your work site by operating from either 115 or 230 VAC power.
AirForce™ 625
The Airforce™ 625 plasma cutting and gouging system is excellent for light and heavy industrial users. Automated operations are also well within its range. Unit is compatible with engine-driven welders when powered with a 240 V generator power outlet of 8 kW or more.
|
|

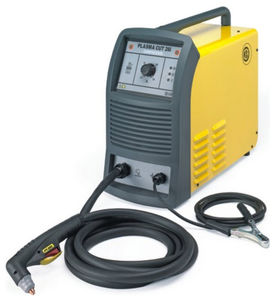

PLASMA CUT 26i COMPRESSOR
PLASMA CUT 26i compressor, a single phase IGBT based inverter power source with built-in professional compressor, ensures an extraordinary high quality cutting of any metal and perforated lamination sheet. Its lightness and incorporated compressor allow its portability and make it absolutely necessary for any maintenance work whenever lacking an air compressor source. Powerful, compact and light, PLASMA CUT 26i compressor is the ideal solution for installers, blacksmiths, car body repair, plumbing and building industry.
- Digital electronic control to ensure an excellent cutting
- Torch with pilot arc
- Over-undervoltage protection
- Innovative and user friendly design
- Control panel protected against accidental impacts
|
|
CPPT 300/R
Excellent welding characteristics
Rapid microprocessor controlled inverter allows an optimum adaptation of the weld current to the most different tasks
Modern technology for plasma powder welding
Plasma powder weld parameter list in the robot controller
Exact reproducibility of all relevant parameters stored in the robot controller. No intermediate control, therefore fewer controllers, less adjustment work, fewer cable connectors.
Flexible use of the plasma powder welding machine
An optimally matched parameter list for each weld seam of a workpiece can be produced and saved at any time
Infinite adaptation of arc capacity and weld speed to the material characteristics without additional programming (software option “Parameter interpolation“)
Long service life of the welding machine
due to the robust construction, fan on demand and carefully selected components.
|
|
The latest generation of welding equipment can be programmed with specific process preferences of your individual choice or for the actual welding processes. Based on a solid state power source, it weighs just 1/80 of the 70 year old ancestors but has more power. Our different plasma cutting equipment enables you to quickly and accurately cut all types of metals
|
|
K1756-1 Pro-Cut 25 w/15 ft Torch 115/230/1/50/60
Industrial Price: 1596.00 (USD)
The Pro-Cut® 25 is one handy cutting tool to have around. Ideal for hobby, farm, HVAC, autobody shop or sheet metal fabrication, this professional-grade plasma cutting system lists a host of features that will make your metal cutting jobs safe, fast and easy! Weighing in at only 29.5 lbs. (13.4 kg), it generates 25 amps of cutting power capable of cutting electrically conductive materials up to 3/8" (9.5 mm) thick.
Patented Vortech™ technology torch consumables are built to deliver efficient performance and long life. Parts-in-Place™ torch safety features prevent the torch from operating when sensing parts are not in the proper position. Auto-reconnect feature properly sets up the machine when you plug into 115 volt or 230 volt input power.
|
|
|
|
|
|

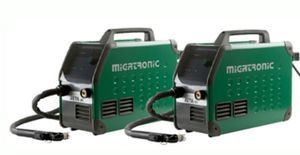

The Migatronic Zeta plasma cutters featuring opera-tional comfort, automatic pilot-arc control, and ad-justable gas flow are suitable for both stationary
use and on-site repairs. Zeta uses compressed air as the plasma gas, thereby enabling it to be
connected to existing compressors.
Precise cuts
The two Zetas have stable ignition of the pilot arc and perform precise cuts in all conductive metals.
The machines
are prepared for use with generators and come with
various sizes of nozzles for highquality cuts.
Machine profile
Excellent
The welding machine is primarly designed and optimised for welding in this material.
Good
The welding machine is secondarily designed for welding in this material.
Applicable
The welding machine is applicable for simple welding operations using this material.
Delta welding machines:
Zeta 40 (weighing 19 kilograms) is mono-phase and makes precise cuts in plate thicknesses up to 8 mm. Zeta 40 has PFC (Power Factor Correction)
function for full output by means of 16 A mains fuses.
Zeta 60 is three-phased and makes quality cuts in materials up to 12 mm.
|
|
PF1
Improved cutting quality
* Up to 30% improved maximum cutting capability
* Up to 20% improved cutting surface coarseness.
* Up to 10% reduced bevel degree
* Drastically reduced dross at thin plate by pulse cutting
* Forced air stream up to the end of electrode
|
|
Tecnoplasma 52
Selco%u2019s new low-cost plasma cutting generator using electro-mechanical technology, has an innovative, modern design.
It can perform good quality cuts up to 15 mm carbon steel.
As it does not consume much electrical power and compressed air, this tool is ideal for cutting conductive materials on-site and in the workshop.
It is more versatile, simpler, quicker and more practical to use than traditional mechanical tools and oxyacetylene welding torches.
The pilot arc is accurately struck thanks to the high frequency device, and is always present while the torch button is pressed, enabling you to cut grilles and work pieces of complex shapes. If used off its nominal parameter range, a thermal safety device protects internal parts against malfunctions.
Two alarms are also provided, one to cut off the output voltage when the torch is not completely assembled and the other to prevent operation with incorrect compressed air pressure.
|
|
|
|
|
|
SteelTailor B-4 CNC Plasma Cutter cuts flat parts out of metal with amazing accuracy and speed.
The bench constituted with a water table and a cross track has a effective cutting area of 1600 mm x 2500 mm. The external dimensions of the bench are 2000 mm x 3500 mm.
The cutting precision is 0.4 mm and the repeatability 0.1 mm. The positioning precision is 0.2 mm
The advantages of the SteelTailor B-4A is the use for the longitudinal and transverse movements of BALL LEAD SCREWS.
This leads to a faster speed, a higher precision and a longer life time.
Please, note that the cutting effective area can be adapted to the User’s needs
The cross track is supporting the high control and the plasma torch is light and rigid to accept any sort of plasma torch.
The water level of the cutting table is adjustable.
The weight is 1500 Kg (+/- 20kg) without torch and automatic plasma torch high control system.
The rated power is 2500 W. (380 V, 3 phases, 50 Hz- 220 V 3 phases 60 Hz)
The positioning and cutting speeds are adjustable from 50 mm/min till 10 000 mm/min.
The choice of high quality servomotors associated with reliable reducers provides accurate, high-speed motion. The positioning and cutting operations are really precise and smooth.
SteelTailor B-4 is equipped with an automatic plasma torch high control to ensure the correct position of the plasma torch.
The well proven CNC system used by SteelTailor B-4 makes this Bench CNC Plasma Cutter one of the most reliable machines of the market.
|
|
|
|
|
|
HIGH PERFORMANCE PROFILE CUTTING, FROM JOB SHOPS TO PRODUCTION CUTTING
High performance, precision plasma & oxy-fuel cutting, marking and drilling system. This small footprint, robust, reliable machine is currently operating successfully in many companies, from job shops to contract cutting and OEMs.
The Farley Laserlab Magician achieves its accuracy and high productivity by utilising single piece fabricated beam construction, which eliminates all bolted joints. Combined with twin side-drives through high precision planetary gear boxes, the result is a machine light enough to achieve plasma profiling speeds of 20m/min and rapid speeds of 30m/min yet retaining the rigidity to accept up to 6 torches and a BT30 drilling head with 8 pocket tool changer.
TECHNICAL DATA
Profiling speed: up to 20m/min
Cutting widths: 2.5m & 3.2m
Rapid traverse: up to 30m/min.
Cutting length: 3m to 50m
Accuracy: ± 0.3mm
Repeatability: ± 0.15mm
Material thickness: 0.5mm - 150mm
Drive system: Twin side drive rack & pinion
Components: Hypertherm HyDefinition plasma up to 400 amp, 5-axis bevel head, oxy-fuel system, marking systems, center spot drill, Auto Gas, NEW BT30 CNC drilling & tapping head and touch screen controller. All Siemens servos and drives.
|
|
|
|
|
|
SteelTailorTM B-2 is a Bench CNC Plasma cutter able to cut flat parts out of metal sheets with amazing accuracy and high speed.
The structure of the bench made in re-enforced aluminum, makes this Bench CNC plasma cutter rigid and light weight.
The bench constituted with a water table and a cross track has a effective cutting area of 1500 mm x 3000 mm (can bit extended till 6000 mm). The external dimensions of the bench are 2200 mm x 4100 mm, for the 3000 mm long bench.
The water level of the cutting table is adjusted via an electromagnetic valve.
The cross track is supporting the high control and the plasma torch is light and rigid to accept any sort of plasma torch.
The weight of the mechanical parts is 700 (+/- 10) kg (for the 3000 mm long bench)
The positioning and cutting speeds are adjustable from 50 mm/min till 12000 mm/min.
The choice of high quality servomotors associated with reliable reducers provides accurate, high-speed motion. The positioning and cutting operations are really precise and smooth.
SteelTailorTM B-2 is equipped with an automatic plasma torch high control to ensure the correct position of the plasma torch.
The well proven CNC system used by SteelTailor B-2 makes this Bench CNC Plasma Cutter one of the most reliable machines of the market.
The provided cutting software FastCAM professional version makes the conception, drawing, cutting program very easy. The nesting function optimizes the use of the metal sheet reducing the lost metal sheet areas.
|
|
|
|
|
|

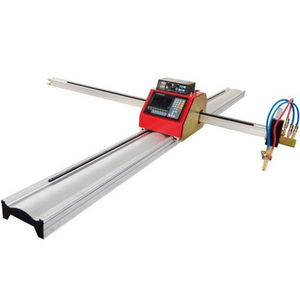

SteelTailor Smart series is a new version of SteelTailor family portable CNC cutting machine. Itfs a portable bench CNC cutting machine with same precision and stability instead of traditional bench CNC cutting machine. It can be easily installed and disassembled. Stable and Economic can better meet your needs.
Key AdvantagesF
User Friendly-Rotatable head
The controller head can be rotated to make the user can handle machine in any direction, which makes the operation more comfortable.
Anti-vibration design
The vibration of the beam can be easily eliminated by simple mechanical design using the spring ball.
The framework optimized from gantry machine
The framework optimized from gantry machine and Biaxial synchronization of longitudinal direction movement ensures the stability and high precision.
Technical Data:
Model Smart 2.0
Input Power 200W
Electric Power 220V/110V 50-60Hz
Alternative Effective Cutting Area 1300mm X 2500mm or 1200mm X 1500mm
Machine Size 1600mm X 2800mm or 1500mm X 1800mm
Cutting Thickness Depend on Plasma Cutter
Display 5.7h LCD
Max Cutting Speed 8000mm/min
Weight 160kg
Torch Height Control Automatic
|
|
CNC series of digital control plasma incision machine is designed with the company many years' cumulative experience. It is the latest machine launched by the company.
The machine boasts of beautiful appearance, small inertia, solidity and smooth running. It span between 3 to 8 meters. Its digital control system could be equipped according to the requirements of its customers. This series of plasma incision machine adopt various anti-disturbed and safety precautions based on the features of plasma incision machines. Therefore, they enjoy a high performance vs price ratio. They have been widely used in various industries.
|
|
|
|
|
|
COMBINED CUTTING AND DRILLING MACHINE FOR MULTI PROCESS MANUFACTURING
Precision plasma and oxy-fuel cutting, marking, drilling and tapping to high tolerances, in one set-up. This machine is ideal for multi-processing production parts that require medium sized drilling. The Hercules has provided job shops to OEMs with the competitive edge.
TECHNICAL DATA
Profiling speed: up to 20m/min
Max drilling power: 14.6kW (20hp)
Rapid traverse: up to 50m/min
Max spindle speed: 4500 rpm
Accuracy: ± 0.15mm
Max drill (insert): 38mm
Repeatability: ± 0.1mm
Max tool diameter: 65mm
Cutting widths: 2.5m to 5m
Max clamping thrust: 8000N
Cutting length: 3m to 50m
Spindle taper: BT40
Material thickness: 6mm - 150mm
Coolant system: High pressure through spindle
Drive system: Twin side drive Helical rack & twin pinion, backlash free gear box
Components: Hypertherm HyDefinition plasma up to 400 amp, 5-axis bevel head, oxy-fuel systems, marking systems, BT40 spindle taper with 4 or 20 tool changer, raise/lower water table and touch screen controller. All Siemens servos and drives.
|
|
GO-FER III PLASMA KIT
The GO-FER III Plasma Kit is specifically designed to work in conjunction with a plasma machine. It's travel speed of 8-100 inches per minute (203-2640mm/min) and it's direct rack and pinion drive makes it ideal as an all position portable cutting machine for a plasma torch. The torch holder will accept any standard 1-3/8" (35mm) diameter machine torch that has a 32 pitch gear rack. A built in trigger contactor for initiating the cut makes the GO-FER a convenient self contained package.
|
|
|
High performance plasma cutting units with HiFocus or FineFocus technology for cutting without after-treatment provide high productivity at low cost. Gouching and marking.
|
|
|
CNC plasma cutters by MultiCam are legendary for their ease-of-use and versatility. Successful companies around the world rely on MultiCam plasmas to automate production in countless different industries. MultiCam Plasma systems are exclusively powered by Hypertherm plasma units. To learn more about MultiCam's CNC Plasma & Oxy Fuel systems click the navigation to the left or an image below.
|
|
|
|
|
|
HIGH VOLUME, HEAVY DUTY PLASMA AND OXY CUTTING MACHINE
The Farley Laserlab Trident is single or multi torch cutting machine designed to deliver precision, high definition plasma cutting, oxy-fuel cutting and drilling. The Trident is ideally suited to high volume cutting environments such as shipyards, steel services & distribution centres and shops that require continuous operation – 3 shifts per day, year after year.
The Farley Laserlab Trident achieves its accuracy and high productivity by utilising single piece fabricated beam construction, which eliminates bolted joints. Combined with twin side-drives through high precision planetary gear boxes, the result is a extremely strong long lasting machine capable of plasma profiling speeds of up to 20m/min and rapid speeds of 30m/min, yet retaining the rigidity to accept up to 6 torches for multi-torch plate cutting of 250mm thick material. The Trident also has a BT 40 drilling head with an 8 pocket tool changer with drilling capacity up to 32mm diameter holes.
Profiling speed: to 20m/min
Cutting widths: 2.5m, 3.6m & up to 6m
Rapid traverse: to 30m/min
Cutting length: 3m to 70m
Accuracy: ± 0.3mm
Repeatability: ± 0.15mm
Material thickness: 1mm – 250mm
Spindle taper: BT40
Drive system: Twin side drive rack & pinion with optional Helical rack
Components: Hypertherm plasma up to 400 amp, 5-axis bevel head, oxy-fuel cutting, marking systems, BT40 CNC drilling & tapping head and touch screen controller. All Siemens servos and drives.
|
|
|
|
|
|
|
ERMAKSAN's CPP ( COMBINED PLASMA PUNCH PRESS ) series proven quality and experience in production of sheet metal workbenches is being presented to the utility of our clients open to technology and continuous innovation. Strong mono block rigid C type body built up by welded steel and stress removed high acceleration axes designed to allow sheet loading from 3 sides economically lets the operation to be watched easily. The combination of HiFocus sensitive plasma cutting and hydraulic punching on a strong body. The moving sheet on X Y axes on a stainless with roller balls type table by clamps can be cut as sensitive as required contour by servo motorized automatic height adjusted torch at plasma unit after being processed by perforating and/or forming operations at punch unit. It realizes cutting and perforating processes at high speed and accuracy, and has the capability aimed at mass production. An alternative cutting process in comparison to other high cost cuttings. Furthermore the production period will be shortened on these kind combined workbenches because the worksheet will not be taken apart and transferred to different workbenches.
|
|
|
Manual, mechanised and CNC plasma cutting units with HiFocus and FineFocus technology cut materials of a thickness from 0.5 to 160 mm and enable plasma marking as well as plasma gouging without changing the units.
|
|
The design of the HACO KOMPAKT is based on a long experience in the field of CNC Plasma Cutting Machines. The large range of table sizes and Plasma Cutting Sources (conventional as well as high-definition), means that we can offer you the perfect machine for your specific application.
With its macro-based graphical programming system and easily accessible working area, the KOMPAKT is a user-friendly CNC Plasma Cutting Machine.
The Haco KOMPAKT is manufactured to the highest standards and fully according CE safety rules.
The optimum price/quality ratio of the Haco KOMPAKT translates itself into a profitable investment.
The HACO Proxima is a CNC controlled machine for oxy-fuel cutting or a combination of oxy-fuel and plasma cutting. We can offer a machine with length up to 20 meter and width up to 6 meter, with a maximum number of 6 oxy-fuel cutting torches (with or without 1 plasma system).
|
|
|
|
|
|
High performance Durma plasma cutting machines are designed to cut wide range of mild steel,stainless steel and aluminium.The equipments used are the best worldwide brands which ensures the best system development.The high positioning speeds,accelerations and automatic torch high control allow best quality cutting and efficency.
Durma plasma cutting series are available from 1500x3000mm to 3000x12000mm cutting dimensions.Special customer requests for cutting dimensions are also possible.The precision rack and pinion are guiding Y1 Y2 base X gantry bridge with movable cutting plasma torch performs cutting.The bridge is also equipped with precision rack and pinion guiding.
Machine structure is welded stress relieved heavy duty frame.Syncronised double side backlash free dricesystem with high accuracy planet gears allow high cutting quality.
Plasma power source is Hypertherm as well as Siemens 840 DI controls the machine.
Standard equipments
Siemens 840 D-ISL CNC control Unit
Metalix Software with auto nesting
Cutting plate alignment function with Laser
Plasma ignition consol
Command Torch High Control (THC)
Two side motion contro system (low backlash reducers + rack / pinion)
AC Digital Servomotors
Fixed CNC control panel
Marking system
CNC control outputs/inputs for filter unit
Spare parts ,consumables starting kit
High mechanical accuracy to +- 0,1 mm
Axis positioning speed 35 m/min.
Torch height control travel with ballscrew on dual linear guides
Independent cutting tables
Windows based CNC unit
Speed control device
|
|
STANDARD TABLE SIZES (X-Y in mm)
1500x3000
2000x4000
2000x6000
2500x4000
2500x6000
3000x6000
3000x12000
TECHNICAL DATA
- High precision plasma cutting technology.
- High mechanical accuracy to (+,- ) 0.1 mm.
- Axis positioning speed 30 mt/min.
- X and Y axis travel on precision linear rail guides.
- Torch-height travel with ballscrews on dual linear guides.
- Fast and accurate positioning with AC brushless servo motors.
- Cutting table independently constructed of bridge and machine frame yo maintain positional accuracy under any table-load.
- Patented crash protection on torch.
- Automatic torch height control.
- Sectional cutting table with automatic fume extraction system.
- Windows(R) based CNC unit.
- Automatic nesting software.
- Remote control option on large tables.
- Optional dust and fume collector devices conforming to safety regulations.
- Additional plasma or oxygen torch option.
|
|
|
ESAB's latest innovations in plasma process automation increase production with more consistent cut quality every time... regardless of operator skill level. ESAB also offers multi-process plasma machines combining Precision Plasma for intricate internal cuts and conventional plasma for external cuts providing you with faster cutting times and greater productivity. Programmable Cutting Parameters - ESAB fully integrates process and cutting equipment with our state-of-the-art Vision CNC controller and Columbus programming & nesting software. All plasma cutting parameters - gas and water flows, peirce time, speed, kerf, height control and cutting amperage, etc.
|
|
|
|
|
|
Koike Aronson offers one of the industry's most extensive lines of gantry machines for cnc plasma cutting, cnc oxy fuel cutting and cnc laser cutting. We also offer Cantilever style optical tracing machines.
Choose from oxyfuel, plasma, or laser cutting machines for optimum performance, then match the cutting machine with one of our CNC cutting machine controllers for added precision and versatility. Your plasma cutting needs can be met with the various plasma systems that we offer: plasma cutting by Hypertherm, plasma cutting by Kaliburn and plasma cutting by Thermal Dynamics. These plasma cutting systems have the capacity to cut various thicknesses of mild steel, stainless steel and aluminum. If a cutting machine is needed that extends beyond the thickness range of a plasma cutting torch then we offer several cutting machines that can be equipped with upward of ten oxy fuel torches. Special applications in plasma cutting and oxy fuel cutting have also been achieved by our team at Koike Aronson.
|
|
- Flat Bed Design
- Working widths up to 2 m
- Positioning speeds up to 30 m/min
- CNC controlled z-axis with torch lifter PL 1
- Integrated cutting table (max. plate thickness 20 mm)
- Specialised for all precision plasma processes
Positive bilateral longitudinal drives and precisely machined guiding profiles provide high cutting accuracy and contouring precision.
The plate support table, which is divided into a number of sections, allows an efficient fume extraction even with a smaller fan/filter unit.
Installation "Drop & Cut" - all MetalMaster® machines will be delivered assembled. The control unit and plasma device only have to be connected with the pre-assembled cable and hose packages.
|
|
|
|
