Please use the link to check our full range of Screws,Bolts & Threaded Rod.
We can also custom mould if you require a special size or configuration.
|
|
Transparent screw
Group 170
# Made of polycarbonate (PC)
# Colour: natural
# High transparency
Transparent screw
Group 170-2
# Made of polycarbonate (PC)
# Colour: natural
# High transparency
|
|
|

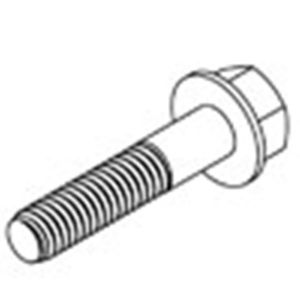

Plastic screws suit all the applications excluding the use of metal, they are perfect perfect for those applications in which electric conduction and corrosion must be avoided and, on the contrary, high vibration resistance must be granted. Screws, washers, threaded rods, stand offs and socket set screws are available in this material.
|
|
|
A full range of plastic screws with a good resistance to liquids , in a wide range of colours.
|
|
|
Remform® screws have been designed specifically for applications in plastics, with their unique thread profile, they offer low screwing in torques coupled with high strip torques make Remform® the perfect answer when looking for the right screw for plastics applications
|
|
|
|
|
|
|
Substitute the drive code for the ? and the length for the L In the part no. to specify the exact part required. The 30 deg. Flank angle and recessed core diameter of these thread forming screws for plastic have been developed following theoretical appraisal, exhaustive calculations and final proof testing. The 30 deg. Flank angle produces low radial forces when engaging the plastic, therefore resulting in less radial stresses, in other words the hoop stresses in the plastic bosses are less than those experienced with conventional screws. The recessed core geometry provides the ideal flow director for the displaced plastic, encouraging a uniform flow to fill the pitch of the screw without material jamming. This results in the maximum amount of plastic being engaged providing higher sheer loads due to the increased bearing depth of the thread. A combination of the above and the ease of penetration of the 30 deg. Flank angle through the material, encouraging plastic flow, reduces the torque required to drive the screw in. This therefore increases the margin between drive and stripping torque which minimises the potential of stripping during installation. The optimum pitch and maximum fill features provided by the recessed core results in a large area of plastic to be sheered prior to screw failure in tension. This creates a high resistance to pullout loads.
|
|
| ... products without technical information |
| |
|
|
|
|

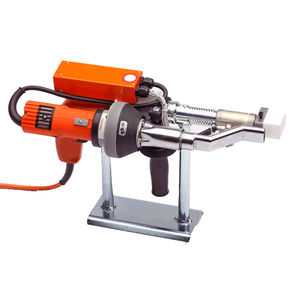

Yard or workshop manual equipments, suitable for extrusion welding of plastic materials; they can operate with 3mm, 4mm, 5mm rods of PE and PP. STARGUN machines are used for the fabrication of containing tanks, fume treatment towers, scrubbers, chemical hoods, aspiration systems, and for joining linings and geo-textiles. The SB series has been designed in compliance with the current safety norms and regulations, and it is composed of:
a mini extruder, operated by an electrical engine. A plastic rod shall be fed through the extruder feeding mouth, to bring material to the plasticization chamber;
a Teflon shoe, directly fixed on the extruder, from which the welding rod would be coming out. The shoe can feature different configurations, by simply rotating the lateral handle around the extruder body;
a self blowing system located inside the control box makes the machine independent from any external air - compressor, making it even more compact and handy;
a double control thermoregulator, guarantees a precision of ± 2° C from the set temperature. The machine is provided with a digital display, where is visualized both the extrusion and the pre-heating temperature;
a safety system blocks the engine till the minimum set temperature has been reached (cold-start system). If the temperature varies more than 10°C
|
|
Extrusion welding is carried out in wide variety of areas and is becoming evermore demanding. Leister offers the right tool for all plastics applications in process equipment manufacture and civil engineering. The specialist obtains everything with us from a single source: Devices from 0.3 to 6.0 kilo per hour. Convince yourself.
• Ideal for tight spaces
• 360° rotatable welding shoe
• Easiest possible handling
|
|
WELDPLAST S6
With 6 kg/h output, the most powerful worm extruder in its class. For process equipment manufacture and civil engineering.
- Screw extruder with barrel heater and integrated hot air blower for preheating welding seams
- Compact housing design reduces noise and guarantees optimal cooling for the electronics and drive
- Terminal with illuminated graphic display and operating keys suitable for construction sites
- Microprocessor to regulate the welding process and to monitor the tool
Menu with function programs
- Air flow up to 450 l/min
- Twist-free welding rod feed for 4 mm or 5 mm rod
- Simple rotatable handle
- Complies with DVS (German Welding Association) standards
|
|
|
|
