Pitbull Portable Automatic Beveler
Produce clean machined bevels without operator assistance. The SPB-3000, Pitbull Portable Automatic Beveler, will produce clean machined bevels without operator assistance. The self propelled Pitbull can bevel angles up to 60 degrees and mill all types of metal including stainless steel, aluminum, and composites because of its operational simplicity and very high machining properties. To receive solutions to all of your welding and cutting applications and for complete product brochures and video, please visit our website at www.bugo.com.
|
|
KBM® beveling machines are designed for one man operation. They are mounted on a spring loaded undercarriages incorporating alignment mechanisms which automatically compensate for uneven work surfaces. Gullco KBM® beveling machines self-propel during the beveling operation and continuously bevels plates of any length. The KBM-18 beveling machine can be secured to a bench for stationary operation.
All Gullco portable plate edge bevelers use a rotary shear cutting action to produce clean machined bevels with no thermal distortion. KBM beveling machines are available in four models; KBM-18 & KBM-18U Beveller, KBM-28 & KBM-28U Heavy Duty Beveller. The "U" model is for underside of plate bevelling applications.
FEATURES:
- Self propelled during beveling operation
- Spring loaded adjustable base
- Rotary shear cutting action to produce clean machined bevels.
- Bevels angles 22 1/2 through 55 degrees
- NO THERMAL DISTORTION
- KBM-18 3m per minute
- KBM-28 2m per minute
|
|
|
|
|
|
ABM 26 is the latest portable plate beveler featuring unique AUTO-FEED system.
The machine can travel along plate's edge in both directions and perform bevelling without any physical force of the operator.
Main features and benefits:
- quick fix AUTO FEED system
- advanced overload protection system
- heavy duty control system
- no physical force necessary
- effective and efficient plate beveling with machine-tool quality
- possibility to customize guide track
- user-friendly control panel
- low cost of beveled edge
- safety
Technical specifications:
Power supply: 230-240V / 50-60Hz
Motor power: 1,5 kW
Feed system: AUTO only
Feed speed: up to 500mm; 19 11/16 ” /per min. (for construction steel)
Beveling width: up to 35mm; 1 3/8 ”
Angles range: from 0° up to 75° ( 0°, 15°, 30°, 45° in standard set)
Guide track working length: 2000mm as standard; 78 ¾ ” – unlimited extensions possible by means of additional guide track (1200mm; 47 1/4" each)
Bevelled plate thickness: up to 60mm; 2 3/8 ” – when more than 35mm; 1 3/8 ” specify with order.
|
|
The BUG-O Portable Plate Beveling Machine, PBM 2000, is a machining tool that allows anyone to produce perfect bevels everytime. The machine is easily adjusted to cut any bevel angle between 30 to 60 degrees and has a maximum cutting depth of 3/4" (20mm). The PBM-2000 uses a powerful 1-1/2 horsepower motor with a dual milling head that has 12 indexable cermetalic inserts which increase metal removal. With its specially designed handle, low noise, low vibration and a weight of 42 pounds the PBM-2000 is extremely ergonomic. Optional pipe beveling attachment available for 6 1/4" (159mm) diameter or larger.
|
|
|

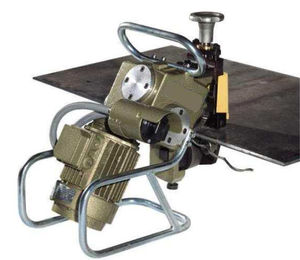

The extension beyond the edge and bevel ( with angle of 30°, 35°?37.5° or 45°) of the metallic plates from 4 to 50 mm of thickness is able be performed from the machines of the series B.
|
|
|
|
|
|
The BM-20 is a new generation, easy to use, portable, heavy duty machine designed for beveling steel plates and pipes prior to welding. This bevelling machine is fitted with two milling heads each holding six inserts, allowing smooth operation and exceptional efficiency. One set of inserts can last for up to 2000 meters of bevelled steel edge and allows to work with an output around 1.5 meters/minute (depending on the amount of the metal being removed).The BM-20 incorporates many safety features. It has a state of the art electronic control module protecting the operator, the machine and tools. It is equipped with guide rolls, which make it easy and light to operate.
BM-20 TECHNICAL DATA
Power supply: 1,1 KW, 230 VAC, on request 110 VAC
Motor: inductive with increased start-up current
Motor speed: 2.820 RPM
Tooling: 2 milling heads with 12 square inserts
Standard angles range: 15-60º
Weight: 20 kg
Optional functions: Facing-off, Pipe bevelling, R3-rounding
Ordering No. 230 VAC: FRE-0075-10-20-01-0
Ordering No. 110 VAC: FRE-0075-10-10-00-0
|
|
| ... products without technical information |
| |

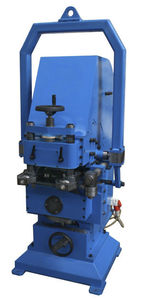

Plate cold beveling machine GBC CHALLENGE suitable for beveling of large steel plates as well as small strips.
Completely automatic and 100% silenced, do not need any operator involvment (except control) during duty cycle.
Once positioned on plate the machine is self propelling, traveling along the plate edge automatically, carrying out the required bevel operation.
Engineered with varialble angle head it is capable of bevels from 22,5 deg. to 55 deg. without any additional optional equipment.
|
|
