APV ParaBrazed
The APV ParaBrazed is a large range of AISI 316 compact brazed plate heat exchangers specially designed for a multitude of heating and cooling HVAC, Industrial and Refrigeration applications involving high temperature and/or pressure.
The APV Parabrazed is characterized by:
* Very compact design with minimum space requirement
* Easy to mount, easy to install
* High heat transfer efficiency
* Flexible in use
* Working temperature -50 to 195 Deg.C
* Working pressure up to 30 bar
|
|
|
|
|
|

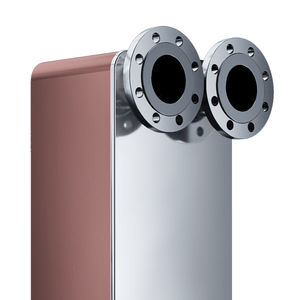

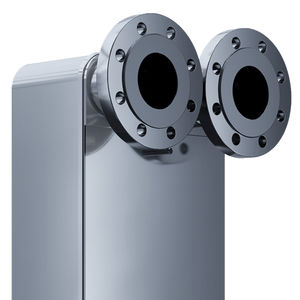

Brazed plate heat exchangers are made up of an individually defined number of high-quality embossed special steel plates that are permanently joined in a special vacuum brazing process using either copper or nickel. They are hermetically sealed without gaskets and can therefore handle the highest operating pressures and temperatures.
During assembly every other plate is rotated by 180 degrees in the plane to produce two separate flow channels in which the products involved in heat transfer flow in counter flow. The plate contours generate a highly turbulent flow allowing efficient heat transfer even at low volumetric flows. This prevents any soiling of the heat exchanger and non-flow zones are completely separate.
The surface of the brazed plate heat exchanger is utilized almost completely for heat transfer, and this makes the unit extremely space-saving and cost-effective.

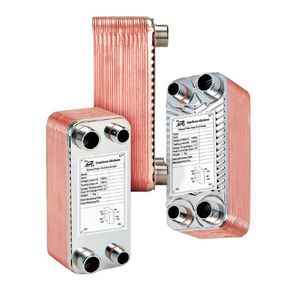

Brazed plate heat exchangers from GEA PHE Systems
- Practically maintenance-free, due to lack of gaskets
- Simple assembly with individual connection design
- High resistance to pressure and temperature
- Compact design combined with low weight
- Highest operational reliability thanks to comprehensive quality assurance testing
Applications:
District heating node stations
Swimming-pool-water heating
Refrigeration technology
Heat recovery systems
Solar energy systemsBlock-type thermal power stations
Oil cooling
Heat tapping
System separation
Glycol/water systems
Underfloor heating systems
Solar systems
Heating systems
Oil cooling
Test bench
Presses
Motors
Transformers
|
|
Lytron’s brazed-plate heat exchangers are unsurpassed for liquid-to-liquid heat transfer. Their innovative design packs maximum performance into a compact and reliable package. The herringbone construction allows for maximum heat transfer making this heat exchanger extremely efficient. The liquid-to-liquid brazed plate heat exchanger is a highly reliable and rugged part with stainless steel sheets brazed together at the edges and at a matrix of contact points. Compatible with a wide range of fluids, we offer copper brazed for water, EGW and other common coolants or nickel brazed for high purity and other corrosive coolants.
|
|
|
|
|
|

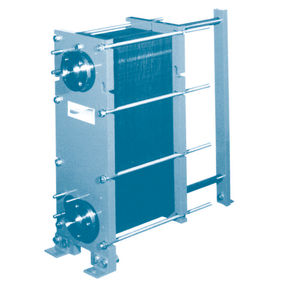

APV Heat Exchangers
All the Heat Transfer technology you need
APV invented the plate heat exchanger in 1923 and has continuously proven to be the preferred partner for heat transfer applications.

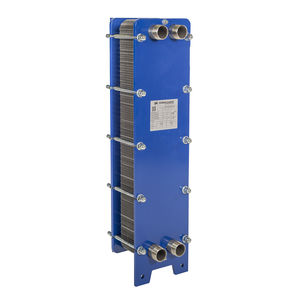

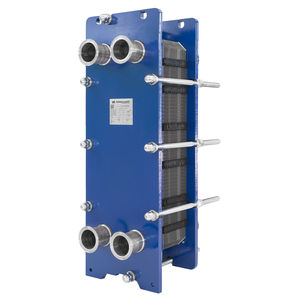

APV gasketed plate heat exchangers are widely used for heating, cooling, pasteurizing and heat recovery in hygienic and industrial applications including food and beverage industries, chemical, petrochemical, oil & gas, power, energy, other industrial sectors, and marine applications.
* Compact and durable designs
* High efficiency due to full counter current flow
* Resistant to thermal stress
* Glue free gaskets
* Possibility of combining different gasket materials for cost effective solutions
* Easy to clean
Materials:
Plates: AISI 316, AISI 304, Titanium and most alloys
Gaskets: NBR per, EPDM, FKM and others
Frames: Stainless steel or painted Carbon steel
Extensive range of plate options
EnergySaver plates for superior heat transfer efficiency.
DuraFlow plates for continuous process and run time.
EasyFlow plates for media containing fibres or pulp, requiring highest possible recovery without blocking.
DuoSafety plates, when added security against intermixing is required.
|
|
The world's largest range of efficient heat exchangers for a wide variety of applications. The heat exchangers are built on a module-based concept.
Frames, plates and connections can be combined to form a number of different exchanger types. By using different types of plates with different characteristics the exchangers can be adapted to a wide variety of applications.
The exchangers can easily be dismantled for inspection, cleaning and maintenance. Another benefit of the gasketed-plate heat exchangers is that they can be easily expanded or adapted, by adding or replacing plates, when the conditions change.
|
|
|
|
|
|
NT Series
In developing the new NT Series, GEA PHE Systems successfully managed to combine its own many years of experience with market requirements. Now a new plate generation is available which sets new standards in terms of economic efficiency due to low investment, operating and maintenance costs. The optimised plate design requires less heat transfer surface for achieving same capacity and thus reduces investment cost considerably. New installation and gasket technologies make maintenance easier and ensure a perfect fit of the gasket and plate pack. A variety of lengths and profile variants allow design to be matched exactly to the specified operating point in any application.
OptiWave-design
Optimised wave configuration results in ideal flow across the entire plate width and thus ensures the highest heat transfer rates.
PosLoc-assembly
With the new NT Series GEA PHE Systems has introduced a self-centring plate system. This provides a stable, perfectly aligned plate pack, with gaskets positioned precisely and remaining functional for a longer time.
EcoLoc-gasket system
Our new, non-adhesive EcoLoc gaskets guarantee fast, uncomplicated replacement of gaskets.
|
|
APV ParaWeld
The APV ParaWeld is a range of laser-welded plate pairs for refrigerant and chemical processing and a logical alternative to shell and tube and all welded pates. The pairs are particularly suitable for evaporation and condensing of refrigerants such as ammonia and Freon, as well as chemical and general process duties involving aggressive liquids that would attack conventional gaskets.
The APV ParaWeld consists of plates welded in pairs using a patented laser-welding process. Each second channel is secured by a welding, and the other channels by gaskets.
Materials:
Plates: AISI 316, AISI 304, Titanium, C2000 and most alloys
Gaskets: NBR, EPDM, FKM and others
Advantages:
* High efficiency due to full countercurrent flow
* Added security against leakage
* Resistant to thermal stress
* Compact and space saving design
* Ideal for handling of aggressive media
* Strong mechanical construction
|
|
|
|
|
|

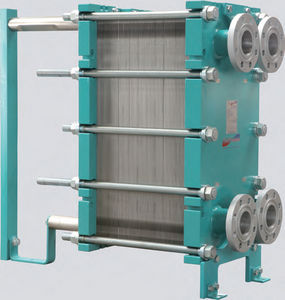

Because conventionally sealed plate heat exchangers quickly
reach their limits with critical media, GEA PHE Systems provides the answer - the new Laser-Welded Cassettes (LWC) plate heat
exchanger. Agressive media types can now flow safely. The LWC range is based on the NT plate technology and benefits from the very latest computational design and manufacturing techniques.
LWC plate heat exchangers work on the principle of 100% separate flow paths. The critical medium moves through a hermetically welded flow path, transferring heat to the less critical medium in its own, conventional sealed
path. Without this strict separation, many industrial applications simply would not be possible.
Your advantages at a glance
- Excellent compatibility with critical media
- Low investment - high heat transfer
- Long service life through use of new materials and technologies
- Advanced technology for reliable operation
- Easy installation - easy access for cleaning
- Outstanding cost / benefit performance
|
|
APV Hybrid
The APV Hybrid is a fully welded gasket free heat exchanger combining highly efficient plates and a strong vessel construction. The asymmetric and flexible design allows extremely low pressure drop if required.
The APV Hybrid is individually designed and manufactured according to the required capacity, and represents an optimal solution in terms of technology and economic efficiency.
* High efficiency
* High capacity
* Low pressure drop
* Extremely flexible
* Easy cleaning and inspection
* Low maintenance costs
* Space saving
Material:
Plates: AISI 316L or most alloys
Vessel: AISI 316L or Carbon steel
Temperature: -200 to 900 Deg.C
Pressure: -1 to 60 bar gauge
The APV Hybrid has been applied successfully in the following industries:
* Sugar
* Natural gas and petrochemical
* Heat and power stations
* Refrigeration and heating
* Chemical and pharamaceutical
|
|
Modern plate heat exchangers must also be extremely robust. With the EcoWeld product line we are meeting this demand and are simultaneously answering your call for more economic efficiency. The fully welded units are suitable for use with all critical media, can withstand highest operating temperatures and pressures and offer maximum reliability.
EcoWeld stands for sturdy power packs offering a wide range of strong advantages. The plate heat exchangers are welded, have a compact design and feature outstanding heat transfer coefficients.
Ideal in power stations, the chemical industry, in refrigeration engineering, marine applications, etc. Practically wherever gasketed EcoFlex or brazed EcoBraze plate heat exchangers reach their limits.
The EcoWeld product range:
GEAShell
GEAFlex
GEABloc
GEABox
REKULUVO / REKUGAVO
|
|
The Ultramax offers all the benefits of a plate-type exchanger but overcomes the limitations of gasketed models. It can operate at very high pressures and at low and high temperatures. The Ultramax can handle liquids, gases and mixtures of the two.
Special alloy construction is available, allowing it to be used with aggressive media.
Applications include: high temperature steam, amines, thermal oil, nitrogen, solvents, and other aggressive media not compatible with gasketed heat exchangers. Four-inch connections allow up to 400 GPM in a single unit.
Threaded, flanged, and sanitary connections make the unit suitable for a number of industries.
|
|
|
|
|
|
The Supermax all-welded plate heat exchanger incorporates the benefits of plate and frame exchangers without gaskets. The Supermax all-welded plate heat exchanger provides the thermal efficiency and compactness of a plate and frame unit under conditions that would ordinarily call for a shell and tube unit.
Designed for use with liquids, gases and two phase mixtures at pressures to 70bar and at temperatures up to 540C the Supermax unit works well with aggressive media, such as organic solvents, steam heaters and interchangers that are beyond the capability of a gasketed unit.
The unit features a plate side and a shell side, which offers high pressure ratings. It has alternating channels for hot and cold media, and can offer true counter-current or co-current flow.
Nozzle sizes up to DN300 can be accommodated on the shell side of the exchanger, offering higher steam and liquid flow rates. Nozzles on the plate side can be up to 100.
The Supermax unit can be fabricated from dissimilar metals when only one side will be exposed to corrosive conditions.
|
|
Exel
This brazed-plate heat exchanger transfers heat between two fluids or performs all transfer exchange in the cooling cycle. For use in homes and commercial, industrial and healthcare facilities.
- Stacked, stamped stainless steel plates,
- Plates brazed with copper,
- Threaded coupling or flange connections.
Five models available
Liquid/gas flow rates: up to 30 m³/h
Capacity: 2 to 200 kW
Temperature range: -40 to 150°C
Vacuum pressure: 30 bar
|
|
The combination of 125 years of experience and the sale of more than 100 000 plate heat exchangers has made API Schmidt-Bretten one of the most competent, efficient partners in the heat exchange industry.

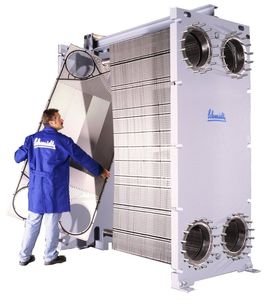

Our SIGMA series of gasketed plate heat exchangers are known world wide for their high quality.
A large selection of designs of SIGMA plate heat exchanger plates are available with different surface areas, corrugations, plate materials, plate thicknesses and gasket materials for all applications.
The pillars of our success, as one of the leaders in the heat exchange business, is the continuous innovation and the improvement of our high quality products.
|
|

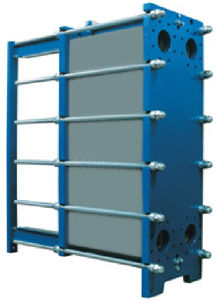

ITEX : Gasketed plate heat exchangers
Thermofin’s Plate & Frame Heat Exchangers are the results of long years of technical and thermal development during which nothing was left at random :
•The particular chevron geometry offering the best compromise between thermal performance (coefficient of heat transfer) and energy efficiency
•The technical innovation (patented « plug-in » joint, stud bolts lateral clearance, self-locking nut, etc…) that was brought to Thermofin’s Plate & Frame Heat Exchangers will make the difference during scheduled maintenance
|
|
Plate heat exchangers play an important role in ships and offshore. Crew and vessel depend on a trouble-free operation. The system for fresh water generation, engine jacket water cooling and oil lubrication cooling simply must work - whatever the conditions. That is why plate heat exchangers from Tranter PHE are often seen onboard luxury yachts, container vessels and super tankers sailing the seven seas.
|
|
advantages :
- Excellent transfer coefficient, reduced surface area
- Ultra-slim: takes up little space
- Very economical
- Lightweight
- Fully welded
- Exceptional mechanical strength
- Zero leaks
- Easy to install
- Easy to maintain
- Very low pinch-point temperature possible
- High corrosion resistance
- Low-capacity circuits
|
|

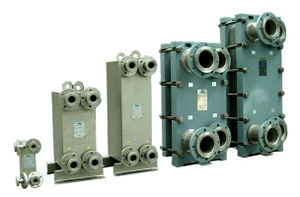

Our completely welded, gasket-free plate heat exchangers of the SIGMAWIG series represent a new generation of plate heat exchanger.
In the SIGMAWIG units, all parts, which come into contact with the fluids, are made completely of stainless steel.
An optimised welding system and an automated production line guarantee the high quality of our compact, gasket-free plate heat exchangers.
The optimised corrugation structure of the heat exchange plates achieves the best possible heat transfer.
SIGMAWIG plate heat exchangers are available in various standard sizes directly from our warehouse. For special areas of application, where aggressive substances or extremely high temperatures and pressure cycles are used, we can customise a system to suit your need.
Our high production quality guarantees the long operational life of the SIGMAWIG.
|
|
|
|
|
|
The compact Maxchanger unit transfers heat in much the same way as the gasketed plate and frame heat exchanger, but does so without gaskets. This ensures greater compactness than a gasketed plate exchanger, and requires only 30-50% of space required for a shell and tube heat exchanger.
Extremely high "U" values and low pressure drops are a result of the unique geometry of its interspaces. The specially embossed dimples on each plate provide maximum pressure-resistant heat transfer contact points. This design allows the Maxchanger to be capable of running under high temperature/ high pressure applications.
Specially dimpled plates are rotated and welded completely together between end plates, and in alternate channels at the inlet / outlet ends and connections. This thoroughly seals the entire unit to prevent leaking or cross-contamination of hot and cold media.
Counter-current flow of fluids is achieved in all Maxchanger designs, providing a close temperature approach capability of less than 1C.
Channels formed between the welded plates and end connections direct the two heat transfer media counter-currently through alternate paths for immediate thermal response and maximum efficiency.
|
|
Our core products are fully welded heat exchangers in the Shell & Plate design, manufactured with laser welding technology.
The round design prevents too high pressure and thermal stress. The gasket-free design also allows it to be used for aggressive media.
State-of-the-art laser welding technology results in the highest weld quality and weld resistance.
The results are efficient units with long lifetimes, for trouble-free operation also under changing operating conditions.
GESMEX heat exchangers ensure reliability of operation in plants where this is essential.
|
|
|
A revolutionary type of plate heat exchanger constructed of 316 stainless steel plates brazed together to eliminate gaskets, heavy frames, weight, and bulk. The HoneycombTM (Model BP) design is an "Off-the-shelf" corrugated plate design for quick delivery. Design pressures to 435 PSIG and temperatures to 437°F. Flow rates to 190 GPM
|
|
|

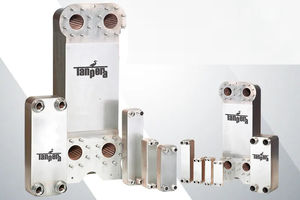

The basic concept for a brazed plate heat exchanger (BPHE) is the use of stainless steel plates (AISI 316L), permanently brazed together with pure copper (99,9% Cu). These plates are then stacked together, alternative rotated of 180°, forming separate flow chambers where two medias exchange heat.
|
|
|
|
|
|

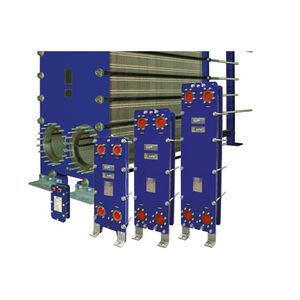

Gasketed plate apparatuses are heat exchangers with a modular design which are very flexible and can be easily adjusted. They are commonly used in commerce and industry. Corrugated plates are selected from the types / sizes available depending on the medium to be heated or cooled, where the medium's physical characteristics are of particular importance. The plates are then "assembled" into customised heat exchangers. Software is used to assist in the selection of type and size and greatly simplifies the listing of alternatives. Thermowave does however always use software developed in house to configure the apparatuses so that the latest advances in technology can be rapidly implemented. The ultimate goal here is to use our expertise and detailed knowledge to respond to requests from our customers and other interested parties, to allow in-house "know-how" to be assimilated and to make the software distinctive.
The usage limits of plate heat exchangers are often determined by the resistance of the plate and gasket material to the media in question. The 'database of practical knowledge' available within the company is indispensable at this point as is a fully functioning configuration programme.
|
|
|
|
|
|
The special hygiene requirements and stringent usage and environmental conditions applicable in the foodstuffs industry place greater demands on the design of and materials selected for a plate heat exchanger. The apparatus should be suitable for the company's own product but also resistant to the same extent to the various cleaning media used. The heat exchangers are often installed in damp environments and must not rust even if the room in which they are used is cleaned using fluids. They must also have a similar high-quality finish to the other machines in the room in which they are installed. Special, rapid release connections are selected as the connection variants (e.g. so-called "dairy pipe screw joints") so that all plate apparatuses can be used flexibly within their output limits. The special needs of the foodstuff in question are also taken into consideration when choosing the heat exchanger plate types and gaskets, since the fluids should of course pass the plate heat exchanger without taste, smell or colour being affected.
One decisive benefit of the ThermoLine's F series is its flexibility. Depending on application, all available plate sizes, types and materials can also be fitted in the F series apparatuses. The option of using laser welded modules greatly increases the possible usages of ThermoLine apparatuses in foodstuff applications. National and international requirements of foodstuff apparatus engineering are taken into account in the selection of plates and gaskets.
|
|
|
Koolant Koolers Heat Exchanger Packages cool indirectly, meaning that your process fluid is never touched by a chiller. Many acid, water, oil and hydraulic fluids are cooled in this way - with the cool side being supplied by a chiller, tower water or even city water. These units can be fitted with our pumps or yours, and configured with exacting controls to hold your temperatures constant.
|
|
|
As a type of screwed plate device, the module welded plate heat exchanger has greatly expanded the field of application of this type of heat exchanger. Alongside the 'classic' exchange of heat between liquids, screwed plate apparatuses also cover applications at high operating pressure and / or phase transitions in the flow gap. One 'module' consists of two heat exchanger plates of the same size which are welded together by lasers. This laser welded seam is resistant to both high levels of static pressure and the changes in pressure commonly occurring. Since no additional material is used to weld the plates, more frequent changes in temperature can also be tolerated. The laser welded seam reduces the remaining seal length (seal between module A and module N) to 10 % of the seal length of a gasketed apparatus. It is financially advantageous to also use expensive special elastomers where necessary for the remaining ring gaskets.
|
|

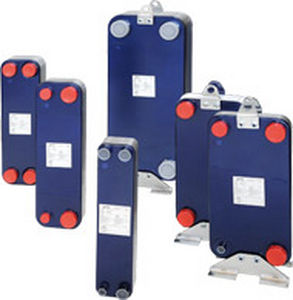

Schmidt Brazed Plate Heat Exchangers
Brazed Plate Heat Exchangers represent the most compact, rugged and cost-effective means of transferring heat in many industrial and refrigerant applications. Built from 316 stainless steel with copper brazing materials, they provide exceptional corrosion resistance. The SB-Series features corrugated plates that produce highly turbulent flow in a true counter-current direction. This results in high efficiency and a very compact heat exchanger design. Due to the smaller size and reduced material content, they can be the most economical heat transfer choice.
|
|
|
|
|
|
- Developed more than 50 years ago to meet the needs of the aeronautics industry, where compactness, light weight and efficient heat exchanges are essential qualities, brazed aluminium plate-fin heat exchangers now have an excellent reputation in the gas processing industry following enhancements which have added to their initial qualities to meet the requirements of process engineers, investors and producers.
Fives Cryogenie brazed aluminium plate-fin heat exchangers offer the possibility of integrating various processes (up to 20 fluids flowing simultaneously through a single heat exchanger) over a wide range of dimensions.
Fives Cryogenie brazed aluminium plate-fin heat exchangers are especially suitable for processes requiring a high level of heat transfer under low temperature difference (1°C to 2°C or less) between warm and cold fluids.
- Some typical applications:
- Separation of air gases
- Hydrocarbon processing
- Natural gas liquefaction
- Industrial gas liquefaction (oxygen, nitrogen, argon, helium, etc.).
- Through continuous improvements in the performance of modern processes, Fives Cryo is at the top of development in the fields of fluid dynamics, design and simulation of equipment.
- The numerous component parts of a heat exchanger are manufactured with the greatest care and asembled by vacuum brazing. Our fully automated brazing facilities optimize the brazing process with outstanding reliability, whatever the size of the heat exchangers.
Inspection / QC means, using up-to-date technology, ensure the product's impeccable quality.
|
|
Schmidt Gasketed Plate Heat Exchangers
SIGMA Plate Heat Exchangers utilize corrugated plates stacked between a fixed and a movable pressure plate. The corrugation patterns alternate for maximum operating pressures. As virtually all of the material is used for heat transfer, Plate Heat Exchangers can have large amounts of effective heat transfer surface in a small footprint. It is not uncommon that a Plate Heat Exchanger will have the same thermal capacity as a Shell & Tube five times larger.
The unique corrugation pattern pressed onto each Schmidt thermal plate produces the highest overall heat transfer rate by assuring highly turbulent flow and excellent fluid distribution across the entire surface. With high heat transfer rates and true counter current flow, Schmidt Plate Heat Exchangers economically handle close temperature approach requirements.
|
|
Schmidt Semi-Welded Plate Heat Exchangers
API Heat Transfer Semi-Welded plates feature plates that are welded using advanced laser welding techniques. Two plates are welded together and are fitted with a Viton® O-Ring and/or Teflon® gasket liner. The resulting plate pack has every other plate fully serviceable, while maintaining integrity of the welded plate pair.
This is especially suitable for critical fluids and gases, such as ammonia or caustic process chemicals where fluid loss is not acceptable. In the case of ammonia refrigeration, the reduced volume results in significant savings.
|
|
|
|
