Chatillon has a long tradition of servicing commercial applications with "Legal For Trade" weighing scales. "Legal For Trade" are generally considered those scales intended for use in commercial applications where product is sold by weight. Commercial applications will generally come under the definition of the various weights and measures jurisdictions, NIST Handbook 44 and NIST Handbook 130. Each State's weights and measures jurisdiction have adopted Handbook 44, except in instances where an individual State has adopted a more specific language to define "commercial". Chatillon "Legal For Trade" scales are designed to be used in commercial applications and they meet all requirements of NIST Handbook 44 and applicable State and Local Weights and Measures requirements.
|
|
Chatillon has a long tradition of servicing commercial applications with "Legal For Trade" weighing scales. "Legal For Trade" are generally considered those scales intended for use in commercial applications where product is sold by weight. Commercial applications will generally come under the definition of the various weights and measures jurisdictions, NIST Handbook 44 and NIST Handbook 130. Each State's weights and measures jurisdiction have adopted Handbook 44, except in instances where an individual State has adopted a more specific language to define "commercial". Chatillon "Legal For Trade" scales are designed to be used in commercial applications and they meet all requirements of NIST Handbook 44 and applicable State and Local Weights and Measures requirements.
|
|
Substructure platform steel powder coated
Capacity display. An ascending bar graph displays the remaining available weighing range
High resolution readout with all verifiable models: readout d for 10 sec increased by 1 decimal place
40 Tare memory units, 40 Reference memory units (PCS), 20 memory units for weighing with tolerance ranges. Input in weight, pieces, %
Tare deduction numerical or from the memory unit
Piece counting with fixed reference quantities 1, 2, 5, 15, 20, 25, 30, 50, 100 pieces
Piece counting with variable reference, numerical or from the memory unit
Summing up of weight values and quantities
2 identification numbers, max. 40 digits each
Date/time
Information key for displaying individual user settings
|
|
Combics - Weighing Platforms
…from 0.1 g to 3,000 kg, these are a whole new generation of rugged and flexible industrial scales.
• Accuracy 3,000e, 2 x 3,000e, class III; 15,000d, 30,000d
• 13 different sizes
• IP65 | IP68 | IP69K protection
• Finish: painted or various stainless steel grades
• Accessories include drive-on ramps, pit frames
• Stainless steel models can optionally be operated in Zones 2 and 22
Combics - Indicators
…high operating reliability; practical application programs; customizable printouts; additional, optionally retrofittable interfaces.
• Up to 9 application programs (e.g. counting, plus-minus checkweighing, …)
• Standard RS-232C interface port
• EC type-approval certificate; with suitable load cells, verifiable for legal metrology
• Analogue bar graph, color-coded LEDs
• Stainless steel models can be optionally used in Zones 2 and 22
|
|
Thanks to their flat, rugged and maintenance-friendly design, the DCV plattform scales are perfectly suitable für use in virtually any industry.
High-quality design (optionally electropolished, stainless stell up to grade V4A), easy cleaning (removable load plate) and a wide range of accessories qualify the scales for use in sophisticated applications, e.g. in the chemical and food industries.
|
|
Industrial Compact Scales ITC-1
These robust and reliable compact scales can be used either in a compact design, separately or with an optional stand. They offer a weighing range of up to a maximum of 300 kg.
They are suitable for weighing and counting tasks (with or without reference weight data stock) in storage, manufacturing, final inspection departments, etc.
|
|
* Model PPM :
Are suitable for industrial and residential applications, and have been specifically designed for easy integration into complex industrial automation systems. They seem to be the ideal solution for any type of manual or automatic application. - Filling of container - Automatic batching - Line end weighing - Piece counting.
* Model PPP :
Are suitable for industrial and residential applications, and have been specifically designed for easy integration into complex industrial automation systems. They seem to be the ideal solution for any type of manual or automatic application. - Filling of container - Automatic batching - Line end weighing - Piece counting - Pallets weighing
|
|
DP-6302WPR/DP-6302DXR
- IP68, Complete protection against Dust and Water
- Stainless Steel Construction on Platform and Indicator
- Extra-Large LCD Display with Back light, Character Size: 20W x 40H mm
- Long Battery Life, 2000 hours (Alkaline 4 "D" size battery)
- Software Filter - Minimize environmental disturbance
- Useful Function - Fixed Weighing, Checkweighing, Grading and Portion Control Functions
- Battery Operation or AC adaptor (Option)
|
|
BA 4 Receiver of load to 4 sensors painted steel Base and apron
BA 4 Receiving stainless of load to 4 sensors stainless Base and apron
|
|
MASTER Series 410 SRS/SRC
maximum capacity 300 kg
Solid and reliable scales, for rough use year after year
Strain gauge platform SRC (380x500) stainless steel IP 67
Strain gauge platform SRS (400x500) steel platform IP 65
• Rugged Scale with stainless steel platform
• Choice of two terminals
• Practical and user-friendly
• LC display with backlight
• Battery operation
• RS232 interface
• Units kg and lb
• 2 years warranty
Terminal SRD, ABS or stainless steel IP 67
• Large LC display with backlight
• Battery operation
• Units kg and lb
• Check weighing program
Terminal SRM, ABS or stainless steel IP 67
• LC display with backlight
• Battery operation
• Counting, units kg and lb
• Direct: - ID and date settings
- tare entry
- reference weight entry for counting
|
|
Engineered for easy use, the all-new Ohaus Indicators feature smart software and hardware enclosed in a modern industrial design. You can link our Indicators to any Ohaus bench scale - or any other scale system - with up to four load cells. Combined with Ohaus Champ bases, Ohaus has a wide variety of capacities and platform sizes to meet your operational needs.
|
|
Engineered for easy use, the all-new Ohaus Indicators feature smart software and hardware enclosed in a modern industrial design. You can link our Indicators to any Ohaus bench scale - or any other scale system - with up to four load cells. Combined with Ohaus Champ bases, Ohaus has a wide variety of capacities and platform sizes to meet your operational needs.
|
|
Combics - Weighing Platforms
…from 0.1 g to 3,000 kg, these are a whole new generation of rugged and flexible industrial scales.
• Accuracy 3,000e, 2 x 3,000e, class III; 15,000d, 30,000d
• 13 different sizes
• IP65 | IP68 | IP69K protection
• Finish: painted or various stainless steel grades
• Accessories include drive-on ramps, pit frames
• Stainless steel models can optionally be operated in Zones 2 and 22
|
|
ADOS offer a wide range of industrial platform scales with weighing ranges from 3 kg to more than 10000 kg. The rugged weighing platforms available in stainless steel or painted carbon steel are suitable for daily use in dry and wet areas.
The platforms are available with standard dimensions and capacity or designed with dimensions and capacities on customer specifications.
A special version can operate in hazardous areas.
|
|
|
Weighing platforms and modules. Solutions suitable for weighing in all types of industrial applications. Single load cell platforms. Four-load cell platforms. Counting scales. Weighing bars. Pallet-weighing. Crane scales.
|
|
|
|
|
|

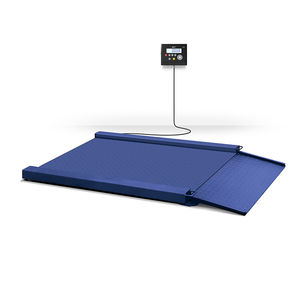

The ProDec floor scale was designed as a low profile, economical scale for use in many environments. The stainless steel version can take the high pressure wash downs and highly corrosive environments in many industrial settings. Capacities from 2,000 to 20,000 lbs and sizes from 30" x 30" to 96" x 72" available.
Low profile design
The low profile design helps relieve the back strain of repetitive weighing. The scale height is only 3.31 inches on models of 5,000 lb or less, 4.06 inches on 10,000 lb models and 5 inches on 20,000 lb models. This allows for easy-on and easy-off manipulation of carts.
Built to last
Steel support channels welded under the top plate add superior strength and keep decks from warping and bending.
Safety tread deck
The top plate on the deck and ramp surfaces is a safety tread pattern. This non-slip pattern reduces the risk of injuries.
Four-way ramps
ProDecs are placed in the most efficient traffic patterns to utilize more than one weighing situation. The four-way ramp positioning speeds up work flow from any direction.
|
|
Features
Two-range version: weighing range is divided into two ranges.
The lower range from 0kg is divided into a smaller resolution; the scale is therefore even more precise in the lower load range.
Design
- Sturdy construction with strain gauge load cell made of anodised
aluminium
- Special alloy with Protection Class IP 65
- Mechanical overload protection to protect the load cell
- Platform made of chrome nickel steel on all models
- Types 2880 and 2881: the support structure is made of corrosion-
protected die-cast aluminium. Designed for use in wet rooms.
- The measuring cable between weighing platform and digital indicator
is 2m long
|
|
