The plug and sockets series SolConeX and CES comply with IEC/EN 60309-1/-2 (CEE) and European standards EN 50014, EN 50018 and EN 50019. The ability to plug the Ex-plug into non-Ex sockets is guaranteed, while operation of the Ex-socket using a non-Ex plug is reliably prevented.
Explosion protection to CENELEC, IEC, NEC
For use in Zone 1 and Zone 2, Zone 21 and Zone 22
Certified for gas and dust explosion protection
Type of Protection IP 66
Optimal contact by means of laminated contacts
Individually encapsulated pins, flexibly embedded
Switches with large handle, can be locked in 0 and 1 position indication, with motor switching capacity AC3 acc. to IEC 60947-3, with auxiliary contact for control and signalling purposes
|
|
|
|
|
|
Because of permanent injuries risk in industries, there are more health and safety requirements in harsh environments. Marechal decontactors (DXN, DX, SPeX) comply with ATEX Directives 94/9/CE and 99/92/CE required for these areas.
Thanks to their explosion proof casings and their “de” protection mode, they can apply in explosive atmospheres in zones 1 & 2 (gas) and zones 21 & 22 (dust). Their safety load break switch capability allows a disconnection up to 63 A without any electrocution hazard for users.
The DXN decontactor is EX approved for zones 1 & 2 (gas) and zones 21 & 22 (dust). It offers automatic IP66/IP67 ingress protection rating as soon as the plug is inserted into the socket. Its casing made by glassfibre-reinforced polyester affords an excellent mechanical protection (IK08) and resistance to extreme temperatures (-40 °C to +60 °C). From 20 to 63 A, it can be used for mobile gensets, ship-to-shore supplies, offshore platforms etc.
Main applications are for supplying machines and equipments in explosive atmospheres as Chemical industries, Grain silos, Petroleum, Plastic, Fertilisers, Wood, Cosmetics and perfumes, Alcohol and spirits, Pharmacy ....
|
|
Conventional high current plugs and socket-outlets are difficult to handle and don't guarantee watertight for plug insertion and removal.
Marechal Electric well known for its safe and robust, offers a product line that goes from 315 to 700 A and up to 1000 V a.c. Usually used in harsh environments, they are automatically watertight IP66/IP67 as soon as the plug is inserted in the socket and offer a high resistance to shocks (IK08/IK10). Built with silver-nickel butt contacts, they are corrosion resistant and provide a high electrical performance even after years of use.
Simple to connect and disconnect, Marechal connectors and plugs and sockets are safe for users and equipment through its pilot contacts that de-energize the circuit when the mechanical lock opens.
They are ideally suited for power supply to machines for mining, ship, power generator system, shipyard and other harsh environments requiring high current connections.
|
|

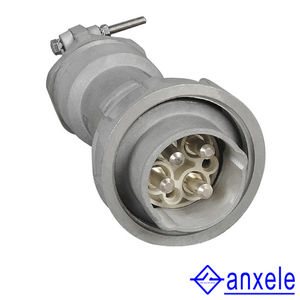

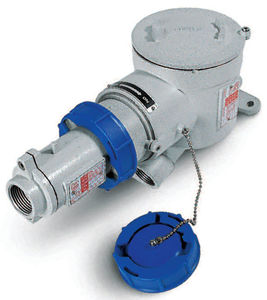

# Explosion-proof plugs and socket-outlets with an integral switching device
# 20 A - 125 A
# Up to 750 V AC
# Automatic IP65 watertightness when connected without additional manipulation being necessary
# Silver butt contacts for optimum current transmission
# No access to live parts (IP2X with lid opened)
# Sturdy metal housing (mechanical resistance IK10)
# 12 different keying positions
# ATEX Directives 94/9/EC and 99/92/EC
# EN 50014, EN 50018 (explosion proof safety "d"), EN 50019 (increased safety "e")
# EN 50281-1-1 (flammable dust)
# IEC 60079-0 and IEC 60079-1
# IEC/EN 60309-1
|
|

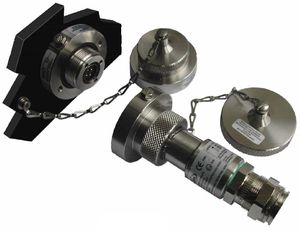

* Explosion-proof plugs and socket-outlets PX
* 20 A
* Up to 420 V
* Automatic IP65 watertightness when connected without additional manipulation being necessary
* Silver butt contacts for optimum current transmission
* No access to live parts (IP2X with lid opened)
* Sturdy metal housing
* 6 different keying positions
* ATEX Directives 94/9/EC and 99/92/EC
* EN 50014, EN 50018 (explosion proof safety "d"), EN 50019 (increased safety "e")
* EN 50281-1-1 (flammable dust)
* IEC 60079-0 and IEC 60079-1
* IEC/EN 60309-1
|
|
BARTEC’s plug-and-socket devices for areas in which an explosion hazard exists are particularly well-suited for use in raw atmospheres because of their high degree of IP protection and their resistance to chemicals. Their integrated switch function gives them the ability to switch overloads as per IEC/EN 60947-3 Cat. AC 22 or AC 23.Silver-plated butting contacts ensure a constant contact pressure with low transfer resistances.
Plugs/couplers:
The modular design of the plug-and-socket system allows both plugs and couplers to be supplied. They are supplied in unmounted state.
Wall socket:
BARTEC supplies both a fully certified wall socket and a socket with a 30° adapter to flange onto housings.
Plug-and-socket devices from BARTEC are approved in accordance with the European directives not only for Zone 1 and 2, but also for Zone 21 and 22. Likewise for Class I Div. 2 Groups A, B, C, D and Class II Div. 2, Groups E, F, H in accordance with the American standards.
|
|
|
|
|
|
Providing electrical energy there, where it is most needed - even in hazardous areas for the Zones 1, 2, 21 and 22.
Place changeable electrical apparatus have generally high requirements on the energy/power supply. The CEAG wall socket for instance can be mounted on to the pre-installed mounting frame without having to use tools - installation without a hot work permit.
A hight safety standard, a steady hold and faultless contacting even under vibration or the effects of an aggressive atmospheric environment are the basis for a secure and reliable utilization.
CEAG plugs and sockets offer more, apart from the proven technology, this product series is defined by its innovative details. For example, the very efficient cable strain relief or the new coding system of the various versions offers different solutions for a secure and problem free utilization in all areas.
Just to round the product off, the user in the normal industrial sector becomes exactly the same product advantages. Robust industrial versions fulfil all requirements appertaining to mechanical and chemical durability
|
|
* Extremely compact design
* mA - 30 A
* Up to 500 V AC and 130 V DC
* SPS signal can be transmitted
* Automatic IP66/67 watertightness when connected without additional movements being necessary
* Silver butt contacts for optimum current transmission
* No access to live parts
* Housing made of glass-fibre reinforced polyester,
highly resistant to chemical agents, UV radiation, shocks, ...
or made of anti-corrosion treated metal, providing high-temperature resistance and excellent mechanical resistance
* Multipin versions
* 16 different keying positions
* IEC/EN 60309-1
* In compliance with the European Low-Voltage Directive
|
|

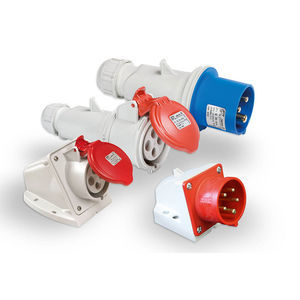

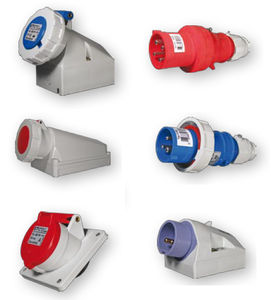

SCAME have further improved the performance and design of their wide range of industrial plugs and sockets that comply with IEC309 standard. special attention has been pait to the use of isolating materials and the treatment of metal components.
The outstanding mechanical characteristics of IEC309 Series plugs and sockets and their ability to withstand weathering and chemicals make them safe and reliable even in the most severe environmental conditions.
|
|

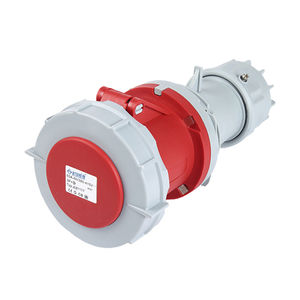

* Plugs and socket-outlets with an integral switching device
* Separated by simply pressing the latch
* 16 A - 63 A
* Up to 690 V AC and 250 V DC
* 1000V (no on-load disconnection)
* Automatic IP66/67 watertightness when connected without additional manipulation being necessary
* Silver butt contacts for optimum current transmission
* Socket-outlet safety shutter, no access to live parts
* Housing made of glass-fibre reinforced polyester, highly resistant to chemical agents, UV radiation, shocks, ...
* Extremely compact design
* Versions with auxiliary contacts
* 24 different keying positions
* IEC/EN 60309-1
* Load breaking capacity according to IEC/EN 60947-3, AC22/AC23
* In compliance with the European Low-Voltage Directive
|
|
* DECONTACTOR for motors, can be connected and disconnected under load
* 40 A - 125 A
* 3 to 30 kW
* Up to 690 V AC and 250 V DC
* Protection degree IP67 achieved when ring is turned (protection against dust penetration and temporary immersion in water)
* Can be locked in the ON and OFF position
* Silver butt contacts for optimum current transmission
* No access to live parts
* Housing made of anti-corrosion treated metal
providing high-temperature resistance and excellent mechanical resistance
* Versions with auxiliary contacts
* 24 different keying positions
* IEC/EN 60309-1
* Load-breaking capacity according to IEC/EN-60947-3, AC3 and AC23
* Conformity to the Machine Directive in terms of power supply isolator device
* American standard UL 98/508
* European Low-Voltage Directive
|
|
- No minimum order quantities
- Same day shipment on in-stock products
|
|
MUREVA.Configured
A special service to better meet your requirements.
MUREVA.Configured is:
- The possibility of building a sealed switchgear solution, surface or flush
mounting, perfectly adapted to your requirements.
- A range of simple functions that can be incorporated for you based on multiple stations or frames.
with MUREVA.Configured
- You save installation time.
- You optimise stock to a finished product.
- You can customise your installation.
|
|
| ... products without technical information |
| |
Square plugs GPN 260
For special section tubes, press fit by means of distinctive disks.
Floor leveling plugs GPN 265
Vertical adjustment by an adjusting screw with an extra strong hexagonal top.
Rectangular plugs GPN 270
For special section tubes, press fit by means of distinctive disks.
|
|
|
|
