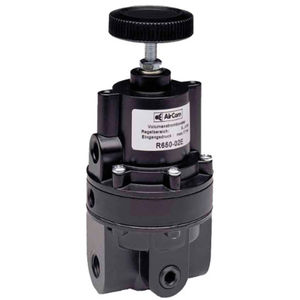

Features
* Flow capacity of 45 SCFM (76.5 m3/HR)
* Ten available pressure ratios
* Optional Adjustable By-Pass Needle Valve option includes bubble tight exhaust valve.
* Optional Fixed Negative Bias.
* A separate Control Chamber isolates the diaphragm from the main flow.
* Unit construction.
* Mounting Bracket available
* Canadian Registration Number (CRN) Certification.
|
|
CI series Compact Intensifiers are simple generic boosters that utilize a large pneumatic piston to intensify oil pressure with a smaller piston. The Product range includes 24 models. All are designed to be highly space efficient and low weight. The pressure chamber features two large full flow ports for easy filling and bleeding.
The pneumatic actuator is our standard low profile large Bore compact cylinder.
Features Include:
Rugged space efficient, low weight
Aluminum design
Long life/Low friction
Three mounting choices
Optional Magnetic piston (Option “ACI”)
|
|
SERIES MF
Alfamatic pressure intensifier series MF is a unit consisting of a pneumatic cylinder and a high pressure chamber.
* Working without lubrication
* Possibility to turn fluid connections around 360 degrees
* End stroke deceleration
|
|
AM
Pressure booster
translation 1:2 to 1:5,
max. output pressure 60 bar
|
|
- High pressure capability - up to 25,000 PSI.
- Boost directly from unregulated high pressure gas cylinders
or pipelines.
- Maintain gas purity.
- One-man portable.
- No electrical or cooling connections needed.
- Intrinsically safe.
- Boost virtually any noncorrosive industrial or laboratory gas.
- Simple maintenance.
- Mount in any position.
- Weatherproof.
|
|
The Hydratron range of Air Operated Gas Booster Pumps are designed to boost bottled gases such as air, nitrogen, helium, hydrogen or methane upto higher pressures. They can be used for pressure testing or for pre-charging accumulators and down hole tools. Being air operated they are inherently safe and can be used in fire hazardous areas.
The output pressure and flow generated by these versatile pumps can be infinitely varied by simply adjusting the air drive pressure and flow rate.
Boosters can either be supplied individually or mounted within metal frames in a Power Pack form, complete with all air controls, inlet gas filter, output pressure gauge and pressure release valve.
Options include pressure isolation valves, onboard pressure recorders and wheels to provide mobility.
|
|
The model HIHPG3-20147 Package is a two-stage unit that
can boost 100 PSI Shop Air up to 4500 PSI and also be
powered by shop air. The advantage is no dependence on
nitrogen cylinders. Disadvantages are considerably slower
fill speeds (Even with a 10 H.P. air compressor), and the need
to Chemically Dry the air to -50°f dewpoint or better before
being boosted.
|
|
|
Air driven gas boosters are suitable to pump or compress almost any kind of gas, from shopair to oxygen. They are available in all kind of models, for example single stage, double acting etc. Applications are filling gasbottles and compressing and storing high pressure shopair for testing valves, etc.
|
|
Advantages:
- Working pressures up to 1,250 bar / 18.000 psi .
- Low noice level even at high cycling speed.
- No mechanical pilot valves.
- Proven reliability under severe conditions.
- Modular, robust and modern design.
- Easy to change ratio of the booster.
- Easy to convert a booster from single- to double acting.
- Light weight air cycling spool.
- Easy maintenance.
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
Pressure range up to 1250 bar / 18,000 psi
Suitable for Air, Nitrogen, Argon, Helium and a wide range of other gases
Provided with Resato air-driven single acting, double acting or two-stage gas booster
Water-cooled Oxygen boosters available
All stainless steel construction
