Powerful, reliable and economical: these second generation compact cylinders are highly convincing with their standardised dimensions, a broad product spectrum and out standing performance.
? Diameters 12 ... 125 mm
? Strokes to 500 mm
? Wide variety of variants and sizes - going beyond the standard
? Mounting accessories for practically any installation requirements
? Cylinder sensor on 3 sides
? Software and CAD data for easy, reliable design engineering
|
|
|
In addition to its broad line of standard catalog products, nearly half of Bimba's business consists of custom and semi-custom products designed for specific customers and applications. These products, used in machinery and automation, are sold to original equipment manufacturers and end-users throughout the world in an expanding variety of industries.
|
|
Double-Wall Cylinders
One basic cylinder converts into six NFPA mounting styles.
Epoxy-coated aluminum tie-tube protects inner 304 stainless steel body tube from harsh environments.
6 NFPA rod end options and a variety of stroke lengths.
Bore sizes: 1-1/2", 2", 2-1/2", 3-1/4", 4".
Quick delivery of catalog models - off the shelf to 3 days!
Custom designed cylinders available to meet your exact specifications and requirements.
|
|
Flat Cylinders
If your application is tight on space, our round, square, non-rotating, dual-power or three position Flat Line cylinders are the answer. These compact and repairable cylinders offer unequaled design, versatility and reliable performance.
Benefits of Flat Cylinders Include:
* 304 stainless steel cylinder body with a mirror finish I.D.
* Stainless steel fights corrosion and scoring from dirt particles
* Longer piston seal life
* Oil impregnated bronze rod bushing is standard in all models
* Ground and polished 303 stainless steel piston rod
* High strength piston to rod connection
* Precision machined, anodized aluminum alloy heads
|
|
Twin Bore Cylinders
Small cross-section, double-bore cylinder that provides highly accurate linear motion.
Incorporates extra long piston rod bearings, resulting in high radial load capacity.
Single and double end rod units are available in both Delrin® and ball bushing styles. The highly precise Air Table incorporates a rigid linear rail with recirculating ball bearings.
3 Cylinders in the series: Basic Twin Bore (TB), Double End Twin Bore (TBD), and Twin Bore Air Table (TBA)
TB: Dual bores exert twice the fore of a traditional cylinder while providing smooth, non-rotating actuation. The cylinder is symmetric and can be mounted from either side to allow convenient port access.
TBD: Double rod end provides a saddle-mount unit with improved loading and resistance to deflection.
TBA: Smooth, precise movement is achieved via integration of a highly accurate recirculating ball bushing rail.
Options available for Side Mounting Holes and Shock Absorbers.
|
|
• Pneumatically adjustable end position cushioning or shock absorbers
• End-position accuracy < 0.05 mm
• Precision stroke adjustment in advanced and retracted position
• 2 bearings per guide rod
• Diameters 12 ... 63 mm
• Strokes up to 400 mm
• Plain-bearing guide/recirculating ball-bearing guide
|
|
Miniature "Cube" Cylinders
CFS-01011-A is a double-acting, miniature "cube" cylinder (1/2" x 1/2" x 1/2") ideal for applications requiring low output force in extremely tight spaces.
Has been successfully applied in various semiconductor industry applications. Several are mounted side-by-side in a test fixture for circuit board continuity testing. Another application involves silicon wafer processing, in which the cylinders are used to clamp wafers during certain operations.
Stroke Length: .125".
|
|
FO2, FO3, FO4
Double-acting, single end rod cylinders that multiply the force output by supplying air to multiple pistons on extension. They save space and eliminate the need for a higher pressure system. Only one piston is powered on the return stroke, saving air volume and operating costs.
Body - 304 Stainless Steel.
Heads - Anodized Aluminum Alloy.
Piston Rod - Ground and Polished 303 Stainless Steel.
Seals - Buna N (High temperature seals optional).
Rod Bushing - Oil Impregnated Bronze.
Pressure Rating - 100 PSI Maximum (Air only).
Temperature Rating - From -20°F to +150°F (-25°C to +65°C) Buna N seals with a temperature range of -20°F to +150°F (-25°C to +65°C) are standard in all Bimba air cylinders. Fluoroelastomer seals rated for higher temperature applications are available. If cylinders are operated below 0°F (18°C) for extended time periods, special modifications may be required.
Special seal materials are available upon request!
|
|
EFP MultiPosition Cylinder
Provides three position output on extension using the same EF bore footprint to save space.
Easily interchangeable to other compact extruded cylinders of the same bore size.
Available in 10 bore sizes from 12mm to 100mm.
Versatile to easily connect and operate with application's pneumatic logic.
PTFE impregnated, hard anodized aluminum body for superior wear resistance.
|
|
Flat-II
Flat-II nonrotating, double-acting cylinder provides the answer to applications where rotation cannot be tolerated and space is at a minimum.
Nonrotation is achieved with dual piston rods and a rod end block that insures the rods work in tandem. Eliminates the need for external alignment devices, such as guides, rods and alignment posts or pins.
Body - 304 Stainless Steel
Heads - Anodized Aluminum Alloy
Piston Rod - Ground and Polished 303 Stainless Steel
Piston Seals - Buna N (High Temperature Seals Optional)
Rod Bushing - Oil Impregnated Bronze
Rod Seals - Buna N O-ring (High temperature seals optional)
Rod End Block - Anodized Aluminum Alloy
Pressure Rating - 200 PSI Maximum (Air only)
Temperature Rating - From -20°F to +150°F (-25°C to +65°C) Buna N seals with a temperature range of -20°F to +150°F (-25°C to +65°C) are standard in all Bimba air cylinders. Fluoroelastomer seals rated for higher temperature applications are available. If cylinders are operated below -0°F (18°C) for extended time periods, special modifications may be required.
Special seal materials are available upon request!
|
|
Non-Rotating Air Cylinders
* Bimba’s new Non-Rotating Original Line stainless steel body air cylinder design consists of a unique square piston rod with rounded corners. The square rod prevents rotation better than other rod configurations, and the rounded corners provide longer seal life than conventional hexagon rods. The unusual geometry of the square rod also provides superior rotation control.
* All bore sizes have a rotational control of less than or equal to ±3 degrees. Bore sizes for the non-rotating cylinders are 9/16", 3/4", 1-1/16", 1-1/2", 2", and 2-1/2".
* The special high strength aluminum alloy rod guide provides high load carrying capability and abrasion resistance. The urethane-based rod seal provides excellent seal life and leak-free service.
* The Non-Rotating Original Line cylinder is dimensionally interchangeable with the standard Original Line stainless steel cylinder.
* Available in Double Acting and Reverse Acting models.
|
|
Standard Air Cylinders
* The "Original", with a "mirror finish" 304 stainless steel body, double-rolled end caps, sintered bronze rod bushing, Buna N "U" cup seals and our specially formulated HT-99 lubricant.
* Bore sizes: 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3". Wide variety of mounting styles. Many standard catalog options: bumpers, extra rod extension, Magnalube® G lubrication, heavy spring, rotated ports, low and high temperature options, magnetic piston, rod wipers, no-thread rod and more!
* Quick delivery of catalog models -- we stock more than 150,000 and can make any catalog model in 5 days or less.
* If you need something a bit different than what's in the catalog, call us! More than half of our business is "special" cylinders that we designed for specific applications.
|
|

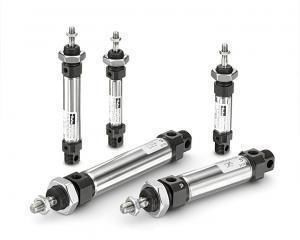

ISO Cylinders
Conforming to ISO 6431/6432 Standard Specifications, Bimba's ISO cylinders are designed to be easily interchangeable throughout the world. Bimba meets your needs.
Reliable service from a world-wide leader producing millions of actuators each year
Pre-lubricated for longer, maintenance free operation
Shock absorbing bumpers
Roll formed threads
High strength pistons permanently rivetted and sealed
Roller burnished stainless steel rods
Advanced bearing and seal materials for higher speed applications
Double rolled construction
Permanent mechanical retention; needles cannot blow out under pressure
Space savings available resulting from smaller external dimensions
Heads available i n Aluminium, Stainless Steel and Delrin®
Rapid design and delivery time for custom modifications
|
|
For simple tasks using a standard cylinder: the DNCB, latest member of the DNC family. Ideal in all applications where technically and functionally advanced drives are utilised.
• New piston system distinguished by extremely smooth running and significantly increased energy absorption
• Compatible with accessories and mounting attachments from the DNC modular system
• Diameters 32 ... 100 mm
• Strokes 2 ... 2,000 mm
• New precision adjustment with scale for end-position cushioning
|
|
Diameter 10, 16, 20, 25, 32 mm
Stroke length 10 ... 100 mm
Force 94 ... 966 N
Position sensing
Fixed cushioning
Plain-bearing guide
Recirculating ball bearing guide
|
|
Air Cylinders with Adjustable Cushions
The Bimba Air Cylinders with adjustable cushions have a readily accessible cushion needle for easy adjustment, double acting models, and a 304 stainless steel body with mirror finish I.D.
High strength aluminum alloy porting ends and ground and roller burnished 303 stainless steel piston rods come standard. Also, the air cylinders have Buna N "U" Cup Seals, low breakaway friction - less than 5 PSI - and special stroke lengths available on request.
Air cylinders come in 3/4", 1-1/16", 1-1/2", 2", 2-1/2", and 3" bore sizes.
Bimba's cylinders with air cushions provide a possible solution to destructive energies. The air cushion traps a small amount of exhaust air at the end of stroke, providing an air pocket that decelerates the load. This reduces the potentially destructive energy being transmitted to the cylinder and other components.
|
|

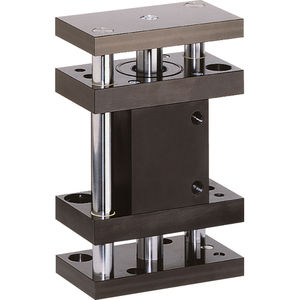

Extruded Flat Lift Table
EF1-based, guided cylinder with four shafts for maximum rigidity. It is designed for lifting applications where other non-rotating cylinders cannot handle an overhung load and space is at a premium.
Four-shaft support withstands offset loads and moments.
Simple, efficient design provides economical alternative to other costly guided actuators.
Joins the EF family of products, so shares all the same benefits--long service life, low friction operation, fast delivery.
Convenient wide tooling mounting surface.
Intended for vertical lifting applications (should not be mounted horizontally or with tooling plates facing down).
|
|
Z Line Air Cylinders
The Bimba Z Line Air Cylinders are for extremely tough applications.
The Z-Line air cylinder has the rolled-in construction of the Original Line but features the following: Larger diameter, two-piece 303 stainless steel piston rod HEX-STUD rod end thread of heat treated alloy steel - easily removed in case of failure due to overload, and cushion quiet elastomer bumpers.
No charge options include the Magnalube G, Molycoated body, and magnet.
Bore sizes for the Z Line cylinders are 3/4", 1-1/16", 1-1/2", and 2".
|
|
Ultran Rodless Cylinders
The Bimba Ultran rodless cylinder provides one of the highest coupling strengths available. This means it can carry higher loads without causing the piston to uncouple from the carriage.
Bimba also offers two magnetic coupling strength options (Gold and Silver) to suit a wide variety of applications. The Silver option uses two sets of magnets instead of three.
Bore sizes are 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", and 2".
Bimba offers a model with built-in guides (Ultran Slide) and an unguided unit (Ultran).
Save space and streamline your design with the Bimba Ultran rodless cylinder! Application possibilities include transferring, feeding, door opening, cutting, silk screening and overall length savings.
|
|
All Stainless Steel Non-Repariable Cylinder
Corrosion resistant 303 Stainless Steel end caps.
304 SS body with mirror finish ID for long, reliable seal life.
Urethane rod wiper designed to withstand exposure to harsh chemical solutions while limiting ingress of the solutions and application matter into the cylinder.
PTFE-based rod and pivot bushings selected for their resistance to many commonly used cleaning solutions.
Nitrile seals are standard with optional high temperature or other materials available.
|
|
All Stainless Steel Repairable (Bell Ring Style)
* The new all stainless repairable Original Line cylinders are ideal for food processing, chemical, medical, pharmaceutical, offshore or marine equipment, and energy production or waste management applications. The bell ring design also offers the added benefit of full repairability without the need for hand tools by securing the body to the rod guide with a knurled, threaded nut.
* Bore sizes for the all-stainless steel repairable cylinders are 3/4" and 1-1/16".
* Engineering specifications include 304 Stainless steel body, low friction Buna N "U" Cup seals and rod wiper, 303 Stainless steel endcaps, piston rod, and bell ring nut, and Composite FDA approved rod bearing and FDA approved lubricant.
|
|
The first friction-free cylinder: extremely smooth surface of Ra 0.6 µm, highly corrosionresistant and repairable.
• Diameters 32 ... 100 mm
• Stroke lengths 10 ... 500 mm
• Constructed from of stainless steel
• Rod wiper seal material PUR
• Fully repairable (cover connected to profile)
• Food industry approved lubricating grease (to USDA-H1) and piston rod wiper seal (to FDA)
|
|
Benchmark for the standard: profile slots for integrated cylinder switches. Wide range of variants and mounting options.
• Diameters 32 ... 125 mm
• Stroke lengths 1 ... 2,000 mm
• With adjustable end position cushioning (PPV)
|
|
Three-Position Cylinders
Bimba's Three-Position Original Line stainless steel body cylinder provides three positions with a single cylinder.
Bimba offers the performance and quality of the unitized Original Line cylinder design along with three positive stroke positions.
|
|
TRD Manufacturing
TRD Manufacturing Cylinders are recognized for their durability, high quality construction and long-lasting performance. Manufactured in several different types including, NFPA-interchangeable cylinders, specialized cylinders and accessories, TRD Cylinders represent a significant step towards Bimba's strategy to expand their industry-leading line of actuators.
Advantages of TRD Cylinders Include:
* Space saving design
* Many cylinder options to choose from
* Precision designed to provide accurate linear movement and positioning
* Other models include all stainless steel (SS) and electroless nickelplated (EN), and low friction for smooth operation (LF)
|
|
The Series 60 cylinders have been designed to comply with the dimensions laid down] in the DIN/ISO 6431 standards. A permanent magnet is mounted on the piston in these cylinders which enables, by means of proximity switches positioned along the cylinder tube, receiving information about the piston's position.
This cylinders series is normally equipped with adjustable end-stroke cushioning. Moreover these cylinders are equipped with a mechanical cushioning in order to reduce the impact of the piston as it reaches the end of the stroke.
|
|
The Slide Units Séries QCTF - QCBF are available in four différent sizes and hâve been designed to be used in (applications where space is limited and when the load must be guided. Regarding the bearings, the Slide Units are available in two versions, one with double sintered bronze bushes (Mod. QCTF) and the other with double linear bail bearings (Mod. QCBF). The QCTF version would normally be selected when the side loads applied to the slide unit are high. Model QCBF slide units are suitable for fast cycles (less side load) and higher précision. Regarding the end cushion: The Slide Units Séries QCTF - QCBF are available in three différent variants:
A. fixed mechanical cushion (standard),
B. with two shock absorbers located on the body and
C. with one shock absorber located central on the rear flange.
Accordingly, the variant B and C are suitable for
handling of higher mass forces and / or when it's
necessary to adjust the stroke.
The design of the Slide Unit body allows the moun-
ting of the Slide Unit using either top, bottom or
side faces.
Several T shaped grooves in two faces allow
magnetic sensors Mod. CST to be fitted in a number
of positions.
|
|
|
The Airpel Air Cylinder does away with any perceptible stiction and reduces running friction to exceedingly low levels. This gives it the unique ability to impart super smooth motion – motion smoother than any other air cylinder. Even at very low pressures. Even at very slow speeds. Even with very short strokes. Even after standing idle for years! How do you account for this remarkable performance? The Airpel incorporates a unique construction to become an instrument-quality air cylinder. It uses a precision fit graphite piston which slides freely – without lubrication – inside a Pyrex® glass cylinder. This makes it ideal for forces from a very few grams to 30 lbs. or more. In fact, Airpel is particularly well-suited to applications requiring smooth motion at ultra-low pressures – and to moving lightweight objects or delicate loads at slow or high speeds. But this air cylinder is no weakling. It can be used to provide brute forces, too – operating under extreme temperatures, at very high speeds and cycle rates, with no degradation in performance. It also runs cleaner than typical air cylinders because it contains no oil. What’s more, it has no rubber or plastic seals to abrade, wear out, or harden with time. And because all exposed surfaces (except pivot model bushings) are stainless steel and nickel, Airpel is extremely clean and corrosion resistant. Airpot Corporation is the world's leading manufacturer of ultra low friction, super-responsive pneumatic piston and cylinder motion dampers, actuators and Snubbers.
|
|
The GLOBAL SERIESTM Cylinder has been a very popular addition to the Pancake® Line of cylinders. This rugged, space savings cylinder is loaded with features not found in others. Available as a "hard metric" model, this cylinder is truly the choice for the International market.
Features:
10 Bore Sizes (12mm thru 100mm)
Strokes from 5mm to 150mm
Machined from Aluminum Extrusion
Duralon® Rod Bearing for Reduced Wear
Prelubed with Magnalube-G® Grease
Chrome Plated Stainless Steel Piston Rods
Air & Hydraulic Service to 150 PSI
10 Mounting Accessories
3 Port Choices - NPT & BSP Parallel/Tapered
Metric or Inch Rod Thread & Mounting
Plenty of Options Available
Magnetic Piston Sensing Available
|
|
Features Include:
- Simple Inlet Design
- Constant Air Flow
- Up to 7,000 RPM Capability
- Standard Built in Trapping
- Optional Trip Rod and Thru Port
|
|
|
|
