| Orbitform manufactures precision orbital forming and impact riveting equipment for a wide range of industries and applications. Let us help you succeed! |
|
Orbitform manufactures precision orbital forming and impact riveting equipment for a wide range of industries and applications. Let us help you succeed!
|
|
Orbitform Model B-250
Pneumatic Bench Orbital Riveter
► Capacity .25 inch (6.35mm) diameter mild steel.
► Maximum force 1625 lbs. @ 100 psi.
► Adjustable stroke .06-1.5 inch (1.52-38.1mm)
in .001 inch (0.03mm) increments.
► Throat depth 4 inch (101.6mm). Call for others.
► Vertical head height adjustment 6 inch (152mm).
Model B-250 includes:
1/2 hp, 1725 rpm, 115/208-230/60/1, 8.4/4.2 amp electric motor
HS-310 orbital head and developed peen
Dual palm button anti-tie-down actuation
Solenoid valve
Filter-regulator-lubricator unit with gauge
Digital adjustable (0-99 seconds) dwell timer
Eight (8) digit resettable cycle counter
Electrical enclosure w/disconnect
Illuminated power on push button
Emergency stop push button
Manual/auto mode
Manual jog advance/return
Programmable controller w/10/6 I/O
Standard options include:
Home limit switch, installed
Lite-touch palm buttons
PLC expansion for an additional 10/6 I/O
24" (610mm) x 24" (610mm) x 30" (762mm) high precision machine base
|
|

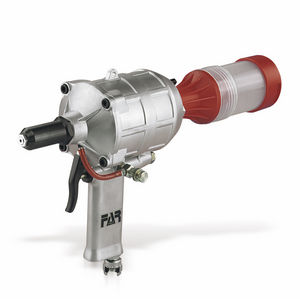

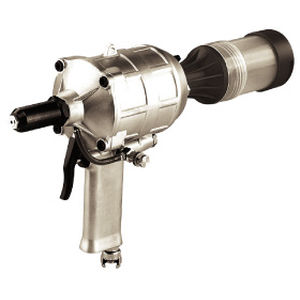

Riveting tools are a feather in FAR’s cap.
There are more than 30 models, to comply with the most different needs: manual, pneumatic or battery suitable for fastening blind rivets or threaded inserts.
The range of FAR riveting tools offers world-wide advanced articles, from hand tool to oil-pneumatic tools with automatic loading of the rivet. |
|
Pneumatic riveting machine, for laying of Ø3, Ø4, Ø5, Ø6, Ø7 mm. half-drilled rivets, 5 to over 20 mm long.
Particularly suitable for the assembling of pipes, pivoting wheels, big hinges etc. The machine can be also built to lay two rivets at the same time with a fixed distance between centers.
Technical Data:
Loadless speed: 35 blows/min;
Air consumption: 1,4 lt a 6 atm/blow;
Container capacity: 20 kg of rivets;
Electrical vibrator: 100 wat;
Height: 1.650 mm (with basement);
Width: 400 mm;
Depth: 540 mm;
Weight: about 150 kg;
Possibility to use the pedal by assembling the electronic "safe-hands" (VTR 99). |
|

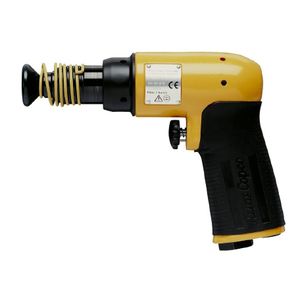

Versatile RRH can easily cope with rivets in diameters up to 12 mm.
Vibration-damped system an RRH vibration-damped riveting hammer, combined with an RBB vibration-damped bucking bar, offer an unbeatable system for riveting.
The power is adjustable.
Adjustable hand guard support hand grip is vibration-damped. - TS models have trigger start.

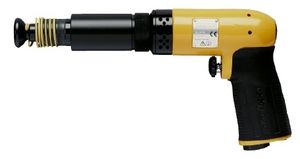

Conventional type
For conventional riveting, we recommend our RRN riveting hammers.
Adjustable the RRN's have a built-in adjustment knob with which you can set the power for different rivet materials and sizes.
Controllable the trigger is easily operated and provides excellent control.
RRN11 is the smallest riveting hammer available on the market, unique accessibility.
|
|
Hydra-Pneumatic Riveter
With the first major innovation since the 1920s, Orbitform has given rivets a smooth new ride. The HP2000 hydra-pneumatic impact riveter is more controllable and adaptable than any impact riveting machine on the market today. Available with up to a 24 inch throat, the HP2000 can autofeed and quickly set solid rivets up to 7/16 inch diameter.
Orbitform’s HP2000 riveter features:
• Twenty ton capacity
• Lubed for life ram assembly (less maintenance)
• Single/multiple tooling available
• Ease of alignment (upper/lower tooling)
• Ability to set rivets at multiple finished heights
• Few moving parts and wear points
• Long stroke range
• Quiet operation
• Optional WatchdawgTM for dynamic force and distance monitoring and control
• Palm buttons, foot switches or light curtains available.
The HP2000 can automatically compensate for minor material thickness or rivet length variances for consistent results. Setting pressure can be accurately controlled, allowing for use on brittle or fragile parts as well as heavy-duty applications.
Profit from over twenty years of industry experience and let Orbitform’s new HP2000 guide your process! For further information please call 1-800-816-96¬¬61 or email sales@orbitform.com.
|
|

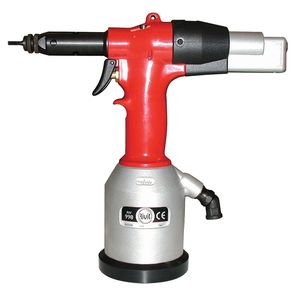

TECTOOL TF N12A
pneumatic-hydraulic Rivet nuts TECTOOL N12A
- Nosepieces for rivet nut M3 - M12
- Quick change system
- Pressure required max. 7,0 br
- Traction power 20 kN at 6 bar
- Air consumption 5,5 ltrs pro stroke
TECTOOL TF R68

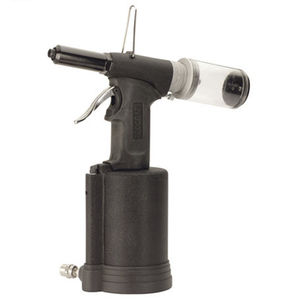

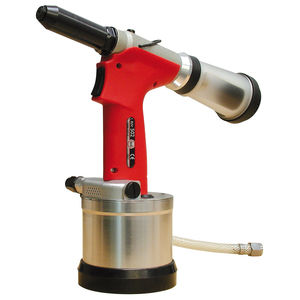

Pneumatic-hydraulic riveting tool
- Nosepieces 3,0 - 6,4 mm
- Vacuum absorption for the mandrel with automatic switch off
- Pressure requirde max. 7,0 br
- Traction power 13 kN at 6 bar
- Air consumption 2,0 ltrs. per stroke
TECTOOL TF R55

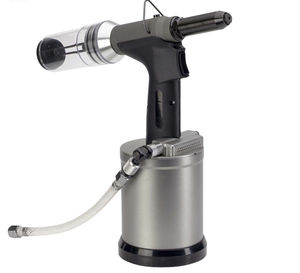

Pneumatic-hydraulic riveting tool
- Nosepieces 3,0 - 5,0 mm
- Without vacuum absorption
- With mandrel collector
- Pressure required max. 6 bar
- Traction power 8 kN at 6 bar
|
|
Manual Riveting Machine mod. PR for the laying of half-drilled rivets from 4 to 8 mm in diameter and from 15 to 80 mm in length.
It is made up of a valve unit supplied with compressed air and pliers for the riveting process.
The unit can be carried and positioned with ease, pliers are equipped with rocker arm.
The machine is especially right for the assembly of bulky structures such as frames, tubular frames, and panels.
It is supplied with compressed air.
Bimanual pushbutton driving gear and CE certification
Technical features:
Loadless speed: 20 blows/min.;
Air consumption: 1t at 6 atm/blow |
|
Riveting tools are a feather in FAR’s cap.
There are more than 30 models, to comply with the most different needs: manual, pneumatic or battery suitable for fastening blind rivets or threaded inserts.
The range of FAR riveting tools offers world-wide advanced articles, from hand tool to oil-pneumatic tools with automatic loading of the rivet.
|
|
POP Rivets - How do you fasten something when you do not have access to the back of the item you are fastening to? Sometimes you just cannot reach, or it is hidden under machinery and simply unaccessible. This is the beauty of Blind Rivet POP® technology. "Blind Setting" allows for fastening from the front, and the POP® line of products has solved numerous industrial problems since it's creation. From the standard rivet, to threaded inserts and POP® Rivetools, explore POP® for your application today.
|
|
PowerBird: The versatile cableless Riveting Tool for outdoor and indoor aplications.
High Performance: The PowerBird can set all types of structure blind rivets; High battery autonomy; High total stroke of 20 mm.
High Speed Setting: Constant forward and backward speed of the jaw assembly. Immediate repositioning of the jaw assembly after completion of the setting process saves energy and increases setting.
Operating Voltage: 12 Volt DC
Pulling Strength: 13.000 N
Total stroke: 20 mm
Weight: 2,2 kg with battery
Power-Accu:
Nominal Voltage: 12 V; 1,7Ah
Number of cells: 10
Cells composition: Nickel/Cadmium with thermic overcharge protection
Weight: 0,62 kg
Quick battery charger:
Input Voltage: 230V/50 Hz
Charging Time: appox. 1 hour (full charge)
Weight: 1,4 kg |
|
AGME produce a wide range of radial riveting machiens available in a variety of sizes. Ranging from the most fragile and smallest components to the largest, the AGME machine series guarantee good quality riveted joints every time.
Besides AGME offers differetn additional options:
- Contant Height Control CAC
- Quality Assurance Control CP1 or CP2
- End of stroke detector
- Mechanical or rubber hold down device
- Double or multiple riveting tool heads, etc |
|
High performance tool for the fast simple application
of Blind Rivets, ideal for use in assembly lines because it is
lightweight and very fast. |
|
| ... products without technical information |
| |
FRAP S1 : PERCUSSION PRESS (pneumatic).
An air operated machine suited to marking, numbering, identifying, crimping, rivetting, punching, and other applications.
Features:
Striking load ajustable from 0 to 7,500 kg.
Weight : 165 kg.
Running: air pressure 6 bar.
Bimanual security operating.
Hourly output : About 2000 impacts.
Anti-double striking device.
Shank: Ø 16 x 50 mm .
Possibility to fit a longer column..
We make all engravings adaptable to this machine. |
|
|
|
