pneumatic rotary indexing table
pneumatic rotary indexing table
HRTA6

Weight: 96 kg

... is a single-axis rotary table based on the HRT210 model. It has an A1-6 spindle nose instead of the T-slot platter. This allows chucks, faceplates, and collet chucks to bolt directly to the rotary ...

pneumatic rotary indexing table
pneumatic rotary indexing table
ITSC series

Weight: 320, 3,740, 3,960, 5 g

• Available in two sizes with 4, 6 or 8 positions. • Clockwise or anticlockwise (A suffix) direction of rotation. • High torque. • Suitable for heavy loads. • Through hole for cables and hoses. • Reduced weight and overall dimensions.

high-precision rotary indexing table
high-precision rotary indexing table
HPi series

Weight: 90 kg - 1,800 kg

... heavy cutting and boring. The “HOMGE” PRECISION INDEXING TABLES are constructed with an AIR CYLINDER between the mating surfaces. This system ensures reduces friction when heavy loads ...

electro-permanent rotary indexing table
electro-permanent rotary indexing table
ECMC-PI series

Weight: 110, 235, 462, 993 kg

●Special pneumatic cylinder design, as massive load is on disk, it reduces friction and assures high accuracy and repeatability. ●Coupling gear is made of high quality bearing steel, high rigidity, high precision, accuracy ...

pneumatic rotary indexing table
pneumatic rotary indexing table
TAR 270 / TAR 160

... - preselection of the indexing number, - maximum load which can be carried kg 100 on TAR 270 and kg 20 on TAR 160, - air connection on the central shaft for pneumatic devices on the ...

pneumatic rotary indexing table
pneumatic rotary indexing table
TBX160

Diameter: 165 mm
Weight: 66 kg

TBX160 Rotary Table with back side motor and high accuracy. The internal air hydraulic booster gives extremely high clamping forces. Register diameter on faceplate (mm): Ø50H7 Spindle ...

pneumatic rotary indexing table
pneumatic rotary indexing table
TRM

Diameter: 120 mm - 400 mm
Weight: 75 kg - 500 kg

CNC Tilting Rotary Tables are two axes (4th & 5th Axes) units and can rotate the component in two axes making a machine capable of accessing the areas which can not be reached with only 3 axes. Tilting ...

pneumatic rotary indexing table
pneumatic rotary indexing table
RT series

Weight: 1.7 kg

RT 4-C ROTARY INDEX TABLE Basic body in practical aluminum design. Rotary plate Ø 50 mm with axial and radial bearings. Powered by two pneumatic sliders for clocked ...

electropneumatic rotary indexing table
electropneumatic rotary indexing table

Diameter: 340 mm - 600 mm

GECHTER electropneumatic rotary indexing table Ø 340 and 600 mm. • The rotary indexing table can be quickly and ...

pneumatic rotary indexing table
pneumatic rotary indexing table

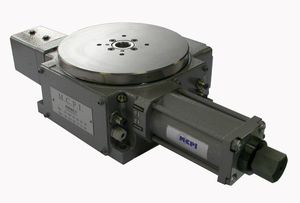

... P160 Model is a pneumatic rotary indexing table developed by MCPI. It is mainly used for accurate division and engrossing of machining forces. The unit comes with ...

See the other products
MCPI SAS
pneumatic rotary indexing table
pneumatic rotary indexing table
ST 250

Diameter: 250 mm
Weight: 13 kg

Pneumatic rotary indexing plate . Ideal for presses with up to 13 kN capacity with centric application of force to the integrated anvil . 12 mounting holes with fixing bolts for workpiece ...

exhibit your products

& reach your clients in one place, all year round

Exhibit with us
How to choose this product
pneumatic-rotary-indexing-table

Pneumatic indexing tables use pneumatic power to rotate objects in a wide variety of applications. They can start and stop the object at precise angular intervals.

Applications

These devices are used to move light to medium-weight loads, such as positioning electrical components during PCB assembly. They also are used in CNC milling machines for light-duty operations.

Technologies

Compressed air rotates the table via a rack and pinion drive. Either an internal or external control valve is used to start and stop the table.

How to choose

Choice will depend on the maximum weight of the parts to be handled. Other specifications to take into consideration are the table's diameter, its concentricity and the indexing accuracy.

Advantages

- Fast indexing
- Adjustable speed control
