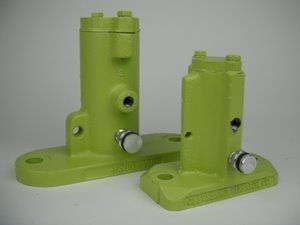

Cleveland Vibrator’s VM-25’s ultra simple design — only one moving part (WS-2 Super Grey coated piston), size and variable frequency make it excellent for automated parts track vibration. Also, it can be used to promote the free flow of materials from small, thin-skinned (minimum 28 gauge) bins and hoppers to 2 cubic feet (57L) capacity. Actually, the applications are limitless, confined only by imagination.
They can be supplied with a muffler to prevent contamination and reduce noise level. An air-cushioned version, VMAC-25, will further reduce noise level, with a with a 30% reduced force output.
It produces 16,000 vibrations per minute while only consuming 2.0 SCFM (57 lpm) of compressed air at 80 psig (5.4 bar). Normal force output is 15 lbs.
The VM-25 is also available in ALL STAINLESS STEEL.
|
|

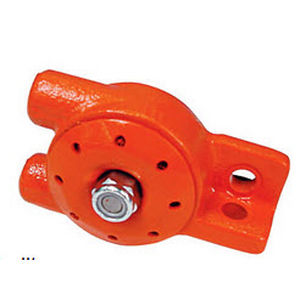

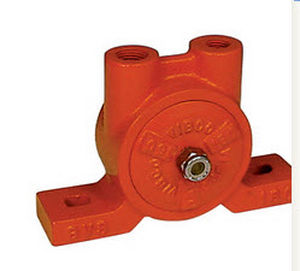

The Cleveland Vibrator Company offers a wide range of ball vibrators designed to keep stubborn materials flowing. These vibrators are powered by dry, compressed air. They produce a centrifugal force which makes them ideal for a number of applications.
Ball vibrators are commonly used as discharge flow aids on small to medium-size bins, hoppers and chutes. They are used in a variety of applications within the chemical, foundry and concrete industries.
|
|
PS-type MARTSHOCK Intermittent Pneumatic Hammers belong to those flow aids that act destructively as bridge breakers. The mechanical energy released at regular intervals, at the moment of collision, is transmitted through the container wall to the stored material. MARTSHOCK Hammers are suitable for loosening of adhesive material crusts on walls, pipes and bins, and as bridge breakers in silos. The blow impulse leads to the complete detachment of the crusts or the collapse of a material bridge.
MARTSHOCK Hammers are particularly suitable for retrofitting to existing silo cones or hoppers as no emptying of the bin or drilling of the wall is required.
The MARTSHOCK Pneumatic Hammer blows produce a violent impact on the wall on which the unit is fitted. It is suitable for all bin shapes and sizes. |
|

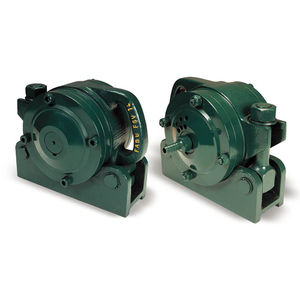

| Cleveland Vibrator’s turbine vibrators have the same, single-bolt body style as ball vibrators. Some models have more than 4x the force output as competitors’ while using less air. Units are rugged, ductile iron, requiring no lubrication. They are ideal for the most demanding applications. |
|
| CVC offers a complete line of air piston, ball and electric vibrators that are ideal for stationary or mobile concrete dispensers or small bins and hoppers. Our unique double-diameter piston guarantees starting at any mounting angle without use of a return spring. The piston impacts against a rectangular or square base, transmitting energy directly to mounting surface. Our robustly constructed units run quieter and matches mounting centers of most competitors%u2019 impact style vibrators. We also fabricate vibratory equipment such as feeders, tables, screeners and conveyors. |
|

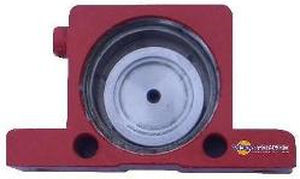

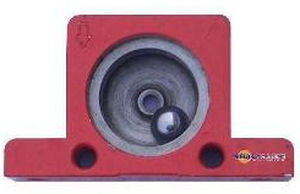

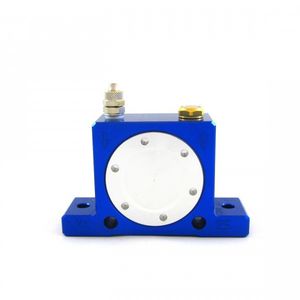

S-Type External Pneumatic Ball Vibrators develop frequencies higher than 580 Hz (> 35,000 r.p.m.) and they are used wherever powdery materials have to be moved. S-type Ball Vibrators are installed on bins to prevent bridging or ratholing, and for the improvement of material flow on chutes, screens and vibrating tables.
S-type Ball Vibrators consist of an anodized aluminium body inside which a steel ball rotates on a specially hardened and ground steel ring. For operation a 2/2-way-valve and filtered compressed air are required.
- Maintenance-free
- Operating temperature: 32°F to 390°F
- Oil-free operation
- Great acceleration
- High centrifugal force
- Low noise level
- Low air consumption
- Standard ATEX ExII3D certified |
|

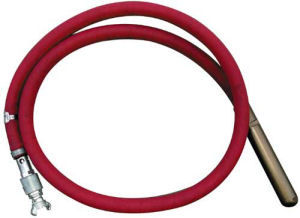

| The BD Pneumatic Concrete Vibrator series utilizes a built-in pneumatically driven motor which has only two moving parts, the vane and rotor. Compressed air is supplied to the vibrator through the air valve and inner hose. Air flow into the rotor, passes through the passage ways in the vane, back through the "air gap" on the rotor and outer holes in the rear flange. This activates the rotor and the vibrator begins to vibrate |
|

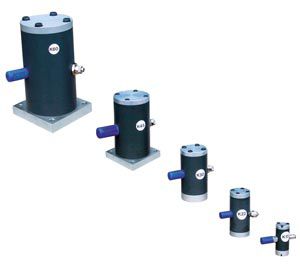

| BV Series Pneumatic Piston Vibrators are available in 10 sizes from 1-1/8" piston diameter to 8-1/4" piston diameter. There are Impacting models, our most powerful, Quiet Impacting models for powerful force with reduced noise, Air Cushioned models for much quieter operation, and Single Impulse models for timed impacts. The linear force of the BV Series is ideal for improving material flow in bins, hoppers, pipes, chutes, and trucks. The Houston Vibrator Sales Team can assist you in choosing the best model for your application. Call +713-939-0404 or e-mail sales@houstonvibrator for assistance. |
|
Cast iron body
Cylinder and piston in treated and rectified steel
Single effect running
Working pressure 6 bars |
|

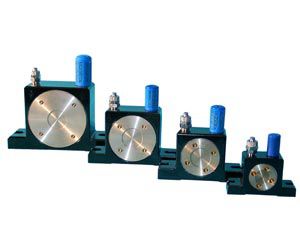

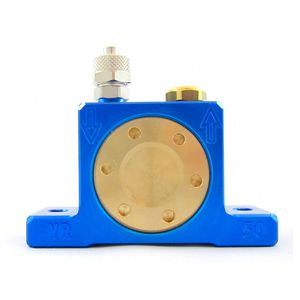

OR-type External Pneumatic Roller Vibrators are characterized by the reduction or even the elimination of friction through high frequencies and high centrifugal forces. At the same time, OR Vibrators are completely insensitive to resonance.
In OR Roller Vibrators vibration is generated by a rotor which describes an eccentric movement inside a steel race. OR Roller Vibrators generate very high frequencies and centrifugal forces with low consumption as compared to the force given. For activation a 2/2-way-valve and filtered compressed air are required. OR Roller Vibrators are used on bins and hoppers to avoid bridging or rat holing, as flow aids, as well as for screening, compacting, sorting, dissolving and cleaning applications.
- Available in eight different sizes
- Maximum operating temperature: 390° F
- Oil-free operation possible
- Great acceleration
- High centrifugal force
- Low noise level
- Low air consumption
- Maintenance-free
- Standard ATEX ExII3D certified |
|

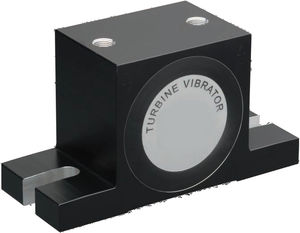

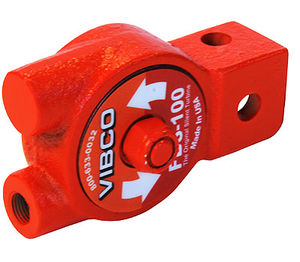

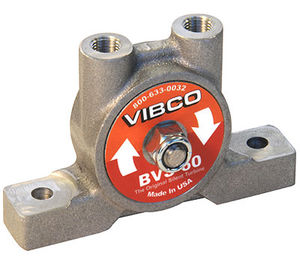

| Houston Vibrator offers a wide range of rotary pneumatic vibrators, including ball, roller, and turbine types. We offer the traditional ball vibrator with cast iron bodies, and ball vibrators with aluminum or high impact plastic bodies. Our turbine vibrators are perfect for intsallations requiring lubrication-free operation. Roller vibrators in a wide range of sizes are available as well. |
|

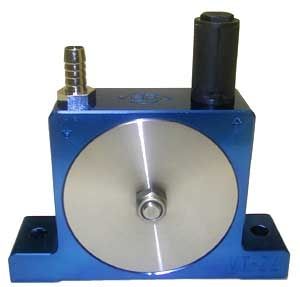

VT range silencious (- 60 dba)
Anodised aluminium body
Steel flanged
Turbine with special profil
Reduce air consumption
Variation of frequency and amplitude according to air delivery or air pressure. |
|

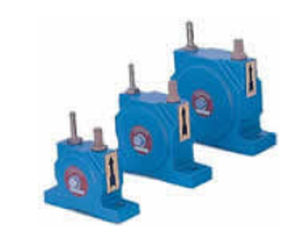

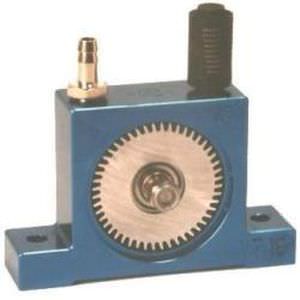

OT-type External Pneumatic Turbine Vibrators combine high frequencies with high centrifugal forces at large amplitudes. OT Vibrators are operated oil-free with filtered compressed air. They do not require any maintenance and they are successfully used as flow aids on bins, as drives for chutes or screens, and on vibrating tables.
Vibration with the OT-type is generated by a turbine with integrated flyweights which rotates on two oversized ball bearings. OT Turbine Vibrators have a high work moment and develop high vibration frequencies and centrifugal forces. Vibration presents a large amplitude even with low operating pressure.
For operation a 2/2-way-valve and filtered compressed air are required.
- Explosion-proof
- Operating temperature: from -4° F to 250° F
- Oil-free operation possible
- Maintenance-free
- Great acceleration
- High centrifugal force
- Low noise level
- Low air consumption
- Standard ATEX ExII3D certified |
|
Maintenance reduced to minimum
Variation of frequency and amplitude according to air delivery or air pressure
Linear vibration issued by a piston in move on air cushion. |
|

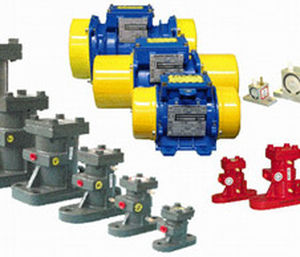

Types: CPL, FP and CVL
The vibrations are generated by a piston deadened by air cushion. These vibrators are silencer
1- with BALL (standard K)
2- with TURBINE (standard WP)
3- with ROLLER (types R and DAR)
The vibrations are generated by the action of the ball, the turbine or the roller turning in their cage under the action of the pressure of the compressed air
Types CFP and FKL
The "CFP" generate successive shocks by the action of a piston of Ø 30,45 or 75mm
The "FKL" generate a powerful shock each time. They must be coupled to a 3-way solenoid valve controlled by automat or a cam timer. |
|
| The PAR series of pneumatic external vibrators offers continuous vibration for non-stop applications. They owe their durability to their strong and simple design, their low maintenance requirements and their long service life. They are the first choice when electricity is not readily available. |
|
Pneumatic vibrator with ball - Model K:
- Without maintenance.
- Use of an compressed air with oil mist,
- Minimal Consumption of air.
- High output.
- Weak weight.
- Noise Level ranging between 75 and 95 dBa
- Use until 100°C. |
|
Pneumatic linear vibrator - Model FP:
- Use without possible lubrication.
- Flame-proof, light and compact
- Silencer.
- Startup under the hardest conditions
- Maintenance reduces to the minimum. |
|
Pneumatic vibrator with Rouleau - Model DAR:
- Without maintenance.
- Noise Level ranging between 75 and 100 dBa,
- High Output.
- Seals with dust.
- Installation in an aggressive environment.
- Use until 200°C.
- Use of an compressed air with an oil mist. |
|
Pneumatic turbine vibrator - Model WP:
- Without maintenance.
- Limiting device of noise.
- High Output.
- Minimal Consumption of air.
- Use without lubrication.
- Startup in an aggressive environment.
- Seals with water and dust.
- Use until 120°C. |
|
One-way piston vibrators - Model VTL:
- Compact and robust
- Frequency and amplitude can be regulated independently
- Low fuel consumption of air
- Silencer |
|
Pneumatic strikers - PP Model:
- Explosion-proof.
- Good deterrent force even with low pressure.
- Very low fuel consumption of air.
- Adjustable uninterrupted.
- Use in possible hot environment.
- Sanatorium maintenance.
- The strikers PP 150 S and C are of construction robust, with a body moulded out of aluminum and the steel pistons.
The strikers PP 170 are of construction robust, with a body out of steel and a chilled steel piston. |
|

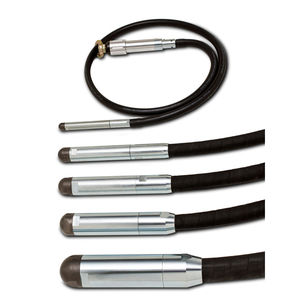

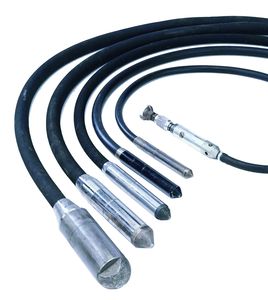

| Our 600 Series Internal Pneumatic Concrete Vibrators are high performance immersion vibrators of simple precision construction. The design features minimum moving parts and no bearings. Each model has an in-line lubricator. There are 8 standard sizes. |
|
| FITTED WITH 2 M HOSE, TURN ON-OFF HANDLE, STEEL OR RUBBER MADE HEAD |
|
VP is a Compressed Air Vibrator for condensing of freshly poured concrete.
VP only has two moving parts: rotor and foil. The fact that there are no bearings makes the vibrator extremely service-friendly. Compressed air connection via quick coupling.
- Head diameter: 1.1", 1.4", 1.8", 2", 2.6", 3", 3,5", 4",
- High compaction capacity
- 6.5 ft flexible quick-link hose pipe
- Low air consumption
- Suitable for heavy-duty operation on site
- Robust and reliable
- High work safety
- Low weight |
|
