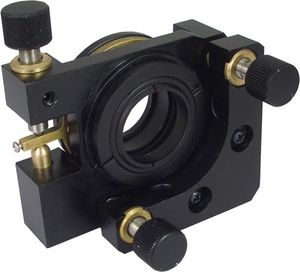

Dimensions most compact among 1" optics mounts
Both tilt and tip are controlled from aside the optical path
Ideal for dense optical schemes
Fine adjustment screws with 0.25mm pitch
Hardened inserts under adjusters
Original stabilized L-shaped flat spring
Accepts optics upto 10.5 mm thick
Tilt/tip travel range ±2.5°
Roller bearings

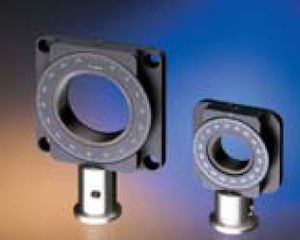

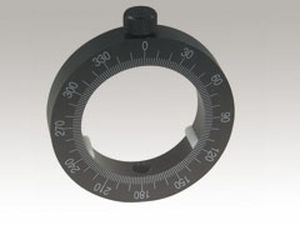

Lockable. Continuous 360° rotation
Horizontal and Vertical mounting
Mounting holes M4 on three sides
