Portable ultrasonic flowmeter FLUXUS F601 is ideal for troubleshooting, plant optimisation and for control of permanent meters.
Features
* Wide application range thanks to the ability of the transmitter to work with shear wave AND lamb wave transducers at all frequencies
* A single pair of shear wave transducers fits a wide pipe diameter range
* Rapid installation without process interruption
* Bi-directional measurement
* High measurement dynamics
The FLUXUS ® G ultrasonic flowmeters use the proven "clamp-on" technology. The flow transducers are simply clamped onto the outside of the pipe. The measurement can hence be put into operation without cutting into the pipe and without production stop. The installation costs are low, retrofitting is not a problem.
Since the transducers are not in contact with the gas, there is no possibility of chemical attack. There are no moving mechanical or pressure loaded parts and thus no wear an tear. FLUXUS G is ideal for measurements at high pressures or on lines with pressure peaks.
Two transducer types for a uniquely wide application range
All FLUXUS® G transmitters support both lamb wave and shear wave transducers at all transducer frequencies. In this way the measuring system can be optimized to even the most demanding applications.
The Lamb wave transducers are ideal for measurement at high flow velocities, in natural gas pipelines for example, or at low pressures, amongst others in compressed air circuits. The shear wave transducers cover a wide range of pipe diameters and wall thicknesses. They are the best choice for mobile measurement or for high pressure systems.
|
|
|
|
|
|
The FLUXUS F601 is a portable ultrasonic flowmeter. With its clamp-on transducers and its rechargeable battery, it is an ideal tool for service work.
The clamp-on flow transducers are simply mounted onto the pipe from the outside. Measurement is therefore non-invasive, and no process interruption is necessary for the installation. The transducers are not in direct contact with the medium to be measured and thus in no way submitted to pressure and wear and tear.
All transducer pairs are factory calibrated. All calibration data (including the transducer identification and parameters) is stored permanently in the transducers and is transferred to the transmitter automatically upon connection. This facilitates operation and a zeroing procedure is not necessary.
The user interface is adapted to the detected transducers. The instruments simply asks in a logical sequence for the pipe and medium parameters. The physical properties of a large number of pipe materials and media are stored in an internal data base. The status display enables even the inexperienced user to judge online the quality and precision of the measurement.
|
|
|
The Series TFXP Portable Transit Time Flow Meter features an advanced non-invasive flow measurement technology, providing a system with unsurpassed accuracy, versatility and ease of installation. Although designed for cleaner liquids, the flow meter can reliably measure liquids containing moderate amounts of suspended solids or aeration. Designed for long or short-term flow measurement surveys on full pipe liquid systems.
|
|
Recommended for clean fluids like water, glycol, oil and most chemicals. Portaflow ultrasonic sensors strap-on the outside of vertical or horizontal pipes from 2" to 40" (50 to 1000 mm) diameter. The ultrasonic signal travels through all common metal and plastic pipe materials. Sensors can be mounted without shutting down flow and there is no obstruction or pressure drop. Flow rate and totalizer are displayed continuously along with battery status, signal strength. Press one key to instantly change the units of flow measurement (e.g. from gallons to liters). Real time flow can be displayed in large numeric values or as a graph.
- Strap-on Ultrasonic Sensors
- Internal Battery and/or AC Powered
- Easy Calibration and Set-up
- 50,000 point Data Logger
- RS232 Serial Output
- 4-20mA Output
|
|
|
Series UFX Hand-held Doppler Flow Meters provide accurate and reliable flow velocity assessments in closed pipe, liquid systems. UFX requires that the liquid be either solids-bearing or aerated at a minimum of 100 ppm. The product utilizes a single, hand-held transducer which is placed on the outside of metal or plastic pipe. Within seconds after placing the transducer, the large LCD will provide a velocity reading in either FPS (feet per second) or MPS (meters per second). The UFX comes with a flow calculator/slide chart for conversion of velocity measurements to popular volumetric measurements.
|
|
It's ideal for flow troubleshooting, balancing and checking performance of permanent flow meters. The new PDFM 4.0 is fast and easy to operate – you can mount the sensor on the outside a pipe in less than a minute. Use the built-in keypad and calibration menu to set up the flowmeter for your application. The PDFM 4.0 works on any liquid containing bubbles or solids and is recommended for "difficult liquids" like wastewater, slurries, sludge, chemicals, viscous liquids and abrasives. Measures flow through most metal and plastic pipes including PVC, ductile iron, carbon steel and stainless steel.
- Strap-on Ultrasonic Sensor
- Internal Battery and/or AC Powered
- Fast, Easy Operation
- Built-in 3-Key Calibrator
- Programmable Totalizer
- 50,000 point Data Logger
- RS232 Serial Output and Windows software
- 4-20mA Output
- Adjustable Sensitivity
|
|
|
|
|
|
Fuji
Fuji PortaflowX and TimeDelta are multi-use flowmeters for liquid media. Particular advantage: The clamp-on mounting of the ultrasonic sensors, so that any cutting of the pipe is unnecessary and pressure loss can be avoided. The clamp-on measurement is available either as a portable, battery run version, or as a non-withdrawable type. The handling of the PortaflowX is very simple. The user interface of the big graphical display is compatible to the Windows system, so that even inexperienced users can handle it without problems. The PortaflowX speaks four languages fluently and can be delivered optionally with an integrated printer, that can be used either for printing parameters or as a line recorder.
The TimeDelta can convince as well by its easy handling, its enlarged options for diagnosis and analysis and its particular measurement stability, even under difficult conditions. Due to the highly efficient 32bit technology and modern DSP-technique, PortaflowX and TimeDelta can be run under operating conditions, that until now have been considered as impossible for the clamp-on ultrasonic measurement.
|
|
Portaflow-X
This ultrasonic portable flowmeter consists of two sensors clamped on the pipe (DN 13 to 6000 mm, according to sensors) and of a digital converter operating on internal battery or on power line. It can measure bi-directional flow speeds from -32 to +32 m/s.
A large LCD graphic screen, a set of pop-up menus and a reduced number of keys make of this device a simple, powerful and friendly tool very appreciated by every person wishing to do a punctual measure of flow.
In addition to the display of flow and totalization, the PORTAFLOW-X also offers functions of data logging (40000 values), of graphic display of the measured value and of the resultant sound wave, and the storage in memory of 1 to 20 configurations.
A RS232C interface allows the connection to a PC computer. An optional graphic printer is available.
|
|
To carry out accurate measurements and rather than having to bore your pipes and being limited in control points, think ultrasounds and clamp-on probes : Think ULTRAFLUX !
The DigiSonic E is a portable flowmeter. It is designed for field operations. Measurements are immediate and presented in both graphic and alpha-numeric formats.
Its sensitivity and its accuracy on any size of pipe make it an outstanding portable device. Let's also mention the following original features : memory and display capacities, thickness and temperature measurements.
|
|
|
|
|
|
Stingray Portable Open Channel Flow Logger
A new, portable logger for area-velocity flow surveys in sewers, open pipes and channels. Stingray is designed for municipal stormwater, combined effluent, raw sewage, irrigation water and stream flow.
Stingray uses a submerged ultrasonic sensor to measure both Velocity and Level in the channel. It is mounted in the channel with a stainless steel bracket or a pipe band. No calibration is required. It operates up to 4 years powered by standard Alkaline D-cell batteries. Electronics are housed in a watertight IP67 enclosure and rated for operation from –15° to 60°C.
Each Stingray includes Greyline Logger software to retrieve and display logged data by RS232 or modem connection. The software calculates flow for round, rectangular, trapezoid and egg shaped channels plus flumes and weirs. After the data is downloaded, the software automatically creates a flow chart based on the pipe or channel size. The software displays it as a graph or a table, or you can export it to a spreadsheet program.
|
|
| ... products without technical information |
| |

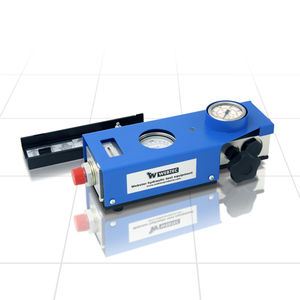

The RFIK mechanical hydraulic tester provides the ideal solution for servicing and commissioning
hydraulic circuits on agricultural and other mobile machinery.
The kit comprises of a direct acting flow indicator with built in thermometer, a loading valve and a pressure gauge all built into a strong steel case with a removable lid.
The unit is self contained and requires no electrical power. The dials are clear and easy to read.
Installation is extremely simple and the test kit can be connected into either the pressure or return lines. The loading valve and pressure gauge allow a progressive build up of system pressure in complete safety.
The test kit provides the service engineer with quick, accurate and simple performance testing of pumps, motors, valves, cylinders and complete hydraulic
circuits.
Note: This unit is not designed for permanent installation.
|
|
|
|
|
|
HTA and HTA-Ex:
HTA-Ex is for use in category 2G (zone1)
hand-held instrument with IP64 type of protection to which all Höntzsch TA
sensors with thin-film sensor element can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HTA by 9 V battery or HTA- plug-in power supply
power supply HTA-Ex Li-recharchable battery, running time approx. 20 hours.
analog output 0 . 4 V = 0 . x m/s.
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
|
|
HFA and HFA-Ex:
HFA-Ex is for use in category 2G (zone1)
hand-held instrument with IP64 type of protection to which all Höntzsch vane wheel sensors
can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HFA by 9 V battery or HFA- plug-in power supply
power supply HFA-Ex Li-recharchable battery, running time approx. 50 hours.
analog output 0 ... 4 V
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
|
|
HVA:
HVA is for use in category 3G (zone 2)
hand-held instrument with IP64 type of protection to which all Höntzsch vortex sensors
can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HVA Li-recharchable battery, running time approx. 20 hours.
analog output 0 ... 4 V
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
|
|
HTA and HTA-Ex:
HTA-Ex is for use in category 2G (zone1)
hand-held instrument with IP64 type of protection to which all Höntzsch TA
sensors with thin-film sensor element can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HTA by 9 V battery or HTA- plug-in power supply
power supply HTA-Ex Li-recharchable battery, running time approx. 20 hours.
analog output 0 . 4 V = 0 . x m/s.
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
|
|
HFA and HFA-Ex:
HFA-Ex is for use in category 2G (zone1)
hand-held instrument with IP64 type of protection to which all Höntzsch vane wheel sensors
can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HFA by 9 V battery or HFA- plug-in power supply
power supply HFA-Ex Li-recharchable battery, running time approx. 50 hours.
analog output 0 ... 4 V
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
|
|
HVA:
HVA is for use in category 3G (zone 2)
hand-held instrument with IP64 type of protection to which all Höntzsch vortex sensors
can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HVA Li-recharchable battery, running time approx. 20 hours.
analog output 0 ... 4 V
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
