Position indicators and handwheels of SIKO for individual applications.
Handwheels with integrated position monitor afford to shift and display axial movements. For actually reading SIKO provides a spectrum of variable professional scales depending on particular transmissio.
|
|

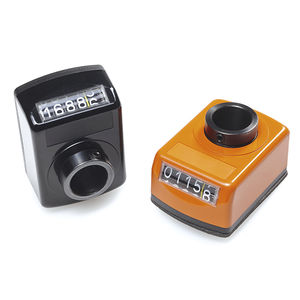

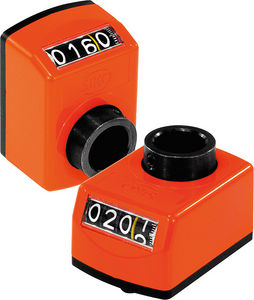

Digital position indicators of SIKO, to read directly adjusted values is made possible, thereby the display value can be chosen for every single pitch. Several display values are realized by transmission gear.
Depending on applications, several unit sizes are available, small shaft diameters for less space up to position indicators for huge shaft diameters.
|
|
| ... products without technical information |
| |

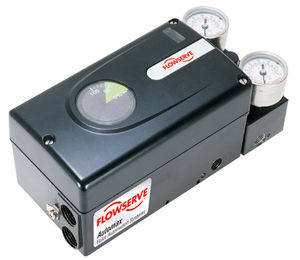

Electrical position indicators and combi switchboxes
Intelligent electrical position indicators with automatic commissioning and initialisation, available for quarter turn and manufacturer of linear actuators, field-bus capable combi switchboxes with integrated pilot cocks, customer-specific special solutions, versions for OEMs and other makes available
|
|
Product GK473 Professional gateway
Technical data - electrical ratings
Current consumption 10 years (flash / EEPROM)
Display 4 LED´s as operating status indicators
Emitted interference DIN EN 61000-6-4
Interface to SPA EIA RS485 (ASCII protocol)
Interfaces CANopen
DeviceNet
Profibus-DPV0
Interference immunity DIN EN 61000-6-2
LED operating status DP (green) field network operating status
DP (red) operating and error status
RX / TX (yellow) receiving / transmitting a token (RS485)
Programmable parameters Auto-Check functions
Auto Scan SPA
Auto Message SPA Position
Auto Message SPA Error
Supply voltage range 12...24 VDC
Other products available: |
|

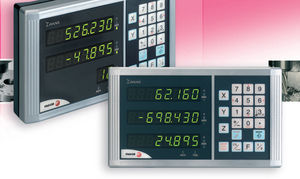

| "True Vision, Innova 40i" the best DRO in the world. It is easy to operate and absolutely reliable; it represents a new technological breakthrough in measuring and control systems for the equipment tool.With its exclusive color TFT screen, it is possible to simulate the programmed part in 3D, with an unmatched view from any angle; a considerable advance from the monochrome Professional lcd screens on the market today. |
|
The ACU RITE 200 series with LCD screen technology offers the possibility of realizing with equipment different application situations.
Change over by software simply to trick, or milling and drilling mode.
The crystal-clear Professional lcd monitor in connection with situation-dependant graphic user support makes a working with the ACU RITE 200-Serie particularly simple.
|
|
ACU RITE RADIAL makes its radial drill still faster!
ACU RITE radial
Those, high performance position readout for radial and high-speed radial professional drills, which can be served easily.
The collection of the machine motion is made by means of a ACU RITE length measuring system at the arm and - usually - by a friction wheel system at the column. With the help of a further measuring system at the guide also the drilling depth can be measured and indicated.
|
|
Applications:
SW4000 series multi-functional digital readout can be installed in all kinds of center tools and supply the measuring location when used together with the linear weighers.
Features:
1. Employed with advanced IC,24-bit professional counter with unique digital filtering technology, Systematic
2. Anti-jamming in power and signal an reach 2200V or above.
3. Display data both in Chinese and English
4. Can recall the current disposition after power failure
5. Can work right between AC90V and 240V
6. Coordinate zero reset, divide by 2, display set numeral, ABS coordinate, INC coordinate,1000 grounds of user coordinate
7. Shrink rate counter
8. Detect the RI
9. Divide holes on a circle, divide holes on an oblige line
10. Arc manufacturing, ramp manufacturing (SW4000-2, SW4000-3)
11. EDM manufacturing (SW4000-E)
12. Edge detecting (optional) |
|
A very powerful micro-controller manages and processes all the information [position, calculation, etc.] trasmitted by the transducers or entered by the user. Having such a highly evolved but user-friendly digital Readout means increasing the production performance of the machine on which it is installed considerably.
|
|
