The new SPeX connector, is an EX power connector (1000 V, 680 A) with ‘e’ increased safety enables the user to connect and disconnect heavy duty equipment simply and safely.
Designed for use in hazardous areas the SPeX is ATEX 94/9/CE approved for zones 1 & 2 (gas) and zones 21 & 22 (dust). It offers automatic IP66/IP67 ingress protection rating as soon as the plug is inserted into the socket. Electromechanical interlocking is provided via a microswitch (which opens and closes all phases simultaneously) to protect the user and to prevent electrical destabilisation of equipment.
The casing is manufactured in glassfibre-reinforced polyester which affords excellent mechanical protection (IK08) and resistance to UV and chemical agents.
Typical applications include mobile gensets, ship-to-shore supplies, mines, offshore platforms etc.
The incorrect mating of phases is mechanically impossible. Furthermore colour-coding enables a visual check.
|
|
BradPower is a robust, scalable and easy-to-install power distribution system that does not require the specialized tools and labor typically associated with traditional conduit or raceway installations.
BradPower wiring systems modular components make installation faster, easier, and more reliable. BradPower products deliver the same unsurpassed performance and innovation the industry has come to expect.
The BradPower product line includes:
Cordsets and Connectors
Tees and Reducers
Receptacles
Disconnect Switches
Accessories
BradPower Solutions for food and beverage processors: To meet the unique needs of the food and beverage industry, we offer a complete range of specialized BradPower modular power components designed for use in food and beverage processing machines and automated cleaning systems.
|
|
FEATURES
* High performance #16 contact
* Mechanical polarized housings
* PCB, panel or cable mounting
* Optional positive latches and back shells
* Optional sequential contact mating
BENEFITS
* Rated to 30 amps per IEC512-3 test 5a
* Housings only mate one-way, ensuring proper circuit mating
* Product flexibility for a wide variety of system packaging
* Provides additional safety and security
* Up to 4 pin contact lengths can be specified to create Make First / Break Last and Make Last / Break First circuits
|
|
|
|
|
|
Lucy Switchgear has in depth knowledge in providing substation connectors up to 145kV and accessories.
Designed to interface with all associated products including circuit breakers, disconnectors, voltage transformers and sealing ends, our connectors are ideal for new build and refurbishment projects.
Connectors Key Features
Connections up to 145kV
Copper connections to ENA TS 41-16
Aluminium connections to ENA TS 41-11
Rigid to palm connector ref. RD-PALM
Rigid Connector to suit Copper/Aluminium Conductor to Flat Palm.
Number of clamps per connector dependant on current rating or mechanical requirements. Triple clamps only used for aluminium stranded conductor.
Angle of entry and splay to be advised at time of quotation or order.
Conductor clamps
- C14 to C75 clamps are electro tinned CZ122 brass
- A40 to A90 clamps are LM6 aluminium
- UC25 universal clamps are to suit copper or aluminium stranded conductor.
CZ122 brass/HE30T aluminium
- Transition washers will be used if aluminium clamps to copper support plate or brass/gunmetal clamps to aluminium support plate are required
|
|
|
|
|
|
FEATURES
* 210 to 450 amps UL rating
* Positive latching
* Available in straight, right angle, panel mount, blind mate and bus bar styles
* Touch safe female connectors
* Polarized dual pole connectors with optional hex key
* Strain relief option
* Low connector mating forces
* Silver plated, high conductivity contacts
* Ease of assembly
BENEFITS
* Integral latches with ergonomic release provide over 50 lbs retention
* The flexibility of the PowerMod HP system serves a broad range of electronics applications
* Provide IP20 protection for safe, energized use outside the electronics cabinet
* Dual pole housings prevent shorting from reverse mating and the optional hex key allows the user to create unique mating schemes
* Reduces risk of wire insulation creep and reduces transmission of wire loads to contacts improving service life
* Connectors are easily mated and unmated
* Offers greater longevity for high-power, elevated temperature applications
* Intuitive design allows for simplicity of assembly
|
|
CAM
Circular connector in aluminium with handle locking system.
Used on very harsh environments.
Designed for intervehicle jumpers (dynamic applications).
From 4 to 61 poles, straight or angled plugs.
Features & Benefits
Nominal current : 10 to 500 A
Service voltage : up to 750 V
Temperature range : -40 degC / +100 degC
Endurance : > 500 mating cycles
Salt spray resistance : 96 hours (more on request)
Robust and many configurations available (signal and power)
Harsh environment use
Safe and easy locking system
Technology/ Coupling System
Environmentally Sealed
|
|
* up to 37 pins
* mA - 25 A
* Up to 500 V AC and 130 V DC
* Data and signal transmission
* Connectors with combined control and power contacts
* Automatic IP66/67 watertightness when connected without additional manipulation being necessary
* Silver butt contacts for optimum current transmission
* Housing made of glass-fibre reinforced polyester,
highly resistant to chemical agents, UV radiation, shocks,...
or made of anti-corrosion treated metal,
providing high-temperature resistance and excellent mechanical resistance
* 5 different keying positions
* IEC/EN 60309-1
* In compliance with the European Low-Voltage Directive
|
|
The Winchester Electronics line of PC Power connectors provides a versatile and effective means of supplying low- to mid-range power for board-to-board applications. PC Power connectors are available in 8-, 12-, and 30-position socket receptacles and pin headers. All connector types are available in straight and right-angle solder terminations as well as straight compliant press-fit terminations. The compliant press-fit connectors are available for the "standard" press-fit PCB hole size of 0.64" and also in a .080" PCB hole size for the direct drop-in replacement of solder termination connectors.
PC Power compliant termination connectors utilize Winchester's unique
"C-Press" contact design. The press-fit installation of C-Press contacts do not require soldering and, as a result, are a more cost-effective means of board termination. C-Press contacts readily conform to plated through-holes and maximize mating surface area for reliable and effective board connections.
|
|
Cavotec Connectors are robustly designed for use in harsh and difficult environments such as mines, tunnelling, marine applications, steel works, railways, ports, bulk and container terminals.
The low voltage range starts at 15A and goes up to 660A, 15kV with electrical or mechanical interlocking.
They can be delivered in our own standard manufactured panels, including short-circuit breakers. A range of multi-pin outlets for control cables are also in the product range with a max of 50 pins and 15 Amps.
|
|
FCI offers a broad range of power connector solutions for power supply and backplane-to-card interfaces as well as cable assemblies for power distribution.
FCI understands the evolving market requirements for power connectors and continues to provide innovative and cost-effective power product solutions to address the challenges of increasing power density and facilitating airflow for thermal management.
FCI can provide the design engineer with end-to-end power solutions for chassis-based equipment designs. FCI is ready with the right power solution for you.
Power Supply Solutions
> PwrBlade® Connector System
> HCI™ Connector System
> Power Card Edge
Backplane-to-Card Solutions
> AirMax VS® Power Connectors
> Metral® High Power Connectors
> Metral® Power Connectors
Power I/O Solutions
> PwrBlade® Cable Assemblies
> Pwr TwinBlade™ I/0 Cable Assemblies
> D-Subminiature Power Connectors
> USB + Power
> Sofix® Power Connectors
|
|
ABPC Series. The AB Power Connector range of heavy duty electrical connectors is designed for general purpose use and to meet the requirements of power distribution in harsh environments.
The outer shell components are manufactured from a tough thermo-plastic to ensure full insulation and high corrosion resistance. Inner shell components are plated aluminium for strength and to provide electrical continuity for screening purposes.
The connectors feature bonded leading earth contacts and pilot pins for 'earth loop monitoring'.
The AB Power Connectors have contact arrangements suitable for both single or three phase power supplies.
The connectors are approved to specification CECC 75.201.007.
|
|
|
Amphenol is a technological leader in the design, manufacture, and supply of high performance interconnect systems for a broad range of industrial applications, including medical equipment, factory automation, heavy equipment, instrumentation, motion control, rail mass transportation, and natural resource exploration. Amphenol's core competencies include application specific industrial interconnect solutions utilizing integrated assemblies with flexible printed circuits as well as high power interconnects requiring a high degree of engineering and system integration. Our innovative solutions facilitate the increasing demands of embedded computing and power
|
|
|
Available in 2 through 24 circuits . Positive housing lock for secure mating retention Material PBT UL 94 V -0 .For free hanging or panel mounted
|
|
Winchester Electronics' new line of power snap-on style connectors have a snap feature for secure mating that does not exist on typical slide-on power connectors. PowerSnap connectors come in both SMT, thru-hole, and cable versions and are capable of carrying current up to 40 amps, depending on configuration.
Key features of PowerSnap connectors include:
- Snap feature for improved mating
- Current capacity up to 40 amps
- Pick-and-place, tape-and-reel versions for automated equipment
- Low mated-pair profile - enables power in tight spaces
- Custom designs based on your system requirements
- RoHs compliant
- SMT, Cable, and Thru-hole designs
|
|
|
|
|
|
Winchester Electronics is pleased to announce the release of our new Advanced 100-Amp female power modules, which provide a substantial increase in current-carrying capacity over 20- and 30-Amp connectors. These modules are stackable in design to accommodate all your power handling needs. Advanced Power Modules can be used in discrete applications as well. These next-generation power modules are backwards compatible with existing HD+ 4-row stiffeners, giving designers an easy method to upgrade system designs.
Winchester’s 100-Amp female power modules contain two rugged power contact assemblies - each rated at 50 Amps and mate to existing 30-Amp vertical and right-angle male blade power modules.
Winchester’s Advanced Power Modules are an extremely versatile board-to-board power connector system consisting of power, guide, and polarization modules. Backplane connectors are sold individually, while daughtercard modules can be mounted on an extruded aluminum stiffener and sold as a complete connector assembly.
|
|
OVAL POWER CONNECTORS
Available in both polarized and nonpolarized designs; the nonpolarized design permits reverse phasing in three phase applications.
Receptacles have terminal backs for easy wiring and are available with spring-loaded sealing covers. The heavy-duty castings can be either panel mounted or furnished with a wiring box. Mating male and female plugs molded to standard lengths of cable are available with or without safety chains to prevent accidental disconnect.
Ovals are molded to various standard lengths of neoprene jacketed cable.
|
|
|
|
|
|
Self-Contained Power Connectors from Molex are used to splice and tap solid and stranded non-metallic sheathed cable. The connector family supports two and three conductor plus ground circuits for AC power applications. The product line features insulation displacement contacts which provide wire termination without the need to pre-strip the wires. The splice connectors are used to splice two cable segments together and replace butt connectors, wire nuts, and junction boxes used in traditional splice applications. Tap connectors operate in similar fashion and are used to support taps of existing cable segments to create new branch circuits.
Features and Benefits:
A double-latching system provides positive connection security when required, but is fully releasable so the connector can be mated and remated as needed during the manufacturing process
Once the connector is closed, the strain relief is automatically set into place so screws and human factors are not a worry
No special tools required, just pliers
Large markable surface area on housing allows for easy circuit identification, eliminating circuit mix-up
Double insulation displacement contacts provide maximum conductivity and reduce voltage drop to a bare minimum
|
|
|
PANDUIT is a global leader in reliable termination solutions that provide ease of identification, fast installation and optimum conductivity to meet a variety of electrical applications. Terminations with Pan-Lug Power and Grounding Connectors are approved by UL, CSA and are the first to meet NEBS Level 3 requirements as tested by Telcordia Technologies. PANDUIT® Pan-Lug products include copper and aluminum compression and mechanical connectors for use with conductor sizes #14 AWG -1000 kcmil.
|
|
Mipco™ Sets the Standards
In today's competitive global markets, reliable equipment is essential to protect perishable cargoes from loss. Mipco™ responds to our customers with world-class quality products to meet their special needs. Mipco™ is the
recognized leader in refrigerated container industry power interconnections and systems.
Mipco™ constantly monitors and updates products to meet the ever-changing demands of the market. We recently re-engineered our Interlocked Reefer Power Outlet from top to bottom, offering the ultimate in safety, reliability and durability. This new "Module" has a unique
interlock mechanism that ensures plugs cannot be removed while under load.
Our customers benefit from the convenience of "one stop shopping" in our expanded line of products. Contact T&B's Customer Service Department for an authorized distributor in your area. Our worldwide distribution network stocks products to provide you with an immediate solution to your reefer needs.
|
|
|
|
|
|
The Universal (CA-/CM-series)
The robust circular connectors of the CA-/CM-series meet the most stringent requirements of general equipments in the field of measurement, control and regulation technology.
The Robust (NR-series)
Space-saving circular connectors of the NR-series are made of solid metal and therefore ensure long-term solutions in the field of network and control wire connections.
The professional Valve (GDM-series)
The rectangular connectors of the GDM-series for hydraulic, pneumatic and electromagnetic actuators in all forms (type A/B/C) are wellequipped to handle the heavy stresses in the field.
The Compact (G-series)
Highly versatile, space-saving rectangular connectors of the G-series that can be used anywhere, even in the narrowest spaces in hydraulic and pneumatic control systems.
The Powerful (ST-series)
Compact rectangular connectors of the ST-series prove their special strengths on the inside and outside of building automation systems, or as rectangular connectors for the mains current supply network.
|
|

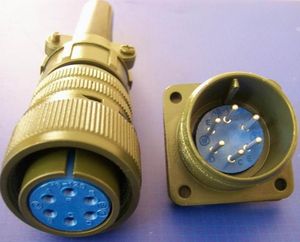

The Amphenol EZ 5015 series combines all the advantages of a standard MIL-C-5015 industrial connector, with the simplicity of spring cage terminations usually used in
terminal blocks.
No more need for cabling skills and specific cabling tools.
A standard screwdriver is sufficient to terminate the cable to the connector, in less than 30 secondes for 4 contacts.
The EZ 5015 series is metallic, with thread or bayonet coupling and two levels of sealing IP55 or IP67.
The EZ 5015 20-4 has 3 contacts of 20 A and one First Mate Last Break Earth contact, optionaly grounded to the shell.
This serie is intermateable with all MIL-C-5015 20-4 connectors of any other sources.
Spring cage termination allows to avoid any lead used to solder traditional contacts, which conforms to RoHS directives.
The maximum permissible wire section is 2,5 mm2 (AWG 14).
The plug is connected on the receptacle with a thread coupling or a bayonet coupling which allows a tactile or auditive mating confirmation.
|
|
|
|
|
|
Winchester Electronics' new 47-position CompactPCI® Power Connectors are designed to the requirements of PICMG® Power Interface Specification 2.11 R1.0 for use in connecting CompactPCI pluggable power supplies to backplanes in subrack equipment based on IEEE 1101.1, IEEE 1101.10, and VITA 30 packaging specifications.
The PICMG Power Interface Specification recommends using 47-position power connectors in all new CompactPCI system designs, superceding prior practices incorporating either similar looking 38-position connectors or DIN 24+8 Type-M power connectors.
Typical CompactPCI system packaging requires right-angle male connectors to be mounted onto daughtercards (free boards) and vertical female socket connectors to be mounted onto backplanes (fixed boards.) Systems containing 3U power supplies utilize one mated pair, while systems containing 6U power supplies use two mated connector pairs.
The 47-position CompactPCI Power Connector provides both versatility and performance through its combination of DC and AC power contacts.
|
|
FEATURES
* Streamlined design
* 3 hexagonal voltage coding pins for wet, dry/gel and air supply
* 2 main contacts, 4 auxiliary contacts, voltage key and air supply
BENEFITS
* Low mating forces and optional latching available
* Coding pins marked for 24V, 36V, 48V, 72V, 80V, and 96V provide additional safety and prevent cross voltage mating
* "A" series for American wire gauge cable
* "E" series for metric cable - intermatable with European competitive products
|
|
FEATURES
* High 300A current rating
* Mates with .125" flat bus bar blade
* Hot pluggable contact
* UL and CUR recognized
BENEFITS
* Small size provides dense power packaging
* Simplifies construction and lowers cost
* Supports hot swapping on 48 volt DC bus
* Product safety and electrical performance has been verified to the highest standards
|
|
FEATURES
* Flat wiping contact system
* Interchangeable Genderless design
* Colored, Modular housings
* Polarized housings
* Wide product range - From 10 amps through 180 amps
* UL94 V-0 housing material
|
|
|
|
|
|
FEATURES
* Rugged & Reliable components
* IP67 rated housings
* 1000's of internal component configurations possible
* High mating cycles
* High amperage connection to 30A per contact
* Signal, Power, & Ground contacts available
* Fingerproof connections on both sides
* Internal components available in multiple colors
BENEFITS
* Housing design & materials protect electrical components from water, dust, & other environmental contaminants
* Waterproof beyond IP67 requirements, when used with industry standard cable sealing glands
* Same components will work with wire sizes from #10 to #24 AWG (0.25 to 4.0mm2) and all colored housings
* 1,500 mating cycles minimum
* 30A per contact at a 30�C temperature rise on outer 4 positions
* Multiple contact versions to meet most power and signal electrical needs
* Helps prevent fingers (or probes) from accidentally touching live contacts. Fingerproof Powerpole connectors meet UL 1977 and EC/ IEC 60529 finger probe test.
* Housings can be color coded to wires for ease of assembly
|
|
