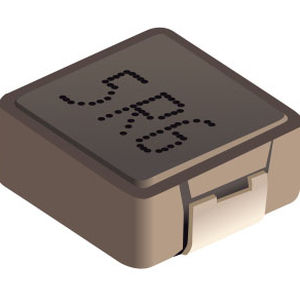

small form factor
3 x 3 mm to 10 x 10mm
low profile
superior in drop test
up to 10A
|
|
When ordering, please specify termination and packaging codes: e.g. DO1605T-105MLC
Termination: L = Silver-palladium-platinum-glass frit terminations
Special order, added cost: T = RoHS tin-silver-copper (95.5/4/0.5) or
S = non-RoHS tin-lead (63/37).Packaging: C = 7" machine-ready reel
EIA-481 embossed plastic tape (1000 per full reel).B = Less than full reel
In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter C instead.D = 13" reel, machine-ready
EIA-481 clear plastic tape. Factory order only, not stocked (3500 per full reel).
|
|
| ... products without technical information |
| |

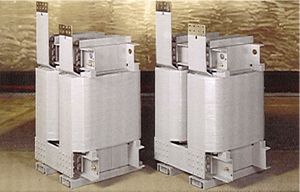

Suitable as input and output chokes for solar, wind and fuel-cells inverter applications.
They are available in three different formats: 100, 120 y 180mm high; and 100 and 120mm in diameter.
-Current up to 44Arms
-Operating frequencies up to 25KHz.
-Available in one or two cell format (dual inductor).
-Very good inductance stability in high temperatures.
-Available wide range of output connection
|
|
Smoothing Chokes and Reactors.
Traction, Marine or Industrial Application
High Current and intercooled design.
Iron or air core.
Indoor or outdoor mounting.
|
|
| ... products without technical information |
| |
|
|
|
|
Full automatic power inductor winding system
Displayed Machine : PWF-0150
NITTOKU offers various power inductor coil winding systems. Each system can perform the complete range from front-end processes to winding to back-end processes. Thus, depending on your requirements you can get a maxed-out machine for mass-production of single-spec or systems with high flexibility, allowing multi-spec small-lot production.
The PWF-0150 system is ideal for multi-spec small-lot production.
The PIW-0150 and PIW-0450 are NITTOKU`s high-performace winding machines for single-spec mass-production.
General Features :
. Little floor space consumption
. Weight reduced
. Short cycle time
PWF-0150 :
. Core loading method is selectable from manual loading or bowl feeding depending on the output
. Welding is conducted during winding to shorten the cycle time
. Pre wire fixing is made by thermal compression bonding
PIW-0150 / PIW-0450 :
. Supplies the coil from the bowl feeder. Winding, soldering and unloading to tape are conducted automatically
. Lead-free solder available
|
|
|
|
