Advanced Power & Revenue Meter with Event/Data Log
The PM172E is a high performance feeder monitoring instrument that includes revenue class measurements and logging capability. With over 100 electrical measurements and long term memory logging capability, this series is an economical approach to distribution automation for utilities.
Revenue class metering and built-in TOU function provide a solid background for commercial and industrial sub-metering applications. Event and data log on the basis of programmable set points is a differentiating feature of the PM172 series. The PM172 series includes a choice of built-in communication platforms, such as modem, Ethernet, Profibus DP, and serial communication.
MULTIFUNCTIONAL THREE-PHASE POWER METER
- Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance, load profile
MULTI-TARIFF REVENUE METER
- Class 0.2S precision, compliant with ANSI and IEC specifications
- Built-in Time of Use (TOU) tariffs to meet any billing requirements
- Sealing option
REAL TIME CLOCK
- Built-in clock and calendar functions with back-up battery
- Time synchronization via communication port or digital input
- Logging parameters with real-time stamps
EVENT/DATA LOG
- Logging capability for more than 100 parameters
ALARM AND CONTROL FUNCTIONS
- 16 programmable set points
- 2 programmable relay outputs 3A, 250V
- 2 digital inputs
- 2 optional analog inputs or outputs
COMMUNICATION
- 2 independent communication ports
(RS232, RS422, RS485, modem, Ethernet, Profibus DP)
- Protocols: Modbus RTU, ASCII, DNP 3.0
ISOLATION
- Full galvanic isolation 6 kV Impulse
|
|
|
|
|
|
PM130 PLUS SERIES
Multifunctional Power Meter
The PM130 PLUS series provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering. The PM130 PLUS devices are multifunctional three-phase power meters. The PM130EH PLUS model also offers basic revenue metering.
The PM130 PLUS series consists of two basic models providing digital measurements of more than 80 electrical parameters locally, and more than 100 electrical parameters via RS485 interface.
The PM130 PLUS modular approach enables users to assemble a system meeting their specific needs. The wide choice of plug-in modules includes digital I/O, analog output, TOU, Ethernet and Profibus.
FEATURES
MULTIFUNCTIONAL 3-PHASE POWER METER
- Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
- Current range up to 200%
REVENUE METER
- Meets class 0.2S precision
- Class 0.5S certified
- Time Of Use (TOU) tariffs
BASIC POWER QUALITY CONTROL
- Harmonics (up to the 40th)
- Voltage and current THD coefficients
- Time labeled max/min values
REAL TIME CLOCK
- Built-in clock and calendar functions
ALARM AND CONTROL FUNCTIONS
- 16 programmable set points
- 4 counters
POWER SUPPLY
- Multipurpose power supply AC/DC (85-265 VAC, 88-290 VDC)
- Special versions (12, 24-48-72 VDC)
ADD-ON MODULES
- 4 digital inputs + 2 relay outputs
- Ethernet or Profibus
- 4 analog outputs
- TOU—high precision clock + 4 digital inputs + Time-of-Use tariffs for revenue metering
- Dual panel mounting: Round 4”; Square 96x96 DIN
|
|
|
Easy installation/dis-installation, Ideal for specific measurement Support wide variety of measurement functions such as Fundamental power parameters, Electric energy, Demand and Harmonics.
|
|
4530 Power Meter
4540 Series Datasheet
Application Notes
Related News
The Boonton model 4540 Series RF Power Meter is the instrument of choice for capturing, displaying and analyzing RF power in both the time and statistical domains. Applications include pulsed RF signals such as radar, TDMA and GSM, pseudorandom or noise-like signals such as CDMA, WLAN and WiMAX.
The 4540 Series is a single or dual channel RF Power Meter that can measure modulated or CW signals using peak and average Boonton Power sensors.
The 4540 Series has three operating modes: Pulse, Statistical, and Modulated/CW. Features include:
• High Bandwidth Wide Dynamic Range Sensors
• Intuitive User Interface
• 4" color LCD display
• 200 psec time resolution
• Statistical analysis including CCDF
• Text view of 15 time and power measurements per
channel
• GPIB, USB and LAN
|
|

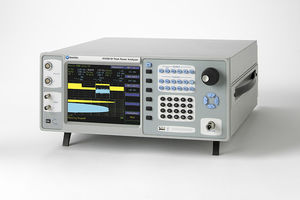

The 4500B Peak Power Analyzer has been totally redesigned from the inside out. This meter is taking performance to a new peak and changing the way the industry views and analyzes RF data.
• 8.4” TFT color LCD display
• 100 ps timebase resolution
• Automatic peak-to-peak, delay-by-time and delay-by-events triggering
• GPIB, USB and LAN
• Text view of 15 time and power measurements per channel
• Envelope, persistence and roll mode displays
• Gated CCDF and PDF with log display (optional)
• Compatible with industry leading 56xxx and 57xxx series peak power sensors
• Familiar user interface
|
|
|
Agilent power meters operate with sensors of various types (CW, average and peak and average), covering numerous frequency and power ranges to accurately measure the power of RF and microwave signals. Applications include testing the output power of communication base-station transmitters, cellular telephones, radar system equipment, and much more.
|
|
The 4530 series RF Peak Power Meter can make Peak, CW Power and RF Voltage measurements at high speed from 10 Hz to 40 GHz.
• Frequency Range: 10 Hz to 40 GHz
• Dynamic Range: Peak Power >60 dB CW Power -90 dB
• Synchronous/Asynchronous Triggering
• Dual-channel statistical measurements (CDF/PDF)
• Modulation bandwidth to 20 MHz
• GPIB - SCPI / RS232 commands
|
|
4300 Six Channel RF Power Meter
The high-speed Model 4300 is the world's only power meter capable of making up to six power measurements simultaneously. It has a dynamic range of -70 dBm to +44 dBm (sensor dependant) over a frequency range of 10kHz to 40 GHz. Diode and thermocouple sensors with up to 90 dB of dynamic range are available.
• Channel math between all six channels
• Up to 30 readings per second over the GPIB for a single channel and up to 100 readings per second for a six-channel meter
• Duty cycle entry for pulse power measurements
• Programmable 30 MHz calibrator option significantly improves measurement accuracy
|
|
|
This HighDynamic-Range power meter is temperature stabilized, resulting in highly accurate and stable measurements. And, unlike other power meters that slow considerably when switching sensitivity ranges, it incorporates a patent-pending logarithmic conversion circuit that achieves essentially seamless range switching, resulting in a useful dynamic range of >65 dB even at full speeds-about 20-dB better than conventional power meters. We've even provided three user-controllable speed settings so you can further extend the dynamic range if you don't need the speed. The convenient bolt-together modular design and daisy-chained power connections makes it easy to connect multiple units for multi-channel rack-mounted or bench-top systems. The wavelength range for the Model 2101 is 320-1060 nm.
|
|
Giga-tronics 8650A Universal Power Meter
- Fast, Easy to use, High Accurate
- Super-fast 26,000 readings/sec for CW signals and over 800 readings/sec for modulated signals
- Automatic time gate setting, direct crest factor, and statistical power measurement analysis
- Statistical Analysis: Histogram, CCDF/CDF, crest factor and standard deviation
- Wide dynamic video bandwidth for measuring signals with complex modulation
- NIST traceable accuracy
|
|
The Model 3200 smart sensor power meter is specifically designed to be integrated into test systems.
It features highly accurate complex signal measurement and is controlled with an RS/232 serial interface.
You get the flexibility of a power meter that can accuartely measure
all digital modulations schemes, such as QPSK 3/4 Coding, QPSK
7/8 Coding, Turbo-coding, 256 QAM, CDMA, and more..., without
the fancy packaging or price.
|
|
The Model 58542 provides faster CW measurements than any other VXIbus power meter, with readings over the GPIB exceeding 150 readings per second and an exclusive Burst Mode capturing more than 5000 readings per second.
The Model 58542 also lets you measure pulsed RF signals simply by using a Giga-tronics peak power sensor, while a detector output connector from the sensor lets you display the waveform on a scope screen, and, via computer control, move the marker to make exact power measurements at any point on the waveform.
|
|
|
The PQM II is an ideal choice when continuous monitoring of a three phase system is required. It provides metering for current, voltage, real and reactive power, energy use, cost of power, power factor and frequency. Programmable setpoints and 4 assignable output relays allow control functions to be added for specific applications. This includes basic alarm on over/under current or voltage, unbalance, demand based load shedding, and capacitor power factor correction control. More complex control is possible using the 4 switch inputs which also can be used for status such as breaker open/closed, flow information etc.
|
|
SIMEAS P is a measurement device for electrical quantities, for all users in a power engineering environment - whether for plant engineers, electricians or technicians.
It is suitable for balanced and unbalanced three- and four-wire three-phase systems as well as single-phase systems. It reports more than 80 measured values, e.g. phase voltages and currents, active power, energy output, reactive power, apparent power, symmetry factor, voltage and current harmonics as well as external signals and states.
Measured quantities can be transmitted via the RS485-port and the two selectable standard communication protocols (Profibus DP and Modbus RTU/ASCII) to a master station.
SIMEAS P is available as a built-in unit with graphic display or as a rail-mounting unit without display.
|
|

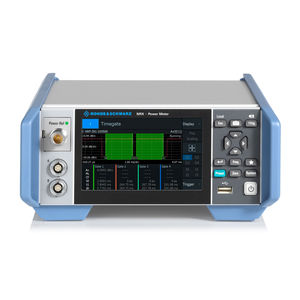

* Power measurements with a base unit or with cost-efficient USB power sensors alone
* Average, peak and peak-to-average power measurements from DC to 40 GHz
* Versatile USB power sensors with superior performance
* Accurate measurements for GSM/EDGE, 3G, WLAN, WiMAX™, LTE and beyond
* Solutions for radar and EMC applications
* Ultra-fast statistical analysis
* Flexible use with signal generators, signal analyzers and network analyzers from Rohde & Schwarz
|
|
The A2000 multifunctional power meter measures all values for three-phase systems.
new: Connection with Kieback&Peter DDC3000 via SBM51/13
RS 232 and RS 485 interfaces included
Versions available for PROFIBUS, Modbus, LON and Ethernet
Minimal installation depth of less than 60 mm
Adjustable voltage and current transformer ratios
A single device for 1 A and 5 A current transformers
Limit value and analog outputs included as standard equipment
2 pulse outputs for read-out of active and reactive energy
Data memory for continuous recording of measurement values,
or for events recording - 8 years puffered
|
|
|
|
|
|
DIN rail digital watt hour meters
Description
PowerLogic ME watt hour meters are designed for the measurement of watt hours consumed by an electrical circuit, single-phase or three-phase, with or without a distributed neutral.
Single-phase watt hour meters with 63A direct measurement
- ME1 = meter with local display
- ME1z = ME1 + resetable counter
- ME1zr = ME1z + pulsing contact
Three-phase watt hour meters without neutral , with 63A direct measurement
- ME3 = meter with local display.
- ME3zr = ME3 + resetable counter + pulsing contact.
Three-phase watt hour meters with neutral, with 63A direct measurement
- ME4 = meter with local display
- ME4zr = ME4 + resetable counter + pulsing contact
Three-phase watt hour meters with or without neutral, measurement via CTs secondary 5A
ME4zr with measurement via CT ( adjustable)+ resetable counter + pulsing contact.
Common characteristics:
class 2
direct measurement up to 63A or measurement via CTs
digital display
partial meter
easy wiring (without CTs)
small size
compliance with IEC61036 standard
|
|
These devices are designated to measure and monitor line-to-line and phase voltages, currents, active and reactive powers, true power factor, THD for both voltage and current one- and three phase LV, HV and VHV networks and sense the temperature inside a switchboard.
Characteristics
- True root-mean-square values of voltage and current (TRMS)
- Active and reactive power, four quadrant presentation in compliance with IEC375
- Both true power factor (PF) and power factor of fundamental harmonics (cos fi)
- Total Harmonic Distortion and harmonics of voltage and current up to the 20. order
- Built-in temperature sensor
- Single-phase, two-phase, three-phase or Aron connection
- Direct & undirect voltage connection
- Optional remote RS-485 communication link
- Panel mounted (SML) or DIN-bar mounted (SMM) version
|
|
