Features:
External calibration weight - 100 g for analytical models XB120A and XB220A
RS232/V24 bi-directional interface
GLP (Good Laboratory Practice) print format
Electronic anti-theft code
Precision electromagnetic force compensation technology
Die-cast aluminum housing
Upgrading via Internet
Bright Vacuum Fluorescent Display standard, LCD optional
IP65 protection against ingress of dust and water available
Integrated Functions:
Density • Counting • Percentage • Multiple weight units
|
|
|
Precision balances from Sartorius feature extremely fast and stable readouts, exceptional reliability, trend-setting operating convenience and an excellent price/performance ratio. Sartorius precision balances offer all the features required for use in fields of application relevant to GLP, GMP and cGMP.
|
|

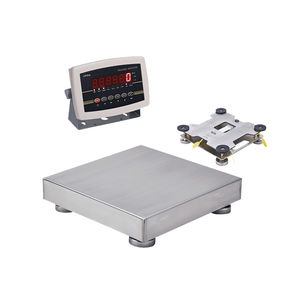

The Mass Monitor Series consists of a moment-insensitive load cell module and circuit board. The load cell is available in any weighing capacity from 200g to 50kg, delivering weight measurements as acute as 2ppm with a linearity of 10ppm.
The circuit includes a display connector and a bidirectional RS-232 serial data interface. The self-contained load cell can easily be installed in a scale base or other weight-supporting structure, using only three bolts.
A display board using a six digit LED is available and may be used as an integral part of the Mass Monitor package or for testing purposes only.
|
|

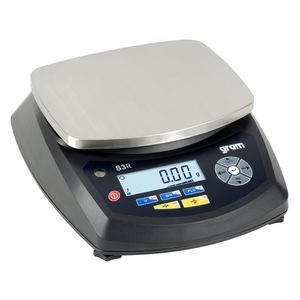

Industrial Precision Scales type EL
The new EL precision scales can be used in all areas of industry such as receipt of goods, manufacturing, stock or dispatch departments. They fulfill all requirements, which arise during inspection, commissioning, inventory, packaging, dispatching and documentation, easily, quickly and cost-effectively.
|
|
Precise & robust precision balance for the laboratory and production environment
METTLER TOLEDO precision balances offer unparalleled weighing performance, even in the harshest environments. Thanks to world-leading technology our precision balances are exceptionally accurate, fast and very easy to use.
|
|
Features
Weighing, counting, taring and percentage function. Precision scale with very high resolution of 60,000 divisions. A high precision measuring instrument for laboratories, recipe mixing, checking and piece counting. The supplied calibration weight ensures accuracy at all times.
Technical data
- Dimensions: lxwxd 213 x 193 x 66mm
- Platform: stainless steel ( 120mm)
- Weight: 1.9kg
- Power supply from power adapter 230VAC, 9VDC, standard integrated
rechargeable battery
- Battery power save mode
- Backlit LCD with 13mm high digits
- Spirit level
- Calibration weight included
- Dust and splash-proof to IP 54
|
|
Features
Calibration time - and temperature-dependent (PI-series)
Calibration external with user-definable weight (P-series)
Stamp Approved (Only PI-403A and PI-203A)
Three communication ports:RS232C, USB and LAN
Software for data transfer to windows applications via USB
User Menu in German, English, Spanish and French
GLP/GMP-compliant protocols
Hook for weighing below
Power supply
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
|
|
|
|
Glass scale gratings are available in a variety of configurations. They are intended for applications where the user provides the scanning unit and the electronics to create a customized measuring or detection system. The quality glass gratings are available as linear scales up to 3400 mm length, as disco shaped scales with diameters up to 400 mm, or in special geometric configurations.
Material
Substrate material selected float glass
Thickness of substrate 1; 1,5; 2,0; 2,5; 3; 4; 5; 6 mm.
Tolerance of glass thickness ±0,1 mm
Length/ width diameter tolerance ±0,1 mm
Planarity 10 µm / 100 mm
Coefficient of thermal exponation 8x10-6/K
Coating vacuum deposited chrome
- Transmission < 1% at 400-900 nm
- Reflection ≤ 60% at 400-900 nm
Pattern:
- sputtered chrome on glass;
- max. line tolerance ±5%;
- graduation accuracy ±1; ±2; ±3 µm (L?1 m); ± 2; ±3 µm (L?3,4 m);
- parallelism graduation to glass edge <0,1 mm per 1m;
- shape of graduation line - rectangular;
- max. possible length of graduation line 15 mm;
|
|
|
A high performance ACU-RITE SENC 50 is a compact, flexible and versatile precision glass scale designed for applications involving limited or confined mounting spaces. A SENC 50 also withstands elements of contamination found in even the harshest machine shop environment. Every ACU-RITE precision glass scale incorporates ACU-RITE's long-standing tradition of quality, reliability, durability and dependability at an affordable price. The SENC 50 precision glass scale is available in travel lengths from 1" - 20", in resolutions of 0.5µm, 1µm, 5µm and with an accuracy of ±3µm/meter.
|
|
senc 50 precision glass scales
A high performance SENC 50 is a compact, flexible and versatile precision glass scale designed for applications involving limited or confined mounting spaces. A SENC 50 also withstands elements of contamination found in even the harshest machine shop environment.
|
|
