machine tool vise / modular / precision
machine tool vise
KONTEC KSG

Max. clamping force: 4 kN - 40 kN

Description Modular machine vise as a system with pulling clamping and mechanical force amplification. Field of application 3-axis standard machining centers 4-axis vertical machining centers 4-axis horizontal ...

See the other products
SCHUNK GmbH & Co. KG
machine tool vise / horizontal / precision
machine tool vise
KONTEC KSX

Max. clamping force: 5 kN - 40 kN
Stroke: 125 mm

Description Force-amplified clamping system for “true” 5-axis complete/simultaneous machining. Field of application 5-axis machining centers

See the other products
SCHUNK GmbH & Co. KG
machine tool vise / hydraulic / horizontal / precision
machine tool vise
TANDEM KSH

Max. clamping force: 5 kN - 50 kN
Stroke: 2 mm - 15 mm

Hydraulically actuated 2-jaw clamping force block in compact design with a high clamping force. These are available with standard jaw-stroke, long stroke or fixed jaw. 3-axis standard machining center 4-axis vertical ...

See the other products
SCHUNK GmbH & Co. KG
machine tool vise / 5-axis / precision / steel
machine tool vise
81400, 81500 series

Max. clamping force: 20 kN

Jergens pallet clamps (comprised of clamping jaws with a grip structure) can be used either for concentric clamping or for clamping to the fixed jaw. These pallet clamps are an effective, affordable clamping solution. Picture for category ...

machine tool vise / interchangeable jaws / for heavy loads / precision
machine tool vise
80075 / 80082

Made in the USA, the heavy duty machine vise from JERGENS is designed to deliver unparalleled performance, reliability, and versatility for a wide range of rugged and demanding applications. The single station vise ...

machine tool vise / low-profile / precision / compact
machine tool vise
VE100N

Max. clamping force: 25 kN
Stroke: 128 mm

The VE100N by Kitagawa is a steel vises which is a low floor type. It can be lifted at its minimum to ensure an accurate machining process. Its jaw has a height of 40 mm and a stroke of about 128 mm. The total height ...

See the other products
Kitagawa Europe Limited
machine tool vise / low-profile / precision / compact
machine tool vise
VE125N

Max. clamping force: 30 kN
Stroke: 204 mm

The VE125N, manufactured by Kitagawa Europe® innovates a low profile vise with adjustable clamping force using a toggle mechanism that offers an increase in machining capabilities. It is designed with a jaw height of ...

See the other products
Kitagawa Europe Limited
machine tool vise / low-profile / precision / steel
machine tool vise
VE160N

Max. clamping force: 45 kN
Stroke: 274 mm

The Kitagawa Europe VE Series Vices are practically designed with a low height model, thus providing a better, high-performance machine procedure capabilities. With the jaw lift being customized into a smaller unit, this ...

See the other products
Kitagawa Europe Limited
self-centering vise / machine / horizontal / precision
self-centering vise
41101

Max. clamping force: 0 kN - 14 kN

... Flexible mounting: suitable for zero-point systems, mounting on machine tables or on custom systems via a baseplate. Centring precision: +/- 0.02 mm. The use of a torque wrench is recommended to achieve a controlled ...

machine vise / horizontal / precision / steel
machine vise
41102

... Flexible mounting: suitable for zero-point systems, mounting on machine tables or on custom systems via a baseplate. Centring precision: +/- 0.02 mm. The use of a torque wrench is recommended to achieve a controlled ...

machine tool vise / manual / screw / precision
machine tool vise
03163

Machinable collets, square Material: Body aluminium. Wedges carbon steel. Version: Body natural colour anodised. Wedges black oxidised. Note: The lateral clamping screw tightens the jaws and clamps the workpiece on the circumference. The ...

self-centering vise / for machine tools / hydraulic / horizontal
self-centering vise
MIR series

Max. clamping force: 8,855 N - 24,717 N
Stroke: 11 mm - 41 mm

Self-centering vise with wedge-hook mechanism and hydraulic drive – 2 jaws Precision chuck with low cycle time. MIR is ideal for simple hydraulic xture plates, 5th Axis trunion xtures on Vertical Machining ...

See the other products
Effecto Group S.p.A.
self-centering vise / for machine tools / hydraulic / horizontal
self-centering vise
HIR series

Max. clamping force: 8,855 N - 24,717 N
Stroke: 11 mm - 41 mm

Self-centering vise with wedge-hook mechanism and hydraulic drive, machine table embedded – 2 jaws HIR Precision recessed chuck with low cycle time. HIR is ideal for simple hydraulic xture plates, 5th ...

See the other products
Effecto Group S.p.A.
precision vise / for machine tools / hydraulic / self-centering
precision vise
MPI series

Max. clamping force: 2,464 N - 21,659 N
Stroke: 6 mm - 36 mm

Self-centring vise with wedge-hook mechanism and pneumatic or hydraulic drive – 2 jaws MPI Precision chuck with reduced cycle time. Used on working machines and equipments to clamp the item with maximum ...

See the other products
Effecto Group S.p.A.
machine tool vise / manual / modular / precision
machine tool vise

Max. clamping force: 16, 25, 30, 40 kN

All GERARDI vises and accessories are modular and components of all our vises will interchange with perfect alignment. The vises can be matched side to side with the highest precision ...

See the other products
GERARDI S.p.a.
machine tool vise / modular / vertical / horizontal
machine tool vise
StandardFLEX

Max. clamping force: 0 kN - 45 kN

... MOST POPULAR (AND COPIED) VISE IN THE WORLD. THE PERFECT MIX: PRICE, QUALITY, VERSATILITY. All GERARDI vises and accessories are modular and components of all our vises will interchange ...

See the other products
GERARDI S.p.a.
machine tool vise / low-profile / modular / precision
machine tool vise
XL

Max. clamping force: 0 kN - 45 kN

... the Machine table sometimes is tight, XL vises enable to have 2 vises in one because they can easily and quickly change from large opening single station vise into a double clamping station. ...

See the other products
GERARDI S.p.a.
measuring machine vise / low-profile / precision
measuring machine vise
AJJ-03

Max. clamping force: 500 N
Stroke: 4 mm

The AJJ-03 Series, manufactured by Wenzhou Tripod Instrument Manufacturing Co.,Ltd.®, is a mechanical precision vise. Wherein, it has a measured capacity of load in a maximum 500 N along with a 4 mm size ...

See the other products
Wenzhou Tripod Instrument Manufacturing Co.,Ltd.
measuring machine vise / low-profile / precision
measuring machine vise
AJJ-06

Max. clamping force: 0 N - 500 N
Stroke: 10 mm

Apply range: applied in rubber, each kind of line cable, paper, electric appliance component, plastic film push pull force insertion force and destructive experiment. Maximum load:500N Biggest opening size:10mm

See the other products
Wenzhou Tripod Instrument Manufacturing Co.,Ltd.
measuring machine vise / low-profile / precision
measuring machine vise
AJJ-07

Max. clamping force: 0 N - 500 N
Stroke: 35 mm

... Instrument Manufacturing Co. Ltd. is a precision vise or mechanical unit. This device is created with a big opening size of 35 mm and has a maximum loading capacity of 500 N. Moreover, the AJJ-07 precision ...

See the other products
Wenzhou Tripod Instrument Manufacturing Co.,Ltd.
machine tool vise / hydraulic / vertical / with clamping system
machine tool vise
EL, NC series

clamping against the fixed jaw mechanically/hydraulically operated sizes 100•125•160 mm

See the other products
Römheld GmbH Friedrichshütte
machine tool vise / modular / precision / multiple crimping
machine tool vise
MSH series

clamping against the fixed jaw mechanically operated sizes 24•40•60•100•120 mm

See the other products
Römheld GmbH Friedrichshütte
concentric vise / for machine tools / hydraulic / screw
concentric vise
ZH series

Max. clamping force: 16 kN - 40 kN

concentric clamping hydraulically operated sizes 100•125•160 mm

See the other products
Römheld GmbH Friedrichshütte
machine tool vise / 5-axis / precision / hardened steel
machine tool vise
Vario-Tec

Max. clamping force: 14, 20 kN

Makro-Grip Vario - highly precise machine tool vise for finishing tasks - Ideal for challenging machining tasks of workpiece rear-side - Highest centering and repeat accuracy - Endstops and parallels are not needed ...

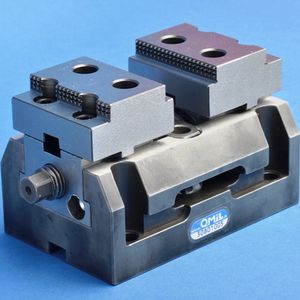

machine tool vise / pneumatic / low-profile / 5-axis
machine tool vise
CFB PN series

Max. clamping force: 4,500 N - 55,000 N
Stroke: 4 mm - 30 mm

Vice, pneumatic-hydraulic, centric clamping - operating pressure: 9 bar pneumatic / 60 bar hydraulic - repeatability accuracuy: from 0.01-0.03 absolute - operating temperature: from 5°C to 60°C - operating principle: wedge - hook ...

See the other products
OMIL
machine tool vise / pneumatic / low-profile / spring
machine tool vise
CFB-OJ PN with fixed jaw

Max. clamping force: 7,600 N - 55,000 N
Stroke: 2 mm - 15 mm

Vice, pneumatic, with fixed jaw - operating pressure: 9 bar pneumatic / 120 bar hydraulic - repeatability accuracuy: from 0.01-0.02 absolute - operating temperature: from 5°C to 60°C - operating principle: wedge - hook kinematics - ...

See the other products
OMIL
machine tool vise / manual / screw / precision
machine tool vise
MZS series

Max. clamping force: 18, 27, 37 kN
Stroke: 30, 50, 60, 150 mm

Vice, manual, centric clamping - Repeatability accuracy: 0.01mm - Operating temperature range: from 5°C to 60°C - Operating principle: screw - Stroke: from 30 to 150mm - Material: hardened steel - Fixing solution: screw / zero ...

See the other products
OMIL

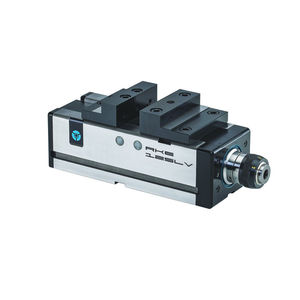

machine tool vise / horizontal / precision / steel
machine tool vise
RKE-LV series

Max. clamping force: 40 kN

... CUSTOMER BENEFITS - With tension clamping, zero point of the workpiece on the operator side - Large clamping range - High-precision positioning - Stable chip guard for longer life TECHNICAL FEATURES - Sturdy steel ...

See the other products
RÖHM
machine tool vise / hydraulic / vertical / screw
machine tool vise
RBA series

Max. clamping force: 25, 30, 40, 50 kN

The RBA model is manufactured by Roehm, and is a highly accurate NC power vice that is ideal for use in applications such as milling equipment and machining centers. The unit can be mounted either horizontally, vertically, ...

See the other products
RÖHM
machine tool vise / hydraulic / horizontal / precision
machine tool vise
RBAW series

Max. clamping force: 30, 40, 50 kN

The 748-10 RBAW is a precision vise developed by Rohm. It is mainly used for milling machines and machining centers. The unit comes with angle drive, high reliability, long life span, high precision, ...

See the other products
RÖHM
grounding vice / bench-top / manual / precision
grounding vice
MA AC MP09

Opening (A)mm125 Jaw width (L)mm88 Dimensionsmm235x85x85 Weightkg7,4 Accuracymm0,005 Jaw height (H)mm40 HardnessHRC58 - 62

precision vice / bench-top / manual / swivel
precision vice
VK-4

Reference440001750 Dimensionsmm100x32x100 Weightkg16

grinding machine vise / hydraulic / vertical / horizontal
grinding machine vise
070 200 ARNOLD MAT series

Max. clamping force: 50, 40 kN

High pressure ARNOLD MAT vices maintain their length irrespective of the size of the part, for which they are especially ideal for machining centres (vertical and horizontal). - Accuracy of 0.01 mm in clamping repeatability. - ...

machine tool vise / modular / precision / with base plate
machine tool vise

Max. clamping force: 4,000 N - 50,000 N

HIGH CAPACITY VICE up to 280 mm with no limitation with divided vice COMPACT several vices can be used together for multiple clamping HIGH CLAMPING POWER up to 22 000 Newtons (2.2 ...

machine vise / precision
machine vise
432-247

... on tablets. This equipment has adjustable two vice jaws placed on a base plate which strongly hold the sides of regular shaped samples, between 1 mm and 40 mm in width. In addition, this sample vice ...

machine vise / screw / 5-axis / precision
machine vise
F677-58501x series

Stroke: 0 mm - 100 mm

The TriMax G series vise is designed for high precision 5-axis machine milling operations. Its compact design allows the user to machine on five sides with just one clamping operation. This vise ...

universal vise / manual / swivel / precision
universal vise

Stroke: 100, 200 mm

... clamping power. - Rigid steel parts for better life. - Simple mechanism and trouble free. - Ground top and bottom of vice base for parallelism. - Optional Accessories - Swivel base and universal handle.

machine vise / pneumatic / precision
machine vise

Pneumatic Vise offers the most rugged, precision built, completely trouble-free air tool to remove the spear from the tube. The vise comes complete with two 5-foot air hoses, foot control ...

machine tool vise / precision / stainless steel
machine tool vise
FT 02358

Stroke: 0 mm - 40 mm

Manual precision centric-vise in stainless steel. Suitable for WEDM and EDM applications as well as milling. Adaptable for diff erent interfaces (F-Tool PowerPlate/Erowa ITS/3R Macro/F-Tool Pin Palette)

machine tool vise / precision
machine tool vise
FT 02069

Economising, automating, multi-control and simultaneous set-up, etc. are terms that are dominating today’s business jargon. F-Tool offers a wide range of inexpensive products for the production, which fully comply with these criteria. ...

EDM vise / low-profile / precision
EDM vise
N

Stroke: max 26.0 cm

Types N and N VA of the tool maker vise series are used for surface grinding and in EDM machines, universally. The type N vise is made of out of tool-steel and has a completely hardened, and precision ...

See the other products
Spreitzer GmbH & Co. KG - Präzisionswerkzeuge
grinding machine vise / precision
grinding machine vise
EHS

... EHS Series is composed of precision vises developed by Spreitzer. They are specifically designed to cater applications that include grinding machines, jig boring machines and other precision ...

See the other products
Spreitzer GmbH & Co. KG - Präzisionswerkzeuge
EDM vise / screw / precision
EDM vise
SPS-2

The angle vise from Spreitzer is suitable for user in precise machining and investigation of surfaces and angular surfaces. The two-dimensional angle adjustment is made with the use of vernier scale and fine adjustment ...

See the other products
Spreitzer GmbH & Co. KG - Präzisionswerkzeuge
machine tool vise / vertical / precision / steel
machine tool vise
CI 94 series

... compatible. Entirely buildt in chromium nickel steel, hardened in 58 HRC, rectified with centesimal tolerance, assure high precision, max rigidity, unlimited duration.

See the other products
carminati morse snc
machine tool vise / modular / precision / twin clamping
machine tool vise
ED03, ES03, ET03

... type is a high precision, modular vice. It has a mechanicalmechanical locking facility, and a covered manoeuvring screw. It can be assembled in three different solutions according to locking requirements: TYPE ED03: DOUBLE ...

See the other products
carminati morse snc
machine tool vise / modular / precision / self-centering
machine tool vise
Ex99 series

... composable high precision vice with varieted utilisations; can be used as you like with infinite blocking solutions: - type E.D.M.A. 99 - autocentred self-locking doubled vice - type ...

See the other products
carminati morse snc
machine tool vise / screw / precision / steel
machine tool vise
PSS-02

machine vise / precision / compact
machine vise
SINTEX 100 / 125

Max. clamping force: 1,250 daN - 3,000 daN

1 SinterGrip technology only 3.5 mm clamping surface 2 Front mounting holes 3 Highest accuracy 4 Compact 5 Great opening range(till to 150mm) 6 Flexible

machine vise / precision
machine vise
TC series

Clamping equipment TCt complete with wrench, work stop, rigid slide way, floating slide-way (for raw workpiece), pair of positioning keys, pair of CLAK parallels, cover for the protection of the screw, eye bolt for lifting, wooden packing case.

machine vise / modular / screw / precision
machine vise
LC series

Clamping equipment LC complete with: wrench, rigid slide way (floating slide-way at request for raw workpiece), work stop, pair of positioning keys h6, cover for protection of the screw, 4 clamps, cardboard box.

machine tool vise / vertical / precision / high-pressure
machine tool vise
T-REX

Max. clamping force: 40 kN

Product features: Optimum accessibility for 5-sided machining thanks to the combination of compact base and large clamping width Stamping and clamping in a single process, in the working area itself, without any additional accessories The ...

machine tool vise / modular / horizontal / precision
machine tool vise
Single series

Max. clamping force: 40 kN

... system for horizontal machining centres Product features: High stability from base cast as one piece - maximum precision or workpiece machining Very good accessibility, even with large workpieces Conventional ...

machine tool vise / hydraulic / horizontal / precision
machine tool vise
basic 125

... reliability and minimise cleaning Fixing on the machine table by means of mounting holes in the vice base. Additional holes can be made in the soft middle section of the vice base Optional centre jaw ...

machine tool vise / 5-axis / precision
machine tool vise
KONTEC KSC 125

Max. clamping force: 0 kN - 40 kN

KONTEC KSX 125 pull-down 5-axis power clamp is as compact and height reduced as you get. The enhanced power clamping system ensures tight clamping in tight spaces. With ingenious mechanical power amplifier, clamping is done in less than ...
