Dynamic Air offers 16 different pneumatic conveying concepts:

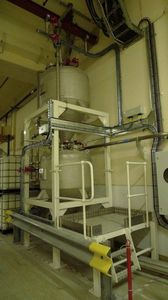

LDP 10,000 Full Line Pressure Concept™
Continuous Medium Phase Pressure System
The LDP 10,000 Pressure Concept Conveying System is a medium phase, low pressure, low to medium velocity, continuous conveying system for longer distances. It is generally used to convey medium to high density, semi-abrasive, fluidizable materials which can be somewhat difficult to convey. Examples include coffee beans, powdered chocolate, ground limestone, calcium carbonate, alumina, iron oxide, cement and silica flour.
Typical conveying velocities are generally about 1500 feet per minute (7.5 m/sec) and the conveying pressure is up to 15 PSIG (1 barg).
This concept uses a pressure vessel to feed the material into the conveying line and DC-5 Air Saver technology to minimize and optimize the low pressure supply air which is supplied by a low pressure positive displacement blower.
|
|
Dynamic Air offers 16 different pneumatic conveying concepts:
LDP 4000 Pressure Concept™
Continuous Dilute Phase Pressure System

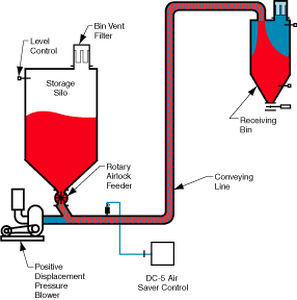

The LDP 4000 Pressure Concept Conveying System is a dilute phase, low pressure, medium velocity, continuous conveying system. It is generally used for conveying low to high density and/or non-abrasive materials where degradation of the conveyed material is somewhat of a concern. Examples include iron oxide, coffee beans, pinto beans, flour, fine chemicals, grain, malt, plastic pellets, sugar and salt.
Typical conveying velocities are generally about 2000 feet per minute (10 m/sec) and conveying pressure is up to 15 PSIG (1 barg).
This concept utilizes a rotary airlock feeder to control the feed rate to the conveying line. DC-5 Air Saver technology is used to minimize and optimize the low pressure supply air which is supplied by a low pressure positive displacement blower.
|
|
|
|
|
|
Dynamic Air offers 16 different pneumatic conveying concepts:
HDP 4000 Full Line Concept™ - Dense Phase Pressure System
The HDP 4000 Full Line Concept Pressure Conveying System is a dense phase, medium to high pressure, low to medium velocity, batch type conveying system. It is generally used for conveying medium to high density, heat sensitive, semi-abrasive and/or very abrasive, cohesive, and/or very fragile materials in almost any particle size range over long distances. Examples include silica sand, glass batch, granulated sugar, powdered sugar, finished breakfast cereal, coffee beans, plastic pellets, bentonite, cement, starch, silica flour, ball clay, kaolin clay, zinc oxide and alumina.
Typical conveying velocities are generally in the range of 100 to 1000 feet per minute (0.5 m to 5 m/sec) and the conveying pressure up to 100 PSIG (7 barg).
This concept uses a single, non-fluidizing type pressure vessel to feed material into the conveying line at maximum density. DC-5 Air Saver technology is used to minimize and optimize the high pressure air which is supplied by a high pressure - up to 100 PSIG (7 barg) - air compressor. This concept does not need diverter valves but uses valve receivers which provide a distinct maintenance advantage as they are located on the silo tops for easy access.
|
|
|
|
|
|
Whatever you want from a Bulk Materials cut-off valve you’ve got it with Clyde Materials unbeatable Dome Valve® - the cost effective valve solution.
The Clyde Dome Valve®, widely regarded as the original and best material handling valve in the world, offers exceptional life from only a single moving part. The Dome Valve® is recognised as a low maintenance, long life solution that can last at least 1 million cycles between maintenance inspections. It has the ability to cut through static or moving columns of material and is pressure-tight, ensuring a consistent pressure tight seal is created when the valve is in the closed position, but in the open position it provides an unrestricted full bore opening for the best product flow characteristics possible. The Dome Valve® can also be used as a line, vessel or reactor isolation valve.
The Dome Valve® enhances other technologies from Clyde Materials Handling, a leading provider of pneumatic injection, conveying, materials handling & vacuum cleaning solutions.
The solutions we create for our customers generate many benefits and are backed by three decades of domain knowledge, expertise and a track record of generating exemplary success.
Dome Valve® sold in the United States under the trade name ‘Spheri Valve’
|
|
|
|
|
|
Different Industries and applications require different solutions
The challenge: Vacuum Conveyors for different industries and applications, which really fulfil the requirements of the respective production environment and industry demands.
The VR series from Volkmann: Universal Vacuum Conveyors in an unbeatable module concept.
VOLKMANN VR Vacuum Conveyors are available in three different sizes (Ø 170, 315 and 450 mm). By a multiplicity of different function modules they are simple and fast adaptable also to special conveying tasks. VR conveyors are the best choice for applications inside the Chemical- and Food- industry. Now ATEX certified.
PPC vacuum promoter of Volkmann: The first choice for the conveying in Pharma applications and for the dyes/colour pigments.
VOLKMANN PPC Vacuum Conveyors were developed particularly for applications, which require a maximum of surface quality and characteristics of all parts with product contact. They can be disassembled quickly and easily for optimum cleaning and sterilization. They are all accessible and free of gaps.
Now ATEX certified.
Volkmann Tablet Conveyors
... were developed to fulfil the high requirements regarding smooth and gentle conveying of sensitive tablet cores and finished tablets. The glass design enven prevents the grey shading of the tablets surfaces during transport.
Volkmann Vaccum Conveyors with Inerting function: INEX
They transfer materials under inert conditions into process machinery, optional the whole conveying is done under inert conditions. Reliable solutions for easily inflammable bulk materials and for the filling of reactors, when burnable gases or liquids are present. Our inert Vacuum Conveyors INEX, which are based on our conveyor series VR and PPC, convince by their reliable safe operation, although designed structural as a light-weight.
Volkmann Pressure Proof and Pressure-Shock Proof Vacuum Conveyors
... can transfer materials into reactors and mixers, which stand under positive pressure inside during the material supply. They manage the complete material transfer and can be operated under inert conditions.
|
|
|
|
|
|
Vacuum-Conveyors VR
The star of the vacuum conveyors because of its unique modular design. The VR series is used in all industries where bulk materials are conveyed. They are small and lightweight and come with many options to choose from to fulfil your demand for a high quality conveyor at a fair price and with quick delivery times.
We do the product configuration for you and help to find the best suitable solution for your application on the basis of know-how, our product database or custom tests with your particular product.
VR-Vacuum Conveyors are available in three different sizes. The number indicates the diameter of the separator container (in mm):
VR 170: 40 - 600 kg/h conveying capacity
VR 315: 150 - 2500 kg/h conveying capacity
VR 450: 500 - 6500 kg/h conveying capacity
Containers in stainless stell 1.4301 / 304,
316L optional, Ra < 0,8 µm
Seals in Silicone rubber (FDA), Nitrile or EPDM
Here a brief overview about the innumerous different functional modules, which make our VR Vacuum Conveyors so flexible:
Vacuum pumps
- more than 50 MULTIJECTOR® types for Vacuum Conveying
- Multijectors completely in stainless steel (CIP-ready)
- electrical vacuum pumps as required
Integrated filters
- modular filter-elements, lightweight, easy access - sintered HD-PE filter candles (5 µm), long lasting
- polyester fabric teflonized filter cartridges (0,1 µm) - stainless steel filters
- filters for hazardous / unhealthy materials - antistatic filters
- filterbags with Teflon-membrane
Integrated filter cleaners
- back blow air shock systems
Suction modules
- suction diameters Ø 19-100 mm - radial suction modules with check valve
- tangential suction modules with cyclone insert - Clamp connections as required
Discharging modules
- large diameters for discharging - active (cylinder) and passive (gravity balanced)
discharge modules with flaps - butterfly valves with big discharge diameters
- fluidizers and piston vibrators for better product flowability
- valves and adaptations according requirements
Connectors for discharging
- flat- or cone-flanges - collector tanks with liquid-release - textile connectors, submersion tube elements
- individual adaptations and system integrations
Controls
- very small pneumatic controls - automatic level detector control systems
- preparation for SPS/PLC-controllers
Accessory
- suction lances and balancers for manual use - product feeding stations
- suction hoses and pipes - frames for wall fastening, special attachments
- trolleys and lifts for mobile use of the conveyor
|
|
Trust Conveyor Type PHF
Application: for coarse, fine and fluidable powders
Throughput: up to 150 m³/h
Distance: up to 800 m
Advantages:
Low-wear (no rotating parts)
Minimum air and energy consumption
How it works:
The product is conveyed in layers using medium pressure and velocity. The air is introduced separately into the discharge elbow for conveying and the vessel for fluidising.
|
|
Dense phase high capacity pump, capable of pumping powders up to 4kg per minute.
Totally pneumatic operation, allowing placement in ATEX zones without risk.
Pumps powder in dense phase through small bore hose, reducing hosing issues.
The dense phase feature ensures that reduced air volumes are used ensuring a low pressure system.
Can be used for recycling oversprayed powder, or bulk feeding of powders.
|
|
The product feed into the pipeline is done with rotary valves or injectors. Lean phase conveying is used for simple bulk materials and such kind of product which are not sensitive to attrition or breakage.
Lean phase conveying can be designed as pressure system or as vacuum system.
|
|
Bulk material handling represents a large cost factor in production processes. Gericke advises and realizes concepts for an efficient bulk material handling. Supplying pneumatic conveying systems for more than half a century - Gericke belongs to the pioneers in this field.
Today Gericke offers the most gentle pneumatic conveying system for the handling of all kind, but especially fragile bulk materials! Customers profit from high value protection of their products.
Gericke conveying product range includes pressure as vacuum systems, designed as lean or dense phase process. It includes suction weighers as well.
In the Gericke test lab, trials help to select the right system and make the planning of an investment easy.
|
|
|
|
|
|
PPC Vacuum Conveyors:
Your first choice for the Conveying of Pharmaceuticals and Pigments
PPC pneumatic pharma conveyors from Volkmann were especially developed for all those applications, which require top quality materials, surfaces and characteristics of all parts, which come in contact with the conveyed materials. They are mainly used inside Pharmaceutical and Color/Lacquer industries because of their separator elements being built in a one-piece design - an optimum for such applications with frequent product changes, which require a quick reliable absolute cleaning of the Process machinery to prevent contamination of products. PPCs superior manufacturing quality and their gap-free design fulfils highest quality demands. Nevertheless, they are easily taken into pieces by hand without tools and can be cleaned quickly and can be sterilized.
The design is completely electrical conductive, free of gaps and doesn't have any inaccessible spaces where the product might remain. PPC conveyors come with a huge butterfly valve at the discharge, which can be taken to pieces without tools.
PPC Vacuum Conveyors are offered as pre-configured units regarding the individual application. They are available in the diameters 170, 250, 315 and 450 mm. You can choose from different Pharma- or electrical-conductive filter systems (e.g. for the feeding of products into Zone 0 of reactors). Special coatings or clamp modules are available upon your request.
Fife different standard sizes of PPCs available:
PPC 170
PPC 170 K (very compact, low height)
PPC 250
PPC 315
PPC 450
One-piece separator container:
AISI 316 L, electro-polished or mirror polished, Ra < 0,8 µm (< 0,5 µm), free of gaps, all accessible
GMP design, lightweight, easy to handle, for perfect assembling/disassembling by hand without tools and optimum cleaning. nevertheless durable for long-life operation.
Absolute minimum of parts in contact with the conveyed product
Filter modules for quick change operation, long lasting and cleanable filters, sintered FDA-approved HD-PE material, stainless steel filters, PTFE coated cartridges, HEPA filters available.
Conveying capacities from 100 kg/h up to 6 t/h
Lightweight and easy to clean butterfly valves at the product discharge, all metal parts with product contact in AISI 316 L
|
|
|
|
|
|
Vakuum-Conveyors with Inerting-Function:
Volkmann Inert-Conveyors INEX
Our Vacuum Conveyors INEX with Inerting function are based on the Vacuum Conveyor families VR and PPC. They transfer materials under inert conditions into all sorts of process machinery. Optional the whole conveying process itself can be done under Nitrogen or other inert gases. INEX Vacuum Conveyors are the reliable solution for transferring easily inflammable bulk materials, for the filling of reactors under atmospheric conditions, which have burnable liquids of gases inside.
In the first step, the product is conveyed under air or inert gas into the separator container of the vacuum conveyor. After filling of the separating container the conveyors product inlet is closed and the product inside the conveyor is set under vacuum (-50 to -90 kPa, depending on the application). Subsequently, the pressure inside the separator is balanced with inert gas. This inerting can be done several (usually 3) times, to ensure a high level of Oxygen reduction.
Then the material is released from the conveyor through its bottom discharge valve. Since ignitable gases may move upwards into the conveyor during its discharge through the discharge valve, a new inerting cycle is run to bring the interior of the conveyor back into inert conditions before the next material suction cycle.
INEX Vacuum Conveyors are highly interesting for the filling of reactors, if the solids can be brought into the vessels under atmospheric pressure conditions. If a positive pressure in the unit to be fed occurs during the following process, the INEX conveyor is disconnected by a pressure resistant valve (if necessary with safety monitoring and pressure relief). INEX vacuum conveyors have all the advantages of VR- and PPC Conveyors. They are lightweight, easy to assemble and disassemble, have superior material qualities and can be used in FDA applications. They are much easier in operation than pressure-proof vacuum conveyors and come with really working filter units with big filtration area.
A unit, which your production workers won't give away any more after installation.
Talk to us about your material handling and conveying task.
|
|
|
|
|
|
VOLKMANN Vacuum Conveyors and Powder Handling Solutions
Make all powder handling in production processes secure and reliable, make the work of your production staff easier and improve the conditions at the workplace: Choose Vacuum Conveying systems from VOLKMANN. The transport of all sorts bulk materials has never been easier, more user-friendly and safe as with Volkmanns proven Vacuum Conveyor families.
easy material aspiration and dust-free loading of machines
gentle conveying, no seperation of material mixtures
optimum hygiene conditions
reliable filter systems in GMP quality
simple to install and to operate
low energy consumption
favorable investment- and operating costs
Our different modular families of Vacuum Conveyors for the Chemical-, Pharma- and Food-Industry allow customized modifications of all conveyors regarding the individual application. Even critical materials can be conveyed safely and adapted conveyors can be used for hazardous applications like inside explosion areas or with highly toxic materials. The modular design allows quick delivery times for complete conveyors (2-3 weeks for Food-/Chemical-Conveyors, 6 weeks for Pharma Conveyors).
Most of our conveyors are used in applications with conveying capacities from 100 kg/h up to 3 t/h, where the conveying distance is up to 15 m far and 10 m high. Realized systems have up to 12 t/h capacity and work with conveying distances up to 80 m far and 35 m height.
Upon your request, we implement special features into our Vacuum Conveyors, e.g. attach special flanges, adaptors and mounting elements and cones. Individual sized compressed air driven or electrical Vacuum Pumps can be chosen. All customization is done for the benefit of providing a vacuum conveyor as the best-practice solution for your application.
We offer complete powder handling systems, engineered and built as an integrated solution for your production process, including powder loading- and unloading stations, docking-systems, containment solutions, weighing- and dosing, glove-boxes etc.
Come and contact us! We offer conveying trials and demonstrations on-site or in our test facility in Soest. Along, we analyze your material handling task and the special needs to convey your products inside the local production environment. We want you to be sure, that the required capacity is reached, that your product is not affected in an unacceptable way by the transportation, and convince you of the stability of the vacuum conveying process provided by Volkmann Conveyors.
|
|
The system "Solids Puls Pneu" is a dense phase conveying system at low speed, with impulse valve and relay station.
Plugs are generated and preserved and "slided" through conveyor pipe.
Main advantages:
- Low velocity for sensitive and abrasive materials..
- Suitable for poor flowing material
- low consumption of air (up to 100 kg of material / kg of air).
. Max. transfert lenght> 300 m
. Flow rate up to 40t/h
more than 1000 references all over the world....
|
|
|

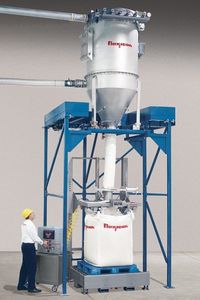

Flexicon's PNEUMATI-CON(R) dilute phase pneumatic conveying systems range from single-point "up-and-in" installations to cross-plant systems with multiple pick-up and discharge points and automated controls, satisfying an exceptionally wide range of bulk conveying applications. All are custom-engineered and fully integrated with other Flexicon equipment and systems, and your new or existing process.
|
|
|
|
|
|
The proven conveyor to transport dry, granular and free-flowing bulk material in a current of air under pressure.
KLEIN pressure vessel conveyors type T are used in the following industries:
foundry and steel, chemical and pharmaceutical, glass and ceramics, food and animal feeds, quarry and earth shifting, and sand feeding systems for rail vehicles.
Flow takes place in cycles, alternating between filling, and conveying from, the pressure vessel. Compressed air pushes the granular or bulk material out of the pressure vessel through a conveying pipe. In this process the end of the pipe immediately after the pressure vessel, is filled over the full cross section. Depending on the adjustment of the system and the properties of the conveyed product, a series of plugs is formed, and the distance between these will increase as the conveying distance increases. There is, however, no dispersal effect.
During each conveying cycle, solely the content of the pressure vessel is released into the conveying pipeline. The conveying pipe remains filled so that each conveying cycle is started against a full pipe. Thus, wear and material abrasion are considerably reduced.
Conveying plants equipped with a KLEIN pressure vessel conveyor type T make up a closed system and operate almost free of abrasion, wear and similar undesirable interaction. They are compact, easy to maintain, and generate little noise.
|
|
|
|
|
|
Dynamic Air offers 16 different pneumatic conveying concepts:
HDV 8000 Vacuum Concept™
Continuous Dense Phase Vacuum System
The HDV 8000 Vacuum Concept Conveying System is a dense phase, low to medium velocity, high pressure, continuous vacuum conveying system. It is generally used to convey low to high density, friable, and abrasive materials and/or other materials where degradation or abrasion is a concern. Examples include plastic pellets, breakfast cereal, granulated sugar, salt, coffee beans, pinto beans, finished detergent, pelletized carbon black and silica sand.
Typical conveying velocities are 50 to 800 feet per minute (0.25 m to 4 m/sec) and vacuum conveying pressures of up to 29 inches (737 mm) of Mercury (hg).
The material is fed into the conveying line on a continuous basis by vacuum. DC-5 Air Saver technology is used to minimize and optimize the pressure supply air which is supplied by a high pressure vacuum pump. The system includes a vacuum pickup nozzle, a vacuum conveying line, DC-5 Air Saver controls, a vacuum filter receiver, a secondary filter and a vacuum pump. For continuous conveying applications, a gatelock hopper with an inlet and outlet valve is installed at the discharge of the vacuum receiver.
|
|
Pelletron offers 3 types of pneumatic conveying systems
SLOW MOTION OR DENSE PHASE CONVEYING
Product moves in plugs or dunes throughout the pipe
Low gas velocities: v = 2-10 m/s (400-2000 ft/min)
High Product to air ratio: range 15-50 to 1
High pressure drop: p = 0.5 - 3.5 bar (7 - 50 psig)
|
|
Pelletron offers 3 types of pneumatic conveying systems
DILUTE PHASE CONVEYING
Product completely dispersed in gas flow
High gas velocities: v=25-40 m/s (5000-8000 ft/min)
Low product to air ratio: range 1-10 to 1
Low to medium pressure drop: p= 0.1-1.0 bar (1.5-15 psig)
|
|
Dynamic Air offers 16 different pneumatic conveying concepts:
LDV 2000 Vacuum Concept™
Continuous Dilute Phase Vacuum System
The LDV 2000 Vacuum Concept Conveying System is a dilute phase, high velocity, low pressure, continuous vacuum conveying system for shorter distances. It is generally used to convey low to medium density and non-abrasive materials. Examples include flour, kaolin clay, plastic pellets, grain, malt, corn, starch and plastic resin.
Typical conveying velocities are generally in excess of 4000 feet per minute (20 m/sec) and vacuum conveying pressures of up to 15 inches (381 mm) of mercury (hg).
The material is fed into the conveying line on a continuous basis by vacuum which is supplied by a low pressure positive displacement blower. The system includes a vacuum pickup nozzle, vacuum conveying line, a vacuum filter receiver, a rotary airlock feeder and a positive displacement blower.
|
|
Description:
The CO.RA SANI FLOW discharge system is used for the feeding of press machines or filling machines, regulating the flow of the product. This system can be assembled on a fixed or mobile support structure.
|
|
|
The vacuum conveyors of the IC series are simple, ergonomic, user-friendly and have high performance. They are mainly used for conveying in the manufacturing industry. Thanks to PIAB’s patented COAX® technology conveyors of the IC Series consume less energy than other similar vacuum conveyors in the market. The series consist of conveyors in three different sizes and handle up to 1.5 tons of material per hour
|
|
VAC-U-MAX has developed an innovative way of handling wastewater treatment chemicals, including Potassium Permanganate and Alum, both widely used to neutralize the smell of wastewater in municipal and industrial treatment facilities.
Advantage
* No scooping, No lifiting, No dust
* Automatic Feeder Refill
* No Compressed Air Required
* Vacuum Receiver Sits on Feeder Cover
* Packaged Set-in-Place, Hook-up, Operate!
|
|
|
|
|
|

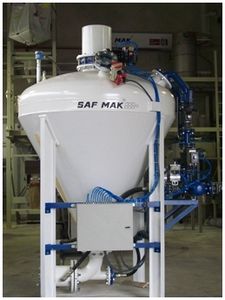

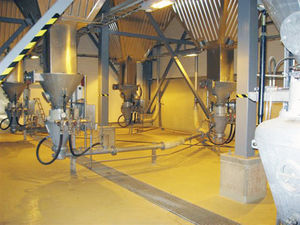

DENSE PHASE PNEUMATIC TRANSFERRING (DPPT) - DENSEYOR
Dense Phase Pneumatic Transferring is a kind of product transfer system which compressed air carry product via piping system.
Product is transferred in lower speed then Lean Phase System (other kind of pneumatic transfer system); but air pressure is higher. DPPT System needs 1,5-3,0 bar compressed air according to product specification, transferring length, height, capacity etc
Advantages:
* Low transport cost
* Low maintenance cost
* Failure-free operation
* No damages on product because of lower product speed.
* No cleaning need in pipe-line and vessel.
DPPT System Main Components:
* Product inlet actuated butterfly valve
* Vessel
* Product outlet actuated butterfly valve
* Level sensor,
* Air inlet valve
* Air discharge valve
* Product activating components
* Controlling components
* Measuring components
DPPT System Project needs following units:
* Feeding bin
* DPPT vessel and complete system.
* Piping
* Collecting bin
* Bin jet-puls filter
* Bin pressure relief valve
Main Working Principle:
* First product inlet valve is open
* Product charge limited with level sensor
* Valve is close
* Compressed air in
* Product outlet valve is open
* Time
* Valve is close
* Air discharge valve is open and close
VARLIK DPPT Systems have very successful applications on construction chemicals, cement, gypsum, sand, similar powder and granulate products. Transport distance is available vertically and horizontally until 50+50 meters.
|
|
CAMCORP manufactures a wide range of blower packages for pneumatic conveying systems. Our systems are conventional dilute phase, either pressure or vacuum. Mounted on heavy-duty frames, our blower packages meet the highest standards of quality and durability.
System Options
- Positive displacement blower packages, horizontal and vertical configurations
- Pneumatic receivers: Poly-El and filter bag designs
- Rotary airlocks, diverter and scaling valves
- Control panels: PLC or relay logic control
- Batch or continuous systems
- Bin vents
- Bag dump stations
|
|
|
During restorations or new installations, it is not always possible to install the storage bin of the pellets in the axis of the screw of the boiler. To circumvent this problem, the JetSolutions company proposes the integration of a pneumatic transport with intermediate silo so as to physically uncouple storage from the pellets with the boiler.
|
|
A variety of efficient pneumatic conveyor designs are available to transport both wet or dry metal chips to or from processing. Prab offers both positive pressure and vacuum conveyor models depending on application.
Positive Air Systems
- Prab Chip Fan - Model 525 is capable of transporting dry aluminum chips up to 250 or more, for direct loading of scrap trailers
- PD Pump or Blower - Can be fed by rotary air locks or eductors for multiple chip inputs
Negative Pressure - Vacuum Systems:
- Capable of multiple pick-up points, transporting wet or dry chips to central processing system.
- All systems utilize economical standard piping with hardened bends and filter/cyclone receivers.
- All wear items are abrasion resistant Ni-hard.
|
|
|
JOGINDRA has introduce the BATCH CONVEYING SYSTEM in order to enlarge the application of our mixers. Use of this system is recommended in case of continuous compounding for large volume production, thereby minimizing production costs. The material is fed into a bag emptying station and is conveyed pneumatically by a roots blower via rotary airlock and pipeline to feeding hopper (fixed at the top of High Speed Mixer) ready for next batch. PLC can be supplied on request.
|
|
That it is mechanical or pneumatic, the transfer of the matter represents one of the most significant parts of the market.
Spiroflux has a broad range,
of quality, in the pneumatic individual transfer, in particular.
With chargers APS from 4 to 60 liters, any stainless strong thickness, turbines with side channel (or centrifugal) of reputation, and a positioning of price in lower part of the average, Spiroflux increases its place and its handwheel of businesses, without complex vis-a-vis the "European" manufacturers.
|
|
|
|
see the results for the following category :
