The PRS6 is a three-way pressure reducing valve that has been developed to give reduced pressure in a particular part of the hydraulic system. The valve maintains the secondary pressure setting constantly, regardless of pressure variations on the primary side. Common applications include pilot circuits in hydraulic and electro-hydraulic servo systems.
Compact and easy to install
Easy to adjust within respective pressure range
Can be factory set and sealed to prevent unauthorized pressure changing
Highly suited for use as a reducing valve in pilot circuits where the pilot pressure is taken from the main circuit
|
|
26A: Small Pressure Regulators, 2-Way
Description:
Series 26A Small Pressure Regulators are used in small general purpose applications to regulate pressure in piping systems using water and No. 2 fuel oil. It consists of a brass body construction with NPT threaded female inlet and outlet connections, 1/4 in. 2-way low-pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, reinforced Buna-N diaphragm, and tee handle adjustment. Options include Viton trim and slotted adjusting screw. Strainers are recommended. Series 26A has an oversized orifice and is ideal for use on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. Maximum Working Pressure: 300psi (21 bar).
|
|

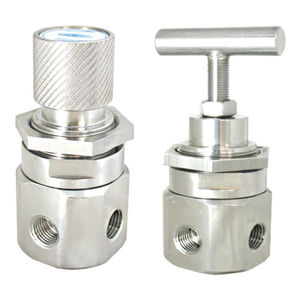

¡ÜFor using gases and liquids
¡Ü Inlet pressure:1.5 MPa maximum
¡Ü Adjustable outlet pressire in ranges:0.01~0.2 MPa (0.1~2 kg/cm©÷); 0.05~0.7 MPa (0.5~7 kg/cm©÷)
¡Ü Operating temperature:-5 to 60¢ªC
¡Ü Diaphragm material:Viton with PTFE lining
¡Ü Body material:SS316
¡Ü Seal material:PTFE
¡Ü Handle wheel material:SS
¡Ü Effective flow area:8.0mm
¡Ü CV:0.6
¡Ü All ports are standard:¨ö"NPT female
|
|
Pressure Reducing Valves
Bronze body, with balanced seat,
disc with NBR seal, pressure gauge connection G1/4,
inlet pressure: up to max. 25.0 bar,
outlet pressure: 1.5 up to 8.0 bar
greatest reducing ratio: 10 : 1
Part No. 08010.X.0000
Female thread connection (G) acc. to ISO 7-1 Rp
Applications:
Suitable for compressed air, nitrogen and similar non-inflammable, non-toxic gases.
Working temperature: -10°C / +14°F (263K) up to +75°C / +167°F (348K)
|
|
All pressure reducing valve bodies are made of bronze. Due to their design, they are not affected by scale or dirt, and do not need any maintenance.
They are suitable for cold and hot water up to 80°C for maximum upstream pressure of 25 bar and reduce pressure between 0.5 and 7 bar.
They can be installed in any position if flow direction stipulated by the arrow is respected.
They can be fitted on compressed air, neutral gases and fuel oil at ambient temperature circuits.
The ranges of figures 7, 8, 9, 10 and 11 are in accordance with the European standard EN1567. Series 9, 9 bis,11, 11bis and 11 bis MA fulfill higher specification controlled by NF label.
|
|
- Model/code: D083
- Category: Spring Loaded Pressure Reducing Valve
- Body Material: Brass
- Inlet Pressure: 250 bar
- Outlet Range: 1,5 - 250
- Connections: 3/8" or 1/2" BSPP
- Valve Size: 4 mm
- Type: Spring/piston
|
|
| ... products without technical information |
| |
|
In many paper mills steam is superheated and distributed at high pressure for efficiency reasons. The pipe sizes required to transport the high pressure steam are smaller due to the low specific volume of the steam, and turbine efficiency is optimized when high pressure superheated steam is used. Kadant Johnson desuperheaters are designed to reduce the temperature of superheated steam for optimal heat transfer and efficiency.
|
|
|
|
|
|
The Copes-Vulcan Multiple Nozzle Spray Desuperheater offers optimum performance and rangeability in a variable spray tube design. The MNSD fills the performance gap between the limited capability of a simple mechanical spray type desuperheater and the virtually unlimited capability of Copes-Vulcan’s Variable Orifice Desuperheater. The MNSD offers high temperature capabilities and up to Class V leakage rating.
Features:
- Temperature control to within 15°F (8°C) of saturation with the ability to hold set point within a tolerance of 10 °F (6°C)
- Standard maximum available Cv of 10.5 (Kv of 8.9)
- Water flow turndown of 150:1 or higher
- User friendly design - nozzles and trim assembly can be removed without disconnecting the actuator
- No need for separate cooling water control valve
- Designed for applications with temperatures up to 1150°F (620 °C)
- Available in standard classes 600, 900,1500 and 2500 per ANSI B16.5
- Cooling water inlet pressures up to 3500 psig (24 MPag)(higher pressures on application)
- FCI 70-2/ANSI Class IV or Class V shutoff capability
- Suitable for vertical or horizontal installation
- Standard ANSI connections are 3" (80mm) raised face flange (steam) and 1.5" (40mm) raised face flange (water)
|
|
Both steam pressure reduction and temperature reduction (Desuperheating) are done in a single valve making it an extremely efficient, cost effective and compact solution.
Features
- Compact Design
- High turndown (40:1)
- Reduced noise level
- Efficient cooling water atomization
- Reduced straight runs for pressure and temperature measurements
- Better control over change in flow
|
|
|
|
