Anticorrosion horizontal centrifugal pumps conceived for applications in industrial processes, production lines and ecological facilities where resistance to chemical aggression must be coupled with reliability and easy maintenance.
The special construction of these pumps eliminates the possibility of any contact between metal parts and the liquids, while the selection of materials and manufacturing technologies ensure full compatibly with the products handled, a long operating life and conformity with standards in force: in particular, the presence of a mechanical seal designed exclusively by Savino Barbera offers safe solutions for all industrial pumping needs.
Equipped with MECHANICAL SEAL
|
|
|
|
|
|
Introduction:
With the development of the technology, our company has introduced the series EZJ slurry pump under the theory of modern fluid mechanics and mechanical, based on the software design and practical experiences.

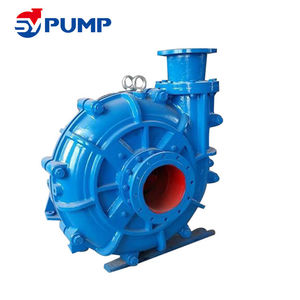

The EZJ series slurry pumps are designed as single-stage, single-suction centrifugal pumps.They are classified into the horizontal version (EZJ type) and vertical version (EZJL type) according to mode of construction and the discharge diameters of horizontal pumps vary from 300mm to 200mm 150mm, 100mm, 80mm, 65mm, 50mm, 40mm, etc.And the discharge diameters of vertical pumps vary from 150mm to 100mm 80mm 65mm 50mm, etc.
The pumps are innovative in both hydraulic and structural designs.The wet parts are made from self-developed high-chrome alloy cast iron with high wear-resistance.They are of energy- saving, high efficiency, little vibration, low noise, long service, lightweight, reliable operation and easy maintenance.
Application:
The EZJ series slurry pumps are widely used in power, metallurgical, mining, coal and building materials, which are suitable for handling abrasive and corrosive solids-bearing slurries with maximum concentrations of wt.45% (ash) and wt.60% (ore) such as handling the fine ore and tailings in mining, removing ash and dredges in power plant and delivering coal tailings.The pumps can be operated in series according to special requirements.
Notation:
80EZJ(V)-A42
E:Excellence
ZJ:Slurry
V:Vertical type
80: Discharge size (inch)
A:5 B:4 C:3 (the number of the vanes of the impeller)
|
|
|
|
|
|
Standardized centrifugal pumps NOS/NOLH, INTO 733 - ISO 5199
BEACHES Of USE
Flow: up to 1800 m3/h
HMT: up to 140 mCE
Operating pressure max: 10/16 bar following hydraulics
Beach of temperature: -40 to 170 °C
DN32 with 300
Viscosity max: 150 cST
APPLICATIONS
Effluents: Slightly charged clear fluids and, fluid corrodents, acids, solvents...
Transfer of fluids for the following applications:
- Industrial Applications
- Water supply industrial
- Industrial Water supply
- Périprocess (circuits coolant, buckles heating...)
- Systems of filtration
- Systems of cleaning, washing in industry
- Protection fire (Sprinklers) for certain models
ADVANTAGES
- Hydraulic High efficiencies
- Simple Maintenance, interchangeability with all pumps in conformity with the standard IN 733 (NFE 44111)
- Tree and stages reinforced in accordance with standard ISO 5199
- For the drinkable water supply, a certified version ACS is available on request
In option: Spacer, wheel bronze, hydraulic stainless, version ATEX
|
|
NFCH
Centrifugal pump standardized INTO 733 for coolants and thermal oils
BEACHES Of USE
Flows: up to 1000 m3/h
HMT: up to 95 mCE
From 0 with 120°C: pressure max 16 bar
From 120 with 300°C: pressure max 13 bar
From 300 with 350°C: pressure max 10 bar
DNN 32 to 200 mm
Viscosity max: 150 cST
Hydraulic material: Cast iron GGG40.3
APPLICATIONS
- Chemical industry: circuits of heating, engines, process of polymerization, transfer of viscous products, plastics and synthetic fiber factories...
- Industry of the plastic and rubber: circuits of heating, machines of moulding, automatic injection, production of adhesive tape...
- Food industry: furnaces of faisandage, distillation of fatty-acids and glycerin...
- Industry of paper and laundries: corrugated cardboards, washing, drying machines and of the desiccators...
ADVANTAGES
Fund of body with weak heat transfer
Car-cooled mechanical seal
Standard construction in accordance with the standard IN 733
|
|
The IC ISO Chemical Process Pump Is Designed In Accordance with ISO 5199EN25199 and Dimensionally Complies with ISO 2858EN22858 and DIN 24256.
Specifications:
Capacities to 340 m3/h (1490 USgpm) at 2900 rpm & 400 m3/h (1760 USgpm) at 3500 rpm
Heads to 160 m (525 feet) at 2900 rpm & 210 m (685 feet) at 3500 rpm
Temperature Range -40° C to 180° C (-40° F to 360° F), optional as ICP up to 280°C (530°F)
Pressures to 16 Bar (235 PSIG), optionally 25 bar (360 psi); sizes 65-40-315 and 80-50-315: 25 bar (360 psi) standard
Materials - Ductile Iron, 316 Stainless Steel, Duplex SS, Alloy 20, Hastelloy, Titanium
|
|
|
Liquiflo's Centry® Series are Sealed and Magnetically-Coupled (MC) Centrifugal pumps engineered and manufactured for the user with increased needs for equipment reliability. These pumps are specifically designed to handle the lower flow applications that create maintenance problems for standard ANSI pumps operating at less than BEP. The Centry Series pumps can handle flows up to 160 GPM and heads up to 100 ft. They are available in 316 Stainless Steel or Alloy-C constructions, and with threaded or flanged port configurations.
|
|
Rugged, durable UC Series pumps provide excellent corrosion resistance. Features include heavy duty ductile iron casings lined with pure Tefzel® (ETFE), modified concentric volutes to reduce radial loads, rear sealing ring and balance holes to reduce axial loads and premium silicon carbide components. Magnetic drive UC Series pumps are engineered for long life in the most demanding applications. Atex certified models are available.
The pump models below have multiple impeller diameters which allow for enhanced hydraulic selection and application flexibility. Simply click on the model to view specific performance for each impeller diameter.
|
|
Every day in over 1,000,000 installations, Goulds process pumps prove why they are the industry standard for performance. Users in Chemical, Petrochemical, Pulp & Paper, Primary Metals, Food & Beverage and General industries know they can make no better choice than the best.
Specifications:
Capacities to 7000 GPM (1364 m 3 /h)
Heads to 730 feet (223 m)
Temperatures to 700° F (371° C)
Pressures to 375 PSIG (2586 kPa)
|
|
|
Mechanical seal chemical pump type SCK/F, heavy duty design, shaft sealed by mechanical seal, impeller semi-open/closed, with highly deflection-resistant stainless steel shaft, bare-shaft, nuts and bolts of stainless steel, high-quality epoxy coating, inclusive test run, housing material: ductile cast iron EN-JS 1049 acc. to DIN EN 1563 (0.7043 DIN 1693), technical specification to DIN ISO 5199, dimensions to DIN EN 22858/ISO 2858, flanges to DIN EN 1092-2, ISO 7005-2, housing end pressure PN 16
|
|
|
|
|
|
PERFORMANCE
Capacity:- 650 m3/h max
Head:- 150m max
Speed:- 3600 rpm max
Casing Pressure:- PN 16
Temperature:- 350 °C max
Sterling SIHI volute casing pumps are used in a wide variety of process applications and due to their high reliability they provide reduced operating costs in the Process industry.
The differant volute casing pump applications require specific methods of shaft sealing including single or double acting mechanical seals or seallless designs.
• ISO 5199 / EN 25199 and ISO 2858 / EN 22858
• Interchangeability of back pull-out assemblies
• Temperatures up to 400 °C without external cooling
• Casing pressures up to 40 bar
• Special materials (Hastelloy, Titanium,…)
• Heated Jackets
• Modulare Design – reduced spare parts costs
• Mechanical seal arraqngements
• Magnetic coupling arrangements
Bare shaft back pull-out assemblies
CBSD
Pumps with a single or double acting mechanical seal and oil or grease lubricated ball bearings.
CBMD
Pumps with a magnetic coupling according to VDMA 24279
Close-coupled back pull-out assemblies
CBED
Pumps with a magnetic coupling to VDMA 24279
|
|
IH Type chemical and industry pump is mono-grade mono-absorb cantilever type centrifugal pump, which is a kind of renew energy-saving product that replaced F type cauterization –resistant pump, it is suit to chemical and industry, petroleum, foodstuff, pharmacy and synthetic fiber and etc department where transport the cauterization –resistant type medium or physical、chemical similar to water medium. This pump material is stainless steel.
high efficiency and save energy
- widely applicable
- install easy
- low noise
- structure reasonably
- international standard
- convenient maintenance
- working temperature 80℃
|
|
Horizontal single stage centrifugal pumps with overhung impeller and axial suction, constructed using the "Back pull-out system" and available with six different sizes of support.
Main technical features
- Flow rate up to 2600 m3/h
- Discharge head up to 150 m
- Working pressure up to 16 bar
- Working temperature from -50 to +280°C
- Size from 3 to 300 mm
Advantages
- High levels of efficiency
- Reliability
- Long duration
- Compactness
|
|
The largest and newest chemical pump in the March product line, the innovative Series 10 is an ideal transfer pump for many strong acid and caustic chemical
solutions, such as those based on halogens or chromic and sulfuric acids. Made of carbon-filled Kynar® plastic (PVDF), it is designed for complete chemical compatibility.
Other materials include carbon-filled Kynar®, ceramic, and Viton®. Standard bushings are carbon. Flow rates range from 50 GPM (175 LPM) minimum to 210
GPM (680 LPM) maximum. Head ranges from 0 to 170 ft. (35m) maximum. To insure smooth operation with various specific gravities over 1.0, the impeller magnet assembly may be trimmed to a minimum diameter of 5.250" (135 mm).
The electric motor drive is a 10 HP (7.45 kw), 230/460-volt three-phase, totally enclosed chemical duty motor. An explosion-proof 15 HP is available on special order. Standard port configuration is a 3" MPT inlet with a 2" MPT outlet.
|
|
March Series 5 pumps are ideal for a wide variety of applications involving highly corrosive chemicals, such as film processor chemical recirculation, refrigerators, small scrubbers and detergent mixers. Models constructed of
Kynar® are typically used in the plating industry to pump strong halogen solutions and concentrated chromic or sulfuric acids. They are also excellent choices for computer cooling, carbon arc furnace cooling and marine air conditioners.
Series 5 pumps are rated up to 18 GPM (60.5 LPM) flow and for heads up to 29 ft. (6.3m) (50 ft. [16m] when driven by an air motor).
|
|
Materials
Wetted parts AISI 316 Bearings SiC Bracket WCB Special alloy: Hastelloy, Incoloy, Titanium
Technical Data : Flow Rates up to 400m3/h Total delivery heads up to 1300 m Temperature Rating from -150° up to +450°C Flange Rating PN 100
Construction
Horizontal multistage centrifugal pump Permanent Magnet drive system Separation of liquid chamber/atmosphere by means of an isolation shell Synchronous drive transmitted by inner magnet and outer magnet system Sintered Silicon Carbide Bearings Barrel execution Bearing Frame construction
Applications
Pumping acids, hydrocarbon, diathermic oils, liquid gases, dangerous fluids, explosive, toxic.
Further material available if request
Various materials from the standard special Constructions
|
|
UTS SERIES
TECHNICAL SPECIFICATIONS
Materials AISI 316L
Flow rate 320 mc/h
Head 140 m
Temperature range -80 °C - 320 °C
Allowable pressure rating Da PN 10 a PN 40
Viscosity 400 cSt
Impeller type Closed
Motors 0.75 - 75 Kw
ATEX 1-2G
Velocity range 1450 - 3500
Pass solids Max concentration 5 % in weight
Hardness 800 Vk, Size max. 200 µm
Standard DIN 24256 (EN22858)
Inlet outlet port ISO 2858
|
|
The model ICM is a metallic magnetic drive chemical process pump made of stainless steel, hastelloy, ductile cast iron, and special metals. Designed for normal and demanding chemical process applications.
Specifications:
Capacities to 340 m3/h (1490 USgpm) at 2900 rpm & 400 m3/h (1760 USgpm) at 3500 rpm
Heads to 160 m (525 feet) at 2900 rpm & 210 m (685 feet) at 3500 rpm
Temperature Range -40° C to 180° C (-40° F to 360° F), optional as ICMP up to 280° C (530° F)
Pressures to 16 Bar (235 PSIG), optionally 25 bar (360 psi); sizes 65-40-315 and 80-50-315: 25 bar (360 psi) standard
Materials - Ductile Iron, 316 Stainless Steel, Duplex SS, Alloy 20, Hastelloy, Titanium
|
|
|
Tefzel Lined Magnetic Drive process Pumps available frame mounted, close coupled, in-line and self priming.
|
|
CQ TYPE magnetic force driving pump (called magnetic pump), is the new product, which use the permanent magnet join-axis working principle for centrifugal pump, and has advantage of reasonable structure, advanced workmanship, full sealed, non-leakage and cauterization-proof, its performance can be match to the same product of foreign countries.
- reasonable structure
- advanced workmanship
- full sealed, non-leakage
- strong corrosion-resistance
- compact conformation、good- looking appearance
- small in size 、low noise
- uniformity of operation
- convenient maintenance
|
|
Liquiflo's ENDURA® AB-Series is our Patented Air-Barrier Centrifugal Pump. This innovative revolutionary design was the recipient of the 1995 Vaaler Award. The ENDURA® AB can run dry indefinitely and handles solids - something no other pump in the industry can do.
The AB (air-barrier) combines the best features of a standard sealed pump with that of a mag-drive pump, while eliminating the drawbacks commonly associated with these designs. This patented design makes the ENDURA® AB unlike any other pump in the industry.
|
|
|
|
|
|

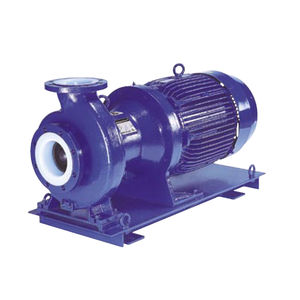

Process magnetic drive pumps MDM series
Unique design endurable to dry running (Non contact system)
The pump design features a mechanism to withstand dry running. High magnet power of the rare earth magnets prevents the magnet capsule coming into contact with the thrust ring of the rear casing, thus preventing melting of fluororesin components due to heat generation. This greatly improves resistance against dry running in comparison with conventional magnetic drive pumps made of fluororesin. Note: Only CF type (fitted with high density carbon bearing) can cope with dry running. Dry running is not permitted in the case of KK type.
ETFE and PFA available in standard models
Carbon fibre reinforced ETFE (CFRETFE) and PFA linings can be supplied to meet many varying duties. PFA being a natural unfilled material generates fewer contaminants and makes it ideally suited for transfer of high purity chemicals.
Back pullout system
In order to facilitate inspection and maintenance, this series employs the back pullout system. This enables one to conduct inspections internally and replace parts without removing piping. The pump is designed to include safety measures that can prevent the liquid from leaking when the foot support is pulled back.
|
|
THE PROCESS PUMPS
They are generally used in air separation or industries which need large quanties of liquefied gases.
Wide range of pumps up to 10'000 L/min.
Single or multiplestage pumps: differential head up to 1'000 m.
Large scale of feature with numerous options.
Available for all cryogenic gases except LNG for safety reasons
|
|
General description

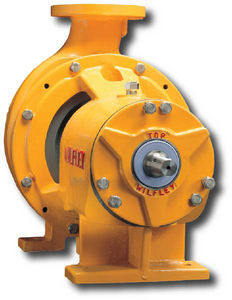

Wilfley's Model A7 is a heavy-duty chemical processing pump that exceeds the ASME B73.1 M-91 specifications. It is designed for the most difficult applications, pumping highly corrosive liquids and, in certain instances, liquids containing solids.
Markets
- Ammonium Nitrate
- Caustic
- Corn processing - starch
- Hydrochloric acid
- Kaolin clay
- Lead/zinc
- Molten sulfur
- Milk of lime
- Nitric acid
- Phosphoric acid
- Salt
- Scrubber/contaminated liquids
- Spent acids
- Sugar
- Sulfuric acid
- Titanium dioxide
- Urea melt
- Waste fuels
Applications
- Batching applications
- Crystallizer recirculation/transfer
- Evaporator recirculation/product transfer
- Filter feed
- Thickener under/over flow
- Loading/unloading applications
Capacities
Sizes from 1.5x1-6 through 10x8-16 offering operating range coverage of less than 10 GPM/2.2 m3/hr up to 4,000 GPM/910 m3/hr. Head capabilities ranging up to 600 ft/185 meters depending upon pump size.
|
|
The APV PUMA+ Centrifugal Pump
The prime choice for standard duty operations
The APV PUMA is a single-stage, centrifugal pump designed specifically for standard duty applications in the food, dairy, brewery and beverage industries. Widely recognized for its low installation costs, problem-free operation, stringent hygiene standards and flexibility, the APV PUMA range comprises 3 basic pump configurations offering heads up to 7.8 bar, flow rates up to 135 m3/h, and system pressure up to 16 bar.
* Flexible Installation
* Easy Maintenance
* Reliable Components
* CIP/SIP Compatible
* All product contact parts Stainless Steel 1.4404 (AISI 316L)
* FDA Approved Elastomers
* EHEDG Approved
|
|
|
|
|
|

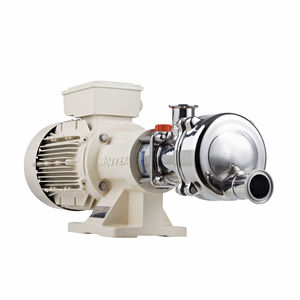

The APV W+ Centrifugal Pump
The most reliable pump in the world
The APV W+ pump is based on a unique hydraulic design which combines maximum efficiency with the highest hygiene standards.
Highest Hygiene Standards
* Meets the strict European hygienic standards (EHEDG)
* 3A Versions available
* Designed for both CIP (Cleaning in place) and SIP (Sterilise in place)
* FDA approved elastomers
* AISI 316L product contact parts
Exceptional Performance
* Extremely energy efficient design
* High efficiency electric motor
* Low power consumption
* Very low noise and vibration levels
Easy Maintenance
* Very easy maintenance with minimum downtime
* Easy visual inspection of shaft seal for leaks
Extensive Range
* 17 models, with capacities of 0.2 to 15 bar and 2 to 800 m3/hr
Flexible Design
* Extensive range of optional variants such as WA+ Aseptic version, multistage, WHP+ high pressure, WI+ Inducer version, WE+ Electropolished and many more..
The W+ pump with its flexible design and many variants is the proven solution for hygienic applications in industries such as Dairy, Brewery, Food, Beverage, Pharmaceutical, Personal Care and Chemical.
|
|
|
|
|
|
The APV Ws+ Self Priming Pump
Patented, revolutionary pump.
The APV Ws+ pump is based on a unique technology applied exclusively by APV, showing substantial improvements over traditionally designed self-priming pumps.
The Ws+ pump works according to the water ring principle. However unlike traditional self-priming pumps, the WS+ is equipped with an open impeller ensuring a flexible flow range and enabling you to choose a small pump for your task. The self priming effect is obtained by means of an air screw mounted on the pump inlet.
Highest Hygiene Standards
* Meets the strict European hygienic standards (EHEDG)
* 3A Versions available
* Designed for both CIP (Cleaning in place) and SIP (Sterilise in place)
* FDA approved elastomers
* AISI 316L product contact parts
Exceptional Performance
* The Ws+ is equally suitable as a CIP and product pump
* Extremely energy efficient design
* High efficiency electric motor
* Low power consumption
* Very low noise and vibration levels
* Particle friendly design due to open impeller
Easy Maintenance
* Very easy maintenance with minimum downtime
* Easy visual inspection of shaft seal for leaks
The Ws+ pump has been installed in numerous applications all over the world and proven successful in many industries and applications:
Dairies * Breweries * Butter plants * Cheese factories * Wineries * Distilleries * Food factories * Egg plants * Enzymes production * Colourings * Bio-pharma
|
|
TOP-FLO® C-Series pump dolly or cart has an emphasis on your convenience. It's mobility will allow you to find many functions in your manufacturing process.
Standard features are as follows:
Universal dolly for C100, C114, C216, C218 & C328 pumps with motors through 10 horsepower
Full 304 stainless steel construction with 2 fixed wheels
Bead blast finish
8.0" semi-pneumatic wheels
Adjustable pivot point axle
Handle mounted cord wrap
Optional features are as follows:
Finishes- mechanical polish, electropolish
Full range of control options- VFD, start/stop controls, network controls
Wheels-4 wheels, non-marking white wheels, full pneumatic, solid
Special customer design requirements
Designed for your convenience
Can be designed & manufactured to your specifications
Convenient roll-away design
Mobililty allows you to find many functions in your manufacturing process
Durable (full 304 stainless steel construction)
|
|
Goulds Model 3620 API 610 (BB2) between bearings radially split double suction process pumps are designed for smooth, reliable operation.
Goulds has extended the hydraulic coverage on its Model 3620 process pumps. These new hydraulics augment existing hydraulics, extending the Model 3620 hydraulic coverage. The new performance curves can be accessed through the Pump Selection System (PSS).
Specifications:
Capacities to 20,000 GPM (4540 m3/h)
Heads to 1500 feet (455m)
Temperatures to 850° F (455° C)
Pressures from full vacuum to 1000 PSIG (6895 kPa)
|
|
The ToP-Flo® name represents the finest in sanitary process equipment. ToP-Flo® pumps have been designed to offer efficient transfer of product over a wide range of head and viscosity conditions. ToP-Flo® pumps are easy to install, clean, and operate.
ToP-Flo® pumps are suitable for use in CIP (clean in place) installations. This feature enables easy self-cleaning with no dismantling or take-down. Sanitizing of all product contact areas is automatic.
All ToP-Flo® pumps are available in standard inlet sizes and outlet sizes. In addition, enlarged inlet sizes are available for special applications.
|
|
Specifically designed for re-circulating service in reverse osmosis and other membrane systems. Equipped with balanced double shaft seal with buffer fluid ports on top and bottom for complete removal of air/vapor from seal chamber.
- Rated up to 700 psi maximum pump casing pressure (at
discharge)
- Maximum differential pressure 150 psi (based on water)
- Sanitary construction for food and dairy processing
service
- Large, long-life bearings with non-wearing labyrinth seals
- 316L stainless steel impeller and shaft; 17-4PH stainless
steel casing
- Motor flange adapter reduces coupling wear
|
|
|
|
