The MCS range offers a wide range of aluminum profile sections, connecting elements and accessories. These components allow an infinite possibility of frames to be constructed for use in industrial machinery, guarding, storage and display applications.
Profiles can be machined and accurately cut to length to customers' specifications by Hepco, and are available on very short delivery times. The aluminum components are manufactured to very close tolerances and then clear coat anodized - this ensures that frames are both accurate and corrosion resistant. Accessories include handles, feet, hinges, sliders and panel fixings.
Features and Benefits:
• High quality components offering price savings over similar competing systems
• MCS gives cost-effective design and build when compared to conventional welded fabrication
• Lightweight rigid profiles in a wide range of sizes offering high load carrying capacity
• All elements are reusable, and simple additions can be made to existing designs
• Interior brackets allow assembly without machining if required
• Full cutting and machining service available from Hepco with fast turn-around on all orders
• Interchangable with frame building systems from other manufacturers
|
|
|
With over 100 strut profiles, we offer you the world's largest modular profile system for a wide variety of applications. Bosch Rexroth's profile groove has become a worldwide standard and there are 6 different profile series in our modular profile system with the finest graduation on the market. Another advantage: all of our profiles are compatible.
|
|
A comprehensive system of profiles together with an enhanced range of fixing elements including brackets, flexi connectors and accessories to enable complete frames to be constructed by the customer from components or supplied flat packed for simple re-assembly. In addition we will ship completed frames to your requirements designed on our in house 3D drawing package. Reduced material costs, improved flexibility and assembly time savings are available with the use of aluminium profiles over steel for constructing machine frames and machine fencing requirements can be fulfilled using elements from our Machine Fencing System.
- Wide range of profile sections with Tee slots or plain sides
- Custom designed 3D frame design and build service
- Supplied in component form, flat packed for re-assembly or completed frame
- Profiles allow the fixing of linear systems
- Fencing system available for machine protection
- Range is constantly being developed with new components being added
|
|
|
Using high-tensile aluminium profiles, any type of structure can be assembled cleanly and rapidly without further surface processing. All profiles are anodized and are produced with modular dimensions to ensure that they are compatible with specific Lines.
|
|
mk Profile Technology
250 system profiles made from high-quality alloys, perfected, stability-oriented connectors as well as a comprehensive range of accessories and compatible standardised components enable virtually all structural designs for machine frames, guards and factory equipment.
With four aluminium profile series – categorised according to their base dimensions 25, 40, 50 and 60 mm – the ideal system is available for every application.
Simple frames with small space requirements can be realised just as effectively as load-bearing structures for heavy machinery.
|
|
A range of aluminium closed, 1/2 closed, opened and housing profiles with their accessories.
A system built around standard M8 screws and nets which combines simplicity of assembly and a very great rigidity.
A minimal maintenance for a maximum durability.
|
|
ALUMINIUM PROFILES - Anodized
...for machine building , work tables, machine tables, housings and frames.
e.g.: Stand Profiles PS-Profiles
- For fast and easy assembly of housings, tables and frames
- Aluminium, anodized
- Made according to DIN EN 12020-2
- Light, compact, solid
- High stress-resistance
- With our fast-clamped connections very firm, stress, reversion and bending resistant profile connections are produced by means of profile bore holes and clamping pieces
- Cut to size on request
e.g. as
Machine and Mounting Tables
... for precise and safe clamping of devices and fixtures for measuring, checking, testing etc.
|
|
|
Radial profile segments are now indispensable in many market sectors. There are three different bending technologies available. These technologies enable us to maintain tight tolerances while reducing spring back. The processes contain many safeguards which minimise profile deformation. While for smaller radii, mandrel bending is used, for sections with complex radii or where 3-D bending is required a roll-bending process is used. Bent steel profiles are used in a number of industries, in particular automotive, cabin building, facades and interiors and also in furniture making.
|
|
In addition to high quality flat and round products, hot rolled profiles have become our cutting edge products. The profiles are rolled according to customer drawings, and includes both symmetrical and asymmetrical shapes.
With a wide range of different billets for rolling we can keep a high level of flexibility and service. The choice of billet is based on our material
|
|
In comparison to other cutting methods, laser-beam cutting has numerous advantages. It is a thermal procedure used predominantly in the treatment of metals as it enables the maintenance of tight tolerances even with on-line cutting, it is also quick and cost effective. At Welser we ensure complex 3-dimensional processing with a 5-axis laser cutting machine. We can thereby process material grades up to 8mm with steel, 5mm with stainless steel and lengths of up to 7,000mm. The most common steels can be cut without burring, so that subsequent de-burring becomes unnecessary. With the laser cutting process, several machining steps can be carried out simultaneously, such as pre-punching, post-punching and de-burring.
|
|
|
As well as open sections, Welser produce welded tube profiles. The seam welding of tubes increases their strength during twisting or bending, in comparison to open pipe sections. There are two welding methods utilised: high-frequency welding and laser welding. Which method is used depends on various factors, such as material grade, shape of the section, position and requirements of the weld seam. Laser welding possibilities: longitudinal seam welding of special profile tubes, welding together of components of different material grades and strengths. Mobile CO2 laser rigs enable continuous laser welding as well as the capability to produce multi-chambered profiles on-line direct from the rolling machines.
|
|
mk Profile Technology
250 system profiles made from high-quality alloys, perfected, stability-oriented connectors as well as a comprehensive range of accessories and compatible standardised components enable virtually all structural designs for machine frames, guards and factory equipment.
With four aluminium profile series – categorised according to their base dimensions 25, 40, 50 and 60 mm – the ideal system is available for every application.
Simple frames with small space requirements can be realised just as effectively as load-bearing structures for heavy machinery.
|
|
BLOCAN®- Profile System - the assembly system without necessary processing
Connecting without treating the ends - cut to length and assemble! For this, the unique modular system of construction profiles has been developed.
Due to clever connection elements you do not need any machines and special equipment. The profiles are cut to length and assembled. More than 110 different profile sizes and cross sections can be assembled in this manner.
|
|
Quick-Set® is a universal modular system for mounting elements. It comes in two sizes.
The system makes it possible for fast installation without machining the profile ends.
A variety of mounting options can be obtained with a minimum of individual elements (10 base elements).
Quick-Set® can be adjusted easily, quickly and precisely, without the need for drilling or pinning.
Quick-Set® is suitable for precise dimensionally-stable connections.
Its dovetail connections can be subjected to larger loads than T-slot connections. With the screws tightened to the correct torque, the strength of the resistance to displacement between two interconnected profiles is 3000 N.
The Automation and Quick-Set components below are available at advantageous prices in our online shop.
|
|
The MiniTec profile system has proven itself in many sectors of industry through reliability and flexibility.
Applications range from safety equipment, workbench equipment, automation, test and inspection equipment, single and multiple axes linear systems through to complex production plant. Use our experience.
|
|
|
Using high-tensile aluminium profiles, any type of structure can be assembled cleanly and rapidly without further surface processing. All profiles are anodized and are produced with modular dimensions to ensure that they are compatible with specific Lines.
|
|
|
Welser Profile is the leading manufacturer of special profiles, tubes and complete profile systems from steel and non-ferrous metal, for almost all market sectors. We realise profiles for ideas with complex specifications. Stainless steel, like no other material, enables perfection in manufacturing and finishing. No other material is so convincing in design or can preserve the value of expressive presentation for generations and lend lasting shine to the environment. Architects and designers alike trust this exceptional material. Facades, internal and external cladding, escalators and lifts would be inconceivable without stainless steel. Furthermore, chrome nickel steel plays an important, but unseen role, in fixtures and fittings.
|
|
|
Welser Profile is the leading manufacturer of special profiles, tubes and complete profile systems from steel and non-ferrous metal, for almost all market sectors. We produce steel profiles for formworks, scaffolding, hall construction, noise protection barriers, for warehouse and shop fitting, fences, gates, windows, doors and facades and for glass construction. In many areas of the construction and interior fittings market Welser profiles are indispensable. Profiles are used in offices for furniture, such as desks, table feet and frames, also frames for wiring, partitions, ceilings and floors.
|
|
We can offer aluminmum extrusion profile and accessories of MODULAR ASSEMBLY SYSTEM, including 20mm, 30mm, 40mm,45mm,50mm,60mm profile and connection elements, fasteners(t-nuts, t-bolts, subsequent nuts etc.), leveling feet, hinges.
Our products are compitable with BOSCH, MAYTECT, ITEM, MINITEC,FATH. Since made in China, they are really in good quality but competitive prices.
|
|
|
With over 100 strut profiles, we offer you the world's largest modular profile system for a wide variety of applications. Bosch Rexroth's profile groove has become a worldwide standard and there are 6 different profile series in our modular profile system with the finest graduation on the market. Another advantage: all of our profiles are compatible.
|
|
Modular Assembly Technology
We can offer aluminmum extrusion profile and accessories of MODULAR ASSEMBLY SYSTEM, including 20mm, 30mm, 40mm,45mm,50mm,60mm profile and connection elements, fasteners(t-nuts, t-bolts, subsequent nuts etc.), leveling feet, hinges.
Our products are compitable with BOSCH, MAYTECT, ITEM, MINITEC,FATH. Since made in China, they are really in good quality but competitive prices.
|
|
The Profile System for
• Clean-room technology
• Electrical engineering
• Medical technology
• Food industry
• Optical industry
MayTec enlarges its range with new components to enhance the use of the Profile System in application areas where high sterility standards apply. Covering fields in electrical engineering, optical industry along with the food industry and medical technology applications, the profiles can now be utilized on a large scale. Basing on the MayTec Standard System, the MayTec Connection System enables a simple and quick assembly and guarantees highest stability.
|
|
aluminum framing for factory automation
We can offer the best China-made aluminmum extrusion profile and accessories of MODULAR ASSEMBLY SYSTEM, including 20mm, 30mm, 40mm,45mm,50mm,60mm profile and connection elements, fasteners(t-nuts, t-bolts, subsequent nuts etc.), leveling feet, hinges.
We have ten years experience in this field and got a well reputation in Chinese market. Since the year 2008, we begin to step into International market. International quality, Chinese prices, believe that we can bring to you more suprise.
|
|

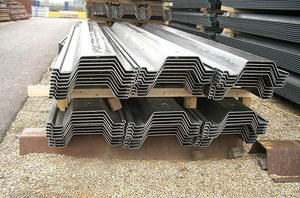

Sadef produces steel profiles on some 35 roll forming lines. We supply your custom made open profile or special tube, either in mill lengths or as finished components, light weight, assembly friendly and powder coated if required. After roll forming all sorts of fabrications can be carried out, turning your steel profiles into tailor made components ready for assembly.
Bending of profiles in various processes is a speciality of Sadef. Mandrelbending for radii between 70 and 5500 mm, press- or stretchbending for complex shapes and sweeping to wide radii are well-known techniques.
Your requirements = our challenge
|
|
For bent profiles the following data are needed:
• Profile (current conditions 1.1E.07 1) )
• Position of profile 59 1)
• Bending radius 82 1)
• Bending direction 61 1)
• Accuracy to size for profile elements and for profile functions
|
|
Cover Profile, PP, Slot 8-10
Cover Profile, PP, Slot 8
Cover Profile, Aluminum, Slot 8
Cover Profile, NBR, Slot 8
Plug-in Profile, TPE, Slot 8+10
Plug-in Profile, TPE, Slot 5, 6, 8+10
Cover and Reduction Profile, PP, Slot 5
Cover and Reduction Profile, PP, Slot 6
Cover and Reduction Profile, PP, Slot 8
Cover and Reduction Profile, PP + TPE, Slot 8
Holder profile, PP + TPE, groove 8-10, can be fitted later
Cover and Reduction Profile, PP + TPE, Slot 10
Clamping Spring, Stainless Steel, Slot 10
|
|
|
|
|
|
Sections / Profiled Tubes
The interchangeable tooling of thousands of existing section shapes allows Sadef to supply a perfect steel section in the right material (e.g. stainless steel, precoated steel, pregalvanised steel,etc.) as a ready for assembly component, and in your chosen colour.
Sadef offers a comprehensive range of rollforming possibilities. With strip ranging from 20 and 1000 mm in width and between 0.4 and 10.00 mm in thickness, variations are almost unlimited.
With 35 lines we enjoy a solid reputation in terms of flexibility.
Production includes:
HF-welding
Laser-welding
Pre- and postpiercing
Set your standards high. Demand the strictest checks. Take only the best. Rollformed steel sections must be supplied fully ready for assembly and in time, perfectly tailored to the specific application. They must meet the most stringent quality and environmental standards, as well as the most diverse customers requirements. Sections must be right.
The Sadef sections answer this profile. That is our pride.
|
|
Sadef produces steel profiles on some 35 roll forming lines. We supply your custom made open profile or special tube, either in mill lengths or as finished components, light weight, assembly friendly and powder coated if required. After roll forming all sorts of fabrications can be carried out, turning your steel profiles into tailor made components ready for assembly.
Piercings and cut outs in the broadest sense: lasercutting of 3D-bent parts, drilling, punching with or without automatic feeding on mechanical of hydraulic presses. Endless possibilities for special holes.
|
|
The interchangeable tooling of the thousands of existing section shapes allows Sadef to supply a perfect section in the right material, (e.g. stainless steel, precoated steel, pregalvanised steel, etc.) as a ready for assembly component and in your chosen colour.
Sadef offers a comprehensive range of rollforming possibilities. With strip ranging from 20 and 1000 mm in width and between 0.4 and 8.00 mm in thickness, variations are almost unlimited.
With 35 lines we enjoy a solid reputation in terms of flexibility.
Production includes:
HF-welding
Laser-welding
Pre- and postpiercing
|
|
|
|
