- Base MA 175
- Co-ordinate table MA 145-15, range 150 x 70 mm with quick approach and fine adjustment
- 2 scales Heidenhain

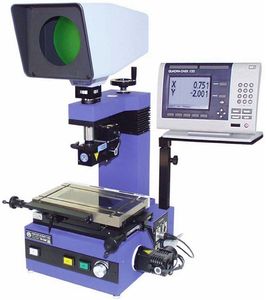

- Counter Quadra-Chek 100 with digital display
- Projector MA 240EG, screen Ø 150 mm
- Detachable incident light illuminator MA 213-13V-100W
|
|
|
|
|
|

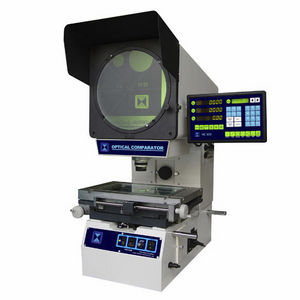

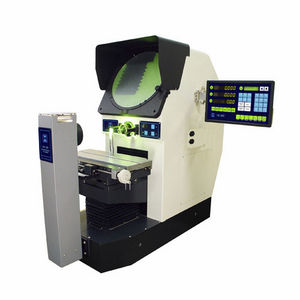

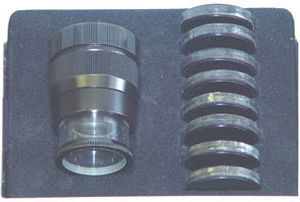

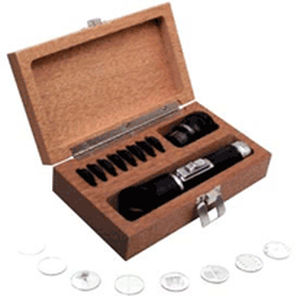

CPJ series Optical Comparator is a highly effective precision measuring instrument integrating optical, mechanical and electric elements.
The Optical Comparators are of compact structure, simple and good appearance, economical and reliable excellence, and capable of conducting coordinate measurement and outline compare measurement on work pieces.
The image of a work piece can be a positive image or a negative image. The former means the image on the projection screen is completely identical with the work piece on the worktable in horizontal and vertical direction, while the latter means the image on the projection screen is completely opposite to the work piece on the worktable in horizontal and vertical direction.
The projector series is characterized by simple and direct measurement, high efficiency, high optical quality, clear imaging object lens and accurate magnifying ratio. Under transmission light, the error of outline measurement is below 0.08%.
The resolution for the linear encoder is 0.5um, the machine accuracy can be (3+L/75)um, We have

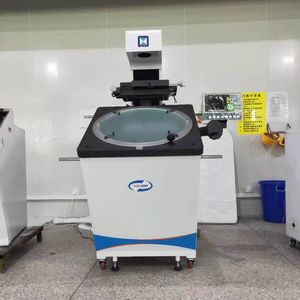

Rational Profile Projector share about 60% market in China, our main products passed CE. and had exported to many coutries and areas since 2000.
We are the first company in china who supply real image comparator, motor comporator and turrect measuring projector.
|
|

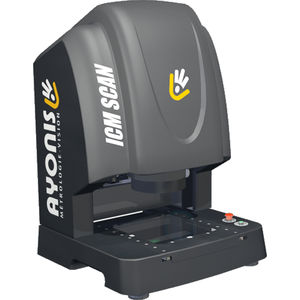

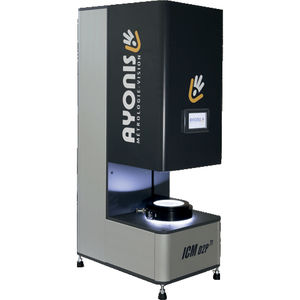

“Ultimate geometry“
The Multivision optical measurement system has the same functionality as a traditional profile projector, with the
added advantage that it instantly provides all measures in one go.
Multivision can be installed onto machines or used on benches in lieu of a profile projector.
For instance, when used on spring formers, where spring types vary considerably, Multivision will dramatically
improve the quality of production.
Multivision is ideal for three-dimensional measurements for:
Compression, torsion, and tensile springs as well as several templates
The instrument consists of:
•one computer box capable of controlling 1 to 3 cameras
•1 to 3 cameras
•1 to 3 illuminators (front or rear mounted for profile reading)
•harness for individual camera Start, sorter operation, correction communication (where possible), and machine stop.
|
|
|
Profile and measuring projectors are well-proven devices for a contactless measurement of work pieces. Depending on the customer's requirements, two types are available (H = horizontal, V = vertical). The projectors by Dr. Heinrich Schneider Messtechnik GmbH are characterized by the excellent quality of the image. All projectors are equipped with transmitted light and incident light illumination.
|
|
|
|
|
|
Profile Projectors Horizontal Bench Top R14 Profile Projector
Standard features:
* ½ Micron X, Y measuring resolution
* 340mm (14") screen with 90 degree crosslines and chart clips
* Profile illumination with halogen lamp and green filter
* Lens magnification choice: x10, x20, x25, x50, x100
* Surface illumination (fibre optic)
* Helix adjustment ±7° of light source for accurate thread form projection
* Cast iron workstage with machined slot for holding accessories
* Workstage measuring range of 175mm (7") x 100mm (4")
* Digital angle measurement to 1 minute of arc
Profile Projectors – Horizontal Bench Top R400 Profile Projector
Standard features:
* ½ micron X, Y measuring resolution
* 400mm (16") screen with 90 degree crosslines and chart clips
* Profile illumination with halogen lamp and green filter
* Surface illumination (fibre optic)
* Helix adjustment of light source ±7° for accurate thread form projection
* Cast iron workstage with two machined slots for holding accessories
* Workstage measuring range of 300mm (12") x 150mm (6")
* Digital angle measurement to 1 minute of arc
* Digital clock function
|
|

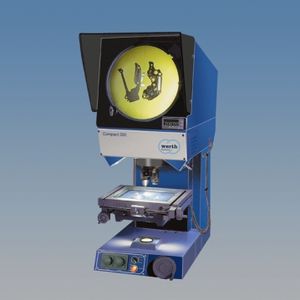

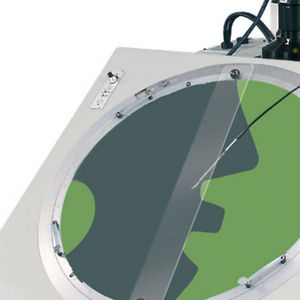

Werth profile- and measurement projectors allow rapid comparison of drawings in the workshop environment and secondly, with the aid of the Werth %u201DTastauge%u201D first proposed by Dr. Werth in 1977, they can be used for highly-accurate and fully-automatic measurements.
Minimal distortion in the image field and calibration corresponding to VDI/VDE 2617 and/or ISO 10360 guarantee corresponding trace-ability of measurement values to the linear
standard of the Physical Technical
Federal Institute (PTB).
|
|
Profile Projector PJ-A3000:
- Protractor Screen Diameter 315 mm
- Inverted Image Digital display (XY/angle)
- For detailed information, leaflet is available on request.
Profile Projector PV-5110:
- Protractor Screen Diameter 508 mm
- Inverted Image Digital display (XY/angle)
- For detailed information, leaflet is available on request.
Profile Projector PH-3515F:
- Protractor Screen Diameter 353 mm
- Erect-reversed Image Digital display (XY/angle)
- For detailed information, leaflet is available on request.
|
|
The high accuracy of TESA’s gauge blocks is the result of years of experience in producing
and making use of these products.
• Use of high quality raw materials and appropriate heat treatment, thus guaranteeing
a durable shape and dimensional stability of the gauge blocks over years.
• Very low deviations in flatness and parallelism of the measuring faces, resulting in
highly accurate gauges.
• Unique flat lapping polish as well as edge rounding techniques, leading to superior
wringability.
• Proper serial number marked on each gauge block.
|
|
To control the quality of your manufacturing, you need the best tools for the job. And to control costs, you want the best value for your money. The OGP® Focus™ Contour Projector® definitely meets both requirements.
Focus is a rugged benchtop unit with a 14" viewable screen diameter. Its extensive list of standard features makes Focus best in class.
A range of options makes it easy to configure Focus for your specific requirements. Choose a single magnification manual system for quick checks or fill the internal turret with magnification lenses you use most. Add the joystick controlled motorized worktable for fully automated CNC operation. Projectron™ automatic edge detection, and SmartCheck® metrology software are other popular options.
|
|
|
The precise, brilliant images delivered by Nikon optics let you evaluate surface features you can't even see with other instruments. Nikon optics provide superb edge-to-edge definition and resolution with uniformity of magnification. Images appear bright and crisp even in a sharply lit room and operation is convenient for all types of part inspection and measurement. In addition, a wide range of accessories are available for customizing any Nikon optical comparator to your particular application.
|
|

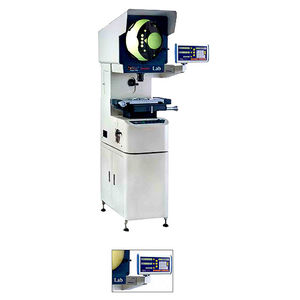

Profile Projectors – Vertical Floor Standing
SM20 Profile Projector
Standard features:
* 500mm (20") screen with 90 degree crosslines and chart clips
* Angled screen for easy viewing
* Profile illumination with halogen lamp and green filter
* Single lens mounting
* Lens magnification choice x5, x10, x20, x25, x50, x100
* Helix adjustment of light source ±7° for accurate thread form projection
* SA-2510-05 precision workstage with 250 x 100mm measuring range fitted with ½ Micron Scales
* Digital angle measurement to 1 minute of arc
* Digital clock function
|
|
|
|
|
|

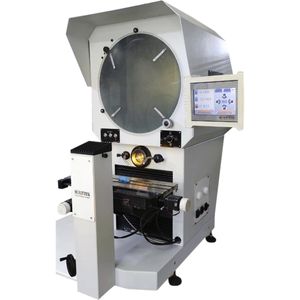

HE400 MkIII Horizontal Benchtop Measuring Projector
The Starrett HE400 MkIII provides exceptional performance, a large 16" screen, and a full range of features at a competitive price.
Features, Specifications & Options
- Sturdy, all metal construction
- 16" (400mm) screen with integral hood, precision cross lines and calibration markings
- 10 x 4" (254 x 100mm) measuring travel
- High precision workstage with 18.9 x 4.7" (480 x 120mm) top plate
- 15.4lbs (7kg) workstage capacity with 55 lbs (25kg) max. capacity.
- 13.8" (355mm) capacity between centers
- Lamphouse mounted helix adjustment for accurate threadform inspection
- Fine adjustment on all axes, plus zero backlash, fast traverse X-axis mechanism
- Fully retractable duplex fibre optic surface illumination.
- Fan cooled halogen profile illumination with high/low intensity and yellow/green filter
- Heidenhain .00005" (0.001mm) resolution scales
- Digital protractor (1 minute res.) Q-Axis
- Available with a wide range of readout/software options
- 10x, 20x, 25x, 31.25x, 50x, and 100x magnifications available
- Optical edge detection (optional)
- Available with OV2, Starrett's innovative Optical-Video Adaptor.
|
|
|
|
|
|
Optical Comparator Array
Each OPR5011 device is a hybrid sensor array that consists of three channels of the OPTEK OPC8332 differential optical comparator (‘TRI-DOC”) IC. The single chip construction ensures very tight dimensional tolerances between active areas.
Specifically designed for high-speed/high-resolution encoder applications, the open collector output switches based on the comparison of the input photodiode’s light current levels. Logarithmic amplification of the input signals facilitates operation over a wide range of light levels. The surface-mountable opaque polyimide package shields the photodiodes from stray light and can withstand multiple exposures to the most demanding soldering conditions, while the gold-plated wraparound contacts provide exceptional storage and wetting characteristics.
Features:
- Precise active area location
- Surface mountable
- TTL compatible output
- Wide supply voltage range
- Wide operating temperature range
Applications:
- High-speed applications
- High-resolution applications
- Applications requiring a wide range of light levels
|
|
|
|
|
|

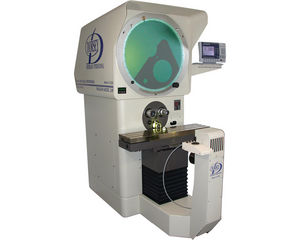

Features:
- 16"(400mm) Vertical screen for optimum viewin
- Erect profile image with fully corrected surface reflection image
- High resolution ground glass screen with calibration reticle, 90 degree cross lines and chart clips
- Machined chart ring with vernier protractor
- Electronic rotary screen protractor with selectable 1 minute or 1 /100 of a degree resolution
- Coated telecentric parfocal optics
- Quick change single lens mount
- Fiber optic surface illumination
- Integrated hood
- Nickel plated, completely cast iron workstage
.Triple axes solid crossed roller stage system
.Twin universal dovetails
.18" x 5" Overall size
.10" X Axis travel with "glide release"
.6" YAxis travel (rise a fall)
.110 lbs. Capacity
.±15 Degree true parfocal helix table adjustment with 5 minute vernier
- Available with 3 axes of measurement
- Optional 20" extended stage travel on "X" axis Available with internal or external edge sensing Optional swing away lamp house arm
- Optional motorized CNC full computer controlled readout systems
- 10X Lens system included
- NIST traceable calibration certificate
- 2 Year limited warranty
|
|
