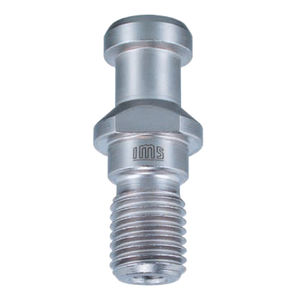

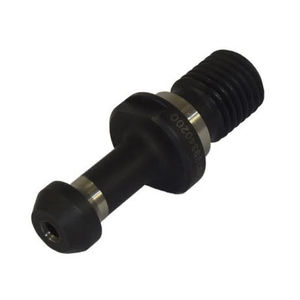

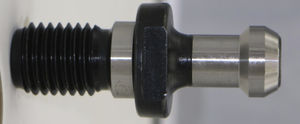

The 5-Axis Pull Studs are constructed from A2 Steel. They have a diameter of 20 mm and a hardness of 50 to 54 Rc. They can be easily attached to a variety of fixtures or machinable parts. They are ideally ...
Hardened Stainless Steel for hydraulic and pneumatic clamping modules.
Pull studs Tender thread Hardness Vickers Hardness Rockwel
Design Features: All the above materials are composed of alloy steel. The Gripper is according to the global standard of Pull Stud JIS6399 (MAS403) system. Grippers are developed for integrated and comprise ...
EROWA ER-010755 Spigot Drawbar Pullstud is screwed into the pallet for the machinig cycle only. Since it has no influence on the reference position, it is removed for the purpose of space-saving storage. It is mounted ...
Coolant Holes provided only against specific request.

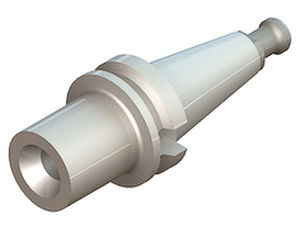

Specialized for BT holders: BT30、BT40、BT50, BT standard with normal style;
Material - Cones: stainless steel AISI 431 with average hardness 45-50 HRC. - Pull studs: stainless steel 16CN4. Standard tool attachment: ISO 40,MAS BT 40 Pull studs: ...

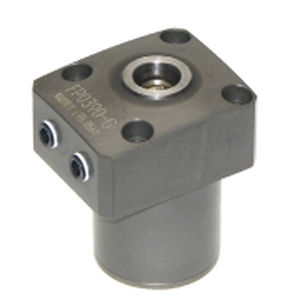

The FP clamp is a pull bolt (stud bolt) type hydraulic clamp that enables machining on five surfaces of the workpiece except for the clamping seat by chucking only once.
