Timing belts and flat belts are being used in higher performing applications every day. Industries such as the logistics and distribution industry, airport baggage systems and gantry robots are required to provide faster speeds and greater accuracy while minimizing space and reducing costs.
Onvio's unique power pulley products are being used in rigorous applications that demand the highest dynamic performance possible.
Whether your application calls for a stand alone gearbox in a pulley or a complete motorized flat belt pulley or timing pulley, count on Onvio to provide the best quality product with excellent deliveries and personalized service.
Motorized Conveyor Pulley
* Pulley diameters up to 110 mm
* Output torque from 10 Nm to 30 Nm
*
AC or DC motor designs
* Linear Speeds up to 3.1 meters per second
* Pulley widths up to 1 meter
* For information on how to order this item,
please call (866) 685-0404.
|
|
Timing belts and flat belts are being used in higher performing applications every day. Industries such as the logistics and distribution industry, airport baggage systems and gantry robots are required to provide faster speeds and greater accuracy while minimizing space and reducing costs.
Onvio's unique power pulley products are being used in rigorous applications that demand the highest dynamic performance possible.
Whether your application calls for a stand alone gearbox in a pulley or a complete motorized flat belt pulley or timing pulley, count on Onvio to provide the best quality product with excellent deliveries and personalized service.
Mechanical Power Pulley
* 3 Frame sizes
* Output torque from 40 Nm to 180 Nm
*
Available with any pitch pulley
* Designed to fit most linear actuator reversing units
* Backlash 3 arc minutes
|
|
Timing belts are being used in higher performing applications every day. As these applications evolve beyond the every day power transmission application, designers are looking to optimize the design of the system including the pulleys.
At Onvio, we specialize in producing customized pulleys which are produced precisely to the engineers design. Issues such as minimizing inertia, close fitting spaces, light weight, special coatings, tight tolerances as well as total package responsibility are just what we are good at.
Our pulleys are produced in virtually all pitch types - inch and metric, Metric AT and curvilinear. Our strengths lie in our quality, our speed of quoting, instant availability of drawings as well as fast and efficient delivery. You can count on Onvio.
|
|
|

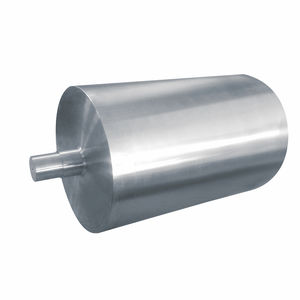

The capped tube pulley design is used in applications with pulley face widths in excess of 6 inches. Two end caps are welded to tube stock of proper diameter, surface finish, and hardness. They are usually fixed to a shaft via QD bushings attached to the end caps via a bolt hole diameter.
|
|
|
Belt Technologies patented Independently Steerable Pulley, or ISP, has been designed for an effective method of compensating for camber, which is inherent in the metal strip used to manufacture metal belts. Using either of two methods, the rotated shaft method, or rotated collar method, the steering collar of the ISP is easily actuated to provide movement left or right across the face of the pulley. This removes the need for pillow blocks, jack screws, or other alignment methods. The system can be adjusted while in motion as well.
|
|
Available in all pitches, standard and customized.
A wide range of materials and special treatments.
We can deal with orders of any size, from large to small ones.
VISION-TECH pulleys are supplied together with our cog belts
to guarantee the accuracy demanded by customers and the quality
that has always distinguished VISION-TECH products.
All pulleys are marked on the side with the VISION-TECH logo.
|
|
MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|
Timing pulleys are used when a system needs to deliver precise positioning accuracy or repeatability. Timing elements help to control belt creep in a typical belt system.
Belt Technologies, Inc. features two types of timing pulleys.
Type I Timing features a timing element which protrudes from the surface of the pulley, and engages in a belt perforation.
Type II Timing incorporates a timing pocket into the pulley, which engages with a physical component on the inner circumference of the metal belt.
Design Considerations for timing pulleys include material type, tape support diameter, and pulley type.
|
|
MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|
V-belt pulleys sections SPZ, SPA, SPB, SPC complete of hole and center switch.
The range includes articles from d.p. 63 to d.p.500
|
|
Classical A/B, C, D
- Complete line in stock, including larger models up to 71"
- Designed for use with QD and bushings & corresponding belts
- A/B models from 1-10 grooves; 3.75”- 38.35”
- C model from 1-10;12 grooves; 5.4”-58.6”
- D model from 3-10;12 grooves; 12.6”-58.6”
- Custom models up to 82"
|
|
|
Davall Stock Gears provide a reliable source of high quality "off-the-shelf" coupling and component fixing systems.
|
|
HTD Sprockets
- Fits with QD bushing, 8MM & 14MM sizes
- Combines positive timing w/ belt advantages
- Speeds from 10 - 5.000 RPM
- HP from fractional to 250
- Positive, non-slip drive
- Long-life, low maintenance
|
|
Type : Material : Hardness : Surface Treatment
ATP10L050 Pulley: 1045 Carbon Steel, Flange: Low Carbon Steel - Black Oxide
ATP10L075 Pulley: 1045 Carbon Steel, Flange: Low Carbon Steel - Black Oxide
ATP10L100 Pulley: 1045 Carbon Steel, Flange: Low Carbon Steel - Black Oxide
ATP12L050 Pulley: 1045 Carbon Steel, Flange: Low Carbon Steel - Black Oxide
|
|
|
Davall Stock Gears is a UK based stockist and distributor for a wide range of standard geometry gearing, both imperial and metric, timing drive pulleys and belts, shaft couplings, component fixing systems, miniature speed reducers and gearboxes.
|
|
Timing Belt Pulleys are available in the following types:
- XL 1/5" pitch
- L 3/8" pitch
- HTD 3mm, 5mm, 8mm pitch
- Custom Design Pulleys
- Molded high strength, glass reinforced nylon
- All nylon or with aluminum hubs
- Strong, accurate, lightweight, quiet running
- Single or double flange
- Set screw(s) and keyway(s)
|
|
Timing belt pulleys and V-belt pulleys
Walther Flender Antriebstechnik GmbH is one of Germany major suppliers of timing belt pulleys and V-belt pulleys. We have a wide variety of belts and standard pulleys in stock.
Toothed belt and V-groove pulleys are manufactured by Walther Flender based on customer drawings and, if necessary, are processed with special surface treatments, balancing or grinding, according to your requirements.
WF timing belt and V-belt pulleys are available in various aluminium alloys and synthetic materials. We also offer pulleys made of steel and grey cast iron.
In coordination with our product managers, specially adapted hub cutters are used to reduce the stress on the timing belt and to optimised positioning accuracy.
|
|
Pulleys, for standard belt widths
Metric: T5 - T10 - T20 - AT5 - AT10 - AT20
Inch Pitch: XL - L - H - XH
HTD: 5M - 8M

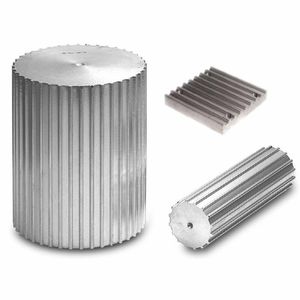

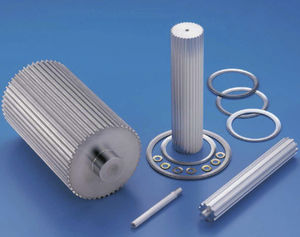

Pulley Bar Stock
Long Length material for custom machining.
Metric: T2.5 - T5 - T10 - AT5 - AT10
Inch Pitch: XL - L - H
HTD: 5M - 8M
Custom Pulleys: Other pitch sizes. Made to Order, custom materials (stainless steel, delrin). heat treating, anodized, black oxide, Teflon coating. Please contact customer service for further information.
|
|

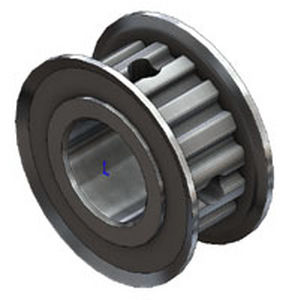

Timing pulleys
- Synchronized no-slip transmission
- Compact design, high efficiency
- Low maintenance, economical operations
|
|
optibelt ZRS Standard timing pulleys for
optibelt ZRS cylindrical bore
optibelt ZRS Standard timing pulleys for
optibelt ZRS taper bushes
optibelt ZRS HTD® timing pulleys for
optibelt ZRS cylindrical bore
optibelt ZRS HTD® timing pulleys for
optibelt ZRS taper bushes
optibelt ZRS Metric timing pulleys for
optibelt ZRS cylindrical bore, T-Type
optibelt ZRS Metric timing belts for
optibelt ZRS cylindrical bore, AT-Type
optibelt CE Clamping elements
|
|
Poly-V® & Micro-V® Multi-Ribbed Pulleys:
- Precise Power Per Rib - power can range from a few hundredths of a horsepower up to 1.7 hp per rib
- More ribs mean more power
- Pulley size puts precision in the power
- Drives with 4, 6 or 10 ribs - popular industry standards
- Several belts can ride on a single custom sized pulley
- New belt designs improve performance on partial turns - as small as 1/4 or 1/8 rotation
- Made in USA
Poly-V® & Micro-V® Multi-Ribbed Pulley Applications:
Applications exist for nylon pulleys, including high-speed machine tools, polishers, fans, dryers, pumps, mixers, dispensers, atomizers, compressors, microwave ovens, office equipment, display components, chair lifts and more.
|
|

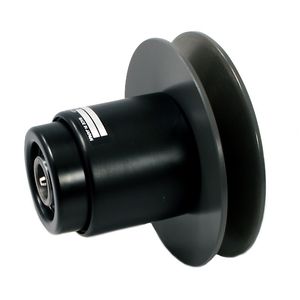

Adjustable Light Duty (HVAC)
MVL Series
- Designed for up to 5 HP
- Pitch diameter easily changed
- Bore range 1/2" to 1-3/8"
- Bulk packaged 20 per carton
|
|
OLEOSTATIC: Z - A - B - C - D - E - 20 - 25 - 45 - 50
SP: SPZ - SPA - SPB - SPC - 19
KOMPATTEX: 3V - 5V - 8V
ESAFLEX: AA - BB - CC
XDV: XDV38 - XDV48 - XDV58
LINEA X: XPZ - XPA - XPB - XPC
GOLD LABEL COG BELT: AX - BX - CX
KOMPATTEX COG-BELT: 3VX - 5VX - 8VX
VARISECT: 17x5 - 21x6,5 - 26x8 - 33x10
42x13 - 52x16 - 65x20 - 13x6 - 22x8 - 28x8
30x10 - 36x12 - 37x10 - 47x13 - 55x16 - 70x20
PLURIBAND: B - C - 3V - 5V - 8V - 3VX - 5VX
|
|
optibelt KS V-grooved pulleys for
taper bushes
optibelt KS V-grooved pulleys for
cylindrical bore

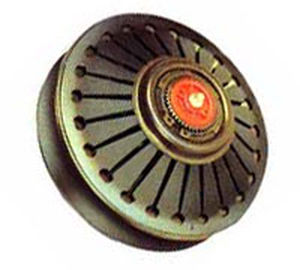

optibelt RE Variable speed pulleys
|
|

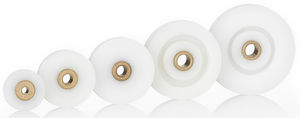

features:
Acetal races as standard
Polypropylene, PEEK, nylon and other materials for bearing races also available
Carbon steel, stainless steel and glass ball grades available
advantages:
Corrosion resistant
Lubrication free
Lightweight
Low friction
Quiet
Hygienic
Maintenance free
Non-metallic with glass balls
Non-magnetic with glass balls
In excess of 25 years proven performance
|
|
|
Thanks to a very large product range, an unceasing commitment to innovation, and extremely high quality levels, SEDIS is able to satisfy the requirements of the most demanding users
|
|
The function of the timing belt is considerably influenced by the quality of the synchronous pulleys. For this reason we recommend the user of BRECO, BRECOFLEX and SYNCHROFLEX TIMING BELTS to purchase the attendant synchronous pulley exclusively from Mulco sales partners to guarantee their safe and reliable function.
The production of synchronous pulleys is subject to a constant quality control. Generally, the synchronising pulleys are hobbed. A perfect function of the overall system is guaranteed by the function defined tuning control of all geometrical data, the tooth gap geometry, the shape and position tolerances.
The material and the dimensions of the synchronising pulleys, e.g. number of teeth, pulley width, bore holes and arrangement of flanges are stated by the customer. In the following please find information for the planner and designer.
|
|
- Classical QD
High-quality cast iron heavy duty pulleys
for classical (A, B, C, D) V-Belts.
Standardized QD bushings
- Power-Wedge QD
High-capacity cast iron pulleys
for use with narrow (3V, 5V, 8V)
V-Belts. Standardized QD
bushings.
QD is a registered trademark - Emerson Electric o Neoprene is a registered trademark - DuPont Dow Corp.
- QD Bushings
Standardized for interchangeability.
Tapered and fully split through
bore length for equivalent of
interference fit.
|
|
... see all the products in the category
