Innovative Plaque Heaters with a range of outputs (manual version) or fully modulating (Automatic version).
EASY & SAFE:
- Maximum efficiency in all conditions
- Very flexible mounting, even angled, maintaining high output radiant performance
- Considerable Infrared performance even when installed at maximum height
- Can be mounted on walls to maintain maximum radiant heating cover.
|
|

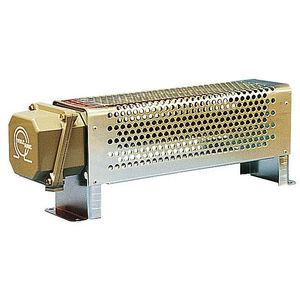

These particularly robust appliances have been designed to provide reliable heating for industrial and technical premises, control rooms and mobile site cabins. Connection via gland to a IP55 IK7 aluminium terminal box.
Protected steel brackets and body.
available with an integral control thermostat, adjustable from 0 to 50°C.
Horizontal fitting.
|
|
OHA radiant strips are especially fitted for infrared heating of industrial, commercial and sports' buildings up to any type of height. They are on the contrary especially fitted for very high buildings which require large radiant surface with lower surface temperatures.
OHA system does not move the dust in the air, it does not take any space on the floor and its maintenance is extremely reduced. The characteristic of the gas combustion head in premix and afterburning at low NOx emission and high efficiency. The radiant pipe circuit diameter 200/300mm assure a high thermal emission. A special insulation above the radiant strips raises further the radiant yield on the floor.
|
|
The INFRA radiant module is the most classical expression for infrared heating for industrial buildings, sportshalls, ware-houses, poultry farms and glasshouses. The machine is made up of a burner working with forced induction in premix type Baf, with a multi gas head, exhaust fume electro fan, heat exchanger made up of special heat treated steel radiant pipes for high temperature; stainless steel reflecting metallic parabole and support hangers. It has low thermal inertia, and can heat single zones also with limited dimensions activating single modules, it does not move the dust in the air, does not take any space on the floor, it heats the bodies but not the air, so this means that the lower is building insulating, the higher are fuel savings that are achived with infrared radiant tubes.
|
|
The company Systema SpA proposes an innovative technology for the heating system with a NEW product: THE WATER STRIPS "TS". They are used particularly to environments with fire risk' activity, for example textile industries, body shop, plaining mills, environments of public show and local with a lot of of people presence, warehouses with shelvings, environments dedicated to sporting activity and downtown.
The water strips "TS" are units that heat the space by radiantion, allowing an energetic saving, in fact the heat is directly to the people without loss of heat in the air. Please ckick here if you want to dowload the cathalogue.
|
|
Infrared SUNRAD Emitters is suitable for great radiant efficiency, thanks to the very high temperature of its emitting surface (900°C) and to its small dimensions.
SUNRAD emitters can be installed at considerable height (up to 30 m) considering they are provided with a reflector concentrating the radiation power.
Sempre più diffuso per il riscaldamento dei luoghi di culto
|
|
|
WATERSTRIPs (radiant thermal strips) are suitable for heating large industrial and civil buildings by radiation. They are the best solution where low-noise operation, no air flow, and no dust circulation is required. WATERSTRIPs are suitable to heat rooms housing inflammable mixtures without any problem. No air flow and low stratification ensure low running costs.
|
|
With Watlow's diverse RAYMAX® radiant heater line, we have a solution for almost any application requiring radiant heat. Our capabilities cover a wide range of needs, from contamination-resistant panel heaters to fast-responding quartz tubes to rugged tubular elements and high temperature ceramic panels.
Applying radiant heaters can be complicated. Watlow's engineering staff has the level of training required to help you meet your application requirements, providing a high degree of technical support such as conducting testing for your application at our facility, calculating your watt density and temperature requirements, and recommending system components such as sensors and controllers. With our experience in a wide range of industries, chances are Watlow has already helped someone handle a radiant heating application like yours.
Applications
Thermoforming
Food warming
Paint and epoxy curing
Heat treating
High temperature furnaces
Tempering and annealing processes
|
|
GADD
Fully assembled with double heating elements that provide twice the heat intensity of the GAD but with less even heating. Suitable for applications requiring contact-free heating.
|
|
Hanging irradiation heating unit suitable for heating big environments.
Including a heat generator with power from 35 to 300 kW and a radiating circuit with average surface temperature of 200-250°C.
The circuit layout is optimized according to the environment to be heated .
It is the best solution for huge environments where a good level of thermal comfort is required.
|
|
2 solutions available : Radiant heaters « U-tube » (U) or linear (L)
Alimentation Natural Gaz or Propane, horizontal or inclined
4 sizes 13 / 22 / 35 / 50 KW
Option : Régulation, stainless steel reflectors, double skin, dilatation rings …
Various accessories : Regulation kit, fume kit, gas conection kit ... etc
|
|
Equipments suited for all environments with great height (form 4 to 20 meters) or with high thermal dispersion.
It includes a burner unit and a heat exchanger tube which reaches the temperature of 400 ÷ 550 °C., providing a very high radiation efficiency, also by means of the reflecting cover located over the tubes, which focuses the thermal flow downwards.
By means of a centralized equipment control system it is possible to heat only the areas concerned by operations
|
|
The VAPORAD steam radiant panels are used to heat industrial or civil buildings that are particularly concerned with fire prevention.
This system is able to completely fulfil the requirements of a system that must run silently and not cause air movement, heating both large and small spaces.
The lack of air movement and the reduced heat stratification keeps operating costs particularly reasonable.
The steam panels create a greater heat output compared to panels heated with hot water and guarantee a larger amount of diffused heat per radiant surface
|
|

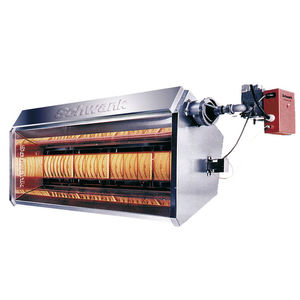

A RANGE OF CERAMIC GAS HEATERS ADAPTED TO ALL HEATING NEEDS IN INDUSTRIAL BUILDINGS (height of 4 meters and more).
Use: Industrial buildings, Churches, Sports halls, Car service, Terraces, ...
- a large range of heaters from 2,5 to 27 kW and more.
- a choice of 10 powers for a comfort in all type of buildings whatever the
hanging height of the heaters
- a double-speed option for a better comfort, particularly in well insulated
buildings
|
|
A RANGE OF CERAMIC GAS HEATERS ADAPTED TO ALL HEATING NEEDS IN INDUSTRIAL BUILDINGS (height of 4 meters and more).
Use: Industrial buildings, Churches, Sports halls, Car service, Terraces, ...
- a large range of heaters from 2,5 to 27 kW and more.
- a choice of 10 powers for a comfort in all type of buildings whatever the
hanging height of the heaters
- a double-speed option for a better comfort, particularly in well insulated
buildings
|
|
A RANGE OF CERAMIC GAS HEATERS ADAPTED TO ALL HEATING NEEDS IN INDUSTRIAL BUILDINGS (height of 4 meters and more).
Use: Industrial buildings, Churches, Sports halls, Car service, Terraces, ...
- a large range of heaters from 2,5 to 27 kW and more.
- a choice of 10 powers for a comfort in all type of buildings whatever the
hanging height of the heaters
- a double-speed option for a better comfort, particularly in well insulated
buildings
|
|
|
Wide area radiant heaters can be mounted to radiate in any direction and can reliably operate, with no reduction in radiant output over the life of the heater. The lightweight building block approach allows for a modular installation which is easily expandable. One-piece bonded construction resists damage from vibration and shock. These heaters also have a lower operating cost with up to 80% of the input energy transmitted to and absorbed by the work material.
|
|
A RANGE OF CERAMIC GAS HEATERS ADAPTED TO ALL HEATING NEEDS IN INDUSTRIAL BUILDINGS (height of 4 meters and more).
Use: Industrial buildings, Churches, Sports halls, Car service, Terraces, ...
- a large range of heaters from 2,5 to 27 kW and more.
- a choice of 10 powers for a comfort in all type of buildings whatever the
hanging height of the heaters
- a double-speed option for a better comfort, particularly in well insulated
buildings
|
|
Radiant tubes Infra
Heating by radiation
Apparatuses INFRA of THERMIGAS can be suspended on the frame via chains or of ropes or be gone up out of mural bracket.
Components
- burner and extractor out of separate boxes facilitating the assembly and demounting and allowing indifferently to assemble one or the other on the ends of the pin.
- steel tubes with easily dismountable elbow, the whole being painted in workshop using a painting high temperature.
- indeformable and unbreakable steel self-supporting quality.
- stainless steel reflectors easily nettoyables. These reflectors comprise, on each side over a length a fold with 180° avoiding the sharp edges.
|
|
Evolix EC. - Radiant panels warm water
Composed of 5 models available in 2 lengths: 3000 or 6000 Mr.
Power: from 100 to 150 W/m ² (water 90/70 °C)
Space heating of large volumen (installation starting from 3 m up to 12 m).
Industry, versatile rooms, colleges, colleges...
|
|
Evolix 250 - Sheath erasing with burner gas outside
Comfortable: temperature sheaths 200 °C
5 burners from 35 to 300 kw, length of the network of sheath up to 324 Mr.
Sheath monotube linear with generator 300 kw.
Buildings of great volume and up to 14 m height.
Buildings requiring a burner outside (maintenance, fire hazard...)
|
|
