The UtiliTrak® linear guide utilizes Bishop-Wisecarver’s signature DualVee Motion Technology™, proven highly reliable in the most challenging of operating environments. Its resistance to contamination in the bearing contact region is unsurpassed by other antifriction technologies, particularly those that employ recirculating elements at the channel/carriage interface. UtiliTrak is easy to install and maintain, and has the lowest installed cost in its class.
UtiliTrak combines high reliability with smooth, antifriction operation, all within a sleek, compact design.
SW Series features steel guide wheels running on a hardened bearing steel channel for larger loads and smooth operation. SW Series can accomodate loads up to 14,040N and speeds to 5.5m/s.
PW Series uses polymer guide wheels running on an anodized aluminum channel, which provides a more economical and lightweight choice for lighter duty applications where highly smooth operation is not as critical. PW Series can handle loads to 311N, and is quiet, corrosion and wear resistant.
|
|
Redi-Rail™ Linear Guide Systems are precision engineered for overall speed and accuracy. Achieving speeds up to 26.2 ft/sec ( 8m/s), Redi-Rail™ maintains a running parallelism within ±.001 inches (0.25mm) over the entire length of the rail up to 19 feet.
Redi-Rail™ linear rail systems are an excellent solution for a wide range of applications including: cut-off machines, packaging equipment, pick-and-place automation, and guard door slides. The drawer slides are designed for rugged duty such as: battery racks, tool shelves, ATM machines, and truck inventory systems.
This strong, lightweight and cost effective alternative uses a 6061-T6 extruded aluminum rail with hardened steel raceways, sealed double ball bearings, and customizable seals. Standard sizes and configurations are available from stock. Custom solutions can be designed, engineered, and manufactured to meet your specific requirements.
|
|
Modern Linear Track is available in several options: stainless steel or carbon steel, undrilled or drilled for east of mounting.
The thin cross section of Modern Linear Tracks makes it easy to set up and install.
|
|
|
|
|
|
Compact Design, Precise Action
SEB Series / SER Series
The NB SEB/SER Miniature Guide are engineered to be compact and light weight to ensure precise linear operation at high speeds. The SEB Slide Guide uses precision-machined steel balls as rolling elements promoting exceptionally low resistance with smooth, stable operation at low cost. Likewise, the SER Slide Guide uses precision-machined cylindrical rollers, ensuring high rigidity and high load capacity with low noise.
High Load Stability, Easy Installation and Maintenance
GL Series/SGL Series / SGW Series
The NB "high load" GL/SGL/SGW Slide Guide is designed to maintain stability under extremely high load conditions. The use of 4 ball circuits and arch ball groove design stabilitizes uneven multidirectional load factors and assures smooth continuous movement throughout the work cycle.
The GL/SGL/SGW bearing block incorporates a ball retainer, permitting the block to be easily removed from the rail. This allows for ease of maintenance and assembly of your machine. The "pre-seals" are designed specially for this Slide Guide, providing superior lubrication retention over long periods of operation.
An optional feature available is the Raydent. This treatment is applied to both block and rail which will provide for a highly dependable and proven anti-corrosion protection package. This feature is found to be idealistic in clean room applications.
|
|
|
NB slide guides are high precision and high rigidity linear bearings designed to utilize the motion of rolling elements. They have numerous advantageous characteristics, including low friction, no stick/slip , and smooth linear motion even under high load conditions. The applications range from general industrial to precision machinery.
|
|
|
Precision rail guides are suitable for applications with limited strokes requiring high stiffness and position accuracy. The Modular Range series of rails makes it possible to select internal design and/or rolling assemblies to suit application requirements without changing the envelope dimensions of the rails.
|
|
The shafts support rails provide a support to the shaft and are used in combination with the housing and bearing units of open design.
All of the shaft support rails are made in aluminum alloy.
They are available in multiple versions :
- FTSN, FTSW and FTSWA for mounting from the top
- FTSU for mounting from the bottom
- FTSS and FTSC for lateral mounting
|
|
|
|
|
|
* single Shaft Assemblies (SA series) are a complete pre-engineered assembly which simplifies the use of a linear bearing system in a mechanical positioning application. Each assembly has a steel shaft pre- mounted to a black anodized precision machined aluminum support. The pre- drilled base mounting holes in the 6, 12, 18, and 24 inch aluminum supports allow for easy customer mounting. The SA assemblies come in standard lengths from 6 to 192 inches and with shaft diameters from 1/2 to 2 inches.
* Twin Rail shaft assemblies are a complete pre-engineered assembly which simplifies the use of a linear bearing system in a mechanical positioning application. The two steel shafts are mounted and pre-aligned on the common base, therefore eliminating the time consuming alignment process normally required for two seperate shafts. The pre-drilled base mounting holes in the aluminum support allow for easy customer mounting. Each 6, 12, 18, & 24 inch aluminum support has two threaded holes at one end, to assist in leveling the assembly in the final mechanical structure. The TRSA assemblies come in standard lengths from 6 to 192 inches, and with shaft diameters from 1/2 to 2 inches.
|
|
|
|
|
|
YT...Series single edge linear rails
YT Series single edge linear rails are made of high-quality carbon steels. They are easy to mount with flexible application.
YITONG can supply two kinds of rails:
-Economical type (type YTS)
-Case-hardening with ground (type YT)
Custom drilled holes are available.
IDS & ODS linear guide rails
YITONG IDS (Inlay Dual Shafts Guide System) & ODS (Outlay Dual Shafts Guide System) consists of sliding carriage and rails.
The rails include an aluminum body and two pieces high precision%uFE51hardened linear shafts that are inlaid into the aluminum body.
The sliding carriage is mounted with three pieces or more high quality LFR series track rollers, two rollers are fixed on the block, and others are all with eccentric functions.
IDS & ODS have a low coefficient of friction and good performance in high speed and high accelerations.
The guide rails and the carriage block are all drilled with mounting holes, easy for mounting.
IDS & ODS are easy to get a proper preload by adjusting the rollers with eccentric functions.
IDS & ODS have a long service life. Track rollers are available on stock for customers' replacement.
Custom drilled services on the rails are also available from YITONG.
|
|
LinearRace Shaft Rail Assemblies
Thomson shaft rail assemblies offer:
* Assemblies are supplied cut to any length, with no limit on the overall length.
* Either solid or light-weight tubular shafting can be assembled to the standard Thomson support rails, which come with base mounting holes spaced evenly along the overall length of the assembly.
* Immediate availability only from an authorized Thomson distributor.
* The 60 Case LinearRace advantage: Unmatched straightness, smoothness, hardness and precision for superior linear bearing performance and life.
* Specially-designed packaging provides extended shelf life.
|
|
Two products in one catalogue designed to solve circular motion problems, Ring Slides for circular or part-circular movement and Track Systems for combination linear and rotary motion application. These products offer a cost effective solution with the benefit of the proven Hepco 'V' concept.
• All slides with hardened 'V' running surfaces and precision ground for maximum wear resistance and smooth running
• Ring Slides with gearcut option for ease of driving
• Ring Slides allow services to be routed through centre
• Track Systems allow continuous movement of carriages over unlimited lengths
• Easy method of driving carriages
• All systems with setting aids for quick installation
• Low friction, play free movement
|
|
Two products in one catalogue designed to solve circular motion problems - Ring Slides for circular or part circular movement and Track Systems for combined linear and circular motion applications. These products are unique in the combination of accuracy, capacity and design flexibility they provide.
- All slides with hardened ‘V’ running surfaces, available ground or unground in a range of sizes
- Ring slides with gear-cut option for ease of driving
- Track systems allow continuous movement of carriages over unlimited lengths
- Low friction, play-free movement
- Ring slides allow surfaces to be routed through centre
- Commercial unground version available on request
- Stainless Steel options available
|
|
INA monorail guidance systems are compact linear guidance systems with high rigidity and load carrying capacity, supplied in complete form as standard and based on either rollers or balls. These guidance systems can support loads from all directions – apart from the direction of motion – and moments about all axes. They are available in various accuracy and preload classes and are therefore suitable for applications with high guidance and positioning requirements.
Monorail guidance systems are part of a modular concept, i.e. within one size, guideways can be combined with all carriage types. This means more economical stockholding, simplified fitting and more rapid replacement parts sourcing.
In order to reduce maintenance costs, monorail guidance systems have a lubricant reservoir. All-round sealing of the carriages protects the rolling element systems from contamination even under demanding environmental conditions.
|
|
MONORAIL BZ - toothed rack system
An innovative drive concept
With the toothed system MONORAIL BZ SCHNEEBERGER offers a linear guide system with various classes of precision. This extends the characteristic performance of the MONORAIL linear guideways with the advantages of a highly accurate, integrated toothed rack drive system.
Advantages
It provides the following decisive advantages for the customer:
Single-piece system length up to 6000 mm
Two different sizes BZ 25 and BZ 35
Toothed rack in a high quality (hardened and ground)
Cost savings up to 25 % possible through the reduction of expenses on manufacturing and assembly
Best running characteristics, high load carrying capacity and lifetime based on the MONORAIL BM guideways
An uncompromising alignment to the customers requirements by means of the utilization of the ball guideway BM and by means of different toothing qualities
|
|
BM = Ball MONORAIL
Thanks to their minimum vibration and low friction, the new design of the ball cages of this MONORAIL provide greater precision and even better operating characteristics at higher traversing speeds.
|
|
MR = Roller MONORAIL
For all machine-tool applications in which precision, quality and rigidity are required, the roller MONORAIL MR represents the best-possible solution thanks to its high load-bearing capacity, its very light running action and full enclosure.
|
|
|
These systems employ round shafting, aluminum bodies and dual, angular contact - sealed for life - roller bearing wheels. Each has built-in preload adjustability. SPEED DEMONS are capable of speeds up to 10 meters per second. SPEED DEMONS are easy to install, lightweight and inexpensive.
|
|
The SBG(S)-linear guides adopt existing 4 row circular arc internal geaometry and can therefore interchange with any carriage now operating on SBC standard rail profile.
Self-aligning or floating ball retainer plates
The new ball return tube plate
End plate
End Seal
|
|
Intechangeable with other manufacturers NOOK Precision Profile Rail Linear Guide Systems provide stable and efficient linear motion guidance under variable speeds and high load conditions.
NOOK Precision Profile Rail runner blocks are available in two designs. One runner block design utilizes steel return tubes for ball recirculation and the other utilizes a plastic end cap for ball recirculation. The tube type recirculation system enables the runner block to be used for higher speed applications. The plastic end cap runner block is narrower in width than the return tube style block. Eight different models are available to meet the requirements of height, loads, mounting holes, etc.
|
|
Is it taking too long to make a fixture to increase production?
Mitee-Bite Products makes fixture building easier and quicker with the addition of ready made locating rails.
Mill a slot in the fixture plate to locate the rail and drill and tap the mounting holes. The height of the rails can be adjusted by the depth of the slot. Steps can be machined on the rails to hold the work piece above the fixture plate or a radius can be machined to match the contour on machinable clamps for irregular shape parts.
Locating rails are made of low carbon steel, precision ground square and are available in a number of sizes and lengths to suit most applications
|
|

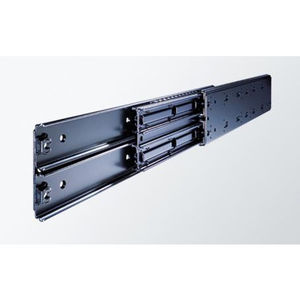

The TLR and TLQ rails are the world's only telescopic rail system which incorporates self-aligning feature to absorb parallelism errors of the mounting surfaces.
The TLR telescopic rails are designed for heavy duty High-Tech telescopic
applications, with precise motorized movement, requiring constant smooth sliding performance with no play. The special smooth operating performance is due to double-row precision bearings, strong rails with hardened and honed raceways, fixed to a rigid intermediate S-shaped steel
plate, assuring high load capacities and low deflexion at even fully extended position. The TLR telescopic rails assure unique self-aligning capability, when used in pairs.
|
|
RoundRail
Thomson Round Rail has been a fixture in the industry for over 50 years. Offering the best in quality, delivery and price Thomson Round Rail is the industry standard in a vast array of demanding applications.
Round Rail is chosen much like any other machine component. Machine builders spec out the design, define the objectives of the system and work from past experiences to build a better system. Thomson Round Rail makes this process even easier as it requires only one part number to specify the entire linear guide.
Thomson Round Rail is available with 60 Case, LinearRace Shaft end support blocks in either light weight aluminum or rigid iron materials. Used to provide increased stability or torque resistance in linear system applications, Thomson is the one and only name you'll need when choosing your round rail solution.
|
|
|
The Thomson Profile Rail assortment consists of the next generation Profile Rail 500 Series ball and roller linear guides, AccuMini, compact miniature MicroGuideTM, and lightweight T-Series. It is a complete offering of rails and carriages in a broad range of styles, sizes and unique features produced to industry standard dimensions for easy retrofitting into existing applications or designing into new applications.
|
|
CURVILINE: ...the rail which goes “straight” to the solution!
ROLLON’s CURVILINE is the cost effective linear solution for applications with linear movement that isn’t always strictly linear. It is a custom solution made according to your application’s needs.
The system is composed of one or more sliders and a zinc-plated rail. The sliders have multiple radial ball bearings mounted to them providing the movement and carrying the load.
Two versions are available: one with a constant radius, and one with a variable radius which can be composed of both straight and curved sections.
Each version has its own specific slider which is designed to uniformly follow the rail without modification to its preload. All sliders have radial ball bearings which are lubricated for life and offer long life due to their hardened raceways.
|
|
- A multi guide combining the advantages of the HSR LM Guide and the HCR curved LM Guide
- Enables new construction solutions in which guide blocks can execute both linear and circular movements
- Virtually limitless design possibilities
- The HMG is available in 5 different sizes (HMG15 to HMG65)
- 2D & 3D CAD Drawings
|
|
|
NB's long standing technological leadership in Slide Way product, has brought about a new product to address radius movement. NB's GONIO WAY (RV type) is a non re-circulating crossed roller bearing providing low friction radius movement. The RV type is ideal for applications where sweeping movement or precise angular positioning is required without changing rotation center, such as in optical equipment and measuring devices.
|
|
The simple yet extremely versatile design of the rails in this family is the characteristic that defines their success. Made from cold-drawn steel with internal, hardened raceways like most of ROLLON’s products, these slides are made for repeated industrial use. With high load and moment capacities, EASY RAIL linear bearings are known for their high quality, affordability, ease of movement, and compactness.
|
|
COMPACT RAIL features inductively hardened rails. This system is recommended for high processing speeds, long service life specifications, and noiseless running.
*Three rail types, T, K and U profiles, with fixed or loose bearings (T+U or K+U), compensate for production tolerances, e.g. for machine housing
*Compact dimensions thanks to internal raceways
*Two slider types, N-series with aluminium diecast bodies, C-series with steel bodies
*Lifetime lubrication
*Insensitive to dirt
*Suitable for processing speeds up to 9 m/s
*Sizes 18, 28, 43, 63mm rail widths
*Adjustable preload
|
|
|
|
|
|
X RAIL, new linear bearing X RAIL in 2 versions: stainless steel or zinc plated steel.
X RAIL is a simple and cost effective linear bearing for applications where good load capacity and corrosion resistance are most important.
X RAIL is available in two different versions:
X RAIL in stainless steel version (TEX rail, CEX slider)
X RAIL in zinc plated version (TES rail, CES slider)
Both versions are in three different sizes: 20, 30 and 45mm base.
X RAIL in stainless steel version - This series is a simple and cost effective linear bearing for applications where corrosion resistance is most important. Advantages:
- Corrosion resistant even after scratching, etching, and chipping
- Can be used in washdowns
- Resistant to high temperatures and temperature changes
- No coatings that could flake or chip
- Low coefficient of friction
- Ecological and recyclable materials
The contoured rail is made of AISI316L stainless steel and comes in lengths up to 3 meters (9’10”). The raceways are internal for better protection and compactness.
The rails come with standard mounting holes with a hole pitch of 80 mm (3.15”).
|
|
