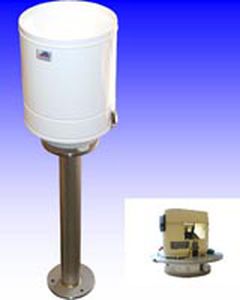

Ecotech 200 wet only rainwater sampler
The Ecotech Model 200 Wet-Only Rainwater Sampler is used for acid rain experiments. The sampler has wetted surfaces composed of inert materials to ensure that there is no contamination of rainwater due to chemically labile
species. A special version of Model 200 is also available specifically to sample snow and ice.
Features:
- Manufactured under license from Australian research institution CSIRO
- Microprocessor controlled with on-board data collection and storage facilities.
- Wet-only sampler controlled by tipping bucket pluviograph.
- Composite or multi-bottle collection.

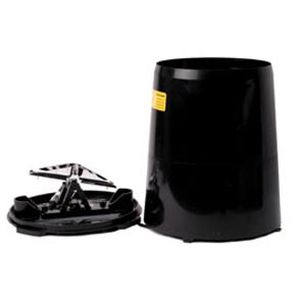

Ecotech Rainmaster 1000 for measuring rainfall
The Rainmaster 1000 is a simple Tipping Bucket Rain Gauge used to measure rainfall. The Rainmaster 1000 collects rain water until the collection bucket tips over pouring our the water into a bottle underneath. This tipping action is calibrated to a known amount of water and the instrument will record the amount of tips to calculate the rainwater level.
- Tipping bucket operation (self emptying).
- Teflon coated bucket.
- No maintenance Teflon® bearings
- Quality reed-switch contact-closure output.
- Made from corrosion resistant materials.
- Collection capability for sampling or verification.
|
|

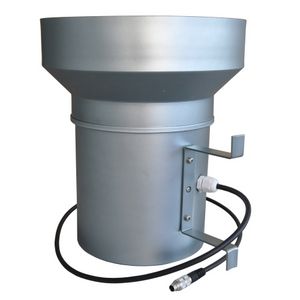

Universal precipitation gauge using the balance principle for liquid, solid, and mixed precipitation
It does not matter whether it is drizzle, sleet, hail or snow, the new OTT Pluvio² reliably and accurately measures both, the amount and the intensity of liquid, solid, and mixed precipitation.
It works according to the balance principle, taking account of external factors such as temperature and wind that could distort the results. Both, digital outputs (impulse/0.1 mm and frequency/status) and the serial interface, freely configurable as SDI-12 or RS-485, are available for transferring the data.
High-precision technology and robust design provide high accuracy and complete reliability.
Load cell and sensor electronics are hermetically sealed against damaging environmental influences. We have designed the carrier, bucket and protective housing parts to be particularly robust and we have ensured the use of high-quality materials.
|
|
The measurement of precipitation is an important element in efforts to maintain the water balance. Mierij Meteo plays its part in this respect by providing meteorological consultancy services and developing new products.

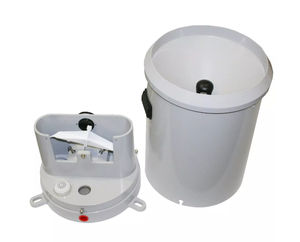

The model 200 rain gauge operates on the basis of a tipping bucket mechanism. The bucket is available in capacities that correspond with precipitation of 0.2 mm. The bucket assembly acts as a seesaw. As soon as the upper bucket is full, the lower “empty” bucket is lifted to be filled, while
the lower bucket is drained. The tipping bucket pivots on bearings which minimizes friction and wear. Each tip generates an electrical impulse.
The total precipitation during a certain period of time equals the number of impulses multiplied by the contents of the bucket used multiplied by a
constant. The rain gauge is designed for accurate operation with trouble-free service
|
|
Rain gauge type RG-50
Tipping bucket rain gauge sensor with collecting area of 200, 314, 400 and 500 cm². Resolution 0,1 or 0,2 mm. Simple connection of data logger.
|
|
