Raman IdentiCheck Portable Raman System
The PerkinElmer® Raman IdentiCheck™ is a unique instrument that combines the convenience of a portable, hand-held triggered probe system with the performance of a highly specified laboratory instrument. It is the perfect choice for in-situ Raman analyses performed away from the normal laboratory but where high-quality data is essential, such as:
- Laboratory-based or field-based forensic analysis
- Homeland security
- Laboratory or warehouse QA/QC analysis
- In-situ conservation analysis
- Analysis of samples in specialist enclosures such as fume-cupboards
- Laboratory or in-field geological analysis
- Any field-based material identification analysis such as chemical spillage
or environmental analysis.
Raman IdentiCheck is packed into a portable, wheeled case, with retractable handle suitable for transportation.
|
|
The MiniRam™ Raman spectrometer system is a powerful and versatile instrument with a miniature design. Lightweight and with a small footprint, this highly affordable system delivers high resolution and low noise without cumbersome cooling schemes. Fast data acquisition through an easy plug-and-play USB interface and open-framed operating software with multiple data formats and easy data transfers makes this system diverse to a wide range of applications; Raman feasibility studies, university teaching labs, and with our external battery option becomes portable for field applications.
Key Features
- Lightweight
- Small size
- Highly portable
- USB interface connection
- Optional external battery
|
|
|
|
|
|
The AvaRaman Raman System is a fully integrated, low-cost system for applications requiring Raman techniques. The AvaRaman system consists of a laser diode, an AvaSpec 2048 CCD-array spectrometer and an expanded range of fiber optic probes. The AvaRaman System is available for multiple Raman wavelengths in 2 basic versions:
The low-cost non-cooled version with 25 cm–1 resolution, standard built-in solid state laser .
The high performance, TE-cooled version with a stabilized Laser that can achieve an optical resolution of 8 cm-1.
Both AvaRaman systems come with special AvaSoft-Raman software (see software section). The AvaRaman System is optimized for maximum sensitivity. The maximum integration time is 60 seconds.
The AvaRaman is especially useful for analysis, such as reaction monitoring, product identification, remote sensing, and the characterization of highly scattering particulate matter in aqueous solutions, gels and other media.
The AvaRaman System is also available with different Laser types than the standard 785nm, such as Ar-Ion 514 nm, solid-state 50 or 100 mW green (532 nm) lasers or HeNe lasers 633nm.
|
|
Raman Systems
Raman spectroscopy provides rapid and reliable non-destructive analysis of aqueous solutions, powders, tablets, gels and surfaces.
Applications
» Art measurements
» Biology analysis
» Catalyst monitoring
» Corrosion studies
» Forensic identification
» Material characterisation
» Gemology measurements
Ocean Optics offers different kinds of Raman Systems:
» QE65000 Modular Raman Systems
Features a laser, a spectrometer and probe and can be configured to fit your specific application.
» Turnkey Raman Systems
Features a high performance system for quick material identification and verification.
» Portable Raman Systems
Features a hand held system for field deployment and fast incident response.
Advantages
» Comparable information to IR
» Can analyse liquids, gels, powders and solids
» Contact with sample is not necessary
» Real time qualitative analysis
» Excellent resolution
|
|
Renishaw manufactures a wide range of optical spectroscopy products, including: Raman microscopes, compact process monitoring Raman spectrometers, Raman analysers for scanning electron microscopes, lasers for spectroscopy, and state-of-the-art cooled CCD detectors.
The Renishaw Raman systems exploit the Raman effect to identify and characterise the chemistry and structure of materials in a non-contacting, non-destructive manner.
|
|
The innoRamTM is the first Raman spectrometer system featuring an integrated
touch screen computer with research grade performance. The combined portability and versatility this system features will provide you with the tools needed to tackle the dynamic Raman spectroscopy industry in a lab or a mobile environment.
Highlights
- Spectral Resolution of 2cm-1
- 65cm-1 of the Raleigh Line
- Detector Cooled to -20oC
- Double Pass Transmission Optics
- Integrated Touch Screen Computer
- Network and Bluetooth Capabilities
|
|
|
The DXR SmartRaman spectrometer is designed for use in busy mult-purpose analytical labs that require reproducible and accurate results from dependable, low maintenance instrumentation. DXR SmartRaman delivers all of the benefits of Raman- no sample preparation, sampling through packaging, and high specificity with organics and many inorganics, in a validatable package that does not require that the user become a Raman expert.
|
|
|
|
|
|
Raman spectroscopy uses a laser excitation source to induce scattering from the targeted sample. The spectrometer is used to detect this low-level return signal to identify the sample makeup. The popularity of Raman is growing over the competitive IR analysis technique because no sample preparation is required and silica fiber optics and detectors are efficient and low cost in the VIS and NIR wavelength regions. There are several popular laser excitation wavelengths such as 532, 632, 670, and 785nm.
The standard StellarNet Raman spectrometer is configured for a 785nm laser with optics to handle measurements in the NIR range from 785-1150nm. If another range is desired, specify the laser wavelength after the R in the spectrometer model number. This provides a Raman shift range of 200-4000cm-1 wave numbers to the right of the laser line (Stokes). A slit is installed to set the optical resolution and should match the laser line width. A 50um slit provides 2.4nm (~40 cm-1) resolution. A 25um slit would double that resolution and unfortunately reduce the signal by 50%. Maximizing the signal input, from the Raman probe, using fiber bundle circular-end to line-end is important when a slit is used.
|
|
|
|
|
|
BaySpec's SafeInspec-0TM Handheld Raman Analyzer delivers high sensitivity and repeatability in an affordable, ruggedized battery-operated form factor.
1st Generation Raman Analyzers were limited to laboratory instruments. 2nd Generation Analyzers, although portable, were costly and struggled with repeatability. BaySpec's 3rd Generation SafeInspecTM delivers highly repeatable results in a sleek handheld package. High reliability (MIL STD 810F shock and vibration) is achieved through a rugged mechanical design with no moving parts based on Volume Phase Gratings (VPG®), the same components used in today's head-up fighter jet displays. Periodic calibration is not required. A convenient Windows®-based Handheld PC is included for qualitative and quantitative measurements.
Features:
Can identify both commonplace and rare chemicals through glass, plastic, transparent- and even translucent- materials
Ergonomically-optimized, ultra light weight
Single-handed or wireless hands-free analysis to maximize field performance
Can accurately identify chemicals in mixtures at concentrations as low as 30%, dependent on mixture's specific chemica(s) and substance(s)
Boothtooth access to external PC or Smart Phone (PC/phone not provided)
Rapid automated calibration to ensure operational accuracy
Helps reduce the likelihood of human error by eliminating sample preparation and test interpretation
Non-destructive testing preserves samples for additional tests and/or as evidence
|
|
|
Main features of this system are an adaptation a super stable single mode 500-picosecond pulsed Diode Pumped Solid State Lasers (DPSSL) with more than 8 kW peak power as a probe beam. Combining with high sensitive CCD camera it gives possibility to detect Raman spectra of different media at broad dynamic range of scattered light intensities from extremely week up to saturated signals. This Raman Spectrometer, equipped by confocal microscope could be used for Micro Raman 3D imaging
|
|

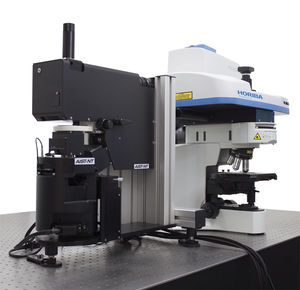

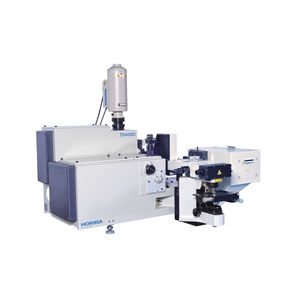

The Raman microscope has become an invaluable analytical tool for many different and varied applications including pharmaceuticals, polymers, semiconductors, forensics and even life science.
The LabRAM series of Raman microscopes incorporates leading edge technology in detectors, lasers and optics to provide fast, sensitive and flexible analytical measurements. The LabRAM series features the TRUE CONFOCAL APERTURE Raman microscope design for the very highest spatial and depth resolution. Analysis of samples down to the micron scale and automated high definition Raman mapped images can be obtained with ease.
|
|
|
The Inspector Raman™ is a robust, portable Raman spectrometer that fits in your hand for analysis of solids, liquids, pastes, and slurries. This lightweight, dispersive spectrometer has no moving parts and may be used in any position. Raman spectroscopy offers the advantage of identifying various substances by their unique fingerprint, based on the chemical structure of the unknown, and can do so through walls of sealed bags, transparent bottles, flasks, vials, and ampoules without opening the container. Data is retrieved remotely with Bluetooth technology or USB with a laptop and NuSpec™ software. Spectral libraries are developed using DeltaNu's library development software for identification of unknown substances.
|
|
|
|
|
|
The intuitive, easy-to-use OPUS software controls all data collection and manipulation functions for the MultiRAM. The real-time spectrum display permits software control of the analysis conditions, including optimization of the laser power and the sample position.
High Performance
Combine advanced digital electronics with Bruker Optics’ high quality optics and you have the ultimate in a high performance FT-Raman system. The heart of the MultiRAM is Bruker Optics’ patented interferometer with gold coated optics and permanent RockSolid alignment, which provides the superb stability and throughput required for demanding emission experiments.
For ultimate flexibility, the MultiRAM can accommodate a second laser and detection system, automated polarization accessory, and two-fiber optic coupling ports. Other features include easy switch between 90° and 180° scattering geometry, and defocusing optics (necessary for colored samples which can heat by the laser beam). A motorized sample stage for sample position optimization, and a white light source to correct the spectra for instrument responses are included in the standard configuration of the MultiRAM. Additional sampling accessories, such as automatic sample changers, low and high temperature stages are optional. The FT-Raman microscope RamanScope expands FT-Raman spectroscopy to samples in the µm size range.
|
|
The Advantage series is our classic low cost and high performance bench top models with the option of 532 nm, 633 nm, 785 nm (NIR) or 1064 nm excitation. Determining the most appropriate model for your application is dependent upon the sample properties. Call us today so that we can help you determine the most appropriate analyzer for your application.
Advantage 633
This is DeltaNu's classic low cost, high performance 633 nm Raman system. The Advantage 633 Raman spectrometer is easy to use on solutions, gels, powders, and coatings. Sampling accessories are available for various sample types. The Advantage 633 covers a wide spectral range for analysis of inorganic anions to aliphatic hydrocarbons. It is used in industrial applications, academic research, and teaching labs.
|
|
