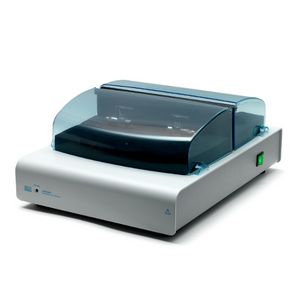

Microwave Synthesis: Monowave 300
Monowave 300 is a high performance microwave reactor specially designed for small scale microwave synthesis applications in research and development laboratories. Microwave irradiation nowadays is not only successfully employed for organic synthesis - inorganic synthesis, material science, polymer chemistry, and other disciplines can also be performed successfully.
Performance without compromise
* 850 W unpulsed microwave output power
* Extremely high field density
* Simultaneous temperature measurement with IR and fiberoptic sensor
* Highest accessible temperature/pressure conditions
* Utmost temperature homogeneity
Special accessories
* Fiber-optic temperature sensor
* Autosampler (available soon)
Scientific diversity
* Method Development & Optimization
* Building Block Synthesis
* Scaffold Decoration
* Solid Phase Synthesis
* Metal Catalysis
* Derivatizations
* Peptide Synthesis
* Preparation of Nanoparticles
* Zeolithe Synthesis
* Polymer Synthesis
General benefits of microwave synthesis
* New reaction pathways
* Significant rate enhancement
* Reduced overall process time
* Increased yield
* Improved product purity, less by-products
* High reproducibility
* Software-controlled processing
|
|
|
High pressure reactors can be customized with sightglasses, liners & high pressure analytical probes. Ease of cleaning & elimination of foot bearings reduces the risk of cross-contamination. It has indefinite service life & improved experimental repeatability compared to non-stirred autoclaves, laboratory bombs & reaction kettles. See AE Closure Ultra High Pressure Reactors for pressures above 5,000 psi (379 bar). See Easy Open Laboratory Reactors for pressures of 3,300 psi (227 bar) or less.
|
|
|
Parr offers over 100,000 possible combinations of stirred reactors with volumes ranging from 25 ml to 5 gallons. An extensive choice of designs can efficiently and cost-effectively meet the individual user's operating requirements with pressures up to 5000 PSI for operating temperatures to 500C. And that's before we even start to talk about customization.
|
|
|
|
|
|
Parr's Series 5500 High Pressure Compact Laboratory Reactors (HPCL reactors) are based upon our popular micro and mini, Series 4590 & 4560 reactors for chemical reactions under elevated temperature and pressure. This stirred reactors feature a smaller, more compact magnetic drive and variable speed stirrer motor that is directly coupled to the magnetic drive.
These designs are ideal for not only investigators with limited space or budgets, but also by investigators building multiple reactor installations for combinatorial chemistry or high throughput investigations.
The reaction vessels used in these new HPCL reactors are identical to the ones furnished in the Series 4590 micro reactors and the Series 4560 mini reactors. HPCL reactors use the popular Parr split ring closure. These vessels are rated for a maximum working pressure of 3000 psi. The maximum operating temperature is dependent upon the seal selected, PTFE gasket for up to 350 C; with FKM O-ring to 225 C or FFKM O-ring to 275 C.
The 25, 50, and 100 mL reactors are equipped with gas inlet and outlet valves, a liquid sampling valve, pressure gage, safety rupture disc and internal thermocouple in addition to the internal stirrer. The 300, 450 and 600 mL reactors provide an internal cooling loop in addition to these fittings.
|
|
|
Parr glass reactors offer a corrosion resistant vessel with Teflon coated internals. Glass reactors also permit direct observation of mixing action, color changes, or changes of state. Vessels are rated to 150 PSI (10 bar) at 225C. Six sizes are available from 160mL to 1,500mL in glass and glass jacketed versions.
|
|
|
The 5000 Multiple Reaction System from Parr Instrument Company has been designed for rapid screening of catalyst and similar parallel or combinatorial studies. It features six individual reactors (45 ml or 75 ml) for operating pressures to 3000 PSI and temperatures to 225C (o-ring gasket) or 300C (PTFE gasket). A magnetic stirrer bar provides sample mixing.
|
|
|

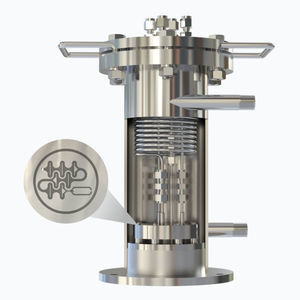

Parr Tubular Reactors combine continuous flow reactions with an endless number of customization possibilities. Tubular reactors are always used in a continuous flow mode with reagents flowing in and products being removed. Flow can be single phase or two-phased, single wall or jacketed.
|
|
|
|
|
|
DRUVATHERM Reactor DVT
High speed mixing of reactants
Prevention of local overconcentration
No temperature gradients in the reaction field
Improved reaction of reactants providing higher yield and greater end product purity
Multiphase process (reaction, heating, drying, granulation, cooling)
Machine Type
Ldige DRUVATHERM Reactors are batchprocess, high speed reactors. A three dimensional movement of the product is generated by mixing elements, adapted to the process, rotating in a cylindrical drum which is jacketed for temperature regulation. The resultant frequent contact of the reactants ensures effective reaction and maximum yield.
Standard Configuration
The high speed mixing elements force frequent contact between the reactants and intensive contact with the heated or cooled drum wall. In this way reactions in both homogeneous and heterogeneous phases can be carried out in any combination of solid/ liquid/gaseous, whereby the spectre of the product consistency can be liquid, pasty, lumpy or even free flowing. High speed choppers fitted to the side of the machine drum provide an additional mixing effect whilst dispersing the reactants.
|
|
Reactors
SR Series
Solaris developes reactors and homogeneizers for the process, chemicals and cosmetic industry.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
Specs: DN20-150C1-6
StandardFDINASMSAISO
MaterialFSUS304ASUS316L
ApplicationFbeer CDairy IndustryCbeveragesCpharmaceutical
|
|
|
|
|
|
Optimal solutions for tank weighing, level measurement and batching processes.
HBM tank weighing modules, electronics, and software meet the most stringent requirements for precision and reliability in all types of tank and batch weighing applications.
Our tank weighing modules help maximise machine reliability, product quality and repeatability in the following industries:
Chemical Industry
Almost limitless range of solutions, especially for potentially explosive atmospheres
Cosmetic Industry
Batch weighing of lifestyle, health, and beauty products
Pharmaceutical Industry
Maintaining the high quality of medicinal products
Animal Feed Industry
Ensuring the delivery of exact quantities of fodder to farm animals
Synthetic Material Processing
Weighing and batching of goods in the synthetic materials processing industry
Food Industry
Our hermetically-encapsulated load cells made of stainless steel provide a long service life with absolute weighing precision, even in damp, corrosion-prone environments
Steel Industry
Reliable results even at high temperatures
Building Materials Industry
Weighing and batching of heavy building material in silos e.g. additives for different types of concrete.
|
|
Whether storage tank or outdoor silo, batching tank, mixer or reactor Sartorius offers tailor-made equipment for almost every process vessel scale.
In addition to rugged and particularly reliable load cells, this also includes a complete range of accessories: from GL-certified mounting kits to state-of-the-art process transmitters. Everything fits together.
From a few kilograms to well over a thousand tons: the complete range for almost every process situation and accuracy specification
100% maintenance-free and highly reliable for the most accurate measurement values that you can trust
Unique safety provided by mounting kits and constrainers certified by Germanischer Lloyd
Complete range of instrumentation including digital process transmitters, process indicators and batch and system controllers
|
|
An extensive range of products for the use in the process industry, covering all accuracy levels, various automation needs and communication demands.
The applications range from level control by weight, flow by weight, bulk weighing of silos, standard batching, weighing and batching of agitated vessels and batching control in parallel including recipe handling in larger systems.
|
|
MH - WEIGH MODULE
APPLICATIONS
- Tank, Bin and Hopper Weighing
- Mixer and Blender Weighing
- Bulk Material Inventory/Processing
- Silo/Large Vessel Weighing
- Legal-For-Trade Certified System
FEATURES
- 5,000 to 150,000 lbs. Capacities
- Dual Shear Beam Technology
- 0.02% Accuracy Class
- Epoxy-Coated Steel Mount
- Accommodates Vessel Movement
- Self-Checking/Integrated Design
- Matched Output Sensitivities
- IP67 Environmental Sealing
- Two Year Warranty
|
|
Weighing and Batching
An extensive range of products for the use in the process industry, covering all accuracy levels, various automation needs and communication demands.
The applications range from level control by weight, flow by weight, bulk weighing of silos, standard batching, weighing and batching of agitated vessels and batching control in parallel including recipe handling in larger systems.
|
|
|
|
