| The BD 300 is a general purpose measurement tool ideal for many types of test & measurement applications in scientific - laboratory - industrial - and technical environments. |
|
It is dotting style of 6 - channel chart industrial recorder, universal input, low cost, short depth 150mm, light weight 1.5 kgs and IP65 water-resistance.
FEATURES
- 6-channel dotting
- Short depth in 150mm
- Weight 1.5kg only
- Dust-proof.IP-65 Water-resistance
- Standard RS-232 Communication interface
- Universal input and range
- UL, CSA, CE approved |
|
It is the world first paperless recorder of the same size in highest resolution 640x480 pixels VGA TFT display, infrared detector, maximum 18 channels, plug & play I/O cards. It has many other unique features too, 12 soft keys for easy operation, universal input, the shortest depth 174mm, well designed portable handle, fully isolated channels, reliable and high capacity storage media CF card
FEATURES:
- 6.4"Color TFT LCD with 640X480 pixels resolution
- The Maximum Channels :
- 18 isolated analog input channels
- Plug & Play Supported I / O card, 6 Slots
- The High Flexibility :
- User configurable l / O card
- Expandable modular architecture
- Flexible screen configuration
- User-Friendly
- Soft keys coupled with interactive dialog simplify
- setup & operation procedures
- Easy - to - access function keys
- Infrared Detector:
- Shut off LCD automatically to prolong LCD life
- and save power while nobody near by
- Save Space:
- Only 174 mm (6.9") depth behind panel
- Various Display Formats:
- Vertical trend , Horizontal trend,
- Bar Graph, Numerical or mixed
- Save Data in Flash ROM,
- Compact Flash Card or PC
- Communication :
- Standard Ethernet and optional RS-232 / 422 / 485
- The Highest Accuracy
- 18 - bit A -D analog input, 15-bit D-A analog output.
- Fast Sampling Rate:
- Within 200 msec for all channels,
- Programmable Filter or Moving Average Sampling Method
- Statistics with Instant , Average , Min./ Max. Values
- Progammable Alarms and Messages available
- Portable / Bench Top Assembly Kit available
Available in low cost 6 channels |
|
Example:
-JUMO LOGOSCREEN 500 cf Entry-level Paperless recorder with CompactFlash card and life-cycle data management (70.6510)
Measurement data presented numerically as vertical diagrams (with scaling,
numerical display, or as a bar graph)
Presentation of event traces such as "Binary inputs"
On-site availability of measurements in the FLASH memory
Measurement data are retained, even after a power interruption
Saving of data sets on the CompactFlash card
Instrument configuration through the keys or the setup program(CompactFlash card or interface)
Evaluation of archived data with PC evaluation program
Search function for history analysis
Adaptation of the memory cycles to the specific process, using normal,
time-of-day and event operation
Freely configurable inputs
Internal sampling rate 250msec for 3 or 6 analog inputs, minimum storage cycle 1sec
Counters and integrators (6 channels)
Math and logic module (6 channels)
integrated web server
The appearance of the LOGOSCREEN 500 cf is dominated by a 5-inch color display, in which the measurement data can be displayed in a vertical direction, similar to ordinary chart professional recorders. But unlike ordinary recorders, the LOGOSCREEN 500 cf does not need any chart paper for recording. Measurement data are stored electronically, and are available for evaluation on the spot as well as in the PC.
The integrated life-cycle data management ensures fast traceability of process data referred to specific installations.
... |
|
THE LARGE GRAPHICAL PROFESSIONAL LCD DISPLAYS A DETAILED GRAPH OF RECORDED TEMPERATURE DATA AND CAN ALSO BE DOWNLOADED VIA USB OR OPTIONAL FLASH MEMORY CARD. SETUP IS A SNAP WITH EASY-TO-USE MENU OPTIONS. NO PC INTERFACE REQUIRED AND AC POWER WITH BATTERY BACK-UP ENSURES UNINTERRUPTED LOGGING.
Features: large screen, user-defined display settings, remote probe, 32KB Storage, and audio/visual alarms. |
|
Chart and Paperless recorders
Data Recording and Storage of the Data is fundamental in Process governor.
Quality and repeatibility of the manufacturing data need to be kept under close control for industries such as Food Processing, Conservation and Maturing, Beverage, Pharmaceuticals, Chemicals and Petrochemicals, Heat Treatments, etc.
Ascon offers high reliability and quality Chart Industrial recorders with 100mm and 180mm chart widths and Videographic Paperless Recorders with several sophisticated functions such as Mathematical Functions, Ethernet Serial Communications and unalterable data storage.
The latest technological developments allow the Paperless recorders to compete with the Chart recorders.
|
|
THE KT803 IS A NEW AC POWERED, EASY-TO-USE [HIGH] TEMPERATURE MONITORING UNIT. FEATURES INCLUDE:
A LARGE 8” CHART
REMOTE K-THERMOCOUPLE PROBE
USER SELECTABLE TEMPERATURE RANGES AND RECORDING TIMES
DIGITAL DISPLAY
AUDIO/VISUAL ALARMS
FLIP-UP PEN ARM
USER SELECTABLE TEMPERATURE RANGES UP TO 1093şC
TWO REMOTE K-THERMOCOUPLE PROBES |
|
HUMLOG 10 series humidity/temperature data loggers permit the exact and professional recording of humidity and temperature values. Low power consumption and large professional memory size enable long-term data capture for a wide range of applications.
HUMLOG 10 / HUMLOG 10TSE:
The elegant 2-part professional housing, which consists of a professional display module and a plug-in sensor module, enables easy installation and a fast exchange of the sensor unit when service is required.
The current measurement data on the large display is easy to read even from a distance of several metres.
HUMLOG 10THC:
The compact HUMLOG 10THC version does not have a display and is equipped with internal H/T sensors.
Measurement Data - Evaluation & Configuration:
Measurement data evaluation and instrument configuration can be conveniently performed via the serial RS232 professional interface with a PROFESSIONAL PC or notebook professional computer by means of the Smartgraph TM 2 professional software, which runs under MS Windows TM.
Smartgraph TM 2 can display the recorded measurement data in graphical form or as a table. The layout of the display can be individually configured by the user.
|
|
Directs Your Attention to Out-of-Range Conditions with both audio/visual alarms and large digital display of current or min/max conditions.
Multiple Features to Streamline Temperature and Humidity Monitoring:
Detailed data resolution with 8” readable chart area, remote probe with 3m cord, battery backup, and user-selectable recording times and temperature ranges. |
|
ShockWatch Impact & Environmental Professional recorders help monitor and record impact and shock vibration to your equipment, structures, and storage environments — ensuring protection from costly damage. Additionally, they provide an ongoing record of the environmental conditions of the product, equipment, or structure being monitored.
They provide ongoing monitoring of the intensity and duration of shock and vibration to large stationary or moving equipment, structures, and products. Tri-axial piezo-electric industrial accelerometer technology is used to record impact direction, amplitude, and duration. Optional detection also record changes in temperature, humidity, and atmospheric pressure.
The Micro ShockLog — RD317 records the date and time of up to 128 events, in addition to peak values of impacts at user-specified intervals. Optional accessories include a moisture sensor.
|
|
ShockWatch Impact & Environmental Industrial recorders help monitor and record impact and shock vibration to your equipment, structures, and storage environments — ensuring protection from costly damage. Additionally, they provide an ongoing record of the environmental conditions of the product, equipment, or structure being monitored.
They provide ongoing monitoring of the intensity and duration of shock and vibration to large stationary or moving equipment, structures, and products. Tri-axial piezo-electric industrial accelerometer technology is used to record impact direction, amplitude, and duration. Optional sensors also record changes in temperature, humidity, and atmospheric pressure.
The ShockLog records the date and time of up to 400 events. It has several unique features, making it especially suitable for applications in which the cost of exposure to out-of-specification environmental influences is very high. The instrument is equally convenient for protecting high-value fixed or mobile installations, or characterizing shock and vibration during transportation.
|
|
The low-cost paperless recorder VR06 with VGA display, 6 analog input, infrared detector, plug & play I/O cards
FEATURES:
- 6.4"Color TFT LCD with 640X480 pixels resolution, 4 times better than competitors
- 6 analog inputs in maximum
Infrared detector to prolong LCD lifetime and save the cost
- Plug & play I / O cards easy for expansion and configuration
- High security option of FDA 21 CFR part 11 compliance
- Daily, weekly or monthly report of maximum/minimum/average values
- Analog output card available to retransmit voltage or current
- Available with 12 languages English, French, German, Italian, Spanish, Polish, Russian, Chinese (simplified), Chinese (traditional), Japanese, Korean & Thai
- Anti-dust solid storage media of Compact Flash card
- 12 soft keys with simple setup and friendly operation
- Standard Ethernet , optional RS-232 / 422 / 485 communication
- High accuracy with 18-bit A-D input, 15-bit D-A output
- Vertical, horizontal trend, bar graph and numerical modes
- Portable handle easy or carrying or laboratory
Available in High performance 18 channels |
|
Advanced Diagnostics in a Portable, Expandable Package
Not all data collection systems are created equal. With thousands of users around the globe, ADRE PDS's are trusted by machinery professionals in a wide variety of industries for their most advanced diagnostics requirements. ADRE truly is the diagnostic product that customers across industries trust for their diagnostic and data collection needs.
Synonymous with quality and advanced technology, ADRE leads the way.
|
|
VibDAQ; Manufacturers of data acquisition Module with ICP® or voltage inputs,
multifunctional data acquisition module in a portable housing.
RogaREC included.
Datalogger with ICP® (IEPE) or voltage inputs.
The VIBDAQ-4+,8+,16+ series offers high-speed, multifunctional data acquisition module in a portable housing. Vibdaq is fully operated by USB 2.0.
Modules offer synchronous sampling for all channels (0 degree phase shift), inputs can be set in ICP® or voltage mode.
|
|
RogaDAQ 16 datalogger Description:
With the introduction of the RogaDAQ16 USB2.0 manufacturers of data acquisition system, a new age of measurement technology begins.
USB 2.0 / 480MBIT (USB1.1/12MBIT COMPATIBLE)
16 analog input channels (16bit/500kHz max.)
IEPE sensor supply (24V/4mA)
0.125V to 10V input range
Individual preamplifiers
4 analog output channels (16bit/100kHz)
Powerful INDUSTRIAL DSP (255MIPS) for filtering, control etc.
24 digital I/Os
Optional 24bit professional counter, timer, PWM, incremental encoder
Free drivers for major application software
including DASYLab; LabView & DiaDem drivers & RogaRec Software; FlexPro7 Standard
The RogaDAQ16 is an affordable multichannel IEPE solution. The USB 2.0 interface permits unrivalled portability. Hotplugging the data data logger during operation has now become a reality. The compact and rugged measurement unit with its BNC suppliers of connectors breakout boxes obsolete. Downward compatibility to USB 1.1 also permits to run this high performance measuring system with older hardware. Simplicity of integration, whether mobile or stationary, has reached a new level.
|
|
The use of the professional ink jet professional printing technology makes of the industrial Microjet recorder an unique and revolutionary device at present on the market. The silicon chip, already used in the manufacture of FCX industrial transmitters, has been used by Fuji Electric in the design of this new printing system. The industrial professional recorders PHE, PHC (100 mm) and PHA (180 mm) allow continuous recording of 1, 2, 3, 6, 12 or 24 channels in 6 colours with an unprecedented quality and speed. Thanks to the small number of moving parts, this new technology reduces in a important way the number and the cost of the various maintenance operations, which were necessary for the traditional pen printing.
The ink jet head is based on a silicon chip. In printing mode, it is not in contact with the paper; this avoids any friction and allows a stable and accurate recording.
|
|

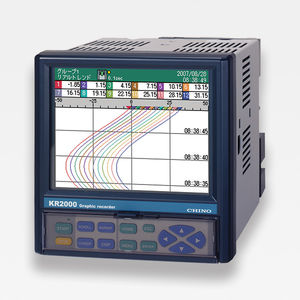

KR2000 Series are network-compatible graphic data acquisition with high performance and high operating function employed high visibility 5.6"TFT color Industrial lcd display. High speed of sampling rate 100ms for 12 points and high accuracy of ±0.1% were realized, and measured data is stored into internal memory and maximum 2GB compact flash card. As it can be monitored by a web browser display on several professional computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.
The industrial recorder can be used for various applications such as data management, research, development, remote and wide range monitoring by utilizing internet environment. |
|
For the display and the record of process data, Fuji Electric offers a complete range of recorders: traditional paper chart recorders (continues or dot recording), paperless recorders and remote I/O modules with PC chart recorder software.
Simple applications but also more complex with alphanumeric messages, totalize and math functions, digital I/O are possible with one recorder of Fuji Electric.
|
|
The new DataChart 1250 paperless recording features 2 user configurable inputs for measuring DC voltage, current, manufacturer of thermocouples, RTD’s and frequency/RPM inputs.
Four internal alarm set points can be programmed to activate the 2 SPDT relay outputs. Data is displayed in real time graphic or digital format on a bright LCD display with LED backlight. Data is stored on CompactFlashTM cards up to 2 Gig in size. Data can be reviewed, printed and exported using the optional Navigator professional software for Windows. Data can be stored at up to 100 samples per second for both channels. Power is supplied via A/C wall transformer or via optional internal rechargeable NiMH battery pack. |
|
KR2000 Series are network-compatible graphic recorders with high performance and high operating function employed high visibility 5.6"TFT color LCD display. High speed of sampling rate 100ms for 12 points and high accuracy of ±0.1% were realized, and measured data is stored into internal memory and maximum 2GB compact flash card. As it can be monitored by a web browser display on several industrial computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.
The professional recorder can be used for various applications such as data management, research, development, remote and wide range monitoring by utilizing internet environment. |
|
Operating principle
Electronic measured data recording systems measure the connected input signals and extrapolate the information required for individual applications. This information is then displayed on the screen of the device and is also stored internally or on an exchangeable data storage medium.
This process information can be stored, long term, by transmission to superior systems (e.g. Professional pcs) and is therefore readily available at the touch of a button.
Depending on the process requirement and application the following can be used:
·Data-logger : simple devices with integrated digital display
·Paperless recorders : the electronic alternative to (hybrid) paper strip chart industrial recorders
·Data Manager : powerful devices for stand alone applications and integration into systems
Common to all these devices is that they operate virtually free of wear and tear (no pens and paper) therefore saving time and money.
By using various forms of interfaces they can be integrated into state-of-the-art topologies for measured data recording and process automation. High resolution colour graphic viewers make it possible for paperless recorders and data managers to be used for front end process sequences and therefore swift on site reaction.
Mathematical and logical combinations enable complitcated calculations as well as automatic analysis of the measured signal. |
|
SIMEAS Q is a compact, cost-effective power quality professional recorder and has been developed to provide full-area monitoring of power quality according to EN 50160 and IEC 61000 standards.
Functions:
• Recording of electrical quantities
• Suitable for monitoring of single-phase power supply manufacturers systems and 3 and 4-wire three-phase power systems
• Recording of limit violations
• 2 binary outputs for energy pulses or pulse on voltage dip
• Transmission of recorded values via various communication channels (RS232, RS485, PROFIBUS DP)
• Link-up to MANUFACTURER OF PLC systems
Application:
• Recording and evaluation of electrical quantities in power supply systems on the LV level up to 1 kV rated voltage.
• Acquisition and evaluation of electrical quantities in power distribution systems on the MV level up to 35 kV rated voltage.
• Acquisition of all relevant measurement data for evaluating power quality.
• Monitoring of power quality in terms of applicable standards. |
|
Backup of printable data on compact flash memory card.
It stores your data from a printer or automat port
- Values, texts, history, etc.
you can therefore take readings, redisplay them on PC, store them, send them by email or print a selection.
- Replaces “on the fly” professional printers.
- Eliminates heavy costs of your printers on site.
- 4000 pages of text, values or alarms on a 16Mo memory card.
- Internal memory of 1000 pages with backup while card is being changed.
|
|
Circular Chart Professional recorder - Series LCR10
Record Temperature/Process, 1 Pen
Circular Chart Recorder - Series LCR20
Record Temperature/Process, 2 Pen
Minigraph Recorder - Series 1200
Record Temperature/AC-DC Current/Voltage, Stylus Type
|
|
EA series electronic recorder
- self-balancing instruments
- 250mm fan-fold chart paper
- alarm function.
Pen-writing types: 1-pen, 2-pen, 3-pen, and 4-pen,
Dot-printing types: 1, 2, 3, 6, 12, and 24-points
- a select-off function.
- Inputs: DC voltage, DC current, manufacturer of thermocouples, resistance industrial thermometers and thermistors.
Can be used in various industrial variables.
Also
EH series professional recorders
- either continuous pen-writing or multi-point dot-printing systems
- 180mm chart
- record temperature, mV or DC voltage at 1 to 12points.
The industrial measuring systems of mV, thermocouple, resistance thermometer or thermistor are available.
EL series recorders
- compact and modular in design to provide versatility, easy maintenance and reliable operation.
- inputs from mV, thermocouples, resistance thermometers or thermistors.
- 100mm width fanfold chart paper
- available in two versions, 1 to 6 points dot-printing systems and 1-pen, 2-pen or 3-pen continuous pen-writing systems.
ES600 series
- compact industrial analog recorders
- 60mm wide chart paper
- size of 96 x 144mm
- functions comparable with a large-size recorder including a highly reliable self-balancing system, an easy-to-install fanfold recording chart paper, etc. |
|
With 1 to 4 line channels and electrical isolation between the measuring circuits, the LINAX 4000L can be used for all standard measurement signals.
The instrument is permanently configured for the desired measuring task at a reasonable price prior to shipment. The professional recorder can be used in aggressive environments thanks to its rugged housing with metal or plastic professional door (IP 54).
The LINAX 4000L records zero-frequency quantities, DC 0 / 4...20 mA or 0...10 V, with an accuracy of 0.5%, and is thus suited for use with precision physical or electrical measuring transducers. Measurement values can be archived on 32 m recording charts or 16 m fanfold charts with a chart speed of up to 600 mm per hour.
|
|
| With more than one million BARTON DPU-based instruments in service around the world today, Cameron's Measurement Systems division is a premier supplier of reliable and accurate chart industrial recorders, indicators, switches and pneumatic controllers. Originally developed in the early 1920s, our differential pressure technology features a welded bellows assembly that increases accuracy while dramatically reducing the effects of wear. To facilitate quick and easy repairs all DPU based instruments are supported with pre-calibrated exchange or repaired sub-module bellows assemblies. |
|
|
