reed switch
reed switch
AC, AD, AJ, CG series

... AC01, which is manufactured by Celduc Relais, is a normally open, dry contact reed switch which has an utmost switching power of up to 1 volt-ampere with an utmost switching voltage of ...

proximity reed switch
proximity reed switch
250 V, 1 A, 200 Hz, 100mΩ, 28.5 x 69.85 x 39.88 mm, -40°C ..

... to carry out such functions as linear actuator switches, security system switches and door switches. Moulded switch case with 2 slotted fixing holes Robust sealed switch Changeover ...

changeover reed switch / proximity
changeover reed switch
175 V, 0.4 A, 120mΩ, 28.5 x 19 x 6.8 mm, -40°C...+115°C

... to carry out such functions as linear actuator switches, security system switches and door switches. Moulded switch case with 2 slotted fixing holes Robust sealed switch Changeover ...

reed switch
reed switch

miniature reed switch
miniature reed switch
KSK-1A66/3

Miniature reed switch with glass length of 14.0mm and diameter of 2.2mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC. Most used, UL approval. Specifications Overall ...

See the other products
Standex-Meder Electronics GmbH
high-voltage reed switch / power
high-voltage reed switch
KSK-1B85

... KSK-1B85 is a normally closed reed switch, high power reed switch, and high voltage reed switch with (Form B) contacts. Glass length of 21.0mm and diameter ...

See the other products
Standex-Meder Electronics GmbH
high-voltage reed switch / power
high-voltage reed switch
KSK-1A83

The KSK-1A83 is a high power reed switch and a high voltage reed switch with high current capability. Glass length of 53.4mm and diameter of 5.4mm. Rated power 50 W, Switching voltage ...

See the other products
Standex-Meder Electronics GmbH
miniature reed switch
miniature reed switch
PR560

The PR560 is a high power reed switch and miniature reed switch with glass length of 14.2mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 250 VAC/100 VDC, Switching ...

See the other products
Standex-Meder Electronics GmbH
power reed switch / changeover
power reed switch
KSK-1C10

Miniatur Wechselkontakt für Hochstrom Anwendungen. Glaslänge von 34,3mm und Durchmesser von 5,16mm. Schaltleistung 100W, Schaltspannung 500VDC, Schaltstrom 3 Amp DC. Spezifikationen Gesamtlänge mm (inches) 86,1 (3,390) Glaslänge ...

See the other products
Standex-Meder Electronics GmbH
subminiature reed switch
subminiature reed switch
RI-80

... subminiature reed switch that features an A contact form. This device provides users a diameter that measures 0.07 in. and a glass length of 0.19 in. In addition, it operates with a switching capacity ...

See the other products
The Comus Group
subminiature reed switch
subminiature reed switch
RI-70

... by Comus, is a reed switch that features an A contact form. This device provides users a diameter that measures 0.07 in. and a glass length of 0.28 in. In addition, it operates with a 170 Vac/dc switching ...

See the other products
The Comus Group
surface-mount reed switch / miniature
surface-mount reed switch
RI-60-90 series

The COMUS RI-60-90 series reed switches are ATE graded, 10 mm long, and feature an operating range from 8 to 13 AT, an A contact form up to 10 W, switching voltage up to 200 V DC and switching ...

See the other products
The Comus Group
surface-mount reed switch / miniature
surface-mount reed switch
RI-29SMD

Housed / SMD Reed Switches RI-29SMD have a switching capacity of maximum 15 W/VA and switching voltage of maximum 200 Vdc. The switching current is a maximum of 1000 ...

See the other products
The Comus Group
reed switch
reed switch
RI-90

The RI-90 is a reed switch characterized with a C contact form. This switch is built with a glass length of 14.3 mm and a 0.1 mm diameter. It allows a 5W maximum switching capacity, and ...

See the other products
The Comus Group
power reed switch
power reed switch

The Bestact reed element is a highly reliable, broad control range reed switch that when used and implemented in various application products provides a user or manufacturing operation the utmost in uptime ...

reed switch
reed switch
0 830 100 xxx

The 0 830 100 xxx is electronic reed switch, manufactured by HNC GROUP A / S. It has a protection of IP67 class and its electric potential difference ranges from 10 V DC up to 30 V DC. ...

miniature reed switch
miniature reed switch
HSR, PMC series

Smallest size wins new applications in hearing aids and implantable medical devices Form A and Form C Various sensitivity ranges available

See the other products
PIC GmbH
reed switch
reed switch
PMC, TRH series

Highest reliability and long life for demanding applications in automotive or white goods industry Small size Attractively priced Form A and Form C Various sensitivity ranges available

See the other products
PIC GmbH
reed switch
reed switch

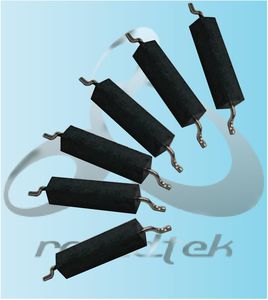

max. 150 V, max. 500 mA | RMS13

Switch Voltage DC(max) :150Vdc Switch Current DC(max) :500mA Operate range AT :10-30

See the other products
Rapidtek Magnetic Devices Inc.
reed switch
reed switch

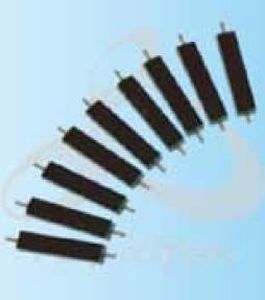

max. 150 V, max. 500 mA | RMS13-1

Switch Voltage DC(max) :150Vdc Switch Current DC(max) :500mA Operate range AT :10-30

See the other products
Rapidtek Magnetic Devices Inc.
cast-in reed switch
cast-in reed switch
5 W | CT05 Series

The CT05 is a molded dry reed switch. It is single-pole, single throw (SPST) type, having normally open ruthenium contacts. The sensor is a double-ended type and may be actuated with an electromagnet, ...

See the other products
Coto Technology
cast-in reed switch
cast-in reed switch
10 W | CT10 Series

The CT10 is an encapsulated dry reed switch. It is single-pole, single throw (SPST) type, having normally open ruthenium contacts. The sensor is a double-ended type and may be actuated with an electromagnet, ...

See the other products
Coto Technology
reed switch
reed switch
RS-02

RS Direct pin type,PCB plastic reed switch,which make the reed switch strength to prevent rupture.It can be installed directly on the circuit board PCB plastic reed switch,which ...

reed switch
reed switch
RM-02

RM Direct pin type,PCB plastic reed switch,which make the reed switch strength to prevent rupture.It can be installed directly on the circuit board PCB plastic reed switch,which ...

reed switch
reed switch
RS10-G1

RS10 SMD type,PCB plastic reed switch,which make the reed switch strength to prevent rupture.It can be installed directly on the circuit board PCB plastic reed switch,which ...

How to choose this product

reed-switch

Reed switches are small electrical switches that are activated by an applied magnetic field. Configurations include normally open or normally closed.

Applications

Reed switches are used in the automobiles as position sensors, parking sensors and movement sensors. A common application of a reed switch is to detect the opening of a door. In marine applications, reed switches are used to detect liquid levels or anchor position.

Technologies

Reed switches are created by hermetically sealing two ferromagnetic contacts in a glass tube. The contacts have a gap between them which can be altered when a magnet is present. A reed switch can come as either normally open (NO) or normally closed (NC). A reed switch can be used to make a reed relay by surrounding it with a coil.

How to choose

When selecting a reed switch, be sure to provide information such as the rated power (W), the switching voltage (V) and the switching current (A) of your application.

Advantages

- Compact
- Inexpensive
- Availability

Disadvantages

- Sensitive to high voltage
- Sensitive to high current
- Fragile
