Refractive index or Brix degree and temperature are simultaneously displayed on the LCD readout. Temperature compensation is automatically switchable. Connection to thermostat-control bath available. Results with date/time stamp can be transmitted via serial port to a PC or printer (for example CBM 910, 24 characters/line, needle printer). The built-in light source is a 589 nm LED used on the measuring prism.
Article Number: AR 2008
Data Port: serial: RS-232 9600 Baud; RS-422 9600 Baud
Illumination: Built-in light source (589 nm) for the measuring prism
Indicator: LCD-Display
Accuracy: 0.1 %; 0.0002 nD
Measurement Range: 0-95% Brix concentration (sugar scale); 1.3000-1.7000 nD; temperature 0-99°C
Power Supply: 115/230 V, AC, 50/60 Hz, 40 VA
Scale Division: 0.1%; 0.0001 nD; 0.1°C
Temperature Compensation: 0-90°C
Thermometer: 0-99°C
Dimensions: 240 X 110 X 290 mm
Weight: 5 kg
Complies with ASTM D1218
Connection for thermostat-control bath is available.
More ABBE Refractometers and digital ABBE Refractometers on our Website. |
|
The Abbe Refractometer derives its name from the 19th Century physicist Ernst Abbe (1840-1905). Abbe designed an instrument for measuring the dispersion of light and this became the precursor for the so-called ‘Abbe Refractometer’.
Bellingham Stanley offer a number of Abbe refractometers and a choice can be made in accordance with the measurement requirement and budget availability.
Launched in 2006, the Abbe 5 offers direct refractive index and Brix readings at a low price and is ideal for academia as well as for general measurement within industry.
Abbe 60 refractometers are manufactured to extremely high standards and come in a variety of scale ranges to suit particular application requirements including regular single wavelength refractive index and high accuracy dispserion measurements.
|
|
Automatic refractometers are used in the food and beverage industry, in chemistry, pharmacy and many other branches for measurements of refractive index (nD) or of refractive index-derived concentrations. Refractive index measurements are fast, non-destructive and require only a small volume of sample. No extensive sample preparation is necessary.
The latest generation of Abbemat refractometers sets new standards regarding accuracy and versatility.
Due to modern data processing and innovative optical design a resolution of 0.000001 nD is achieved. The measuring ranges are 1.32 to 1.56 nD (HP model) and 1.30 to 1.72 nD (WR model), allowing refractive index measurements of organic solvents, perfumes and aromas.
Within an interval of 10-70 °C an internal Peltier thermostat adjusts the temperature of the measuring prism at an accuracy of ±0.03 °C, so that no additional external thermocirculator is required. The stability of the temperature adjustment is ±0.002 °C.
The measuring unit is housed in a water-proof enclosure made of stainless steel containing the optics and the electronics of the instrument. Its small size saves valuable bench space in the laboratory.
A personal computer is used as an intelligent terminal offering easy operation combined with best performance. From a continuously growing number of scales the required scale can be selected or be defined by the user. User management, several measuring modes, easy calibration possibilities as well as GLP-conform data recording round up the features of the Abbemat.
Different types of sample cells are offered, allowing the adaptation of the instrument to every task in the laboratory. |
|
The new A.KRÜSS OPTRONIC digital refractometer series comes with an integrated peltier Thermostat with excellent temperature control. Within the interval of 10°C to 80°C the thermostat adjusts the temperature of the measuring prism at an accuracy of 0.1°C and with a stability of 0.05°C!
A self-explanatory touch screen and user-friendly USB and RS232 interfaces meet every expectation. A high–speed processor supports the on-board software and enables short measuring times. The DR6000-Series comprises four standard models variable according to range, resolution and accuracy.
|
|
Complete range of digital refractometers offering a wide measuring range and choice of temperature control systems. The RFM800 model offers the widest measurement range and excellent temperature control by peltier device and conforms to the operational requirements of FDA regulation 21 CFR Part 11, whilst RFM340 and RFM700 models satisfy the demanding requirements of heavy industry. The new RFM300+ peltier temperature controlled refractometers offer ultimate performance in both laboratory and factory environments
|
|
Small Digital Hand-Held Refractometer:
For easy and accurate quality control A. KRÜSS Optronic have launched their New DR201-95, a handy refractometer for use in the food, beverage pharmaceutical, and petrochemical industries. This model has a wide range (0 – 95% Brix) and fits in every pocket. The user can select between different scales and the device has an automatic shut-off after 30 seconds. Calibration is simple with water and the instrument has an automatic temperature compensation to ensure that concentration readings of liquid solutions will be accurate as regards to the sample temperature.
Measurement Range: 1.3330-1.5318 nD; 0-95% Brix
Power Supply: 1,5V Battery
Scale Division: 0.0001 nD; 0.1% Brix
Accuracy: 0.0003 nD; 0.2% Brix
Temperature Compensation: 5-40°C
More handheld digital refractometers on our website. |
|
This is a precision instrument for determining the solid contens dissolved in liquids, such as sugar, salt, or serum protein in blood and starch. A few drops of the sample is palced on the refractometer prism and the index of the refraction is measured. From this, dissolved solids can be determined in seconds.
Specifications and tables of comparison on our Website
Compare products of this class:
|
|
| Depending on the measuring range and application, Bellingham Stanley Ltd offer a choice of instruments to suit all budgets. The range includes IP65 sealed 'Eclipse models' and digital refractometers. |
|
The PR21-series has been developed for direct insertion into pipes and boilers. It measures the refractive index with high accuracy and enables sophisticated process monitoring in the food, sugar, beverage, chemical, textile, paper, metalworking and petrochemical industries. The instrument is also ideal for waste-water control and a number of other quality inspections.
Measurements are not influenced by color or turbidity.
Installation of the process refractometer is simple and fast due to the use of standardized flanges.
In addition to its up-market PR21 Process Refractometer, A.KRÜSS OPTRONIC has also launched the IR10 to meet all requirements in basic process moitoring. |
|
| On-line refractometers for real-time results. Continuous output via 4-20mA signal provides a signal for process controllers. A digital signal also provides archiving of all measured results in csv format for analysis by standard industry software. Can be fitted to plant with pipe daimeters of between 4mm and 150mm. |
|

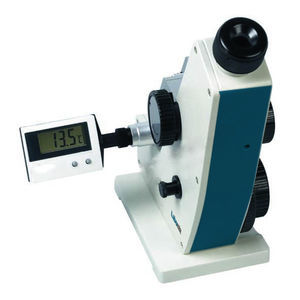

ABBE refractometer is a highly reliable instrument that is mainly used in laboratories, inspection rooms, universities etc. Compared with other types of refractometers, the ABBE refractometers are capable of measuring liquid and solid materials such as plate glass, plastic sheet, and solid film like samples. In addition to, we can provide Multi-wavelength ABBE refcractometer measuring for refractive index or ABBE number(vd, ve) of solid materials at different wavelength.
1.Digital ABBE Refractometer
DR-A1(#1310)
Muti-wavelength-series
DR-M2(#1410), DR-M4(#1414),
DR-M2/1550(#1412), DR-M4/1550(#1415) / coverinig 1550nm wavelength.
2.ABBE refractometer
NAR-1T(#1210), NAR-2T(#1220 / for high temperature),
NAR-3T(#1230 / precision model), NAR-4T(#1240 / for high refractive index)
Special ABBE Refractometer
1.NAR-1T LO(#1217) / for low refractive index
2.NAR-2T LO(#1227) / for high temperature & low
refractive index
3.NAR-2T HI(#1228) / for high temperature & high
refractive index
|
|
Using the principles of light refraction, ATAGO Clinical Refractometers use special scales for clinical purposes such as specific gravity of urine, and total protein in serum or plasma.
1.UG-alpha(#3464)
This new Digital Urine Specific Gravity Refractometer UG-α (alpha)
Scale Range : Urine S.G. scale 1.0000 to 1.0600
Minimum Indication : Urine S.G. scale 0.0001
Measurement accuracy : Urine S.G. scale ±0.0010
Measurement Temperature : 10 to 35°C
2.SUR-NE(#2734)
Hand-held analog refractometer
Scale range : 1.Urine S.G. scale : 1.000 to 1.060
2.Serum protein scale : 0.0 to 12.0g/100ml
3.Refractive index scale: 1.3330 to 1.3660
Minimum scale : 1.Urine S.G. scale : 0.001
2.Serum protein scale : 0.2g/100ml
3.Refractive index scale (nD) 0.0005
3.URICON-NE(#2722)
Hand-held analog refractometer
Scale range : Urine S.G. scale1.000 to 1.050
Minimum scale : Urine S.G. scale0.001
Measurement Accuracy : Urine S.G. scale0.001 |
|
We have wide products range for digital refractometer.
1.SMART-1(#3150)
This instruments can measure 4 types of scale. 1)Brix 2)Inverted sugar conc 3)HFCS-55 4)HFCS-42
2.RX-5000alpha(#3261)
High accuracy(Brix / nD) degital refractometer equipped with peltier thermo module to maintaining constant measuring temperature. Up to 30 user scale can be programed. Flash memory, capable of recalling the last 30 measured values.
3.RX-7000alpha(#3262)
This instrument has more wide measurement range for Brix and nD than RX-5000alpha and suitable for measuring samples that have high melting point(oil and fat) and high refractive index(perfume, organic solvents etc).
4.RX-5000alpha-BEV(#3271)
This instruemnts has "FLAT" sample stage answering the demand for quick and easy sample clean up, smooth clean surface for beverage industry. Other functions like measurement range etc are the same as RX-5000a(#3261).
5.RX-9000alpha(#3263)
Designed with a wide measurement range, measurement temperature range, and highest measurement accuracy, this instrument is suitable for multiple sample types; such as measuring oils and fats with high melting points, aroma oils of high refractive index and organic solvents, meeting demands for high accuracy measurements.
|
|
Pursuing the "easy-to-use" and "easy-to-understand" ergonomic architecture of this new instrument, the achieved result was not only a "palm fitting" design but also a unit with highly hygienic properties. By reducing the number of unnecessary assembly parts such as the grip, we cut down the risks of creating a germ reproductive enviroment.Though our effort to pursue a germ-free unit, it is unavoidable for an instrument to have grooves between each component and shutting completely the way for germs to spread, so we have come up with new concept of making it a completely washable unit. Moreover, it is equipped with the E.L.I. function, which makes the measurement more reliable in bright light area.
PAL-1 : Brix 0.0 - 53.0%
PAL-2 : Brix 45.0 - 93.0%
PAL-3 : Brix 0.0 - 93.0%
PAL-alpha : Brix 0.0 - 85.0%
PAL-RI : nD 1.3306 - 1.5284
Special PAL-series are available for more than 80 scales, covering almost all applications.
Main features are
1.Extremely water resistant(IP65). Easy cleaning by
runnning water.
2.E.L.I.(External Light Interference)
3.A.T.C.(Automatic Temperature Compensation)
4.Calibration with water. Don't need to use Standard liquid.
5.Light & Compact 100g
6.Equipped with a strap holde
7.Ergonomically designed for one-handed operation |
|
Palette-α ( alpha ) series is an upgraded model of the current Palette series with improved measurement accuracy based on the new technology development.
Modified to have a high measurement accuracy at Brix ±0.1%. Also, this unit is programmed with the user-scale feature. This function will allow users to input the coefficient into the formula: [Concentration=Brix X Coefficient ] to display the concentrations according to each type of samples.
Equipped with a new technology "External-Light-Interference" (ELI)* that enables you to take accurate measurements with ease and confidence near at a window or outside.
1.PR-32a(#3405)
Measurement range : Brix 0.0 - 32.0%
Accuracy : Brix +/- 0.1%
2.PR-101a(#3442)
Measurement range : Brix 0.0 - 45.0%
Accuracy : Brix +/- 0.1%
3.PR-201a(#3452)
Measurement range : Brix 0.0 - 60.0%
Accuracy : Brix +/- 0.1%
4.PR-301a(#3462)
Measurement range : Brix 45.0 - 90.0%
Accuracy : Brix +/- 0.1%
5.PR-RI(#3480)
Measurement range : nD 1.3306 - 1.4436
Accuracy : nD +/- 0.0002(water at 20C) |
|
MASTER-α(#2311)

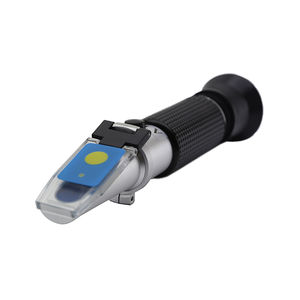

This new type of Hand-Held refractometer is the first to be equipped with Automatic Temperature Compensation and Water Resistant (IP65) at the same time. While featuring functions such as Easy-to-Read, Easy-to-Hold, Smooth sampling, Easy disposal of sample from the edge, the improvement of hygiene aspect by employing the new type of grip, and well balanced structure, emphasis is also placed on its design, well exemplified by the streamlined body and the strong grip with rich texture.
Measurement range : Brix 0.0 - 32.0%
MASTER-T(#2312)
This is the successor model to the conventional ATC-1E.
Automatic Temperature Compensation feature only. The Master-T is a good alternative choice when the water resistant feature is not a priority.
Measurement range : Brix 0.0 - 32.0%
MASTER-M(#2313)
This is the successor model to the conventional ATC-1E.
No ATC and Water resistant(IP65).
Measurement range : Brix 0.0 - 32.0%
|
|
Refractometry is an ideal analytical procedure for an accurate and reliable measurement of a liquid's purity, concentration or density. The primary measured quantity is the refractive index of the liquid.
The measurement is independent of the liquid's turbidity and color, nor is it influenced by entrained gas bubbles. No minimum flow rate is necessary.
Refractometers are widely used for monitoring or regulating concentration as well as for quality control. They are a very common in laboratories where for example they are used for quality spot checks.
PIOXR R operates on the basis of the transit-light principle: it measures the refractive index of light transmitted through the liquid, thus not simply by measurement of a thin layer of liquid on a prism, as it is done in the critical angle method. The latter is used by most other common refractometers. The transit-light method has the advantage that the entire liquid serves as a sample. Measurement by the transit-light principle is drift free and can reach a precision which is by a factor 10 higher than that of conventional refractometers.
|
|
These in-line models can be incorporated in piping of manufacturing plants, liquid mixing devices, and washing apparatuses to continuously measure the concentration of various liquids.
They are suitable for use in the control of mixing, concentration, fermentation, and control of the concentration of water-based or alkali-based detergent, etc.
1.CM-780(#3546)
Measurement Range : Brix 0.0 to 78.0%
Minimum Indication : Brix 0.1%
Measurement Accuracy : Brix ±0.2%
Measurement Temperature : 5 to 100°C ( Automatic Temperature Compensation )
2.PRM-85(#3571)
Measurement Range : 1.Refractive index 1.3220 to 1.5040
2.Brix 0.0 to 85.0%
Minimum Indication : 1.Refractive index 0.0001
2.Brix or concentration 0.1%
Measurement Accuracy : 1.Refractive index ±0.0001
2.Brix or concentration ±0.1%
Measurement Temperature : 5 to 100°C |
|
Optilab® rEX Refractive Index Detector
2005 R&D 100 Award Winner!
The Optilab® rEX (refractometer with EXtended range) is an Refractive Index detector with 256 times the detection power and up to 50 times the dynamic range of every RI detector in existence today. Using a combination of cutting-edge semiconductor photodiode technology and proprietary computer algorithms, the rEX presents a host of instrument firsts.
For example, there are no range or gain settings. The full range of instrument detection is always present, and the full sensitivity exists over the entire range.
The rEX also has a flow cell with a total volume of only 7.4 uL -- 25% less than the leading refractometers available today. This translates into minimized band broadening and better temperature stability.
The Optilab® rEX can also do something no other on-line Refractive Index detector can: it can measure the absolute refractive index of a solution. In addition, it can measure the dn/dc of a solvent at the same wavelength of light as the light scattering instrument. And just to make sure it can't be matched, you can replace the light source in the rEX for other wavelengths (e.g. 690, 633, 488, etc.)!
The new Optilab® rEX shares the ability its predecessor (the Optilab® DSP) to go to below ambient temperatures as easily as above ambient. No hassle temperature control can be programmed down to 4°C or as high as 50°C. Compatible with all HPLC systems. |
|
Bellingham + Stanley Ltd., a UKAS accredited calibration laboratory number 0834, offer a number of high accuracy calibration materials over the range 1.33-1.51 RI (or 0-60 °Brix) for verifying and calibrating refractometers and offering traceability to ICUMSA and NIST.
Calibrated in accordance with EN ISO/IEC 17025:2005, refractometer standards have a shelf life of up to 12-months and may be used on any make of refractometer, regardless of manufacture. Additionally, for sucrose based products that have a shorter shelf life, a supply contract is available ensuring a regular supply of product against a single order number.
|
|
