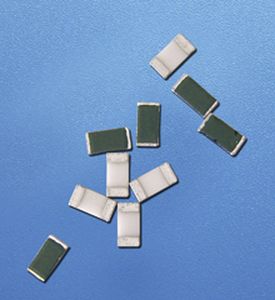

thick-film resistor / SMD / anti-surge / high-reliability
thick-film resistor
SDR series

Resistance: 0.001 kOhm - 10,000 kOhm

Superior power rating. ROHM's anti-surge chip resistors employ resistive element uniquely structured having high tolerance to surge. This product is suitable for high-reliability sets and circuits.

See the other products
ROHM Semiconductor
SMD resistor / high-power / shunt
SMD resistor
GMR series

Resistance: 0.005 Ohm - 0.22 Ohm
Power rating: 3 W - 5 W

High power type Shunt Resistors for current sensing (GMR Series). High power 3W to 5W Shunt Resistors. Low resistance (10mΩ to ). Excellent TCR characteristics. High heat dissipation.

See the other products
ROHM Semiconductor
thick-film resistor / SMD / board-mount / power
thick-film resistor
MCR Series

Resistance: 0.047 Ohm - 10,000,000 Ohm

Chip resistors(MCR series) are highly reliable due to metal-glaze resistive element. They are long-seller in the market for needs from consumer electronics to industrial/automotive. The packages are available from the ...

See the other products
ROHM Semiconductor
thick-film resistor / board-mount / SMD / anti-surge
thick-film resistor
ESR Series

Resistance: 0.001 kOhm - 10,000 kOhm

ROHM's anti-surge chip resistors employ resistive element uniquely structured having high tolerance to surge with 3kV ESD guarantee. This product is suitable for high-reliability sets and circuits.

See the other products
ROHM Semiconductor
thick-film resistor / SMD / board-mount / high-power
thick-film resistor
LTR series

Resistance: 0.011 Ohm - 1,000,000 Ohm

High-power chip resistors have the terminals at long sides of square shape featuring far higher rated power than the standard resistors.This structure having short distance between the both terminations ...

See the other products
ROHM Semiconductor
grounding resistor / housed / current / analog
grounding resistor
NGRM-ENC series

The NGRM-ENC is a compact non-metallic NEMA-4X enclosure housing an SE-325 or SE-330 Neutral-Grounding-Resistor (NGR) Monitor pre-wired to terminal blocks for easy field installation. Optional features include a fused ...

grounding resistor / wire-wound / with mounting bracket / current
grounding resistor
NGR series

The Neutral-Grounding Resistors (NGRs) are designed for ground power systems by using a resistor between the system neutral and ground. This product minimize the prospective ground-fault current to a ...

thick-film resistor / board-mount / high-voltage / for HVAC
thick-film resistor
MHR series

Resistance: 1,000 kOhm - 1,000,000 kOhm

... been known to work wonders with copiers, printers and even a range of air conditioning units. The Murata high voltage resistors come from the MHR Series, making them very useful tools to be used in the types of applications ...

thin-film resistor / board-mount / precision / flat
thin-film resistor
CPH

Resistance: 100 Ohm - 200,000 Ohm
Power rating: 0.063 W - 1 W

Ultra Precision Chip Resistor in Sizes 0603 to 2512 with excellent long term stability CPH - precision resistors are the last state of the art development in thin film resistance technology and made for ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
thin-film resistor / board-mount / precision / flat
thin-film resistor
CPM

Resistance: 47 Ohm - 1,000,000 Ohm
Power rating: 0.063 W - 0.25 W

Precision Chip Resistor in Sizes 0402 to 1206 with high long term stability CPM - precision resistors are thin film resistors, made for a wide field of various applications where reliability ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
wire-wound resistor / SMD / low-power / precision
wire-wound resistor
Astro 9000 & 5000

Resistance: 0.01 Ohm - 6,000,000 Ohm
Power rating: 0.08 W - 0.75 W

Wire Wound Resistors for Measuring and Control Technology Astro Precision Resistors were developed for critical and demandingapplications, which require a high precision and stable resistancevalues. Multi ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
metal-film resistor / SMD
metal-film resistor
UMX

Resistance: 0.001 kOhm - 1,000 kOhm
Power rating: 0.5, 0.25 W

... Alternative to Metal Foil The UMX is pricewise and by values the best choice as a replacement for the expensive Metal Foil resistors. With their specification they are suitable for test- and measuring equipment, operational ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
metal-film resistor / SMD / power / high-frequency
metal-film resistor
M220

Resistance: 0.02 Ohm - 51,000 Ohm
Power rating: 10, 35, 50 W

50 Watts Power Resistor with TO-220 HousingM220 Power Resistor for maximum powerconsumption of 10, 35, 50 Watts (with heat sink). Suitable for high frequencyapplicaions and high-speed pulse circuits.Typical ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
wire-wound resistor / low-inductance / shunt / calibration
wire-wound resistor
1240

Resistance: 0.0001 Ohm - 100,000 Ohm
Power rating: 2.5 W

... stability < ± 0.01 % over years The 0.02 class calibration resistors excel in their modern design and small mechanical dimensions. Their ruggedness also ensures a long life. Calibration resistors of ...

power resistor / precision / reference / metal-clad
power resistor
1282

Resistance: 0.001 Ohm - 0.1 Ohm
Power rating: 20 W

... 0.02 % For technical frequency 50 Hz In connection with very precise digital voltmeters the model 1282 resistors are used as measuring resistors for accurate registration of direct and alternating ...

wire-wound resistor / board-mount / low-inductance / high-accuracy
wire-wound resistor
11xx series

Resistance: 0.001 Ohm - 100,000 Ohm
Power rating: 0.7, 1 W

... resistance value 10 pcs Precision resistors are used wherever the highest standards of temperature stability, error tolerance and durability are required. Models 1164 and 1166 are available for higher loads up to 1 ...

housed resistor / high-frequency / RF / reference
housed resistor
M530

Resistance: 10 Ohm - 1,000 Ohm

Meatest's M530 is a resistance standard set which is constructed to calibrate LCR meters in frequency that ranges from DC up to 100 MHz. The range of the frequency is attained through an applied HF layout which utilizes a strip line unit. ...

wire-wound resistor / aluminum-housed / housed / load
wire-wound resistor

Wire wound resistor Optimized for small to medium power requirements. Spohn + Burkhardt wire wound resistors are suitable for small to medium power requirements. The resistor connecting ...

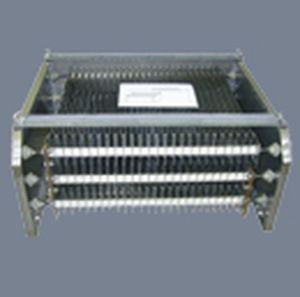

resistor
resistor

... The steel grid resistors are suitable for outdoor use. For easy removal the resistor sections are mounted in individual frames. The patented Spohn + Burkhardt anti-vibration clamping fixture ensures excellent ...

wire-wound resistor / SMD / low-power / molded structure
wire-wound resistor
SMM series

Resistance: 0.22 Ohm - 10,000 Ohm
Power rating: 0.5 W - 5 W

Feature: ■ Complete mold construction. ■Anti-explosion, anti-surge, safe and efficient. ■Excellent moisture proof, can be used in theatrocious environment. ■Surface mounting ■Can be provided products of non-inductive design Applications: ■Power ...

See the other products
shenzhen kawaxin electronics co.,ltd
metal-film resistor / axial-lead / precision
metal-film resistor
RN series

Resistance: 0.1 Ohm - 10,000,000 Ohm
Power rating: 0.1 W - 1 W

High stability, high precision, moisture proof Measure up GJB1929-1994 Temp.range:-65℃~175℃

See the other products
shenzhen kawaxin electronics co.,ltd
metal-film resistor / axial-lead / precision
metal-film resistor
EE series

Resistance: 0.001 kOhm - 3,000 kOhm
Power rating: 0.25 W - 1 W

High stability, high precision, moisture proof Measure up GJB1929-1994 Temp.range:-65℃~175℃

See the other products
shenzhen kawaxin electronics co.,ltd
wire-wound resistor / axial-lead / fuse
wire-wound resistor
FKN series

Resistance: 0.1 Ohm - 100 Ohm
Power rating: 0.25 W - 10 W

Function as a resistor in normal operation condition. Quick fusing protects circuit from excessive over load. Approvals awarded; UL 1412 File No.E341249.

See the other products
shenzhen kawaxin electronics co.,ltd
wire-wound resistor / axial-lead / fuse
wire-wound resistor
KF series

Resistance: 0.1 Ohm - 100 Ohm
Power rating: 2 W - 3.5 W

Features: Fusable function Resumable and can be recycled Applications: Mostly used in meters and instruments Protection circuit of electrical devices

See the other products
shenzhen kawaxin electronics co.,ltd

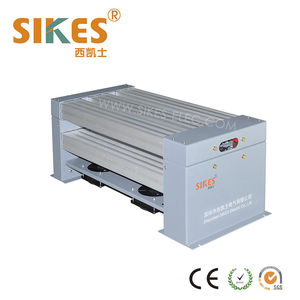

wire-wound resistor / aluminum-housed / high-power / IP65
wire-wound resistor
RXLG series

Resistance: 1 Ohm - 10,000 Ohm
Power rating: 4,000 W - 12,000 W

RXLG aluminum housed resistor COMPACT BROADER BRAKE RESISTORS are electrically insulated and with small dimensions. They can easily be fitted into compact constructions and are especially designed ...

See the other products
Shenzhen Sikes Electric Co., Ltd.
aluminum-housed resistor / high-pulse / IP65 / IP21
aluminum-housed resistor
RXLG series

Resistance: 0.001 kOhm - 10 kOhm
Power rating: 0.05 kW - 5 kW

RXLG aluminum housed resistor COMPACT BRAKE RESISTORS are electrically insulated and with small dimensions. They can easily be fitted into compact constructions and are especially designed to endure ...

See the other products
Shenzhen Sikes Electric Co., Ltd.
wire-wound resistor / with mounting bracket / high-voltage / braking
wire-wound resistor
RXG20 series

Resistance: 0.001 kOhm - 10 kOhm
Power rating: 50 W - 15,000 W

Wire-wound braking resistors ,ceramic tube braking resistor Key Features: 1.Long term high stability 2.non-inductive or inductive type options 3.high operating voltage(up to 1.2KV) and high power ...

See the other products
Shenzhen Sikes Electric Co., Ltd.
wire-wound resistor / high-power / stainless steel / for cranes
wire-wound resistor
RS-1000-40

Resistance: 1 Ohm - 1,000 Ohm
Power rating: 1 kW

... Wirewound Stainless Steel resistor Stainless Steel resistor ,endurable & efficient; High temperature withstand ability , as high as 1200℃; SS304/316 body with IP20 or above protection. Anti-corrosion ...

See the other products
Shenzhen Sikes Electric Co., Ltd.
wire-wound resistor / housed / adjustable / heavy-duty
wire-wound resistor
BX8D series

Resistance: 1 Ohm - 10,000 Ohm
Power rating: 0.2 kW - 120 kW

... or cement coated resistors with an open area along the resistors where the resistor wire is un-coated. Key Features: 1.Long term high stability 2.non-inductive or inductive type ...

See the other products
Shenzhen Sikes Electric Co., Ltd.
carbon-film resistor / axial-lead
carbon-film resistor
±5%, -55 °C ... +155 °C

Resistance: 1 kOhm
Power rating: 0.25 W

Carbon Film Resistors 0.25W The RS series of carbon film axial leaded resistors offer excellent long-term stability, and feature standard solder-plated copper leads. Applications include automotive, ...

axial-lead resistor / ceramic-housed / high-power / non-inductive
axial-lead resistor
800, 1000 series

Resistance: 0.001 kOhm - 1,000 kOhm
Power rating: 15 W - 1,000 W

Non-inductive, high voltage, high energy, high power tubular resistors with ratings up to 165 KV, 164 kJoules and 1,000 watts. Globar® non-inductive, high voltage, high power tubular resistors are available ...

wire-wound resistor / axial-lead / high-power / non-inductive
wire-wound resistor
100, 200 series

Resistance: 1 Ohm - 48,000,000 Ohm
Power rating: 1.5 W - 75 W

... high-energy, high power axial-leaded resistors providing excellent performance that must be handled in a small size. As alternatives to hard-to-find carbon composition resistors, Globar non-inductive ...

thick-film resistor / SMD / high-power / non-inductive
thick-film resistor
500SP, 500AS

Resistance: 0.2 Ohm - 800,000 Ohm
Power rating: 12 W - 150 W

Non-inductive, high power, high voltage, high energy slab resistors in a compact shape. Globar non-inductive, high power slab resistors are available in two different materials:

resistor
resistor
900 series

Resistance: 0.1 Ohm - 100,000 Ohm

High-energy resistors in solid disk and washer styles from 1.60 to 5.90 inches (40.6 to 150 mm) in diameter.

water-cooled resistor / non-inductive
water-cooled resistor
W500SP, W1000SP

Resistance: 1 Ohm - 100,000 Ohm
Power rating: 350 W - 1,000 W

Direct and indirect water-cooled non-inductive resistors capable of dissipating more power in a smaller package than water-cooled resistors previously available in the market. Application considerations Water ...

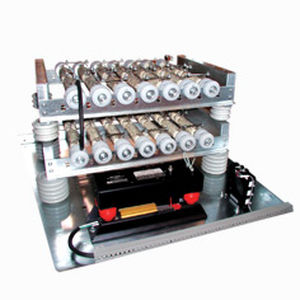

floor-standing resistor / high-power / pulse / high-voltage
floor-standing resistor

... , a neutral earthing resistor (or neutral grounding resistor) is fitted between the neutral and earth in order to limit the current and give automatic electrical protection devices enough time to react. Neutral ...

stainless steel-housed resistor / floor-standing / high-current / filter
stainless steel-housed resistor

... necessary to have harmonic filters. These are basically composed of capacitors and inductors. The addition of a resistor allows: Easier filter tuning at installation, Widening of the pass band, Greater tolerance ...

wire-wound resistor / housed / stainless steel-housed / high-power
wire-wound resistor

Resistance: 0.07 Ohm - 420 Ohm
Power rating: 3,000 W - 70,000 W

... METAL DEPLOYE RESISTORs Braking resistors for speed inverters are adapted : - to dimensional constraints, - to low and medium voltage, - to braking cycle real use of the application, - to personalized ...

wire-wound resistor / housed / stainless steel-housed / power
wire-wound resistor

... both mechanical brakes (drums & disks) and electrical brakes, which are usually high performance rheostat type resistors. Gridex resistors equip the French high speed train, the TGV, which requires a ...

stainless steel-housed resistor / floor-standing / high-power / braking
stainless steel-housed resistor

Power rating: 0 W - 600,000 W

Resistors make an important contribution to the control of power electric motors and are used starting, braking and speed control. Their main role is to limit the starting motors used in applications such as compressors, ...

wire-wound resistor / with mounting bracket / power / cemented
wire-wound resistor
RCA series

Resistance: 0.1 Ohm - 440,000 Ohm
Power rating: 8 W - 1,325 W

... array of cemented wire-wound resistors that possess ohmic values of 0.1Ω up to 440kΩ as well as power ratings from 8W up to 1325 W. Every ohmic value can be offered in wide array of feasible values. In addition, resistor ...

See the other products
COUDOINT S.A.S.
wire-wound resistor / with mounting bracket / power / adjustable
wire-wound resistor
RCA series

Resistance: 0.1 Ohm - 440,000 Ohm
Power rating: 8 W - 570 W

... silicone cemented wire-wound resistors. It offers a broad spectrum of ohmic values. A certain power rating may be provided depending on its use. It is available both for uninterrupted functionality and for the adjustable ...

See the other products
COUDOINT S.A.S.
wire-wound resistor / with mounting bracket / power / vitrified
wire-wound resistor
RCA series

Resistance: 0.0012 kOhm - 60 kOhm
Power rating: 8 W - 600 W

RCA series wirewound resistor is devised with vitreous enamel material coating. Its optimized formulation enables operation within aggressive environments. This resistor assembly is configurable with ...

See the other products
COUDOINT S.A.S.
wire-wound resistor / with mounting bracket / power / vitrified
wire-wound resistor
RCA series

Resistance: 0.68 Ohm - 68 Ohm
Power rating: 8 W - 1,000 W

... Series comprises of a wire-wound resistor that is coated with vitreous enamel. It is designed with an enhanced heat dissipation features. A minimal ohmic value and a minimal inductance rate are also integrated. The resistor ...

See the other products
COUDOINT S.A.S.
wire-wound resistor / with mounting bracket / power / edgewound
wire-wound resistor
TOFIL - BC series

Resistance: 0.018 Ohm - 5.12 Ohm
Power rating: 3,300 W

The Edgewood Resistors are made of a coil of edge wound heavy resistance alloy ribbon with groove insulators. The current of the resistor reaches up to 103 A while it ohmic values atarts at 0,018 ohm. ...

See the other products
COUDOINT S.A.S.
housed resistor / air cooled / braking
housed resistor
CSN®

CSN® Brake Resistors are used for the controlled braking of every kind of electric drives. Braking resistors convert the kinetic energy of drives into thermal energy which will be released to the corresponding ...

See the other products
Schniewindt GmbH & Co. KG
housed resistor / high-voltage / low-inductance / high-power
housed resistor
CSN®

... Filter- and Damping Resistors the design is based on CSN® Resistor Webs. The resistor units provide operation at high continuous power, excellence voltage strength and low inductivity ...

See the other products
Schniewindt GmbH & Co. KG
housed resistor / discharge / outdoor / high-reliability
housed resistor
CSN®

CSN® Load-, Testing- and Special Resistors are used: to test generators and emergency generating sets to test battery capacity as dummy load when testing circuit breakers to discharge capacitors for ...

See the other products
Schniewindt GmbH & Co. KG
stainless steel-housed resistor / housed / power / compact
stainless steel-housed resistor
CSN®

... stainless steel wire elements or CSN® Resistor Webs will be used as active material. Schniewindt has already supplied units for system voltages up to 380 kV and earth fault currents up to 70 kA. CSN® Neutral Earthing ...

See the other products
Schniewindt GmbH & Co. KG
wire-wound resistor / discharge
wire-wound resistor
CSN®

CSN® Pre-Insertion Resistors are used for limitation of transients during energisation process of transformers and HVDC VSC converter applications. CSN® Discharge Resistors are used for discharge of ...

See the other products
Schniewindt GmbH & Co. KG
wire-wound resistor / ceramic-housed / housed / LV
wire-wound resistor
FWI-BR | RXHG

... dynamic braking resistors to dissipate excess energy from the DC bus caused by fast stopping or high supply voltages. This can be required even when the drive is stopped so the resistors operate, more-or-less, ...

wire-wound resistor / aluminum-housed / housed / LV
wire-wound resistor
FWI-BR2 | RXLG

... dynamic braking resistors to dissipate excess energy from the DC bus caused by fast stopping or high supply voltages. This can be required even when the drive is stopped so the resistors operate, more-or-less, ...

thick-film resistor / SMD / anti-surge
thick-film resistor
ERJ

Resistance: 0 kOhm - 10,000 kOhm
Power rating: 0.031 W - 2 W

... range of Chip Resistors including conventional Thick Film Chip Resistors, Specialized Resistors such as Thin Film, Current Sense, Anti-Sulfur, Anti-Surge, and Metal Film Chip Resistors. Panasonic’s ...

metal-film resistor / SMD / current-sense
metal-film resistor
PS series

Resistance: 0.0005 Ohm - 0.1 Ohm
Power rating: 0.25, 0.333, 1, 0.5 W

SCOPE This specification describes PS series 4-terminal current sensor - low TCR chip resistors with lead-free terminations made by metal alloy process. APPLICATIONS  Battery pack  Inverter/Converter (DCDC/AC-DC/DC-AC)  ...

See the other products
Yageo
wire-wound resistor / SMD / aluminum-housed / high-power
wire-wound resistor
ATC

Resistance: 50 Ohm - 100 Ohm
Power rating: 40 W

See the other products
Yageo
SMD resistor / non-inductive / chassis
SMD resistor
CCM300 series

Resistance: 0.1 Ohm - 1,000,000 Ohm
Power rating: 300 W

FEATURES 300W with low profile & small size Non-inductive, light weight High stability/reliability Wide resistance range Up to 5KV insulation voltage available Virtually vibration-proof -550C to +1750C operating temperature RoHS ...

See the other products
RCD Components
carbon-film resistor / SMD / high-pulse
carbon-film resistor
CC series

Resistance: 1 Ohm - 22,000,000 Ohm
Power rating: 0.25 W - 1 W

Carbon comp resistors are considered one of the most reliable of all electronic components. There are no windings or film, resulting in a non-inductive resistor with excellent pulse-withstanding capability. Hi-Rel ...

See the other products
RCD Components
floor-standing resistor / reference / for laboratories
floor-standing resistor
6800B

Resistance: 0.1 Ohm - 100,000 Ohm

The Quantized Hall Resistance (QHR) Standard is internationally recognized as the representation of the ohm and is the most stable resistance standard. Many national laboratories and industries need to provide highly accurate, traceable ...

See the other products
Measurements International
reference resistor / floor-standing / for laboratories
reference resistor
6800A

Resistance: 0.0001 kOhm - 100 kOhm

... the ohm is derived from the volt and the ampere. In practice, quantized Hall resistors have been used in national laboratories to represent resistance since 1990. These resistors are semiconductor devices ...

See the other products
Measurements International
thick-film resistor / SMD / aluminum-housed / load
thick-film resistor
CVS

Resistance: 0.1 Ohm - 210 Ohm
Power rating: 1,575 W - 4,350 W

CVS is the largest Pulse Load Resistor in the Alpha Family. As the CBS and CMQ it is optimized for high single pulse loads (i.e. one or two / hour) but capable to handle about 30% more power than CMQ and still maintaining ...

See the other products
Danotherm Electric
thin-film resistor / board-mount / power / compact
thin-film resistor
Bi-Alpha

Resistance: 6 Ohm - 2,500 Ohm
Power rating: 75 W - 175 W

... simple construction where the resistor wire is wounded on a mica substrate and insulated by mica sheets on both sides. This element is enclosed in a metal alloy housing made from aluminium and zinc. The Bi-Alpha resistors ...

See the other products
Danotherm Electric

How to choose this product

resistor

A resistor hinders electrical current flow, its resistance expressed in ohms. It can be a separate electronic component or a surface-mounted device (SMD). It also is used as an industrial load device in high-power systems.

Applications

Resistors are common circuit board components for limiting current flow to semiconductors. They are frequently found in signal amplification and filtration. Industrial uses include load banking for generator or battery testing, harmonic filtration, grounding or for motor braking and starting. They often are used as a heat source.

Technologies

Low-power versions generally are metal-film resistors on a ceramic core. Wire-wound resistors on a ceramic core are used in high-power applications. Those used in electronics have standard values indicated by numbers or color-coding. Very high power resistors may use copper ions in an aqueous solution. Power retained by the resistor is dissipated as heat, following Joule's law.

How to choose

Choice will depend on resistance value, precision, load capacity and packaging, for surface or through-hole mounting.
