PILOMAT@ PASS 275/P-600A IRON PAINTED
Cilinder: steel mode FE37 painted anthracite
Cilinder Height: 600 mm.
Cilinder Diameter 275 mm.
Cilinder Thickness: 6
Moving Speed: 10 cm./s.
Manual neutral pulling: yes
Safety pressure switch: yes
Connection line to SP station: 10 mt.
Hydraulic pump: yes
Housing frame: yes
Counter-frame to be walled in: yes
Category Retractable Bollard - Retractable Bollards
|
|
PILOMAT@ PASS 275/K-700A IRON PAINTED
Cilinder: steel mode FE37 painted
Cilinder Height: 700 mm.
Cilinder Diameter 275 mm.
Cilinder Thickness: 10
Moving Speed: 8 cm./s.
Manual neutral pulling: yes
Safety pressure switch: yes
Connection line to SP station: 10 mt.
Hydraulic pump: yes
Housing frame: yes
Counter-frame to be walled in: yes
Category Retractable Bollard - Retractable Bollards
|
|
RB 60/80
Market Segments
* Perimeter access control
*Car park management
* Urban traffic management
The RB60/80 have been developed to secure access to sensible area, to manage pedestrian area and urban traffic. They offer :
*high impact resistance (still working after a 6000 joules impact = 1,250 T vehicle driving at 45 km/h)
*aesthetic obstacle matched to all environment
*3 models : automatic, manual or fixed (different height)
|
|
DISSAUSORE PILOAMT 275/K-12 L1 AUTOMATIC RIFLE
H. 900mm
From the 2006 we have dedicated themselves to the development of dissuasive of high emergency anti-terrorism called series K 12; to coronamento of this cycle in date 18.05.2007 we have executed near Institute TTI in Texas crash a test and obtained the certification K12 relative L1 to disciplining of the Department of State American: SD - STD - 02,01, Review To - March 2003.
Criterion of movimentazione: oleodinamico
Resistance to the collision with operation continuity: 19,000 J
Resistance to the break through: 1.800.000 J - a motor vehicle of 6.800 impatta Kg that to 80 Km/h. (developing an energy of equal collision to 1.685.000 J), also permanently deforming the PILOMAT (with consequent block to the operation) it arrests the vehicle.
|
|
Conceived to ensure the safety of strategic access against ram-vehicles, the Urbaco range of High Security Bollards are the answer to the most demanding requirements of access control and impact resistance.
With applications in airports, government or military facilities and other buildings that may require heightened security, Urbaco bollards are so solid that three together can withstand the impact generated by a 7-ton truck travelling at a speed of 50km/h (31mph).
Even when fully extended, more than 1/4 the length of bollard head remains lined by the patented monobloc® double-lid, increasing the impact resistance
|
|
Invented in 1984 by Urbaco, Mechanical Retractable Bollards are the ideal solution for a wide range of varied applications, including restriction of parking spaces, reservation of site for deliveries, regulation of urban flows and security for public buildings or private residences.
The sixth generation of mechanical retractable bollards is the result of over 20 years of continual research and development. Each bollard consists of three structural elements (box, cover and moulded bollard head), and is supplied with a key matching the imprint selected (see examples below). The chosen site must be out of the usual passage of vehicle wheels.
Mechanical Retractable Bollards are set in motion with a key that unlocks the mechanism. A push on the bollard's head will make it sink into the ground; locking in the retracted position is automatic. A simple turn of the key will make the bollard rise back by itself and lock in the upward position.
|
|
PILOMAT@ PASS 220/C-600A IRON PAINTED
Cilinder: steel mode FE37 painted anthracite
Cilinder Height: 600 mm.
Cilinder Diameter 220 mm.
Cilinder Thickness: 4
Moving criteria: Pneumatic
Moving Speed: 5 cm./s.
Connection line to SP station: 10 mt.
Housing frame: yes
Counter-frame to be walled in: yes
Moving cylinder head: checkered plate
Category Retractable Bollard - Retractable Bollard
|
|
PILOMAT@ PASS 127/P-800A IRON PAINTED
Cilinder: steel mode FE37 painted anthracite
Cilinder Height: 800 mm.
Cilinder Diameter 127 mm.
Cilinder Thickness: 6
Moving Speed: 10 cm./s.
Manual neutral pulling: yes
Safety pressure switch: yes
Connection line to SP station: 10 mt.
Hydraulic pump: yes
Housing frame: yes
Counter-frame to be walled in: yes
Category Retractable Bollard - Retractable Bollards
|
|
PILOMAT@ PASS 220/C-600A STAINLESS STEEL SILKING
Cilinder: stainless steel AISI 304 painted anthracite
Cilinder Height: 600 mm.
Cilinder Diameter 220 mm.
Cilinder Thickness: 4
Moving criteria: Pneumatic
Moving Speed: 5 cm./s.
Connection line to SP station: 10 mt.
Housing frame: yes
Counter-frame to be walled in: yes
Blinking lifghting point: yes
Moving cylinder head: checkered plate
Category Retractable Bollard - Retractable Bollards
|
|
|
Luxor, the newest addition to the Urbaco family is a technologically advanced product that will hold up to any challenge. It is a retractable, pneumatic bollard, developed to meet any and all requirements. Luxor is the ideal answer to the requirements of heavy duty private use and public applications: business centres, supermarket chains, car dealerships, and historical centres where aesthetics are as important as public safety.
|
|
STOPPY SERIES
Electromechanical automaiton forrising bollards
• A MODEL FOR EVERY NEED.
> Version with lights and alarm.
• SMART TECHNOLOGY.
> Can be configured as follows for power failure: automatic descent or extracted position (with optional Stoppy BAT accessory); When there is no
battery power, Stoppy returns flush to the ground automatically with slight pressure and without causing obstacles.
• SAFE USE.
>Its reflective surface ensures visibility even at night.
|
|
|
|
|
|

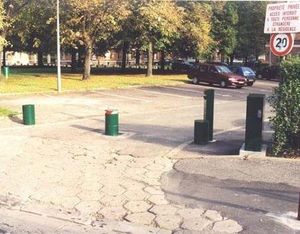

The BORNOSOL can be regarded as belonging to urban furniture; it makes it possible to control or prohibit the circulation of any type of vehicle.
Its operating processes, hydraulics or tire, put it at the shelter problems involved in the water infiltration. Equipped with inductive sensors, it is completely sinkable.
Its stud "anti-slicing" is an additional advantage in harsh environment. In addition, it is a system intended to make failure with the vehicles rams like resisting the accidental shocks.
The BORNOSOL comprises a simple and robust mechanism, and its automatism makes it possible to easily control it to any existing system or in project.
Its communicating interface makes it possible to you to reach remote maintenance and the telecontrol in order to still increase the safety of the exploitation.
The BORNOSOL makes it possible to constitute hoppers of safety associated with a management by badge readers, controllers biometric, readers of number plates...
Of new design, the BORNOSOL can be immersed without its operation being faded.
The BORNOSOL respects standard NF P98-310.
|
|
