1 / 4 - KOMBI 36/4 EM

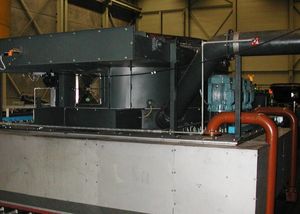

A manual line which uses aqueous solutions, and has a re-circulating rinsing system on carbon and mixed resin beds. Drying is carried out with hot air. It has an electrical panel managed by a PLC with a Touch screen display. The line is predisposed for automation.
|
|
Fogg Rinsers have simple construction which makes them very reliable. Every part of the machine is designed for quick and easy maintenance. The Rinser itself is constructed of stainless steel, and product contact is available in 316L stainless steel, which gives it a very high chemical resistance.

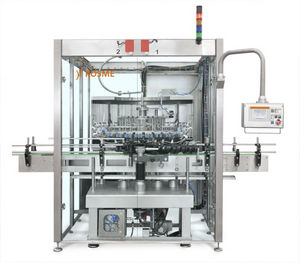

When bottles enter the single effect rinser they are externally sprayed and lifted onto a carousel to be internally sprayed with one rinsing agent.
|
|

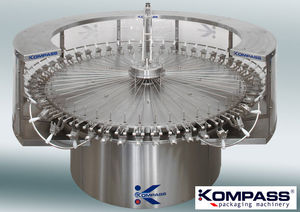

ROTATING RINSER - BLOWER IDEAL FOR CLEANING THE INSIDE OF GLASS, PET, PVC AND PE CONTAINERS
- High technology
- No size changeover for PET bottles
- User-friendly and low-maintenance
- Compatible with "BLOW-SUCK" system

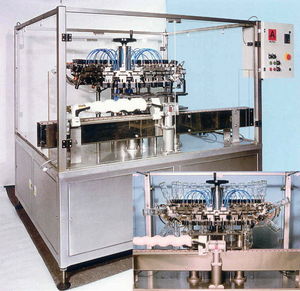

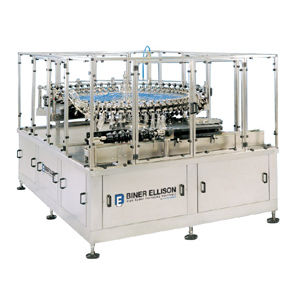

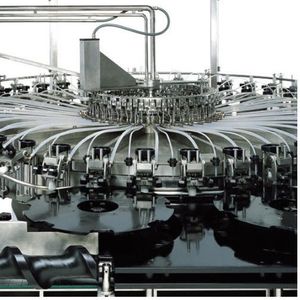

Automatic system using rinsing grippers that hold the bottles by the neck and rotate them by 180° to position them at the processing nozzles fitted on the grippers themselves. These nozzles can either be fixed or enter the bottles depending on production requirements. The circuits in which the various fluids are conveyed, constructed in food-safe materials, are totally separate, to safeguard against the risk of contamination.
|
|
Production range: from 2.000 to 80.000 bottle/hour
Bottle handled: new bottle
Washing cycle description:
- 1 bath with acid or detergent solution;
- 1 acid or detergent jetting station;
- 1 jetting station for recycled first rinsing;
- 1 jetting station for recycled second rinsing;
- 1 jetting station for final rinsing
|
|
| ... products without technical information |
| |
Description
Product: Ketchup
Bottle: PET 240 and 640 oz
Speed : 30.000 BPH (240 oz.)
20.400 BPH(640 oz.
Cap : HDPE Plastic Screw Cap

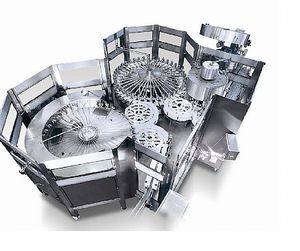

Multiblock Composition
a) Air Rinsing turret with 50 pincers
b) Net Weight TUBE Filler with 56 valves
c) Mechanical Capper with 16 capping heads
Electronics:
The machine is equipped with:
On board hardware: Weightpack
On board software: Weightpack
PLC: Siemens / A&B / Omron
Operator control panel: uniOP
|
|
Description
Specifically designed for the cosmetic and Pharmaceutical industries
with a sealed product tank, polished to Ra = 0.2 Micron
Magnetic fill nozzle without mechanical wear parts in the product flow
Servo Driven Capper heads that can provide:
-Orientation of the cap
-Torque control
-Control of the number of turns or partial turns
-Interchangeable heads for press-on caps
-Quick change size parts
|
|

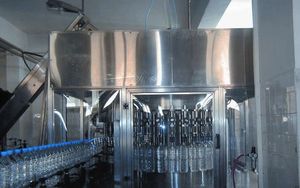

From bottled water to antifreeze, juice to household products, pharmaceutical to dairy products, Fogg rotary filling systems have proven superior in applications throughout the world. We'll engineer your system to meet your specific production requirements - contoured stainless steel filler bowls up to 9 ft diameter, 90 filling valves, integrated rinser and/or capping systems, machine guarding with HEPA filtration. You can rely on Fogg transfer technology for smooth container handling.
Fogg offers Gravity and Pressure Gravity filling with speeds and neck handling technology to assure optimum production rates. There are Tribloc rinser, filler and capper configurations with enclosure options available.
|
|
|
|
